Pagina 1/4
Q U I C K S T A R T
MK2 Professional Studio Monitors
Dear customer,
thank you for choosing our HEDD Audio Type MK2 professional studio monitors.
You have selected an innovative, ultra-transparent sounding active speaker that we think will open the window to your music at the
widest possible angle.
Please unpack your new loudspeaker cautiously. If you discover any damage to the packaging or the speaker itself, don't operate the
speaker and contact your HEDD dealer for solving the problem.
The MK2 monitors oer detailed and partly new kinds of controls, so we invite you to read through the following section carefully.
We suggest that you allow the speaker to acclimate to the temperature of your room for about an hour before using it.
T H A N K Y O U
Make sure the main power switch is in the "0" position, then connect the power cord to the power socket.
Set the power switch to "1". Please note that the LED becomes green immediately but it may take up to 15 sec
to power up and play music. High volume may damage your hearing! Consider lowering the volume rst.Warning:
Connect your audio source via the balanced XLR socket, then select the desired input with the ANALOG / AES
rotary switch on the back plate (bottom left). For digital AES input, please choose the signal (left, right, mono).

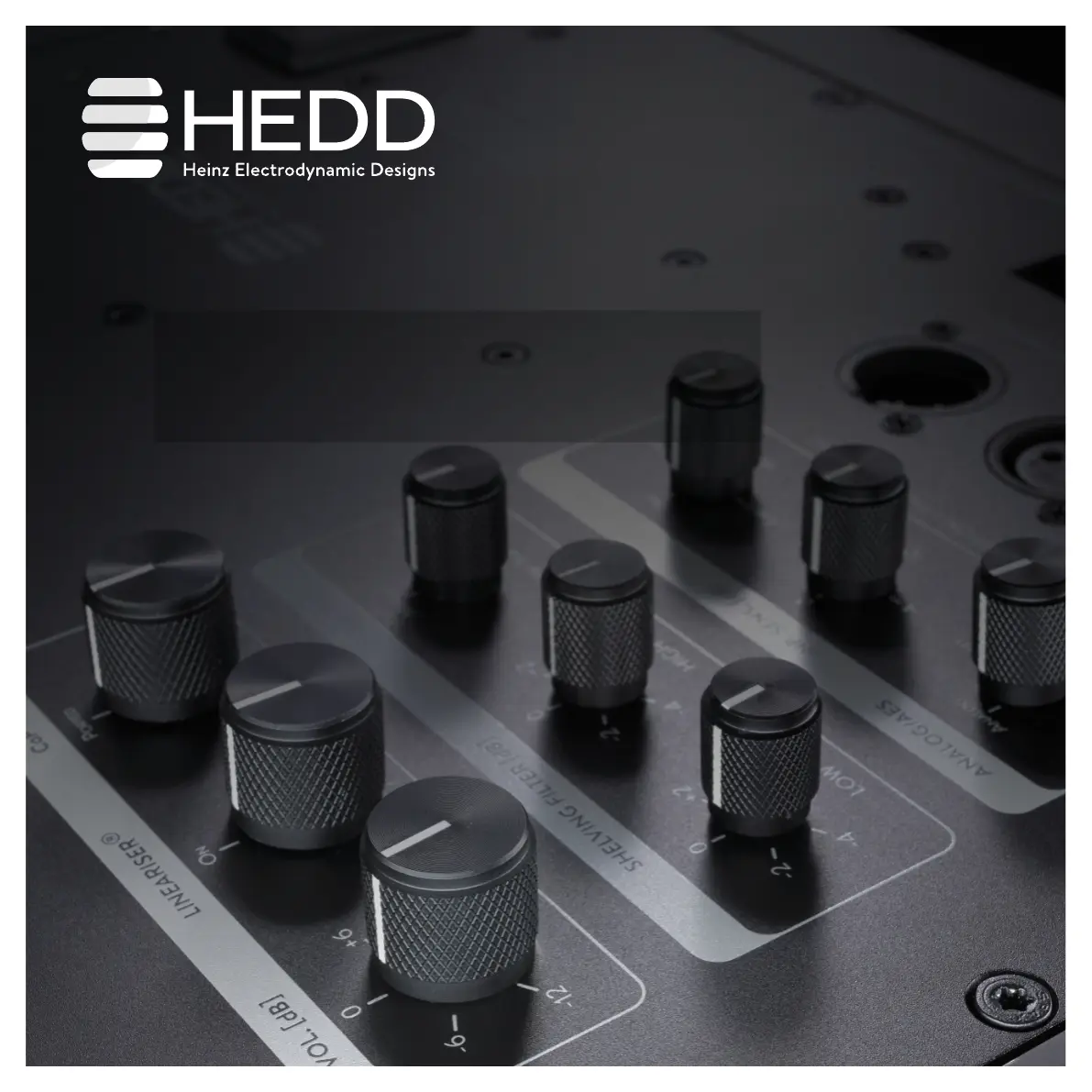

As there are quite a number of control knobs on the backplate we recommend to start playing music with all the
markers in the "Up" position: ALL "0" and " " POSITION = FACTORY SETTING↑
Q U I C K S T A R T
REGISTER your product with HEDD to receive an extended 3 year
warranty as well as to receive information and advice on setting up and
conguring your HEDD audio product.
Please scan the code to the right or visit the URL hedd.link/registration
D O W N L O A D
the full manual at
hedd.link/manual
Q U I C K G U I D E
VOL. [dB] LINEARISER®CoP
-6
-12 +12
+6
0 ON
OFF
(*)
Ported
Closed
SHELVING FILTER [dB] LF RANGE
ANALOG/AES INP. SENS. [dB] DESK FILTER
ALL "0" and " " POSITION = FACTORY SETTING↑
ANALOG IN AES IN AES THROUGH
1
2
3
5
6
4
7
8
9
10
11
12
1. Volume
/ adjust the output volume
2. HEDD Lineariser®
/ activate or deactivate the HEDD Lineariser® for full phase linearity
3. CoP
/ change the DSP settings according to whether you are using the
speakers ported (without plug) or closed (with plug)
4. Low shelf filter
/ changes bass response in a ± 4 dB range in 1 dB steps to adapt the
speakers to your room
5. High shelf filter
/ changes treble response in a ± 4 dB range in 1 dB steps to adapt the
speakers to your room
6. Low frequency range
/ optionally extend the bass range (at the expense of a lower max. SPL)
or optimized for use as satellite with subwoofers
7. Input selection
/ select your active input or stereo channel / please note that in analog
mode the stereo channel is dened by your pre-amp
8. Input sensitivity
/ adjust the input volume by increasing the input by up to 4 dB
(warning: clipping may occur) or lowering it by up to 10 dB
9. Desk filter
/ correct unwanted reections of desks and workspaces
10. Analog input
/ use this balanced XLR input connection to connect your HEDD
monitors with an analog balanced output amplier
11. Digital input
/ use this digital AES connection to connect your HEDD monitors
with a compatible source, for example a corresponding digital interface
12. Digital passthrough
/ use the AES output connection to pass through the input information,
for example to chain multiple speakers
Please download and read the full manual for more information.
1. Red: Overload
2. Green: Power On
3. White: Stand-By
LED INDICATORS
Product specificaties
| Merk: | HEDD |
| Categorie: | Monitor |
| Model: | Bass 12 |
