GA-MA78GPM-UD2H
AM2+/AM2 socket motherboard for
AMD PhenomTM FX processor/AMD PhenomTM X4 processor/
AMD PhenomTM X3 processor/AMD AthlonTM X2 processor/
AMD AthlonTM processor/AMD SempronTM X2 processor/
AMD SempronTM processor
User's Manual
Rev. 1001
12ME-MA78PU2-1001R
Motherboard
GA-MA78GPM-UD2H
Feb. 9, 2009
Feb. 9, 2009
Moth erb oard
GA-MA78GPM-UD2H
- 3 -
Copyright
© 2009 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE without prior
notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any
form or by any means without GIGABYTE's prior written permission.
Documentation Classifications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For instructions on how to use GIGABYTE's unique features, read or download the
information on/from the Support\Motherboard\Technology Guide page on our website.
For product-related information, check on our website at:
http://www.gigabyte.com.tw
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
Box Contents ................................................................................................................. 6
Optional Items ................................................................................................................. 6
GA-MA78GPM-UD2H Motherboard Layout ................................................................... 7
Block Diagram................................................................................................................ 8
Chapter 1 Hardware Installation .................................................................................... 9
1-1 Installation Precautions ..................................................................................... 9
1-2 Product Specifications .................................................................................... 10
1-3 Installing the CPU and CPU Cooler .............................................................. 13
1-3-1 Installing the CPU ................................................................................................ 13
1-3-2 Installing the CPU Cooler ................................................................................... 15
1-4 Installing the Memory ..................................................................................... 16
1-4-1 Dual Channel Memory Configuration ................................................................ 16
1-4-2 Installing a Memory ............................................................................................. 17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 Enabling the ATI Hybrid CrossFireX Function ................................................ 19
1-7 Back Panel Connectors ................................................................................. 20
1-8 Internal Connectors ........................................................................................ 23
Chapter 2 BIOS Setup................................................................................................. 35
2-1 Startup Screen ................................................................................................ 36
2-2 The Main Menu .............................................................................................. 37
2-3 MB Intelligent Tweaker(M.I.T.) ....................................................................... 39
2-4 Standard CMOS Features ............................................................................. 43
2-5 Advanced BIOS Features .............................................................................. 45
2-6 Integrated Peripherals ..................................................................................... 47
2-7 Power Management Setup ............................................................................. 50
2-8 PnP/PCI Configurations................................................................................. 52
2-9 PC Health Status ........................................................................................... 53
2-10 Load Fail-Safe Defaults ................................................................................... 55
2-11 Load Optimized Defaults ................................................................................. 55
2-12 Set Supervisor/User Password ..................................................................... 56
2-13 Save & Exit Setup ......................................................................................... 57
2-14 Exit Without Saving ....................................................................................... 57
- 5 -
Chapter 3 Drivers Installation ...................................................................................... 59
3-1 Installing Chipset Drivers ............................................................................... 59
3-2 Application Software ....................................................................................... 60
3-3 Technical Manuals.......................................................................................... 60
3-4 Contact ........................................................................................................... 61
3-5 System ........................................................................................................... 61
3-6 Download Center ............................................................................................ 62
Chapter 4 Unique Features......................................................................................... 63
4-1 Xpress Recovery2 ......................................................................................... 63
4-2 BIOS Update Utilities ..................................................................................... 66
4-2-1 Updating the BIOS with the Q-Flash Utility ...................................................... 66
4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 69
4-3 EasyTune 6 .................................................................................................... 70
4-4 Easy Energy Saver ...................................................................................... 71
4-5 Q-Share ......................................................................................................... 73
4-6 Time Repair .................................................................................................... 74
Chapter 5 Appendix .................................................................................................... 75
5-1 Configuring SATA Hard Drive(s) .................................................................... 75
5-1-1 Configuring the Onboard SATA Controller ......................................................... 75
5-1-2 Making a SATA RAID/AHCI Driver Diskette for Windows XP ........................ 81
5-1-3 Installing the SATA RAID/AHCI Driver and Operating System ...................... 82
5-2 Configuring Audio Input and Output ................................................................. 86
5-2-1 Configuring 2/4/5.1/7.1-Channel Audio ............................................................ 86
5-2-2 Configuring S/PDIF In/Out .................................................................................. 88
5-2-3 Enabling the Dolby Home Theater Function .................................................... 90
5-2-4 Configuring Microphone Recording ................................................................... 91
5-2-5 Using the Sound Recorder ................................................................................. 93
5-3 Troubleshooting ............................................................................................... 94
5-3-1 Frequently Asked Questions ............................................................................. 94
5-3-2 Troubleshooting Procedure ................................................................................ 95
5-4 Regulatory Statements ................................................................................... 97
- 6 -
Box Contents
GA-MA78GPM-UD2H motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
One IDE cable and one floppy disk drive cable
Two SATA 3Gb/s cables
I/O Shield
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-0*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
COM port cable (Part No. 12CF1-1CM001-3*R)
S/PDIF in and out cable (Part No. 12CR1-1SPINO-1*R)
LPT port cable (Part No. 12CF1-1LP001-0*R)
• The box contents above are for reference only and the actual items shall depend on product package you obtain.
The box contents are subject to change without notice.
• The motherboard image is for reference only.
- 7 -
GA-MA78GPM-UD2H Motherboard Layout
KB_MS
Socket AM2
ATX
GA-MA78GPM-UD2H
USB
LAN
CD_IN
F_AUDIO
AUDIO
M_BIOS
FDD
PCIEX16
IT8718
IDE
DDR2_1
DDR2_2
DDR2_3
DDR2_4
F_1394_1
TSB43AB23
PCIE1
PCI1
BATTERY
CI
CODEC
ATX_12V_2X4
AMD 780G
ESATA
1394
USB
COM
HDMI
PWR_LED
F_USB1
CLR_CMOS
RTL8111C
CPU_FAN
SATA2_0
SATA2_3
SATA2_2
F_USB2
F_USB3
OPTICAL
PCI2
SPDIF_IO
SYS_FAN
AMD SB700
SATA2_1
F_PANEL
LPT
DVI-D
VGA
F_USB4
SATA2_4
NB_FAN
B_BIOS
SidePort
Memory
- 8 -
Block Diagram
(Note 1) Whether 1200 MHz memory speed is supported depends on the CPU being used.
(Note 2) Simultaneous output for DVI-D and HDMI is not supported.
AMD Socket
AM2+/AM2
CPU
CPU CLK+/-(200 MHz)
Hyper Transport 3.0
1 PCI Express x1
PCI Express Bus AMD 780G
DDR2 1200 (Note 1)/1066/
800 MHz DIMM
Dual Channel Memory
6 SATA 3Gb/s
ATA-133/100/66/33
IDE Channel
x 1
PCIe CLK
(100 MHz)
PCIe CLK
(100 MHz)
LPC BUS
PCI Express x16
AMD SB700 12 USB Ports
GFX CLK (100 MHz)
D-Sub
Line-Out
MIC
CODEC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
DVI-D or HDMI (Note 2)
2 PCI
PCI Bus
2 IEEE 1394a
TSB43AB23
RJ45
RTL
8111C
LAN
LPT Port
Floppy
COM Port
PS/2 KB/Mouse
IT8718
1 PCI Express x16
Dual BIOS
DDR3 SidePort
Memory
Hardware Installation- 9 -
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keep your hands dry and first touch a metal object to eliminate static electricity.
• Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power supply
has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface
.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certified computer technician.
Chapter 1 Hardware Installation
GA-MA78GPM-UD2H Motherboard - 10 -
1-2 Product Specifications
CPU Support for Socket AM2+/AM2 processors:
AMD PhenomT M FX processor/AMD PhenomTM X4 processor/
AMD PhenomTM X3 processor/AMD AthlonTM X2 processor/
AMD AthlonTM processor/AMD SempronTM X2 processor/
AMD SempronTM processor
(Go to GIGABYTE's website for the latest CPU support list.)
Hyper Transport Bus 5200/2000 MT/s
Chipset North Bridge: AMD 780G
South Bridge: AMD SB700
Memory 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR2 1200 (Note 2)/1066/800 MHz memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Audio Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby® Home Theater (Note 3)
Support for S/PDIF In/Out
Support for CD In
LAN Realtek 8111C chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express p10-x1 slot
2 x PCI slots
Storage Interface South Bridge:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 5 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3,
SATA2_4) supporting up to 5 SATA 3Gb/s devices
- 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA
3Gb/s device
- Support for SATA RAID 0, RAID 1, RAID 10 and JBOD
iTE IT8718 chip:
- 1 x floppy disk drive connector supporting up to 1 floppy disk drive
IEEE 1394 T.I. TSB43AB23 chip
Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket
connected to the internal IEEE 1394a header)
USB Integrated in the South Bridge
Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets
connected to the internal USB headers)
Hardware Installation- 11 -
Internal Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
5 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In/Out header
1 x IEEE 1394a header
4 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x chassis intrusion header
1 x power LED header
Back Panel 1 x PS/2 keyboard port
Connectors 1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 4)(Note 5)
1 x HDMI port(Note 5)
1 x optical S/PDIF Out connector
1 x eSATA 3Gb/s port
1 x IEEE 1394a port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side
Speaker Out/Line In/Line Out/Microphone)
I/O Controller iTE IT8718 chip
Hardware Monitor System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control (Note 6)
BIOS 2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOSTM
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
GA-MA78GPM-UD2H Motherboard - 12 -
Unique Features Support for @BIOS
Support for Q-Flash
Support for Virtual Dual BIOS
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Note 7)
Support for Easy Energy Saver (Note 8)
Support for Time Repair
Support for Q-Share
Bundled Software Norton Internet Security (OEM version)
Operating System Support for Microsoft® Windows
® Vista/XP
Form Factor Micro ATX Form Factor; 24.3cm x 24.3cm
(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Whether 1200 MHz memory speed is supported depends on the CPU being used.
(Note 3) For Windows Vista/XP 32-bit operating system only.
(Note 4) The DVI-D port does not support D-Sub connection by adapter.
(Note 5) Simultaneous output for DVI-D and HDMI is not supported.
(Note 6) Whether the CPU/system fan speed control function is supported will depend on the CPU/
system cooler you install.
(Note 7) Available functions in EasyTune may differ by motherboard model.
(Note 8) Due to the hardware limitation, you must install an AMD AM2+ PhenomTM series CPU to
enable support for Easy Energy Saver.
Hardware Installation- 13 -
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
• Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
• Always turn off the computer and unplug the power cord from the power outlet before
installing the CPU to prevent hardware damage.
• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.
• Apply an even and thin layer of thermal grease on the surface of the CPU.
• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and
damage of the CPU may occur.
• Set the CPU host frequency in accordance with the CPU specifications. It is not recom-
mended that the system bus frequency be set beyond hardware specifications since it
does not meet the standard requirements for the peripherals. If you wish to set the frequency
beyond the standard specifications, please do so according to your hardware specifications
including the CPU, graphics card, memory, hard drive, etc.
1-3-1 Installing the CPU
A. Locate the pin one (denoted by a small triangle) of the CPU socket and the CPU.
AM2+/AM2 CPU
AM2 Socket
A Small Triangle Mark
Denotes Pin One of the
Socket
A Small Triangle Marking
Denotes CPU Pin One
GA-MA78GPM-UD2H Motherboard - 14 -
Step 2:
Align the CPU pin one (small triangle marking)
with the triangle mark on the CPU socket and
gently insert the CPU into the socket. Make
sure that the CPU pins fit perfectly into their
holes. Once the CPU is positioned into its
socket, place one finger down on the middle of
the CPU, lowering the locking lever and latch-
ing it into the fully locked position.
Step 1:
Completely lift up the CPU socket locking lever.
CPU Socket Locking
Lever
Do not force the CPU into the CPU socket. The CPU cannot fit in if oriented incorrectly. Adjust
the CPU orientation if this occurs.
B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
Before installing the CPU, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the CPU.
Hardware Installation- 15 -
Use extreme care when removing the CPU cooler because the thermal grease/tape between
the CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler
may damage the CPU.
1-3-2 Installing the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the CPU. (The following procedure uses
the GIGABYTE cooler as the example.)
Step 1:
Apply an even and thin layer of thermal grease
on the surface of the installed CPU.
Step 2:
Place the CPU cooler on the CPU.
Step 4:
Turn the cam handle from the left side to the
right side (as the picture above shows) to lock
into place. (Refer to your CPU cooler installa-
tion manual for instructions on installing the
cooler.)
Step 3:
Hook the CPU cooler clip to the mounting lug on
one side of the retention frame. On the other side,
push straight down on the the CPU cooler clip to
hook it to the mounting lug on the retention frame.
Step 5:
Finally, attach the power connector of the CPU
cooler to the CPU fan header (CPU_FAN) on
the motherboard.
GA-MA78GPM-UD2H Motherboard - 16 -
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
• Make sure that the motherboard supports the memory. It is recommended that memory of
the same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest memory support list.)
• Always turn off the computer and unplug the power cord from the power outlet before
installing the memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
1-4-1 Dual Channel Memory Configuration
This motherboard provides four DDR2 memory sockets and supports Dual Channel
Technology. After the memory is installed, the BIOS will automatically detect the
specifications and capacity of the memory. Enabling Dual Channel memory mode
will double the original memory bandwidth.
The four DDR2 memory sockets are divided into two channels and each channel has two memory
sockets as following:
Channel 0: DDR2_1, DDR2_3
Channel 1: DDR2_2, DDR2_4
Due to CPU limitation, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR2 memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that
memory of the same capacity, brand, speed, and chips be used and installed in the same
colored DDR2 sockets for optimum performance.
Dual Channel Memory Configurations Table
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
Two Modules
Four Modules
DDR2_1 DDR2_2 DDR2_3 DDR2_4
DS/SS DS/SS - - - -
- - - - DS/SS DS/SS
DS/SS DS/SS DS/SS DS/SS
If two memory modules are to be installed, it is recom-
mended that you install them in the DDR2_1 and DDR2_2
sockets.
DDR2_1
DDR2_2
DDR2_3
DDR2_4
Hardware Installation- 17 -
1-4-2 Installing a Memory
Notch
Before installing a memory module , make sure to turn off the computer and unplug
the power cord from the power outlet to prevent damage to the memory module.
DDR2 DIMMs are not compatible to DDR DIMMs. Be sure to install DDR2 DIMMs on
this motherboard.
DDR2 DIMM
A DDR2 memory module has a notch, so it can only fit in one direction. Follow the steps below to
correctly install your memory modules in the memory sockets.
Step 1:
Note the orientation of the memory module. Spread the retaining
clips at both ends of the memory socket. Place the memory
module on the socket. As indicated in the picture on the left,
place your fingers on the top edge of the memory, push down
on the memory and insert it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when
the memory module is securely inserted.
GA-MA78GPM-UD2H Motherboard - 18 -
1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
• Make sure the motherboard supports the expansion card. Carefully read the manual that
came with your expansion card.
• Always turn off the computer and unplug the power cord from the power outlet before
installing an expansion card to prevent hardware damage.
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for
your expansion card(s).
7. Install the driver provided with the expansion card in your operating system.

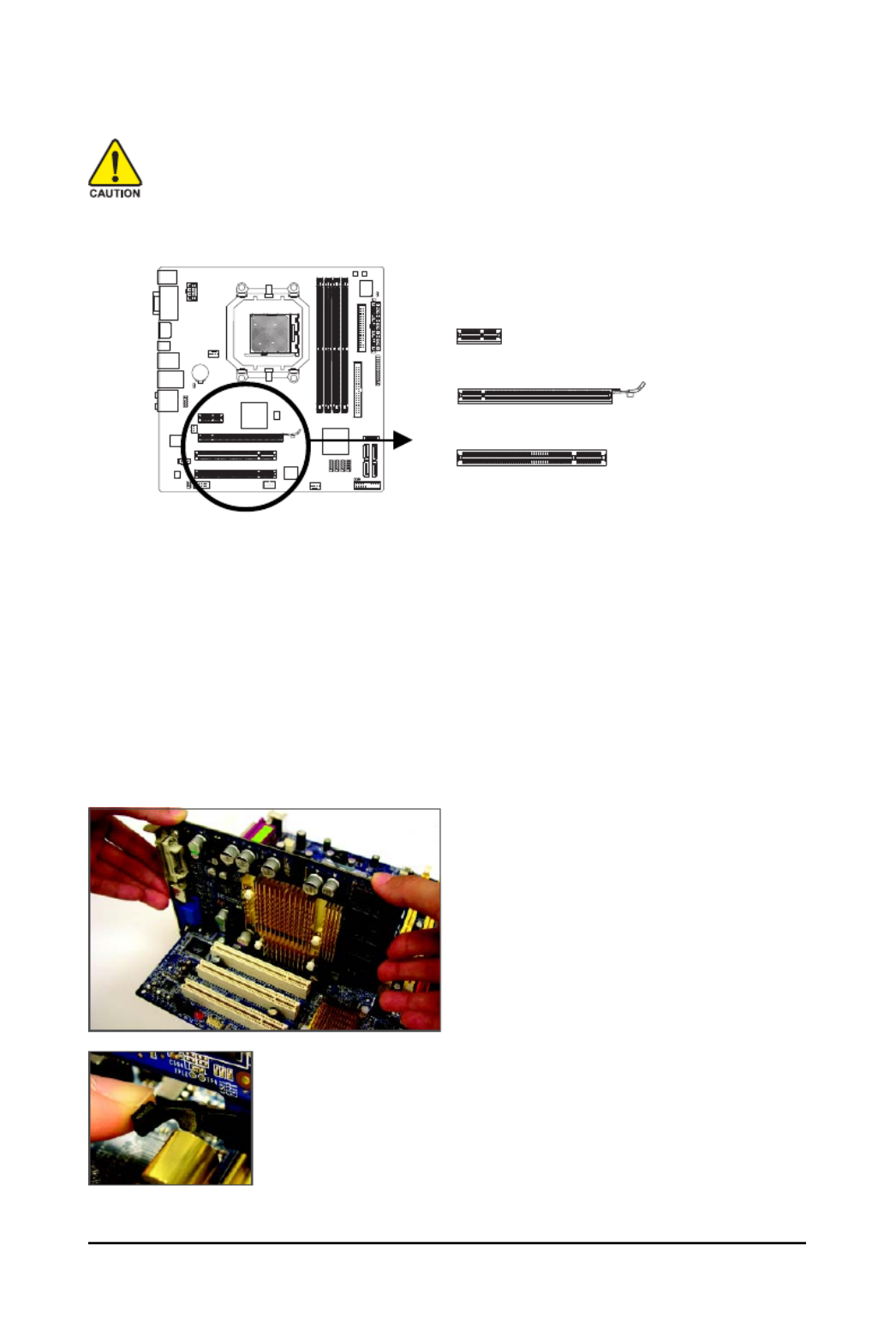

Example: Installing and Removing a PCI Express x16 Graphics Card:
• Installing a Graphics Card:
Gently push down on the top edge of the card
until it is fully inserted into the PCI Express x16
slot. Make sure the card is securely seated in
the slot and does not rock.
• Removing the Card:
Gently push back on the lever on the slot and then lift the card straight out
from the slot.
PCI Express p18-x1 Slot
PCI Express x16 Slot
PCI Slot
Hardware Installation- 19 -
1-6 Enabling the ATI Hybrid CrossFireX Function
Combining the onboard GPU with a discrete graphics card, ATI Hybrid CrossFireX can provide
significantly advanced display performance for AMD platform. This section give instructions on config-
uring an ATI Hybrid CrossFireX system.
A. Before you begin--
1. Operation System Requirement:
Windows Vista and Windows XP*.
2. BIOS Setup:
Enter BIOS Setup to set the following items under the Advanced BIOS Features menu:
• Set Internal Graphics Mode to UMA+SidePort.
• Set UMA Frame Buffer Size to 256MB.
• Set Surround View to Disabled.
• Set Init Display First to OnChipVGA.
3. Graphics Card Requirement:
An ATI Hybrid CrossFireX-supported graphics card.
B. ATI Hybrid CrossFireX Driver Installation and Setup
Insert the motherboard driver disk and select Installing Chipset Drivers. Click Xpress Install for
installation. Restart your system when completed. Follow the steps below to enable ATI Hybrid
CrossFireX.
* For Windows XP, you must install AMD chipset driver version 8.51 or later.
Step 1:
The ATI icon appears in the system tray
after the system restarts. Right-click the icon to
enter the Catalyst Control Center.
Step 2:
Enter the CrossFire menu and select the En-
able CrossFire checkbox.
• You do not have to install the graphics card driver if the motherboard chipset driver has been
installed.
• To change the Internal Graphic Mode or UMA Frame Buffer Size setting in BIOS Setup,
be sure to disable the CrossFire function in the operating system first.
GA-MA78GPM-UD2H Motherboard - 20 -
1-7 Back Panel Connectors
• After installing the HDMI device, make sure the default device for sound playback is the
HDMI device. (The item name may differ by operating system. Refer the figures below
for details.), and enter BIOS Setup, then set Onboard VGA output connect to D-SUB/
HDMI under Advanced BIOS Features.
• Please note the HDMI audio output only supports AC3, DTS and 2-channel-LPCM
formats. (AC3 and DTS require the use of an external decoder for decoding.)
In Windows Vista, select Start>Control Panel>Sound, select
Realtek HDMI Output and then click Set Default.
PS/2 Keyboard and PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2
keyboard.
D-Sub Port
The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub
connection to this port.
DVI-D Port (Note)
The DVI-D port supports DVI-D specifictation. Connect a monitor that supports DVI-D connection to
this port.
HDMI Port (Note)
The HDMI (High-Definition Multimedia Interface) provides an all-digital audio/video interface to
transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI audio/
video device to this port. The HDMI Technology can support a maximum resolution of 1920x1080p
but the actual resolutions supported depend on the monitor being used.
(Note) Simultaneous output for DVI-D and HDMI is not supported.
(Note)
(Note)
Hardware Installation- 21 -
A. Dual Display Configurations:
This motherboard provides three ports for video output: DVI-D, HDMI and D-Sub. The table below
shows the supported dual display configurations.
Dual
Display
Combination Supported or Not
DVI-D + D-Sub Yes
DVI-D + HDMI No
HDMI + D-Sub Yes
B. Playback of HD DVD and Blu-ray Discs:
In order to get better playback quality, when playing the HD DVD or Blu-ray discs, refer to the
recommended system requirements (or better) below.
• CPU: AMD AthlonTM LE1620 or above processor
• Memory: Two 1 GB DDR2 800 memory modules with dual channel mode enabled
•BIOS Setup: At least 256 MB of UMA Frame Buffer Size (refer to Chapter 2, "BIOS Setup,"
"Advanced BIOS Features," for more information)
• Playback software: CyberLink PowerDVD 8.0 or above (Note: Please ensure Hardware
Acceleration is enabled )
File Format Suitable Resolution
Windows Vista
Non-protected contents 1920 x 1080p
HD-DVD 1920 x 1080p
Blu-ray 1920 x 1080p
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical
audio. Before using this feature, ensure that your audio system provides an optical digital audio in
connector.
USB Port
The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB flash drive and etc.
IEEE 1394a Port
The IEEE 1394 port supports the IEEE 1394a specification, featuring high speed, high bandwidth
and hotplug capabilities. Use this port for an IEEE 1394a device.
eSATA 3Gb/s Port
The eSATA 3Gb/s port conforms to SATA 3Gb/s standard and is compatible with SATA 1.5Gb/s
standard. Use the port to connect an external SATA device or a SATA port multiplier.
Hardware Installation- 23 -
1-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN
5) NB_FAN
6) FDD
7) IDE
8) SATA2_0 / 1 / 2 / 3 / 4
9) PWR_LED
10) F_PANEL
11) F_AUDIO
12) CD_IN
13) SPDIF_IO
14) F_USB1 / F_USB2 / F_USB3 / F_USB4
15) F_1394_1
16) LPT
17) COM
18) C I
19) CLR_CMOS
20) BATTERY
1
2
3
6
8
9
18
10
20
11
12
4
16
13
1417 15
7
19
5
GA-MA78GPM-UD2H Motherboard - 24 -
ATX:
Pin No. Definition
13 3.3V
14 -12V
15 GND
16 PS_ON(soft On/Off)
17 GND
18 GND
19 GND
20 -5V
21 +5V
22 +5V
23 +5V (Only for 2x12-pin ATX)
24 GND (Only for 2x12-pin ATX)
Pin No. Definition
1 3.3V
2 3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 Power Good
9 5V SB(stand by +5V)
10 +12V
11 +12V (Only for 2x12-pin ATX)
12 3.3V (Only for 2x12-pin ATX)
1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the
components on the motherboard. Before connecting the power connector, first make sure the
power supply is turned off and all devices are properly installed. The power connector possesses
a foolproof design. Connect the power supply cable to the power connector in the correct orientation.
The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not
connected, the computer will not start.
• To meet expansion requirements, it is recommended that a power supply that can withstand
high power consumption be used (500W or greater). If a power supply is used that does not
provide the required power, the result can lead to an unstable or unbootable system.
• The power connectors are compatible with power supplies with 2x2 12V and 2x10 power
connectors. When using a power supply providing a 2x4 12V and a 2x12 power connector,
remove the protective covers from the 12V power connector and the main power connector on
the motherboard. Do not insert the power supply cables into pins under the protective covers
when using a power supply providing a 2x2 12V and a 2x10 power connector.
ATX
13 1
24 12
1
4
5
8
ATX_12V_2X4
ATX_12V_2X4:
Pin No. Definition
1 GND (Only for 2x4 pin 12V)
2 GND (Only for 2x4 pin 12V)
3 GND
4 GND
5 +12V (Only for 2x4 pin 12V)
6 +12V (Only for 2x4 pin 12V)
7 +12V
8 +12V
Hardware Installation- 25 -
3/4) CPU_FAN/SYS_FAN (Fan Headers)
The motherboard has a 4-pin CPU fan header (CPU_FAN)and a 4-pin system fan header
(SYS_FAN). Each fan header supplies a +12V power voltage and possesses a foolproof insertion
design. When connecting a fan cable, be sure to connect it in the correct orientation. Most fans are
designed with color-coded power connector wires. A red power connector wire indicates a
positive connection and requires a +12V voltage. The black connector wire is the ground wire. The
motherboard supports CPU fan speed control, which requires the use of a CPU fan with fan speed
control design. For optimum heat dissipation, it is recommended that a system fan be installed
inside the chassis.
Pin No. Definition
1 GND
2 +12V / Speed Control
3 Sense
4 Speed Control
CPU_FAN:
Pin No. Definition
1 GND
2 +12V / Speed Control
3 Sense
4 Reserve
SYS_FAN:
1
CPU_FAN
SYS_FAN
5) NB_FAN (North Bridge Fan Header)
Connect the North Bridge fan cable to this header. The fan header has a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation. Most fans are designed
with color-coded power connector wires. A red power connector wire indicates a positive connec-
tion and requires a +12V voltage. The black connector wire is the ground wire.
• Be sure to connect fan cables to the fan headers to prevent your CPU, North Bridge and
system from overheating. Overheating may result in damage to the CPU/North Bridge or
the system may hang.
• These fan headers are not configuration jumper blocks. Do not place a jumper cap on the
headers.
Pin No. Definition
1 GND
2 +12V
3 NC
1
1
GA-MA78GPM-UD2H Motherboard - 26 -
7) IDE (IDE Connector)
The IDE connector supports up to two IDE devices such as hard drives and optical drives. Before
attaching the IDE cable, locate the foolproof groove on the connector. If you wish to connect two IDE
devices, remember to set the jumpers and the cabling according to the role of the IDE devices (for
example, master or slave). (For information about configuring master/slave settings for the IDE
devices, read the instructions from the device manufacturers.)
2
40
1
39
6) FDD (Floppy Disk Drive Connector)
This connector is used to connect a floppy disk drive. The types of floppy disk drives supported
are: 360 KB, 720 KB, 1.2 MB, 1.44 MB, and 2.88 MB. Before connecting a floppy disk drive, be
sure to locate pin 1 of the connector and the floppy disk drive cable. The pin 1 of the cable is
typically designated by a stripe of different color.
12
3334
GA-MA78GPM-UD2H Motherboard - 28 -
10) F_PANEL (Front Panel Header)
Connect the power switch, reset switch, speaker and system status indicator on the chassis front
panel to this header according to the pin assignments below. Note the positive and negative pins
before connecting the cables.
The front panel design may differ by chassis. A front panel module mainly consists of
power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When
connecting your chassis front panel module to this header, make sure the wire assign-
ments and the pin assignments are matched correctly.
HD+
RES-
NC
SPEAK-
MSG+
PW+
Message/Power/
Sleep LED Speaker
SPEAK+
Power
Switch
Hard Drive
Activity LED
Reset
Switch
19
20
HD-
RES+
MSG-
PW-
1
2
• PW (Power Switch, Red):
Connects to the power switch on the chassis front panel. You may configure the way to turn off
your system using the power switch (refer to Chapter 2, "BIOS Setup," "Power Management
Setup," for more information).
• SPEAK (Speaker, Orange):
Connects to the speaker on the chassis front panel. The system reports system startup status
by issuing a beep code. One single short beep will be heard if no problem is detected at system
startup. If a problem is detected, the BIOS may issue beeps in different patterns to indicate the
problem. Refer to Chapter 5, "Troubleshooting," for information about beep codes.
• HD (Hard Drive Activity LED, Blue)
Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard
drive is reading or writing data.
• RES (Reset Switch, Green):
Connects to the reset switch on the chassis front panel. Press the reset switch to restart the
computer if the computer freezes and fails to perform a normal restart.
• NC (Purple):
No connection
System Status LED
S0 On
S1 Blinking
S3/S4/S5 Off
• MSG (Message/Power/Sleep LED, Yellow):
Connects to the power status indicator on the chassis front panel. The
LED is on when the system is operating. The LED keeps blinking when
the system is in S1 sleep state. The LED is off when the system is in
S3/S4 sleep state or powered off (S5).
Hardware Installation- 29 -
11) F_AUDIO (Front Panel Audio Header)
The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may
connect your chassis front panel audio module to this header. Make sure the wire assignments of
the module connector match the pin assignments of the motherboard header. Incorrect connection
between the module connector and the motherboard header will make the device unable to work
or even damage it.
12) CD_IN (CD In Connector)
You may connect the audio cable that came with your optical drive to the header.
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
10 9
2 1
For AC'97 Front Panel Audio:
1
• The front panel audio header supports HD audio by default. If your chassis provides an
AC'97 front panel audio module, refer to the instructions on how to activate AC'97 functioninality
via the audio software in Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."
• Audio signals will be present on both of the front and back panel audio connections
simultaneously. If you want to mute the back panel audio (only supported when using an HD
front panel audio module), refer to Chapter 5, "Configuring 2/4/5.1/7.1-Channel Audio."
• Some chassis provide a front panel audio module that has separated connectors on each
wire instead of a single plug. For information about connecting the front panel audio
module that has different wire assignments, please contact the chassis manufacturer.
Pin No. Definition
1 MIC
2 GND
3 MIC Power
4 NC
5 Line Out (R)
6 NC
7 NC
8 No Pin
9 Line Out (L)
10 NC
Pin No. Definition
1 MIC2_L
2 GND
3 MIC2_R
4 -ACZ_DET
5 LINE2_R
6 GND
7 FAUDIO_JD
8 No Pin
9 LINE2_L
10 GND
For HD Front Panel Audio:
GA-MA78GPM-UD2H Motherboard - 30 -
13) SPDIF_IO (S/PDIF In/Out Header, Red)
This header supports digital S/PDIF in/out. Via an optional S/PDIF in and out cable, this header can
connect to an audio device that supports digital audio out and an audio system that supports digital
audio in. For purchasing the optional S/PDIF in and out cable, please contact the local dealer.
Pin No. Definition
1 Power
2 No Pin
3 SPDIF
4 SPDIFI
5 GND
6 GND
1
6
2
5
14) F_USB1/F_USB2/F_USB3/F_USB4 (USB Headers, Yellow)
The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports
via an optional USB bracket. For purchasing the optional USB bracket, please contact the local
dealer.
Pin No. Definition
1 Power (5V)
2 Power (5V)
3 USB DX-
4 USB DY-
5 USB DX+
6 USB DY+
7 GND
8 GND
9 No Pin
10 NC
• Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB header.
• Prior to installing the USB bracket, be sure to turn off your computer and unplug the
power cord from the power outlet to prevent damage to the USB bracket.
109
21
Hardware Installation- 31 -
15) F_1394_1 (IEEE 1394a Header, Gray)
The header conforms to IEEE 1394a specification. The IEEE 1394a header can provide one IEEE
1394a port via an optional IEEE 1394a bracket. For purchasing the optional IEEE 1394a bracket,
please contact the local dealer.
Pin No. Definition
1 TPA+
2 TPA-
3 GND
4 GND
5 TPB+
6 TPB-
7 Power (12V)
8 Power (12V)
9 No Pin
10 GND
• Do not plug the USB bracket cable into the IEEE 1394a header.
• Prior to installing the IEEE 1394a bracket, be sure to turn off your computer and unplug
the power cord from the power outlet to prevent damage to the IEEE 1394a bracket.
• To connect an IEEE 1394a device, attach one end of the device cable to your computer
and then attach the other end of the cable to the IEEE 1394a device. Ensure that the cable
is securely connected.
16) LPT (Parallel Port Header)
The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the
optional LPT port cable, please contact the local dealer.
Pin No. Definition
1 STB-
2 AFD-
3 PD0
4 ERR-
5 PD1
6 INIT-
7 PD2
8 SLIN-
9 PD3
10 GND
11 PD4
12 GND
13 PD5
Pin No. Definition
14 GND
15 PD6
16 GND
17 PD7
18 GND
19 ACK-
20 GND
21 BUSY
22 GND
23 PE
24 No Pin
25 SLCT
26 GND
25
1
26
2
10
9
2
1
GA-MA78GPM-UD2H Motherboard - 32 -
17) COM (Serial Port Header, White)
The COM header can provide one serial port via an optional COM port cable. For purchasing the
optional COM port cable, please contact the local dealer.
Pin No. Definition
1 NDCD -
2 NSIN
3 NSOUT
4 NDTR -
5 GND
6 NDSR -
7 NRTS -
8 NCTS -
9 NRI -
10 No Pin
10
9
2
1
18) CI (Chassis Intrusion Header)
This motherboard provides a chassis detection feature that detects if the chassis cover has been
removed. This function requires a chassis with chassis intrusion detection design.
Pin No. Definition
1 Signal
2 GND
1
Hardware Installation- 33 -
19) CLR_CMOS (Clearing CMOS Jumper)
Use this jumper to clear the CMOS values (e.g. date information and BIOS configurations) and
reset the CMOS values to factory defaults. To clear the CMOS values, place a jumper cap on the
two pins to temporarily short the two pins or use a metal object like a screwdriver to touch the two
pins for a few seconds.
• Always turn off your computer and unplug the power cord from the power outlet before
clearing the CMOS values.
• After clearing the CMOS values and before turning on your computer, be sure to remove
the jumper cap from the jumper. Failure to do so may cause damage to the motherboard.
• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized
Defaults) or manually configure the BIOS settings (refer to Chapter 2, "BIOS Setup," for
BIOS configurations).
20) BATTERY
The battery provides power to keep the values (such as BIOS configurations, date, and time
information) in the CMOS when the computer is turned off. Replace the battery when the battery
voltage drops to a low level, or the CMOS values may not be accurate or may be lost.
• Always turn off your computer and unplug the power cord before replacing the battery.
• Replace the battery with an equivalent one. Danger of explosion if the battery is replaced
with an incorrect model.
• Contact the place of purchase or local dealer if you are not able to replace the battery by
yourself or uncertain about the battery model.
• When installing the battery, note the orientation of the positive side (+) and the negative
side (-) of the battery (the positive side should face up).
• Used batteries must be handled in accordance with local environmental regulations.
You may clear the CMOS values by removing the battery:
1. Turn off your computer and unplug the power cord.
2. Gently remove the battery from the battery holder and wait for one minute.
(Or use a metal object like a screwdriver to touch the positive and
negative terminals of the battery holder, making them short for 5 seconds.)
3. Replace the battery.
4. Plug in the power cord and restart your computer.
Open: Normal
Short: Clear CMOS Values
GA-MA78GPM-UD2H Motherboard - 34 -
GA-MA78GPM-UD2H Motherboard - 36 -
2-1 Startup Screen
The following screen may appear when the computer boots.
Function Keys:
<DEL>: BIOS Setup
Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup.
<F9>: Xpress Recovery2
If you have ever entered Xpress Recovery2 to back up hard drive data using the motherboard
driver disk, the <F9> key can be used for subsequent access to XpressRecovery2 during the
POST. For more information, refer to Chapter 4, "Xpress Recovery2."
<F12>: Boot Menu
Boot Menu allows you to set the first boot device without entering BIOS Setup. In Boot Menu, use
the up arrow key < > or the down arrow key< > to select the first boot device, then press <Enter>
to accept. To exit Boot Menu, press <Esc>. The system will directly boot from the device
configured in Boot Menu.
Note: The setting in Boot Menu is effective for one time only. After system restart, the device boot
order will still be based on BIOS Setup settings. You can access Boot Menu again to change the first
boot device setting as needed.
<End>: Q-Flash
Press the <End> key to access the Q-Flash utility directly without having to enter BIOS Setup first.
SATA Mode Message:
"SATA is found running at IDE MODE!"
When the motherboard is set to its default values, the monitor will display a message during the
POST, telling you the SATA controller is running at IDE mode. The message that follows asks if you
want to change it to AHCI mode and enable hot plug functionality for the SATA connectors.
Press <Y> to enable AHCI mode or <N> to continue IDE mode operation and stop showing this
message again.
Note: This message will appear again at next boot if you do not respond YES or NO in time.
Motherboard Model
BIOS Version
Function Keys
Award Modular BIOS v6.00PG, An Energy Star Ally
Copyright (C) 1984-2008, Award Software, Inc.
GA-MA78GPM-UD2H D1
.
.
.
.
<DEL>: BIOS Setup <F9>: XpressRecovery2 <F12>: Boot Menu <End>: Qflash
12/0 3 / 2 0 0 8-RS 7 8 0 - S B 7 0 0 - 6 A 6 6 A G0VC-00
- 37 - BIOS Setup
2-2 The Main Menu
Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use
arrow keys to move among the items and press <Enter> to accept or enter a sub-menu.
(Sample BIOS Version: D1)
Main Menu Help
The onscreen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
Submenu Help
While in a submenu, press <F1> to display a help screen (General Help) of function keys available for
the menu. Press <Esc> to exit the help screen. Help for each item is in the Item Help block on the right
side of the submenu.
• If you do not find the settings you want in the Main Menu or a submenu, press <Ctrl>+<F1>
to access more advanced options.
• When the system is not stable as usual, select the Load Optimized Defaults item to set
your system to its defaults.
• The BIOS Setup menus described in this chapter are for reference only and may differ by
BIOS version.
BIOS Setup Program Function Keys
< >< >< >< > Move the selection bar to select an item
<Enter> Execute command or enter the submenu
<Esc> Main Menu: Exit the BIOS Setup program
Submenus: Exit current submenu
<Page Up> Increase the numeric value or make changes
<Page Down> Decrease the numeric value or make changes
<F1> Show descriptions of the function keys
<F2> Move cursor to the Item Help block on the right (submenus only)
<F5> Restore the previous BIOS settings for the current submenus
<F6> Load the Fail-Safe BIOS default settings for the current submenus
<F7> Load the Optimized BIOS default settings for the current submenus
<F8> Access the Q-Flash utility
<F9> Display system information
<F10> Save all the changes and exit the BIOS Setup program
<F11> Save CMOS to BIOS
<F12> Load CMOS from BIOS
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
MB Intelligent Tweaker(M.I.T.)
Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
ESC: Quit : Select Item F11: Save CMOS to BIOS
F8: Q-Flash F10: Save & Exit Setup F12: Load CMOS from BIOS
Change CPU's Clock & Voltage
GA-MA78GPM-UD2H Motherboard - 38 -
The Functions of the <F11> and <F12> keys (For the Main Menu Only)
F11 : Save CMOS to BIOS
This function allows you to save the current BIOS settings to a profile. You can create up to 8
profiles (Profile 1-8) and name each profile. First enter the profile name (to erase the default profile
name, use the SPACE key) and then press <Enter> to complete.
F12 : Load CMOS from BIOS
If your system becomes unstable and you have loaded the BIOS default settings, you can use this
function to load the BIOS settings from a profile created before, without the hassles of reconfiguring
the BIOS settings. First select the profile you wish to load, then press <Enter> to complete.
MB Intelligent Tweaker(M.I.T.)
Use this menu to configure the clock, frequency and voltages of your CPU, memory, etc.
Standard CMOS Features
Use this menu to configure the system time and date, hard drive types, floppy disk drive types,
and the type of errors that stop the system boot, etc.
Advanced BIOS Features
Use this menu to configure the device boot order, advanced features available on the CPU, and
the primary display adapter.
Integrated Peripherals
Use this menu to configure all peripheral devices, such as IDE, SATA, USB, integrated audio, and
integrated LAN, etc.
Power Management Setup
Use this menu to configure all the power-saving functions.
PnP/PCI Configurations
Use this menu to configure the system's PCI & PnP resources.
PC Health Status
Use this menu to see information about autodetected system/CPU temperature, system voltage
and fan speed, etc.
Load Fail-Safe Defaults
Fail-Safe defaults are factory settings for the most stable, minimal-performance system operations.
Load Optimized Defaults
Optimized defaults are factory settings for optimal-performance system operations.
Set Supervisor Password
Change, set, or disable password. It allows you to restrict access to the system and BIOS Setup.
A supervisor password allows you to make changes in BIOS Setup.
Set User Password
Change, set, or disable password. It allows you to restrict access to the system and BIOS Setup.
An user password only allows you to view the BIOS settings but not to make changes.
Save & Exit Setup
Save all the changes made in the BIOS Setup program to the CMOS and exit BIOS Setup.
(Pressing <F10> can also carry out this task.)
Exit Without Saving
Abandon all changes and the previous settings remain in effect. Pressing <Y> to the confirmation
message will exit BIOS Setup. (Pressing <Esc> can also carry out this task.)
- 39 - BIOS Setup
2-3 MB Intelligent Tweaker(M.I.T.)
• Whether the system will work stably with the overclock/overvoltage settings you made is
dependent on your overall system configurations. Incorrectly doing overclock/overvoltage
may result in damage to CPU, chipset, or memory and reduce the useful life of these
components. This page is for advanced users only and we recommend you not to alter the
default settings to prevent system instability or other unexpected results. (Inadequately alter
ing the settings may result in system's failure to boot. If this occurs, clear the CMOS values
and reset the board to default values.)
• When the System Voltage Optimized item blinks in red, it is recommended that you set
the System Voltage Control item to Auto to optimize the system voltage settings.
(Note) This item is present only if you install a CPU that supports this feature.
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
MB Intelligent Tweaker(M.I.T.)
HT Link Frequency [Auto]
CPU Clock Ratio [Auto]
CPU NorthBridge Freq. (Note) [Auto]
CPU Host Clock Control [Auto]
x CPU Frequency (MHz) 200
PCIE Clock (MHz) [Auto]
VGA Core Clock control [Disabled]
x VGA Core Clock (Mhz) 500
Set Memory Clock [Auto]
x Memory Clock DDR 800
DRAM Configuration [Press Enter]
******** System Voltage Optimized
********
System Voltage Control [Manual]
DDR2 Voltage Control [Normal]
NorthBridge Volt Control [Normal]
SouthBridge Volt Control [Normal]
SidePort Mem Volt Control [Normal]
CPU NB VID Control (Note) [Normal]
CPU Voltage Control [Normal]
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Item Help
Menu Level
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
MB Intelligent Tweaker(M.I.T.)
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Item Help
Menu Level
Normal CPU Vcore 1.3500V
GA-MA78GPM-UD2H Motherboard - 40 -
HT Link Frequency
Allows you to manually set the frequency for the HT Link between the CPU and chipset.
Auto BIOS will automatically adjust the HT Link Frequency. (Default)
200 MHz~2.6 GHz Sets HT Link Frequency to 200 MHz~2.6 GHz.
CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the
CPU being used.
CPU NorthBridge Freq. (Note)
Allows you to alter the North Bridge controller frequency for the installed CPU. The adjustable
range is dependent on the CPU being used.
CPU Host Clock Control
Enables or disables the control of CPU host clock. Auto (default) allows BIOS to automatically
adjust the CPU host frequency. Manual allows the CPU Frequency (Mhz) item below to be
configurable. Note: If your system fails to boot after overclocking, please wait for 20 seconds to
allow for automated system reboot, or clear the CMOS values to reset the board to default values.
CPU Frequency (MHz)
Allows you to manually set the CPU host frequency.
Important It is highly recommended that the CPU frequency be set in accordance with the CPU
specifications.
PCIE Clock (MHz)
Allows you to manually set the PCIe clock frequency. The adjustable range is from 100 MHz to
200 MHz. Auto sets the PCIe clock frequency to standard 100 MHz. (Default: Auto)
VGA Core Clock control
Enables or disables the control of VGA Core clock.
VGA Core Clock (Mhz)
Allows you to manually set the VGA Core clock. The adjustable range is from 200 MHz to 2000 MHz.
This item is configurable only if the VGA Core Clock control option is enabled. (Default: 500)
Set Memory Clock
Determines whether to manually set the memory clock. Auto lets BIOS automatically set the
memory clock as required. Manual allows all voltage control items below to be configurable.
(Default: Auto)
Memory Clock
This option is configurable only when Set Memory Clock is set to Manual.
When you use a AM2 CPU:
DDR 400 Sets Memory Clock to DDR 400.
DDR 533 Sets Memory Clock to DDR 533.
DDR 667 Sets Memory Clock to DDR 667.
DDR 800 Sets Memory Clock to DDR 800.
When you use a AM2+ CPU:
X2.00 Sets Memory Clock to X2.00.
X2.66 Sets Memory Clock to X2.66.
X3.33 Sets Memory Clock to X3.33.
X4.00 Sets Memory Clock to X4.00.
X5.33 Sets Memory Clock to X5.33.
(Note) This item is present only if you install a CPU that supports this feature.
- 41 - BIOS Setup
DRAM Configuration
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
DRAM Configuration
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Item Help
Menu Level
DDRII Timing Items [Auto] SPD Auto
x CAS# latency Auto 5T 5T
x RAS to CAS R/W Delay Auto 5T 5T
x Row Precharge Time Auto 5T 5T
x Minimum RAS Active Time Auto 18T 18T
x 1T/2T Command Timing Auto - - - -
x TwTr Comma
nd Delay
Auto 3T 3T
x Trfc0 for DIMM1 Auto 75ns 75ns
x Trfc2 for DIMM2 Auto - - - -
x Trfc1 for DIMM3 Auto - - - -
x Trfc3 for DIMM4 Auto - - - -
x Write Recovery Time Auto 6T 6T
x Precharge Time Auto 3T 3T
x Row Cycle Time Auto 23T 23T
x RAS to RAS Delay Auto 3T 3T
DDRII Timing Items
Manual allows all DDRII Timing items below to be configurable.
Options are: Auto (default), Manual.
CAS# latency
Options are: Auto (default), 3T~6T.
RAS to CAS R/W Delay
Options are: Auto (default), 3T~6T.
Row Precharge Time
Options are: Auto (default), 3T~6T.
Minimum RAS Active Time
Options are: Auto (default), 5T~18T.
1T/2T Command Timing
Options are: 1T (default), 2T.
TwTr Command Delay
Options are: Auto (default), 1T~3T.
Trfc0 for DIMM1
Options are: 75ns, 105ns, 127.5ns (default), 195ns, 327.5ns.
Trfc2 for DIMM2
Options are: 75ns, 105ns, 127.5ns, 195ns, 327.5ns.
Trfc1 for DIMM3
Options are: 75ns, 105ns, 127.5ns, 195ns, 327.5ns.
Trfc3 for DIMM4
Options are: 75ns, 105ns, 127.5ns, 195ns, 327.5ns.
Write Recovery Time
Options are: Auto (default), 3T~6T.
GA-MA78GPM-UD2H Motherboard - 42 -
Precharge Time
Options are: Auto (default), 2T, 3T.
Row Cycle Time
Options are: Auto (default), 11T~26T.
RAS to RAS Delay
Options are: Auto (default), 2T~5T.
******** System Voltage Optimized ********
System Voltage Control
Determines whether to manually set the system voltages. Auto lets BIOS automatically set the
system voltages as required. Manual allows all voltage control items below to be configurable.
(Default: Manual)
DDR2 Voltage Control
Allows you to set memory voltage.
Normal Supplies the memory voltage as required. (Default)
+0.1V ~ +0.3V Increases memory voltage by 0.1V to 0.3V at 0.1V increment.
NorthBridge Volt Control
Allows you to set the North Bridge voltage.
Normal Supplies the North Bridge voltage as required. (Default)
+0.1V ~ +0.3V Increases North Bridge voltage by 0.1V to 0.3V at 0.1V increment.
SouthBridge Volt Control
Allows you to set the South Bridge voltage.
Normal Supplies the South Bridge voltage as required. (Default)
+0.1V ~ +0.3V Increases South Bridge voltage by 0.1V to 0.3V at 0.1V increment.
SidePort Mem Volt Control
Allows you to set the SidePort memory voltage.
Normal Supplies the SidePort memory voltage as required. (Default)
+0.1V ~ +0.3V Increases SidePort memory voltage by 0.1V to 0.3V at 0.1V increment.
CPU NB VID Control (Note)
Allows you to set the CPU Northbridge VID voltage. Normal sets the CPU Northbridge VID voltage
as required. (Default: Normal)
Note: Increasing CPU voltage may result in damage to your CPU or reduce the useful life of the CPU.
CPU Voltage Control
Allows you to set the CPU voltage. Normal sets the CPU voltage as required. The adjustable
range is dependent on the CPU being installed. (Default: Normal)
Note: Increasing CPU voltage may result in damage to your CPU or reduce the useful life of the
CPU.
Normal CPU Vcore
Displays the normal operating voltage of your CPU.
(Note) This item is present only if you install a CPU that supports this feature.
- 43 - BIOS Setup
2-4 Standard CMOS Features
Date
Sets the system date. The date format is week (read-only), month, date and year. Select the
desired field and use the up arrow or down arrow key to set the date.
Time
Sets the system time. For example, 1 p.m. is 13:0:0. Select the desired field and use the up arrow
or down arrow key to set the time.
IDE Channel 0, 1 Master/Slave
IDE HDD Auto-Detection
Press <Enter> to autodetect the parameters of the IDE/SATA device on this channel.
IDE Channel 0, 1 Master/Slave
Configure your IDE/SATA devices by using one of the three methods below:
• Auto Lets BIOS automatically detect IDE/SATA devices during the POST. (Default)
• None If no IDE/SATA devices are used, set this item to None so the system will
skip the detection of the device during the POST for faster system startup.
• Manual Allows you to manually enter the specifications of the hard drive when the
hard drive access mode is set to CHS.
Access Mode Sets the hard drive access mode. Options are: Auto (default), CHS, LBA,
Large.
IDE Channel 2, 3 Master/Slave
IDE Auto-Detection
Press <Enter> to autodetect the parameters of the IDE/SATA device on this channel.
Extended IDE Drive Configure your IDE/SATA devices by using one of the two methods below:
• Auto Lets BIOS automatically detect IDE/SATA devices during the POST. (Default)
• None If no IDE/SATA devices are used, set this item to None so the system will
skip the detection of the device during the POST for faster system startup.
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
Standard CMOS Features
Date (mm:dd:yy) Wed, Dec 10 2008
Time (hh:mm:ss) 18:25:04
IDE Channel 0 Master [None]
IDE Channel 0 Slave [None]
IDE Channel 1 Master [None]
IDE Channel 1 Slave [None]
IDE Channel 2 Master [None]
IDE Channel 2 Slave [None]
IDE Channel 3 Master [None]
IDE Channel 3 Slave [None]
Drive A [1.44M, 3.5"]
Floppy 3 Mode Support [Disabled]
Halt On [All, But Keyboard]
Base Memory 640K
Extended Memory 766M
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Default F7: Optimized Defaults
Item Help
Menu Level
- 45 - BIOS Setup
2-5 Advanced BIOS Features
Internal Graphics Mode
Allows you to determine whether to allocate the system memory for the onboard graphics controller.
UMA Allocates memory for the onboard graphics controller from the system
memory.
UMA+SidePort Allocates memory for the onboard graphics controller from the system
memory and SidePort memory. (Default)
Disabled Disables the onboard graphics controller.
UMA Frame Buffer Size
Frame buffer size is the total amount of system memory allocated solely for the onboard graphics
controller. MS-DOS, for example, will use only this memory for display. Options are: Auto (default),
128MB, 256MB, 512MB.
Surround View
This option is configurable only when Init Display First is set to PEG. Enables or disables the
Surround View function. This option is configurable only if an ATI graphics card is installed.
(Default: Disabled)
Onboard VGA output connect
Specifies the graphics display of the onboard VGA output from the D-SUB/DVI-D or D-SUB/HDMI.
D-SUB/DVI Sets the D-SUB/DVI-D as the graphics display. (Default)
D-SUB/HDMI Sets the D-SUB/HDMI as the graphics display.
AMD C1E Support
Enables or disables the C1E CPU power-saving function in system halt state. When set to
Software SMI, the CPU core frequency and voltage will be reduced during system halt state to
decrease power consumption. (Default: Software SMI)
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
Advanced BIOS Features
Internal Graphics Mode [UMA+SidePort]
UMA Frame Buffer Size [Auto]
x Surround View Disabled
Onboard VGA output connect [D-SUB/DVI]
AMD C1E Support [Software SMI]
Virtualization [Disabled]
Patch AMD TLB Erratum (Note) [Enabled]
AMD K8 Cool&Quiet control [Auto]
Hard Disk Boot Priority [Press Enter]
First Boot Device [Floppy]
Second Boot Device [Hard Disk]
Third Boot Device [CDROM]
Password Check [Setup]
HDD S.M.A.R.T. Capability [Disabled]
Away Mode [Disabled]
Init Display First [PCI Slot]
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Item Help
Menu Level
(Note) This item is present only if you install a CPU that supports this feature.
GA-MA78GPM-UD2H Motherboard - 46 -
Virtualization
Virtualization allows a platform to run multiple operating systems and applications in independent
partitions. With virtualization, one computer system can function as multiple virtual systems.
(Default: Disabled)
Patch AMD TLB Erratum (Note)
Enables or disables the Patch AMD TLB Erratum function. (Default: Enabled)
AMD K8 Cool&Quiet control
Auto Lets the AMD Cool'n'Quiet driver dynamically adjust the CPU clock and VID to
reduce heat output from your computer and its power consumption. (Default)
Disabled Disable this function.
Hard Disk Boot Priority
Specifies the sequence of loading the operating system from the installed hard drives. Use the up
or down arrow key to select a hard drive, then press the plus key <+> (or <PageUp>) or the minus
key <-> (or <PageDown>) to move it up or down on the list. Press <Esc> to exit this menu when
finished.
First/Second/Third Boot Device
Specifies the boot order from the available devices. Use the up or down arrow key to select a
device and press <Enter> to accept. Options are: Floppy, LS120, Hard Disk, CDROM, ZIP,
USB-FDD, USB-ZIP, USB-CDROM, USB-HDD, Legacy LAN, Disabled.
Password Check
Specifies whether a password is required every time the system boots, or only when you enter
BIOS Setup. After configuring this item, set the password(s) under the Set Supervisor/User
Password item in the BIOS Main Menu.
Setup A password is only required for entering the BIOS Setup program. (Default)
System A password is required for booting the system and for entering the BIOS Setup
program.
HDD S.M.A.R.T. Capability
Enables or disables the S.M.A.R.T. (Self Monitoring and Reporting Technology) capability of your
hard drive. This feature allows your system to report read/write errors of the hard drive and to
issue warnings when a third party hardware monitor utility is installed. (Default: Disabled)
Away Mode
Enables or disables Away Mode in Windows XP Media Center operating system. Away Mode
allows the system to silently perform unattended tasks while in a low-power mode that appears off
(Default: Disabled)
Init Display First
Specifies the first initiation of the monitor display from the installed PCI graphics card,
PCI Express graphics card, or the onboard VGA.
PCI Slot Sets the PCI graphics card as the first display. (Default)
OnChipVGA Sets the onboard VGA as the first display.
PEG Sets PCI Express graphics card as the first display.
(Note) This item is present only if you install a CPU that supports this feature.
- 47 - BIOS Setup
2-6 Integrated Peripherals
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
Integrated Peripherals
OnChip IDE Channel [Enabled]
OnChip SATA Controller [Enabled]
OnChip SATA Type [Native IDE]
x OnChip SATA Port4/5 Type IDE
Onboard Audio Function [Enabled]
Onboard 1394 Function [Enabled]
Onboard LAN Function [Enabled]
SMART LAN [Press Enter]
Onboard LAN Boot ROM [Disabled]
OnChip USB Controller [Enabled]
USB EHCI Controller [Enabled]
USB Keyboard Support [Disabled]
USB Mouse Support [Disabled]
Legacy USB storage detect [Enabled]
Onboard Serial Port 1 [3F8/IRQ4]
Onboard Parallel Port [378/IRQ7]
Parallel Port Mode [SPP]
x ECP Mode Use DMA 3
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Item Help
Menu Level
OnChip IDE Channel
Enables or disables the integrated IDE controller. (Default: Enabled)
OnChip SATA Controller
Enables or disables the integrated SATA controller. (Default: Enabled)
OnChip SATA Type (SATA2_0~SATA2_3 connectors)
Configures the operating mode of the integrated SATA controller.
Native IDE Allows the SATA controller to operate in Native IDE mode. (Default)
Enable Native IDE mode if you wish to install operating systems that
support Native mode.
RAID Enables RAID for the SATA controller.
AHCI Configures the SATA controller to AHCI mode. Advanced Host Controller
Interface (AHCI) is an interface specification that allows the storage driver to
enable advanced Serial ATA features such as Native Command Queuing
and hot plug.
OnChip SATA Port4/5 Type (SATA2_4/ESATA connectors)
Configures the operating mode of the integrated SATA2_4/ESATA connectors.
IDE Disables RAID for the SATA controller and configures the SATA controller to
PATA mode. (Default)
As SATA Type The mode depends on the OnChip SATA Type settings.
Onboard Audio Function
Enables or disables the onboard audio function. (Default: Enabled)
If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item
to Disabled.
Onboard 1394 Function
Enables or disables the onboard IEEE 1394 function. (Default: Enabled)
GA-MA78GPM-UD2H Motherboard - 48 -
Onboard LAN Function
Enables or disables the onboard LAN function. (Default: Enabled)
If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item
to Disabled.
SMART LAN (LAN Cable Diagnostic Function)
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
SMART LAN
Item Help
Menu Level
Start detecting at Port.....
Part1-2 Status = Open / Length = 0 m
Part3-6 Status = Open / Length = 0 m
Part4-5 Status = Open / Length = 0 m
Part7-8 Status = Open / Length = 0 m
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
This motherboard incorporates cable diagnostic feature designed to detect the status of the attached LAN
cable. This feature will detect cabling issue and report the approximate distance to the fault or short.
Refer to the following information for diagnosing your LAN cable:
When No LAN Cable Is Attached...
If no LAN cable is attached to the motherboard, the Status fields of all four pairs of wires will show
Open and the Length fields show 0m, as shown in the figure above.
Start detecting at Port.....
Link Detected --> 100Mbps
Cable Length= 30m
When LAN Cable Is Functioning Normally...
If no cable problem is detected on the LAN cable connected to a Gigabit hub or a 10/100 Mbps hub,
the following message will appear:
Link Detected Displays transmission speed
Cable Length Displays the approximate length of the attached LAN cable.
Note: The Gigabit hub will only operate at a speed of 10/100 Mbps in MS-DOS mode; it will operate
at a normal speed of 10/100/1000 Mbps in Windows mode or when the LAN Boot ROM is
activated.
- 49 - BIOS Setup
Onboard LAN Boot ROM
Allows you to decide whether to activate the boot ROM integrated with the onboard LAN chip.
(Default: Disabled)
OnChip USB Controller
Enables or disables the integrated USB 1.1 controller. (Default: Enabled)
USB EHCI Controller
Enables or disables the integrated USB 2.0 controller. (Default: Enabled)
USB Keyboard Support
Allows USB keyboard to be used in MS-DOS. (Default: Disabled)
USB Mouse Support
Allows USB mouse to be used in MS-DOS. (Default: Disabled)
Legacy USB storage detect
Determines whether to detect USB storage devices, including USB flash drives and USB hard
drives during the POST. (Default: Enabled)
Onboard Serial Port 1
Enables or disables the first serial port and specifies its base I/O address and corresponding
interrupt. Options are: Auto, 2F8/IRQ3, 3F8/IRQ4(default), 3E8/IRQ4, 2E8/IRQ3, Disabled.
Onboard Parallel Port
Enables or disables the onboard parallel port (LPT) and specifies its base I/O address and
corresponding interrupt. Options are: 378/IRQ7 (default), 278/IRQ5, 3BC/IRQ7, Disabled.
Parallel Port Mode
Selects an operating mode for the onboard parallel (LPT) port. Options are: SPP (Standard Parallel
Port)(default), EPP (Enhanced Parallel Port), ECP (Extended Capabilities Port), ECP+EPP.
ECP Mode Use DMA
Selects DMA channel for the LPT port in ECP mode. This item is configurable only if Parallel Port
Mode is set to ECP or ECP+EPP mode. Options are: 3 (default), 1.
When a Cable Problem Occurs...
If a cable problem occurs on a specified pair of wires, the Status field will show Short and
thenlength shown will be the approximate distance to the fault or short.
Example: Part1-2 Status = Short / Length = 2m
Explanation: A fault or short might occur at about 2m on Part 1-2.
Note: Part 4-5 and Part 7-8 are not used in a 10/100 Mbps environment, so their Status fields will
show Open, and the length shown is the approximate length of the attached LAN cable.
GA-MA78GPM-UD2H Motherboard - 50 -
2-7 Power Management Setup
ACPI Suspend Type
Specifies the ACPI sleep state when the system enters suspend.
S1(POS) Enables the system to enter the ACPI S1 (Power on Suspend) sleep state.
In S1 sleep state, the system appears suspended and stays in a low power
mode. The system can be resumed at any time.
S3(STR) Enables the system to enter the ACPI S3 (Suspend to RAM) sleep state
(Default). In S3 sleep state, the system appears to be off and consumes less
power than in the S1 state. When signaled by a wake-up device or event,
the system resumes to its working state exactly where it was left off.
Soft-Off by Power button
Configures the way to turn off the computer in MS-DOS mode using the power button.
Instant-Off Press the power button and then the system will be turned off instantly.
(Default)
Delay 4 Sec. Press and hold the power button for 4 seconds to turn off the system. If the
power button is pressed for less than 4 seconds, the system will enter
suspend mode.
USB Wake Up from S3
Allows the system to be awakened from ACPI S3 sleep state by a wake-up signal from the
installed USB device. (Default: Enabled)
Modem Ring Resume
Allows the system to be awakened from an ACPI sleep state by a wake-up signal from a modem
that supports wake-up function. (Default: Disabled)
(Note) Supported on Windows® Vista® operating system only.
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
Power Management Setup
ACPI Suspend Type [S3(STR)]
Soft-Off by Power button [Instant-off]
USB Wake Up from S3 [Enabled]
Modem Ring Resume [Disabled]
PME Event Wake Up [Enabled]
HPET Support (Note) [Enabled]
Power On By Mouse [Disabled]
Power On By Keyboard [Disabled]
x KB Power ON Password Enter
AC Back Function [Soft-Off]
Power-On by Alarm [Disabled]
x Date (of Month) Everyday
x Resume Time (hh:mm:ss) 0 : 0 : 0
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Item Help
Menu Level
- 51 - BIOS Setup
PME Event Wake Up
Allows the system to be awakened from an ACPI sleep state by a wake-up signal from a PCI or
PCIe device. Note: To use this function, you need an ATX power supply providing at least 1A on
the +5VSB lead. (Default: Enabled)
HPET Support (Note)
Enables or disables High Precision Event Timer (HPET) for Windows® Vista® operating system.
(Default: Enabled)
Power On By Mouse
Allows the system to be turned on by a PS/2 mouse wake-up event.
Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead.
Disabled Disables this function. (Default)
Double Click Double click on left button on the PS/2 mouse to turn on the system.
Power On By Keyboard
Allows the system to be turned on by a PS/2 keyboard wake-up event.
Note: you need an ATX power supply providing at least 1A on the +5VSB lead.
Disabled Disables this function. (Default)
Password Set a password with 1~5 characters to turn on the system.
Any KEY Press any key on the keyboard to turn on the system.
Keyboard 98 Press POWER button on the Windows 98 keyboard to turn on the system.
KB Power ON Password
Set the password when Power On by Keyboard is set to Password. Press <Enter> on this item
and set a password with up to 5 characters and then press <Enter> to accept. To turn on the
system, enter the password and press <Enter>.
Note: To cancel the password, press <Enter> on this item. When prompted for the password, press
<Enter> again without entering the password to clear the password settings.
AC Back Function
Determines the state of the system after the return of power from an AC power loss.
Soft-Off The system stays off upon the return of the AC power. (Default )
Full-On The system is turned on upon the return of the AC power.
Memory The system returns to its last known awake state upon the return of the AC
power.
Power-On by Alarm
Determines whether to power on the system at a desired time. (Default: Disabled)
If enabled, set the date and time as following:
Date (of Month): Turn on the system at a specific time on each day or on a specific day in a
month.
Resume Time (hh: mm: ss): Set the time at which the system will be powered on automatically.
Note: When using this function, avoid inadequate shutdown from the operating system or removal
of the AC power, or the settings may not be effective.
(Note) Supported on Windows® Vista® operating system only.
GA-MA78GPM-UD2H Motherboard - 52 -
2-8 PnP/PCI Configurations
PCI1 IRQ Assignment
Auto BIOS auto-assigns IRQ to the first PCI slot. (Default)
3,4,5,7,9,10,11,12,14,15 Assigns IRQ 3,4,5,7,9,10,11,12,14,15 to the first PCI slot.
PCI2 IRQ Assignment
Auto BIOS auto-assigns IRQ to the second PCI slot. (Default)
3,4,5,7,9,10,11,12,14,15 Assigns IRQ 3,4,5,7,9,10,11,12,14,15 to the second PCI slot.
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
PnP/PCI Configurations
PCI1 IRQ Assignment [Auto]
PCI2 IRQ Assignment [Auto]
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Item Help
Menu Level
- 53 - BIOS Setup
2-9 PC Health Status
Reset Case Open Status
Keeps or clears the record of previous chassis intrusion status. Enabled clears the record of
previous chassis intrusion status and the Case Opened field will show "No" at next boot. (Default:
Disabled)
Case Opened
Displays the detection status of the chassis intrusion detection device attached to the motherboard
CI header. If the system chassis cover is removed, this field will show "Yes", otherwise it will
show "No". To clear the chassis intrusion status record, set Reset Case Open Status to Enabled,
save the settings to CMOS, and then restart your system.
Current Voltage(V) Vcore/DDR2 1.8V/+3.3V/+12V
Displays the current system voltages.
Current System/CPU Temperature
Displays current system/CPU temperature.
Current CPU/SYSTEM/NB FAN Speed (RPM)
Displays current CPU/system/North Bridge fan speed.
CPU Warning Temperature
Sets the warning threshold for CPU temperature. When CPU temperature exceeds the threshold,
BIOS will emit warning sound. Options are: Disabled (default), 60oC/140oF, 70oC/158oF, 80 oC/
176oF, 90oC/194oF.
CPU/SYSTEM/NB FAN Fail Warning
Allows the system to emit warning sound if the CPU/system/North Bridge fan is not connected or
fails. Check the fan condition or fan connection when this occurs. (Default: Disabled)
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
PC Health Status
Reset Case Open Status [Disabled]
Case Opened No
Vcore 1.376V
DDR2 1.8V 1.872V
+3.3V 3.328V
+12V 12.112V
Current System Temperature 30oC
Current CPU Temperature 47oC
Current CPU FAN Speed 3375 RPM
Current SYSTEM FAN Speed 0 RPM
Current NB FAN Speed 0 RPM
CPU Warning Temperature [Disabled]
CPU FAN Fail Warning [Disabled]
SYSTEM FAN Fail Warning [Disabled]
NB FAN Fail Warning [Disabled]
CPU Smart FAN Control [Enabled]
CPU Smart FAN Mode [Auto]
System Smart FAN Control [Enabled]
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Item Help
Menu Level
GA-MA78GPM-UD2H Motherboard - 54 -
CPU Smart FAN Control
Enables or disables the CPU fan speed control function. Enabled allows the CPU fan to run at
different speed according to the CPU temperature. You can adjust the fan speed with EasyTune
based on system requirements. If disabled, CPU fan runs at full speed. (Default: Enabled)
CPU Smart FAN Mode
Specifies how to control CPU fan speed. This item is configurable only if CPU Smart FAN
Control is set to Enabled.
Auto Lets BIOS autodetect the type of CPU fan installed and sets the optimal CPU
fan control mode. (Default)
Voltage Sets Voltage mode for a 3-pin CPU fan.
PWM Sets PWM mode for a 4-pin CPU fan.
System Smart FAN Control
Enables or disables the system fan speed control function. Enabled allows the system fan to run
at different speed according to the system temperature. You can adjust the fan speed with EasyTune
based on system requirements. If disabled, system fan runs at full speed. (Default: Enabled)
- 55 - BIOS Setup
2-10 Load Fail-Safe Defaults
Press <Enter> on this item and then press the <Y> key to load the safest BIOS default settings.
In case system instability occurs, you may try to load Fail-Safe defaults, which are the safest and most
stable BIOS settings for the motherboard.
2-11 Load Optimized Defaults
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
MB Intelligent Tweaker(M.I.T.)
Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
ESC: Quit : Select Item F11: Save CMOS to BIOS
F8: Q-Flash F10: Save & Exit Setup F12: Load CMOS from BIOS
Load Optimized Defaults
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Load Optimized Defaults (Y/N)? N
Press <Enter> on this item and then press the <Y> key to load the optimal BIOS default settings. The
BIOS defaults settings helps the system to operate in optimum state. Always load the Optimized defaults
after updating the BIOS or after clearing the CMOS values.
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
MB Intelligent Tweaker(M.I.T.)
Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
ESC: Quit : Select Item F11: Save CMOS to BIOS
F8: Q-Flash F10: Save & Exit Setup F12: Load CMOS from BIOS
Load Fail-Safe Defaults
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Load Fail-Safe Defaults (Y/N)? N
GA-MA78GPM-UD2H Motherboard - 56 -
2-12 Set Supervisor/User Password
CMOS Setup Utility-Copyright (C) 1984-2008 Award Software
MB Intelligent Tweaker(M.I.T.)
Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Status
ESC: Quit : Select Item F11: Save CMOS to BIOS
F8: Q-Flash F10: Save & Exit Setup F12: Load CMOS from BIOS
Change/Set/Disable Password
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Enter Password:
Press <Enter> on this item and type the password with up to 8 characters and then press <Enter>. You
will be requested to confirm the password. Type the password again and press <Enter>.
The BIOS Setup program allows you to specify two separate passwords:
Supervisor Password
When a system password is set and the Password Check item in Advanced BIOS Features is
set to Setup, you must enter the supervisor password for entering BIOS Setup and making BIOS
changes.
When the Password Check item is set to System, you must enter the supervisor password (or
user password) at system startup and when entering BIOS Setup.
User Password
When the Password Check item is set to System, you must enter the supervisor password (or
user password) at system startup to continue system boot. In BIOS Setup, you must enter the
supervisor password if you wish to make changes to BIOS settings. The user password only
allows you to view the BIOS settings but not to make changes.
To clear the password, press <Enter> on the password item and when requested for the password,
press <Enter> again. The message "PASSWORD DISABLED" will appear, indicating the password has
been cancelled.
Product specificaties
| Merk: | Gigabyte |
| Categorie: | Moederbord |
| Model: | GA-MA78GPM-UD2H |
| Breedte: | 243 mm |
| Diepte: | 243 mm |
| Grafische adapter: | Radeon HD 3200 |
| Type stroombron: | ATX |
| Aantal USB 2.0-poorten: | 4 |
| VGA (D-Sub)poort(en): | 1 |
| Aantal HDMI-poorten: | 1 |
| Microfoon, line-in ingang: | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten: | 1 |
| Hoofdtelefoonuitgangen: | 6 |
| Certificering: | RoHS |
| Intern geheugen: | 0.125 GB |
| DVI-D poorten: | 1 |
| Digitale audio, optische uitgang: | 1 |
| Meegeleverde software: | Norton Internet Security |
| Processor socket: | Socket AM3 |
| Processorfabrikant: | AMD |
| Maximum intern geheugen: | 16 GB |
| Compatibele besturingssystemen: | Windows Vista/XP/ME/9X |
| Audio-uitgangskanalen: | 7.1 kanalen |
| Netwerkfuncties: | 10/100/1000 Mbit |
| Chipset moederbord: | AMD 780G |
| Aantal IEEE 1394-/Firewire-poorten: | 1 |
| Audiochip: | Realtek ALC889A |
| Meegeleverde drivers: | Ja |
| PCI Express x1 slots: | 1 |
| PCI Express x16 slots: | 1 |
| S/PDIF-uitgang: | Ja |
| PS/2 poort(en): | 2 |
| Geheugen voltage: | 1.8 V |
| LAN controller: | Realtek RTL8111C |
| Soorten RAID: | 0,1 |
| Speciale eigenschappen: | @BIOS\nQ-Flash\nVirtual Dual BIOS\nDownload Center\nXpress Install\nXpress Recovery2\nEasyTune\nEasy Energy Saver (Note \nTime Repare\nQ-Share |
| PCI-slots: | 2 |
| Aantal eSATA-poorten: | 1 |
| Moederbord form factor: | micro ATX |
| Aantal geheugenslots: | 4 |
| Aansluiting voor CPU koeler: | Ja |
| ATX Power connector (24-pin): | Ja |
| Aansluiting voor ventilator van voeding: | Ja |
| Aantal SATA-aansluitingen: | 5 |
| USB 2.0 aansluitingen: | 4 |
| Aansluiting voor audiopaneel aan voorzijde: | Ja |
| Aansluiting voor diskettestation: | Ja |
| Chassis intrusion aansluiting: | Ja |
| S/PDIF uitgang: | Ja |
| IEEE1394 aansluitingen: | 1 |
| CD/AUX audio-ingang: | Ja |
| Aantal Parallel ATA aansluitingen: | 1 |
| Soort aansluiting controller: | ITE IT8718 |
| Aansluitingen voor EATX voedingen: | 1 |
Heb je hulp nodig?
Als je hulp nodig hebt met Gigabyte GA-MA78GPM-UD2H stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Moederbord Gigabyte
10 Maart 2025
11 Februari 2025
11 Februari 2025
11 Februari 2025
11 Februari 2025
11 Februari 2025
11 Februari 2025
11 Februari 2025
11 Februari 2025
11 Februari 2025
Handleiding Moederbord
- Moederbord Asus
- Moederbord Asrock
- Moederbord EPoX
- Moederbord Evga
- Moederbord MSI
- Moederbord Sharkoon
- Moederbord NZXT
- Moederbord Intel
- Moederbord Supermicro
- Moederbord ECS
- Moederbord Foxconn
- Moederbord Advantech
- Moederbord Elitegroup
- Moederbord Biostar
Nieuwste handleidingen voor Moederbord
8 April 2025
8 April 2025
3 April 2025
3 April 2025
3 April 2025
3 April 2025
2 April 2025
2 April 2025
29 Maart 2025
27 Maart 2025
