Tools you will need:

# 0 or #00 phillips screwdriver flat head scredriver

1+1 KIT (Model SPLK10N01A) contents:

1 - Gateway (Model SPLG10N01P)

1 - Sensor (2 AAA Batteries installed) (Model SPLS10N01P)

1 - USB-C Cable (1 ft.) 1 - USB-A power plug

1+3 KIT (Model SPLK30N01A) contents:

1 - Gateway (Model SPLG10N01P)

3 - Sensors (each sensor has 2 AAA Batteries installed) (Model

SPLS10N01P)

1 - USB-C Cable (1 ft.) 1 - USB-A power plug

Product Specications:

Gateway (WiFi)

Voltage* . . . . . . . . DC 5V (Input) Frequency . . . . . . .2.4 GHz

* Use UL listed supply with max output power of 5 W (included).

Water Leak Sensor

Voltage. . . . . . . . . . . . . . . . . . . .DC 3V (2x AAA = 1.5V x 2)

Frequency . . . . . . . . . . . . . . . . .2.4 GHz

Waterproof Rating . . . . . . . . . . .IP64

1A Install the SmartHQ App

• Scan QR Code to install the SmartHQ app.

• Launch the SmartHQ app and register your account.

1B Install the SmartHQ Management App

(commercial application only)

• Select and scan the appropriate QR Code for your device to install

the SmartHQ Management app.

iOS - QR Code Android - QR Code

• Launch the SmartHQ Management app and register your account.

2Powering Your Sensor

•

Hold the sensor in one hand, label facing up.

•Pinch the battery insulator (pull tab) close to

the battery cover and slowly pull as shown

(sideways, parallel to the battery cover).

•Discard the pull tab. Place the sensor aside

and proceed to Step 3, Powering your

Gateway.

7Replacing the AAA Batteries

When it is time to replace the batteries, use only new alkaline non-re-

chargeable AAA batteries.

•Locate a clean table to work on and have the

tools ready.

•Use a #0 or #00 phillips screwdriver and remove

one of the battery cover screws. Carefully place

the screw to the side.

•Loosen the other screw ~3 turns, keep this

screw attached to the cover.

•Place the sensor on the table with the

label facing up and place one hand on the

sensor as shown.

•Place the flat head screwdriver under the

screw head and lift up the screw head. The battery

cover will lift up as well.

•Remove the battery cover.

NOTE: The cover is designed to fit tightly in the

housing so this may take some force.

•Install 2 new non-rechargeable AAA batteries

Replace the battery cover. Press down the cover

and then tighten the screws. DO NOT OVER TIGHTEN.

CAUTION Use care and follow the battery installation

instructions carefully to maintain the water tightness design of your

Water Leak Sensor.

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries in accordance with local battery disposal

procedures.

4Connect your Gateway

• Open the SmartHQ app and touch the “+” located at the top right-

hand corner of the app homepage.

• Select GE brand.

• Your Gateway should appear at the top. Touch Connect. Follow

the instructions from the app to complete the connection of your

gateway and to pair your sensor(s).

• To avoid confusion, after pairing your sensor, it is recommended

that you give each sensor a custom nickname and place the sensor

in its appropriate location before proceeding to the next sensor.

3Powering your Gateway

• Plug the USB-C cable (included) into

the USB-C port on the Gateway.

•

Plug the USB connector into a USB-A

power plug (included). Use UL listed supply

with max output power rating of 5 W.

5Placing your Sensor

Your sensor can be placed in locations where a

potential water leak may occur. For example, in your

laundry room, under your kitchen sink pipes, near

your water heater, etc.

For a water heater with catch pan:

Place the double sided tape (included) on the back of

the sensor. Remove the backing and place the sensor against your water

heater with the sensor probes on the bottom and the button at the top.

6Water Leak Notication/Alert

When the Sensor detects a water leak, a signal is sent to the

Gateway. You will then receive a notification/alert on your mobile

device that, “A leak was detected”.

To clear the Leak from the app, remove the sensor from the leak

source and close and open the app after approximately 1 minute.

Installation

Instructions

Water Leak Detector

Congratulations on choosing the Water Leak Detector powered by SmartHQ

TM. For more information or assistance,

visit GEAppliances.com/connect or Call 800.220.6899.

USB

Regulatory Module Integration Instructions

The Gateway device has been granted modular approval for a mobile application. And

the Water Leak Sensor communicates with the Gateway via BLE (Bluetooth Low Energy)

PHVK7KH*DWHZD\LVFHUWL¿HGE\)&&,&%OXHWRRWK6,*7KH:DWHU/HDN6HQVRULQFOXGHV

)&&,&%OXHWRRWK6,*FHUWL¿HGPRGXOHE\*($SSOLDQFHV7KHGHVFULSWLRQVDUHDVIROORZV

• Product Name: Gateway for Water Leak Sensor, Model: FCC ID: SPLG10N01P

ZKJ-WCATA010 10229A-WCATA010, IC:

 3URGXFW1DPH:DWHU/HDN6HQVRU,QFOXGLQJDFHUWL¿HGPRGXOH0RGHO

SPLS10N01P CONTAINS FCC ID: ZKJ-BLEA004,

CONTAINS IC: 10229A-BLEA004

The Gateway and Water Leak Sensor devices comply with FCC/IC regulations.

'HYLFH&ODVVL¿FDWLRQV

6LQFHKRVWGHYLFHVYDU\ZLGHO\ZLWKGHVLJQIHDWXUHVDQGFRQ¿JXUDWLRQVPRGXOHLQWHJUDWRUV

VKDOOIROORZWKHJXLGHOLQHVEHORZUHJDUGLQJGHYLFHFODVVL¿FDWLRQDQGVLPXOWDQHRXV

transmission, and seek guidance from their preferred regulatory test lab to determine how

regulatory guidelines will impact the device compliance. Proactive management of the

regulatory process will minimize unexpected schedule delays and costs due to unplanned

testing activities.

The module integrator must determine the minimum distance required between their host

GHYLFHDQGWKHXVHU¶VERG\7KH)&&SURYLGHVGHYLFHFODVVL¿FDWLRQGH¿QLWLRQVWRDVVLVWLQ

PDNLQJWKHFRUUHFWGHWHUPLQDWLRQ1RWHWKDWWKHVHFODVVL¿FDWLRQVDUHJXLGHOLQHVRQO\VWULFW

DGKHUHQFHWRDGHYLFHFODVVL¿FDWLRQPD\QRWVDWLVI\WKHUHJXODWRU\UHTXLUHPHQWDVQHDU

body device design details may vary widely. Your preferred test lab will be able to assist

in determining the appropriate device category for your host product and if a KDB or PBA

must be submitted to the FCC.

Note, the module you are using has been granted modular approval for mobile

applications. Portable applications may require further RF exposure (SAR) evaluations. It

is also likely that the host / module combination will need to undergo testing for FCC Part

UHJDUGOHVVRIWKHGHYLFHFODVVL¿FDWLRQ<RXUSUHIHUUHGWHVWODEZLOOEHDEOHWRDVVLVWLQ

determining the exact tests which are required on the host / module combination.

CAUTION

&KDQJHVRUPRGL¿FDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHSDUW\

responsible for compliance could void the user’s authority to

operate the equipment.

)&&'H¿QLWLRQV

Portable:²$SRUWDEOHGHYLFHLVGH¿QHGDVDWUDQVPLWWLQJGHYLFHGHVLJQHGWR

be used so that the radiating structure(s) of the device is / are within 20 centimeters of the

body of the user.

Mobile:E²$PRELOHGHYLFHLVGH¿QHGDVDWUDQVPLWWLQJGHYLFHGHVLJQHGWREH

XVHGLQRWKHUWKDQ¿[HGORFDWLRQVDQGWRJHQHUDOO\EHXVHGLQVXFKDZD\WKDWDVHSDUDWLRQ

distance of at least 20 centimeters is normally maintained between the transmitter’s

radiating structure(s) and the body of the user or nearby persons. Per §2.1091d(d)(4) In

some cases (for example, modular or desktop transmitters), the potential conditions of use

RIDGHYLFHPD\QRWDOORZHDV\FODVVL¿FDWLRQRIWKDWGHYLFHDVHLWKHU0RELOHRU3RUWDEOH,Q

these cases, applicants are responsible for determining minimum distances for compliance

IRUWKHLQWHQGHGXVHDQGLQVWDOODWLRQRIWKHGHYLFHEDVHGRQHYDOXDWLRQRIHLWKHUVSHFL¿F

DEVRUSWLRQUDWH6$5¿HOGVWUHQJWKRUSRZHUGHQVLW\ZKLFKHYHULVPRVWDSSURSULDWH

Simultaneous Transmission Evaluation

This module has not been evaluated or approved for simultaneous transmission

as it is impossible to determine the exact multi-transmission scenario that a host

manufacturer may choose. Any simultaneous transmission condition established

through module integration into a host product must be evaluated per the requirements in

KDB447498D01(8) and KDB616217D01,D03 (for laptop, notebook, netbook, and tablet

applications).

These requirements include, but are not limited to:

7UDQVPLWWHUVDQGPRGXOHVFHUWL¿HGIRUPRELOHRUSRUWDEOHH[SRVXUHFRQGLWLRQVFDQEH

LQFRUSRUDWHGLQPRELOHKRVWGHYLFHVZLWKRXWIXUWKHUWHVWLQJRUFHUWL¿FDWLRQZKHQ

• The closest separation among all simultaneous transmitting antennas is >20 cm,

• Antenna separation distance and MPE compliance requirements for ALL simultaneous

WUDQVPLWWLQJDQWHQQDVKDYHEHHQVSHFL¿HGLQWKHDSSOLFDWLRQ¿OLQJRIDWOHDVWRQHRIWKH

FHUWL¿HGWUDQVPLWWHUVZLWKLQWKHKRVWGHYLFH,QDGGLWLRQZKHQWUDQVPLWWHUVFHUWL¿HGIRU

portable use are incorporated in a mobile host device, the antenna(s) must be >5 cm

from all other simultaneous transmitting antennas.

$OODQWHQQDVLQWKH¿QDOSURGXFWPXVWEHDWOHDVWFPIURPXVHUVDQGQHDUE\SHUVRQV

FCC Part 15 Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules.

NOTE: This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions.

1) This device may not cause harmful interference, and

2) This device must accept any interference received, including interference that may

cause undesired operation.

a. That module is limited to OEM installation ONLY.

b. That OEM integrators are responsible for ensuring that the end-user has no manual

instructions to remove or install module.

 F 7KDWPRGXOHLVOLPLWHGWRLQVWDOODWLRQLQPRELOHRU¿[HGDSSOLFDWLRQVDFFRUGLQJWR3DUW

2.1091(b).

 G 7KDWVHSDUDWHDSSURYDOLVUHTXLUHGIRUDOORWKHURSHUDWLQJFRQ¿JXUDWLRQVLQFOXGLQJ

SRUWDEOHFRQ¿JXUDWLRQVZLWKUHVSHFWWR3DUWDQGGLႇHUHQWDQWHQQD

FRQ¿JXUDWLRQV

e. That grantee shall provide guidance to the host manufacturer for compliance with

Part 15 subpart B requirements.

This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to

the following two conditions:

 7KLVGHYLFHPD\QRWFDXVHLQWHUIHUHQFHDQG

2) This device must accept any interference, including interference that may cause

undesired operation of the device.

Information

Le présent appareil est conforme aux CNR d’Industrie Canada applicable aux appareils

radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes:

1) l’appareil ne doit pas produire de brouillage, et

2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d’en compromettre le fonctionnement.

Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour

un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC

lignes directrices d’exposition et d’exposition aux frequencies radioélectriques (RF) CNR-

102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme

VDQVpYDOXDWLRQGXGpELWG¶DEVRUSWLRQVSpFL¿TXH'$6

For the period of GE Appliances covers

One year

From the date of the original purchase

If the water leak detector and/or gateway fails due to a defect in materials or

workmanship, during the limited one year warranty, GE Appliances will replace your

product with a new or remanufactured product.

GEAppliances.com

Please contact 800.220.6899 to initiate warranty process.

What GE Appliances will not cover:

Ŷ )DLOXUHRIWKHSURGXFWLILWLVDEXVHGPLVXVHGDOWHUHGRU

used for other than the intended purpose.

Ŷ 'DPDJHWRWKHSURGXFWFDXVHGE\DFFLGHQWOLJKWQLQJILUH

oods or acts of God.

Ŷ ,QFLGHQWDORUFRQVHTXHQWLDOGDPDJHFDXVHGE\SRVVLEOH

defects with this appliance, its installation or repair.

Ŷ ,ISURGXFWUHPRYHGIURPRULJLQDOLQVWDOODWLRQORFDWLRQ

Ŷ 'DPDJHPDOIXQFWLRQRUIDLOXUHFDXVHGE\WKHXVHRIUHSDLU

service not approved by GE Appliances.

Ŷ 'DPDJHPDOIXQFWLRQRUIDLOXUHFDXVHGE\WKHXVHRI

unapproved parts or components.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is product replacement as provided in this Limited Warranty. Any implied warranties, including

the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period

allowed by law.

For sale in the 50 United States and the District of Columbia only: This limited warranty is extended to the original purchaser and

any succeeding owner for products purchased for home use within the USA. Some states do not allow the exclusion or limitation of

incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary

from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

For product purchased outside of the US, contact your dealer for Warranty and Service information.

Warrantor: GE Appliances, a Haier company

Louisville, KY 40225

Water Leak Detector powered by SmartHQ

Limited Warranty

Staple your receipt here. Proof of the original purchase

date is needed to process your warranty.

31-8000282 Rev. 5 08-23 GEA

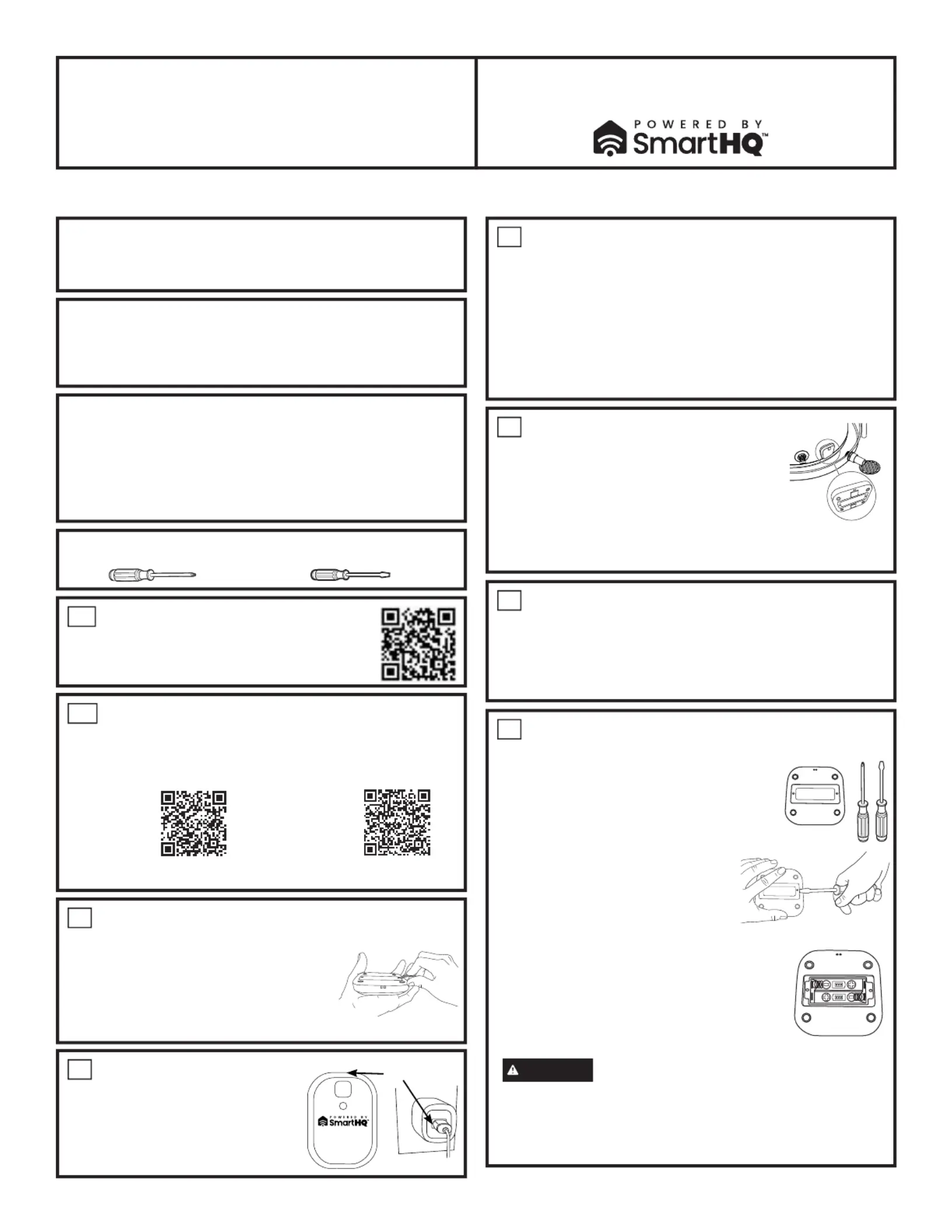

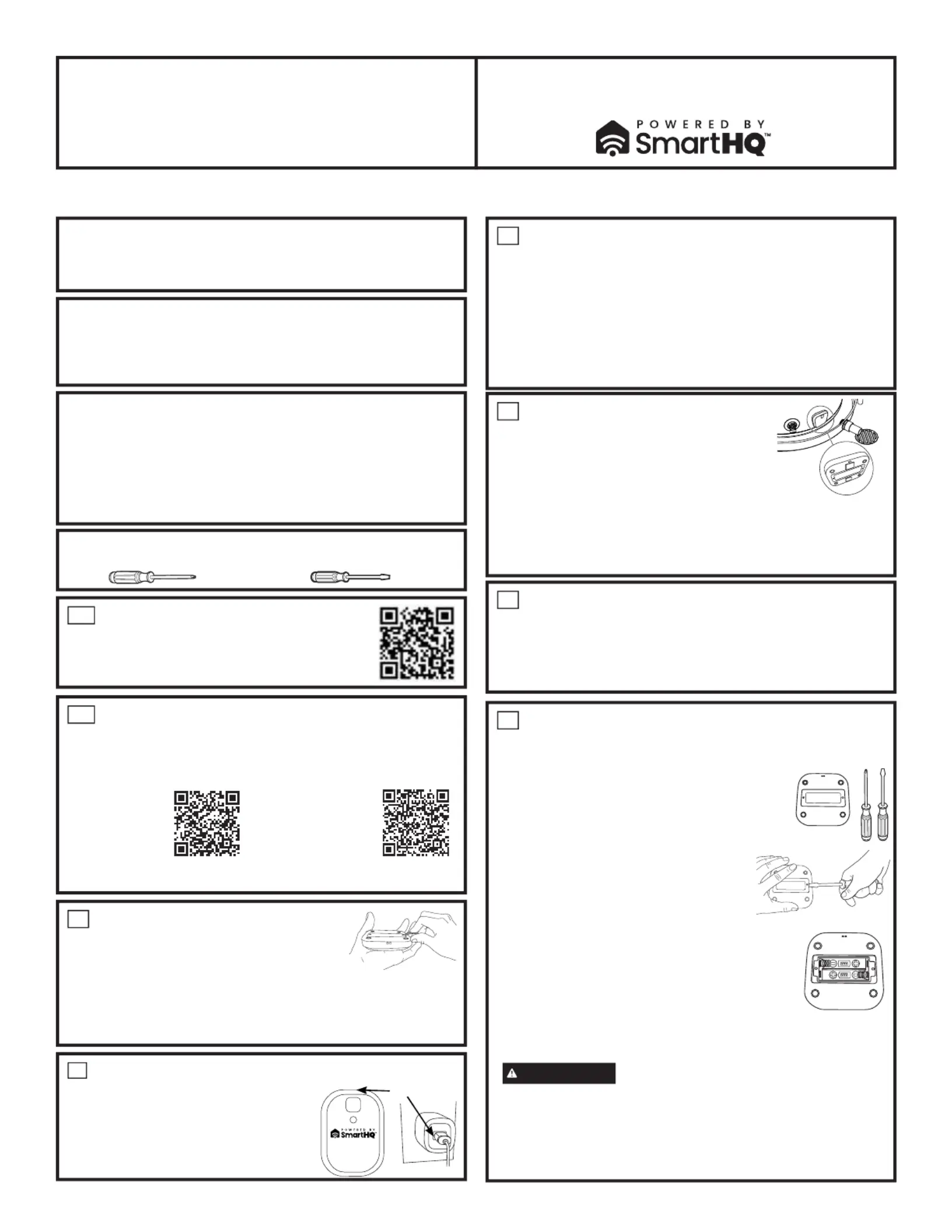

Herramientas que necesitará:

Destornillador Phillips # 0 o #00 Destornillador de punta plana

Contenidos del KIT 1+1 (Modelo SPLK10N01A):

1 - Puerta de Enlace (Gateway) (Modelo SPLG10N01P)

1 - Sensor (2 Baterías AAA instaladas) (Modelo SPLS10N01P)

1 - Cable USB-C (1 pie) 1 - enchufe de corriente del USB-A

Contenidos del KIT 1+3 (Modelo SPLK30N01A):

1 - Puerta de Enlace (Modelo SPLG10N01P)

3 - Sensor (cada sensor cuenta con 2 Baterías AAA instaladas)

(Modelo SPLS10N01P)

1 - Cable USB-C (1 pie) 1 - enchufe de corriente del USB-A

Especicaciones del Producto:

Puerta de Enlace (WiFi)

Voltaje*……CC 5V (Entrada) Frecuencia…..2.4 GHz

* Use el suministro que figura en la lista de UL con máxima energía de salida de

5 W. (incluido)

Sensor de Pérdidas de Agua

Voltaje . . . . . . . . . . . . . . . . . . . . . . . . . . .CC 3V (2x AAA = 1.5V x 2)

Frecuencia . . . . . . . . . . . . . . . . . . . . . . . .2.4 GHz

Clasificación de Resistencia al Agua . . .IP64

1A Instale la Aplicación SmartHQ

• Escanee el Código QR para instalar la aplicación

SmartHQ.

• Lance la aplicación SmartHQ y registre su cuenta.

2Alimente el Sensor

•

Sostenga el sensor en una mano, con la etiqueta

hacia arriba.

• Pellizque el aislante de la batería (tire de la

lengüeta), cierre la tapa de la batería y de forma lenta tire como se

muestra (hacia los laterales, de forma paralela a la tapa de la batería).

• Descarte la lengüeta retirada. Coloque el sensor a un costado y proceda

al Paso 3, Alimentación de la Puerta de Enlace.

7Reemplazo de las Baterías AAA

Cuando sea hora de reemplazar las baterías, use sólo baterías AAA

nuevas alcalinas no recargables.

•Use una mesa limpia para trabajar y tenga sus

herramientas preparadas.

• Use un destornillador de cabeza Phillips #0 o #00 y

retire uno de los tornillos de la tapa de las baterías.

Con cuidado, coloque el tornillo a un costado.

• Afloje el otro tornillo dando ~3 giros,

mantenga este tornillo adherido a la tapa.

• Coloque el sensor sobre la mesa con la

etiqueta hacia arriba y coloque una mano

sobre el sensor, como se muestra.

• Coloque el destornillador de punta plana

debajo de la cabeza del tornillo y levante la cabeza del

tornillo. La tapa de las baterías se levantará también.

• Retire la tapa de las baterías.

NOTA: La tapa fue diseñada para calzar de forma

ajustada en la carcasa, de modo que podrá ser

necesario hacer algo de fuerza.

•Instale las 2 baterías AAA no recargables nuevas. Vuelva a colocar la

tapa de las baterías. Presione la tapa hacia abajo y luego ajuste los

tornillos. NO AJUSTE EN EXCESO.

PRECAUCIÓN Tenga cuidado y siga las instrucciones de

instalación de las baterías para mantener el diseño de ajuste

impermeable contra el agua de su Sensor de Pérdidas de Agua.

Existe riesgo de explosión si la batería es reemplazada por una de

un tipo incorrecto.

Descarte las baterías usadas de acuerdo con los procedimientos

locales de descarte de baterías.

4Conecte la Puerta de Enlace (Cont.)

• Abra la aplicación SmartHQ y presione el “+” ubicado en la esquina

superior derecha de la página principal de la aplicación.

• Seleccione la marca GE.

•

La Puerta de Enlace deberá aparecer en la parte superior. Presione

Connect (Conectar). Siga las instrucciones de la aplicación para completar

la conexión de la puerta de enlace y para emparejar el sensor(es).

•

Para evitar confusiones, luego de emparejar el sensor, se recomienda

dar a cada sensor un apodo personalizado y colocar el sensor en su

ubicación correspondiente antes de proceder con el siguiente sensor.

3Alimentación de la Puerta de Enlace.

• Enchufe el Cable USB-C (incluido) en el

puerto USB-C de la Puerta de Enlace.

• Enchufe el conector USB en el enchufe

de corriente del USB-A (incluido). Use el

suministro de la lista de UL con la calificación

de corriente de salida máxima de 5 W.

5Colocación del Sensor

El sensor se podrá colocar en ubicaciones donde

se pueda producir una pérdida de agua. Por

ejemplo: en su lavadero, debajo de las tuberías

de la bacha de su cocina, cerca de su calentador

de agua, etc.

Para un calentador de agua con bandeja antiderrames:

Coloque la cinta adhesiva sobre ambos lados (incluida) en la parte

trasera del sensor. Retire el protector y coloque el sensor contra el

calentador de agua con las sondas del sensor en la parte inferior y el

botón en la parte superior.

6Noticación/ Alerta de Pérdida de Agua

Cuando el Sensor detecte una pérdida de agua, se enviará una señal

a la Puerta de Enlace. Usted recibirá entonces una notificación/ alerta

en su dispositivo móvil de que: “Se detectó una pérdida”.

Para eliminar la Pérdida desde la aplicación, retire el sensor de la fuente de

la pérdida y cierre y abra la aplicación luego de aproximadamente 1 minuto.

Instrucciones

de Instalación

Detector de Pérdidas de Agua

Felicitaciones por elegir el Detector de Pérdidas de Agua energizado por SmartHQ

TM. Para más información o asistencia, visite

GEAppliances.com/connect o llame al 800.220.6899.

USB

1B Instale la Aplicación SmartHQ Management

(aplicación comercial únicamente)

• Seleccione y escanée el Código QR apropiado para que se instale

en su dispositivo la aplicación SmartHQ Management.

IOS – Código QR Android – Código QR

• Lance la aplicación SmartHQ Management y registre su cuenta.

Product specificaties

Merk:	GE
Categorie:	Wasdroger
Model:	SPLK10N01A

Heb je hulp nodig?

Als je hulp nodig hebt met GE SPLK10N01A stel dan hieronder een vraag en andere gebruikers zullen je antwoorden

Uw naam*

Jouw email*

Schrijf hier uw vraag

Handleiding Wasdroger GE

GE FPDW1 Handleiding

7 December 2024

GE SBSD137HMS Handleiding

7 December 2024

GE GFD40ESCMWW Handleiding

30 November 2024

GE PFD95ESPWGN Handleiding

23 September 2024

GE SPLK10N01A Handleiding

23 September 2024

GE ETD48EASWWB Handleiding

27 Juni 2024

GE GTD48GASWWB Handleiding

16 April 2024

GE GTD48EASWWB Handleiding

16 April 2024

GE GTD38EASWWS Handleiding

16 Maart 2024

GE Profile PFD87GSPVRS Handleiding

16 Maart 2024

Handleiding Wasdroger

Nieuwste handleidingen voor Wasdroger

Svan SSB800A2DB Handleiding

21 December 2024

Haier HD100-A3959E-IT Handleiding

20 December 2024

Haier HD100-A3959RE-IT Handleiding

20 December 2024

Bosch WTN832M1NL Handleiding

17 December 2024

Ufesa Pro Ionic-Shine Handleiding

17 December 2024

Ufesa Pro Ionic Style Handleiding

17 December 2024

Altus ADP80W Handleiding

17 December 2024

BEKO B5T69233MG Handleiding

15 December 2024

AEG T65170AV Handleiding

12 December 2024

Haier HD90-A3979NU1 Handleiding

10 December 2024
