Pagina 1/60
GE ZONELINE®
ARCHITECTS AND ENGINEERS DATA MANUAL

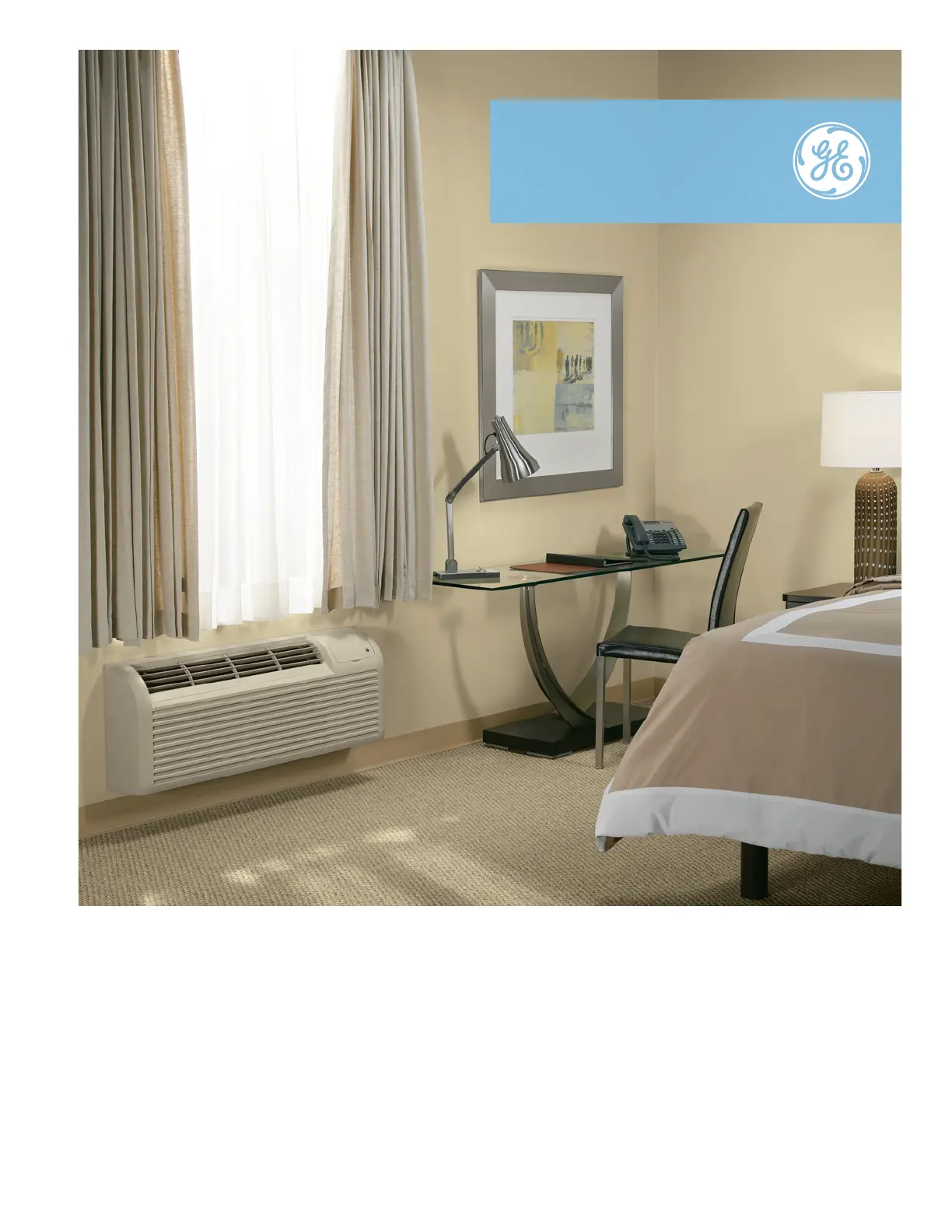

GE Zoneline packaged terminal air conditioners
LEADERS IN
EFFICIENCY

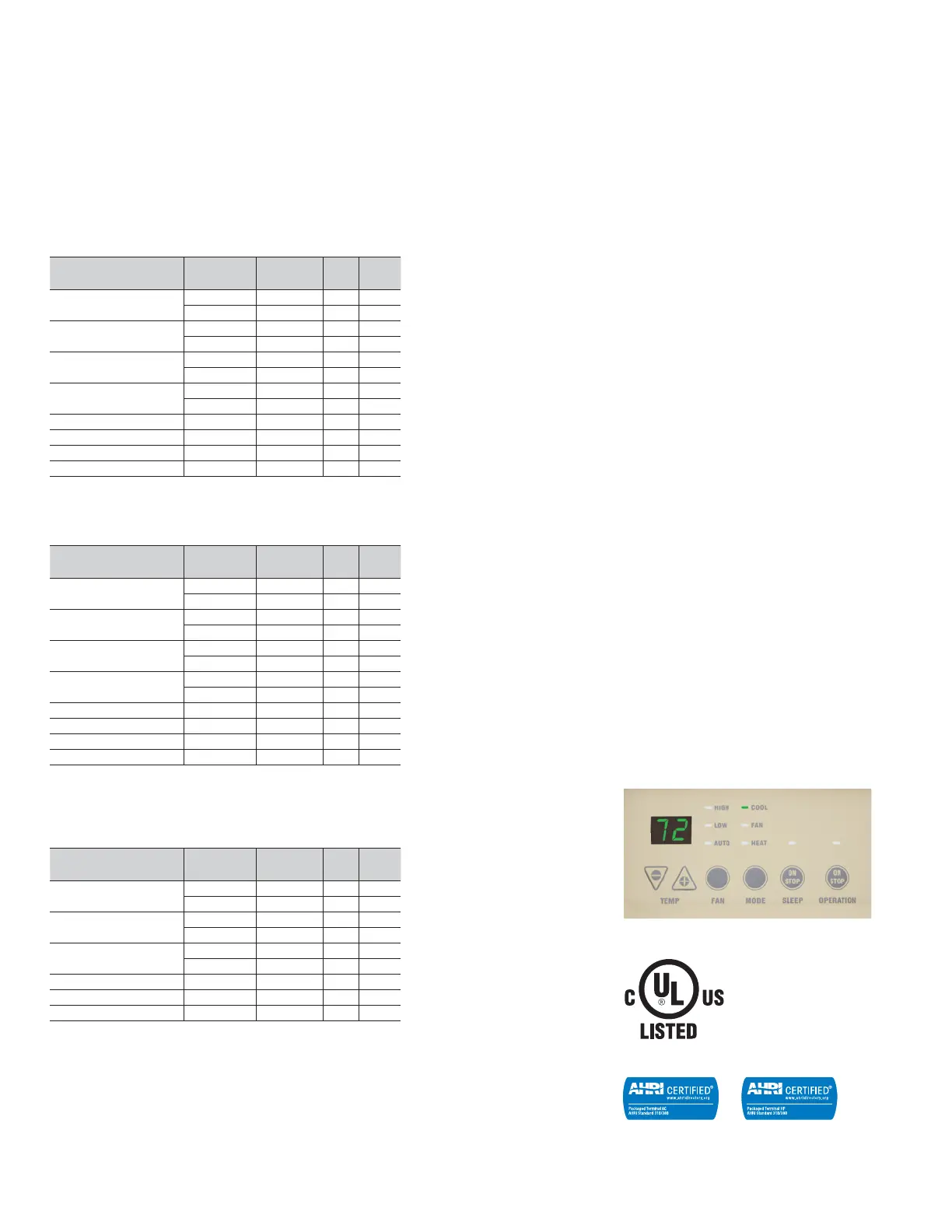

QUICK REFERENCE
4100 and 6100 Series Control Panel
PACKAGED TERMINAL AIR CONDITIONER 74R7
Full Specs on pages 54 and 55
ALL UNITS REQUIRE POWER CONNECTION KIT
Power Connection Kit determines resistance heat output
7000 BTUH units are not offered with 4.7 KW resistance heater
Specifications subject to change.
2
4100 series cooling with electric heat
4100 series cooling with electric heat (corrosion treated models)
Dry Air 25
4100 series cooling with electric heat
MODEL
NUMBER VOLTAGE COOLING
(BTUH) EER WATTS
AZ41E07DAB 208 6900 12.3 560
230 7200 12.3 580
AZ41E09DAB 208 9600 12.0 795
230 9700 12.0 805
AZ41E12DAB 208 11500 11.1 1035
230 11800 11.1 1060
AZ41E15DAB 208 14000 10.3 1350
230 14300 10.3 1370
AZ41E07EAB 265 7200 12.3 580
AZ41E09EAB 265 9700 12.0 805
AZ41E12EAB 265 11800 11.1 1025
AZ41E15EAB 265 14300 10.3 1385
MODEL
NUMBER VOLTAGE COOLING
(BTUH) EER WATTS
AZ41E07DAC 208 6900 12.3 560
230 7200 12.3 580
AZ41E09DAC 208 9600 12.0 795
230 9700 12.0 805
AZ41E12DAC 208 11500 11.1 1035
230 11800 11.1 1060
AZ41E15DAC 208 14000 10.3 1350
230 14300 10.3 1370
AZ41E07EAC 265 7200 12.3 580
AZ41E09EAC 265 9700 12.0 805
AZ41E12EAC 265 11800 11.1 1025
AZ41E15EAC 265 14300 10.3 1385
MODEL
NUMBER VOLTAGE COOLING
(BTUH) EER WATTS
AZ41E07DAP 208 6300 11.7 535
230 6500 11.7 555
AZ41E09DAP 208 8800 11.5 765
230 9200 11.5 790
AZ41E12DAP 208 11000 10.8 1015
230 11200 10.8 1035
AZ41E07EAP 265 6500 11.7 555
AZ41E09EAP 265 9200 11.5 795
AZ41E12EAP 265 11200 10.8 1020
QUICK REFERENCE
Full Specs on pages 54 and 55
ALL UNITS REQUIRE POWER CONNECTION KIT
Power Connection Kit determines resistance heat output
7000 BTUH units are not offered with 4.7 KW resistance heater
6100 series heat pump with backup electric heat
6100 series heat pump with backup electric heat (corrosion treated models)
6100 series heat pump with backup electric heat (models featuring
ICR - internal condensate removal)
MODEL
NUMBER VOLTAGE COOLING
(BTUH) EER WAT TS HEATING
(BTUH) COP WAT TS
AZ61H07DAB 208 6900 13.0 525 6100 3.9 445
230 7100 13.0 545 6200 3.9 465
AZ61H09DAB 208 9100 12.2 740 8100 3.7 635
230 9400 12.2 755 8300 3.7 650
AZ61H12DAB 208 11600 11.6 965 10400 3.6 835
230 11700 11.6 985 10600 3.6 855
AZ61H15DAB 208 14200 10.6 1335 13400 3.3 1120
230 14500 10.6 1360 13500 3.3 1165
AZ61H07EAB 265 7000 12.8 545 6200 3.9 450
AZ61H09EAB 265 9400 12.2 765 8100 3.6 655
AZ61H12EAB 265 11700 11.6 1000 10700 3.6 870
AZ61H15EAB 265 14400 10.6 1355 13500 3.3 1165
MODEL
NUMBER VOLTAGE COOLING
(BTUH) EER WAT TS HEATING
(BTUH) COP WAT TS
AZ61H07DAC 208 6900 13.0 525 6100 3.9 445
230 7100 13.0 545 6200 3.9 465
AZ61H09DAC 208 9100 12.2 740 8100 3.7 635
230 9400 12.2 755 8300 3.7 650
AZ61H12DAC 208 11600 11.6 965 10400 3.6 835
230 11700 11.6 985 10600 3.6 855
AZ61H15DAC 208 14200 10.6 1330 13400 3.3 1155
230 14500 10.6 1350 13500 3.3 1190
AZ61H07EAC 265 7000 12.8 545 6200 3.9 450
AZ61H09EAC 265 9400 12.2 765 8100 3.6 655
AZ61H12EAC 265 11700 11.6 1000 10700 3.6 870
AZ61H15EAC 265 14400 10.6 1355 13500 3.3 1165
MODEL
NUMBER VOLTAGE COOLING
(BTUH) EER WAT TS HEATING
(BTUH) COP WAT TS
AZ61H07DAD 208 6900 12.7 530 6100 3.9 440
230 7000 12.7 550 6200 3.9 465
AZ61H09DAD 208 9100 11.9 750 8000 3.6 640
230 9200 11.9 760 8100 3.6 655
AZ61H12DAD 208 11600 11.4 960 10400 3.6 835
230 11700 11.4 980 10600 3.6 855
AZ61H15DAD 208 14100 10.4 1330 13400 3.2 1200
230 14300 10.4 1345 13500 3.2 1200
AZ61H07EAD 265 6900 12.7 540 6200 3.9 455
AZ61H09EAD 265 9200 11.9 760 8200 3.6 665
AZ61H12EAD 265 11700 11.4 1015 10900 3.6 880
AZ61H15EAD 265 14300 10.4 1355 13500 3.2 1210
