Pagina 1/3
65 7 8
1 2 3 4
V1.1
305503000893
WARNING
Before installing a hard disk drive (HDD), please make sure the power
is disconnected from the NVR.
It is recommended that a hard drive be used in 7200 high-speed or
above.
1. Remove the cover from the NVR by unfastening the screws on the
rear and bottom.
2. Connect one end of the data cable and power cable to the
motherboard of NVR and the other end to the HDD.
Procedure
1. lf you want to use Foscam VMS or App, the NVR needs to be connected
to a router.The NVR and IPC must be in the same LAN so that the IPC
can be searched to add to the NVR.
2. Connect your display to one of the video outputs (VGA or HD-OUT
interface).
3. Connect an external storage device to the USB interface of the NVR as
a backup.
4. Connect a mouse to the USB interface.
5. Some devices need to connect to your router using an Ethernet cable,
including the NVR, PC and IP Camera.
6. Connect the power adapter to the power input port.
7. The NVR DHCP server will open if it does not detect and connect a
router within the 30s, which is used for searching and connecting to
the IPC on the PoE NVR or switch.
Foscam cameras and NVRs require good security practices to
safeguard your privacy. You should regularly change your
camera or NVR password which is the combination of
numbers, letters and symbols.
You should update your camera or NVR regularly. Make sure
your camera or NVR has the latest rmware installed for your
specic model and better experience.

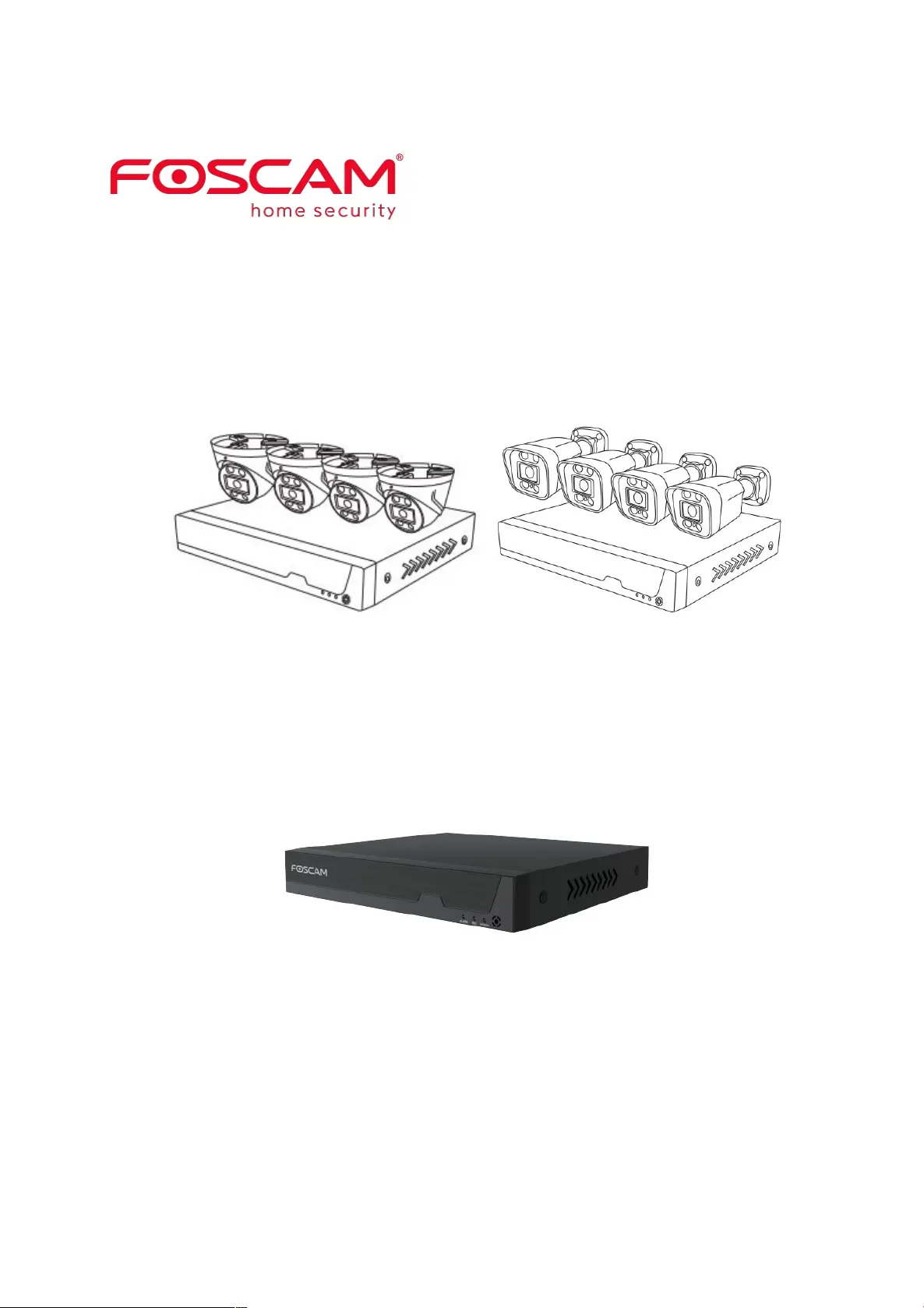

Quick Setup Guide
NVR
Screw Pack
DC Power Adapter
Ethernet Cable
Data Wire and Power Wire
of the Hard Drives
Warning Card
USB Mouse
Uncheck the checkbox
3. P2P. If you want to know the UID of the device, please scan
the QR code. If you don’t want to use the Setup Wizard
next time, uncheck the Setup Wizard checkbox. Click the
Finish button to complete the setup wizard.
or Right-click uncheck the →Main Menu →Conguration →
Setup Wizard Finish checkbox. Click the button to complete the
setup wizard.
Power cable
HDD
Data cable
    
HD OUT Cable
ComputerRouter
Ethernet Cable
Ethernet
Cable
VGA Cable
Monitor
Mouse USB HDD
Ethernet
Cable
NVR Power Adapter
(DC 12V)
TV
Camera Power
Adapter (DC 12V)
NVR
4 Device Connection
Uncheck the checkbox
Download Foscam APP P2P
3. Place the HDD on the bottom of the device and then fasten the
screws on the bottom to x the HDD.
4. Re-install the cover of the NVR and fasten screws.
Package Contents
Security Warning
1 Before You Start 2 Hard Disk Installation
5 Log In
6 Setup Wizard
1. Turn on the power switch on the rear panel.
After the NVR starts up successfully, the power LED and HDD LED
indicators will turn green. The startup page is displayed on the
screen.
2. Change user name and password .
For your security, please set a new user name and password for your
NVR before Log In.
4. After modifying the password, you will be taken to the .Setup Wizard
7
Add IP Camera
You can add an IP Camera that is connected to the internet on the NVR.
3. Login page.
Enter the Username and Password, then click on the button.OK
*You need to set an inital user name and password for the first use.
*The maximum username lngth is 20, including numbers, letters and symbols:
_-@$*
*The password should be a combination of 6-12 numbers, letters, symbols.
Sybbols support: ~!@#%^*()_+{}:|<>?’-;\,./
3 NVR Rear Panel
Power Switch
GND
Power Input
(DC12V )
VGA Output
Audio Out
Network
HD-OUT
USB Port
Alarm Indicator
REC Indicator
Power Indicator
If a router is connected at this time, the NVR cannot be found when
adding it by APP or VMS, and the NVR needs to be restarted.
Remarks: Users can customize the startup time or close of the NVR
DHCP server.
For detailed manuals, tools, etc., please visit foscam.com/downloads.
The Setup Wizard can walk you through some important settings on
the NVR.
1. Setting the time.
2. Format HDD. Click the button to set up the HDD. Format
Note that this will delete all les on the HDD.
HDD Full Setting Select Stop Record and Overwrite . .
1. Right-click on main interface, select .Channel Cong
2. Select or your IP Camera Auto added IPC
3. Click Add.
4. Enter username and password of the camera. If your camera is in the
factory default state, you do not need to enter the user name and
password.
5. Click OK.
Kitchen
Garden
FOSCAM
FOSCAM
FOSCAM
Not Connected
Not Connected
Not Connected
192.168.1.100
192.168.1.107
192.168.1.109
XXXXXXXXX
XXXXXXXXX
XXXXXXXXX 1. Select Your IP Camera
2. Click Add
Select a protocol depending on which IP Camera you have.
FOSCAM protocol: The High Denition (HD) IP Cameras for Foscam.
ONVIF protocol: IP Cameras which support ONVIF protocol.
9
Auto Add Private IPC
Camera Name
Doorway
Bitrate Adaptive
15 16 17
1312
18
10 11 14
19
CE Certificate statement Website:
https://www.foscam.com/company/ce-certificate.html
Exporter and Importer Information Opened to Public:
https://www.foscam.com/company/open-information.html
www.foscam.com
Due to product upgrades and other reasons, this guide may be slow to update, resulting in
slight inconsistencies with the ocial website information. Please take the ocial website
(www.foscam.com) information as the current standard.
Manufacturer: Shenzhen Foscam Intelligent Technology Co., Ltd
Addr: Room 901-902,Building 1B, Shenzhen International Innovation
Valley, Xingke 1st Street, Nanshan District, Shenzhen, Guangdong,
China, 518055
Set the event alarm according to the following methodRight-click →
Main Menu Event Motion Detect → → → choose target channel,
setting Schedule, Delay, Record Channel, Tour, PTZ Activation, Send
Email Buzzer→ Save.
The maximum number of 8 playback video channels have been
reached, please deselect other channels rst to continue.
Note
Power Supply: DC 12V 2.0A 24W
Foscam VMS is a new tool for PC. It does not require plug-ins and is
compatible with Windows & Mac, It supports all Foscam HD cameras
and up to 36 cameras at the same time. If you would like to manage
multiple cameras, we suggest you install the Foscam VMS. You can
download the “Foscam VMS” from , and can foscam.com/vms
download the "Foscam VMS" Mac version from the APP store:
https://apps.apple.com/cn/app/foscamvms/id1521202507?mt=12
Add the NVR
1. Run Foscam VMS, then you can create a local administrator
account and login.
2. Tap the "+" button on the Foscam VMS and follow the setup
wizard to add your NVR.
Please refer to the user manual for more detailed adding steps.
Note: For the best experience, please update Foscam VMS to the latest
version!
If you want to start event recording, select in Type, use the left Event
mouse button to select the time (turned to green), if the other channels
operate in the same way, select .Copy
Note The default alarm type is : Motion Detect
You can also access the NVR or IP Camera directly through Foscam
VMS and Foscam App
After the IP Camera is added successfully to the NVR, enable Scheduled
Record functionality to the following methods when in the Live View
mode.
You can see the recording information, include Manual Record, Alarm
Record, Schedule Record.
In the Live View mode, the icon is at the bottom right of the screen
for each channel, indicating recording is on going.
8
Recording
9
Playback
10 Remote Access
13 Technical Support
12 Product Performance
Right-click choose recording channel → → →Main Menu Record →
Save (Actually, the NVR system have default set 24h scheduled
recording).
Right-click choose channel and date →Main Menu →Playback → →
click timeline to check record.
3. Preview: click device in Lan Device list to enter preview interface,
select a channel to view it’s picture, click to enter , as follow
shows:
4. Preview: click device in list to enter preview interface, select a
channel to view it’s picture, as follow shows:
If you have problems with your Foscam device, please contact the
reseller you purchased from, or you can e-mail the headquarters
technical support team: support@foscam.com
Your valuable comments and suggestions on improving Foscam
products are welcomed!
10.1 Access to the Foscam VMS
8.1 Scheduled Record
8.2 Event Record
In the Live View mode, the icon is at the bottom right of the screen
for each channel, indicating recording is on going.
10.2 Access to the Foscam App
2. Run the APP, and then register for a Foscam account. Foscam
1. You can also simply go to the App Store or Google Play and
search for the term " ". Download the APP to yourFoscam
smartphone, or scan the QR Code on the below, it will take you to
the download page to install the Foscam APP.
11 Upgrade
1. You can upgrade your NVR and cameras system with local Software.
NVR Upgrade:
Download the rmware to the U disk Insert U disk to NVR USB port →
→ → → → → Right-click Main Menu Upgrade click Refresh click
Upgrade to upgrade your NVR.
Note:
Don't shut down the power during upgrade. After upgrading, NVR
restarts.
1.Click the button to select
the rmware to the U disk
2.Click the button to
Upgrade
3. You can upgrade the rmware of your NVR and cameras with
Foscam App.
Open Foscam APP and Login the NVR, select Settings > NVR Firmware
Upgrade.
2. You can upgrade the rmware of your NVR with Foscam VMS.
Open and Login Foscam VMS, select Setup > > System System
Upgrade.
Note:
In all upgrade methods, don't shut down the power during upgrade.
After upgrading, NVR restarts.
Firmware upgrade step:
① Click " " button to downloadDownload the latest rmware
the latest rmware to your computer.
② Click " " button , choose le rmware version youBrowse
want to upgrade on the web page.
③ Click " " button and wait till it's nished.Upgrade
3. Device Adding: Once logged in, you can tap the "+" button on the
APP, after that scan the QR code, which is located at the bottom
of your NVR.
1
Basic
Device Manager
Application
System
Factory Reset
Camera Firmware
Reboot
NVR Firmware
Current firmware version 2.71.1.79：
Download the latest firmware
2
Browse
Device Settings
Upgrade 3
Note: The Foscam app is subject to the latest version, and its
functions are constantly iterated.

Product specificaties

Merk: Foscam
Categorie: Niet gecategoriseerd
Model: FNA108H

Heb je hulp nodig?

Als je hulp nodig hebt met Foscam FNA108H stel dan hieronder een vraag en andere gebruikers zullen je antwoorden


Handleiding Niet gecategoriseerd Foscam

Foscam

Foscam FN8108W-B4 Handleiding

10 Juni 2024
Foscam

Foscam FN9108E-B4 Handleiding

23 Augustus 2023
Foscam

Foscam FN9108H Handleiding

23 Augustus 2023
Foscam

Foscam FNA108HE Handleiding

23 Augustus 2023
Foscam

Foscam FNA108H Handleiding

23 Augustus 2023
Foscam

Foscam FN9108HE Handleiding

23 Augustus 2023
Foscam

Foscam T8EP Handleiding

18 Augustus 2023
Foscam

Foscam T5EP Handleiding

18 Augustus 2023
Foscam

Foscam FN7108W-B4 Handleiding

26 Januari 2023

Handleiding Niet gecategoriseerd

Nieuwste handleidingen voor Niet gecategoriseerd

Kolcraft

Kolcraft MLB Chicago Cubs Handleiding

26 November 2024
Kolcraft

Kolcraft MLB New York Yankees Handleiding

26 November 2024
Kolcraft

Kolcraft MLB San Francisco Giants Handleiding

26 November 2024
Kolcraft

Kolcraft MLB St. Louis Cardinals Handleiding

26 November 2024
Nedis

Nedis POCO106 Handleiding

26 November 2024
Nedis

Nedis BTSM1GY Handleiding

26 November 2024
Turbosound

Turbosound TPOLEAJ-01 Handleiding

26 November 2024
Turbosound

Turbosound TSTAND-01 Handleiding

26 November 2024
IFM

IFM TAD981 Handleiding

26 November 2024
IFM

IFM TAD961 Handleiding

26 November 2024
