595703A 12.19

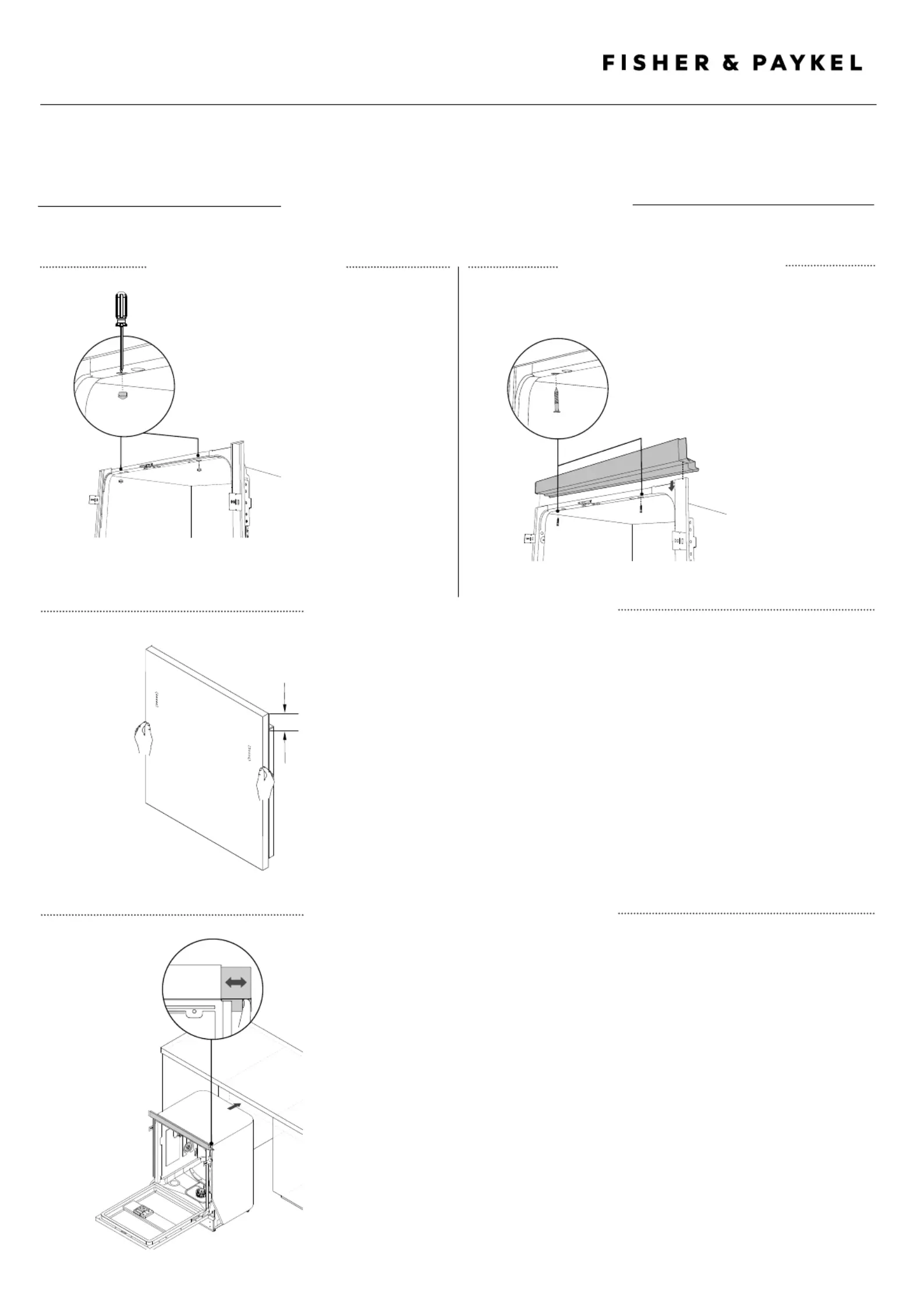

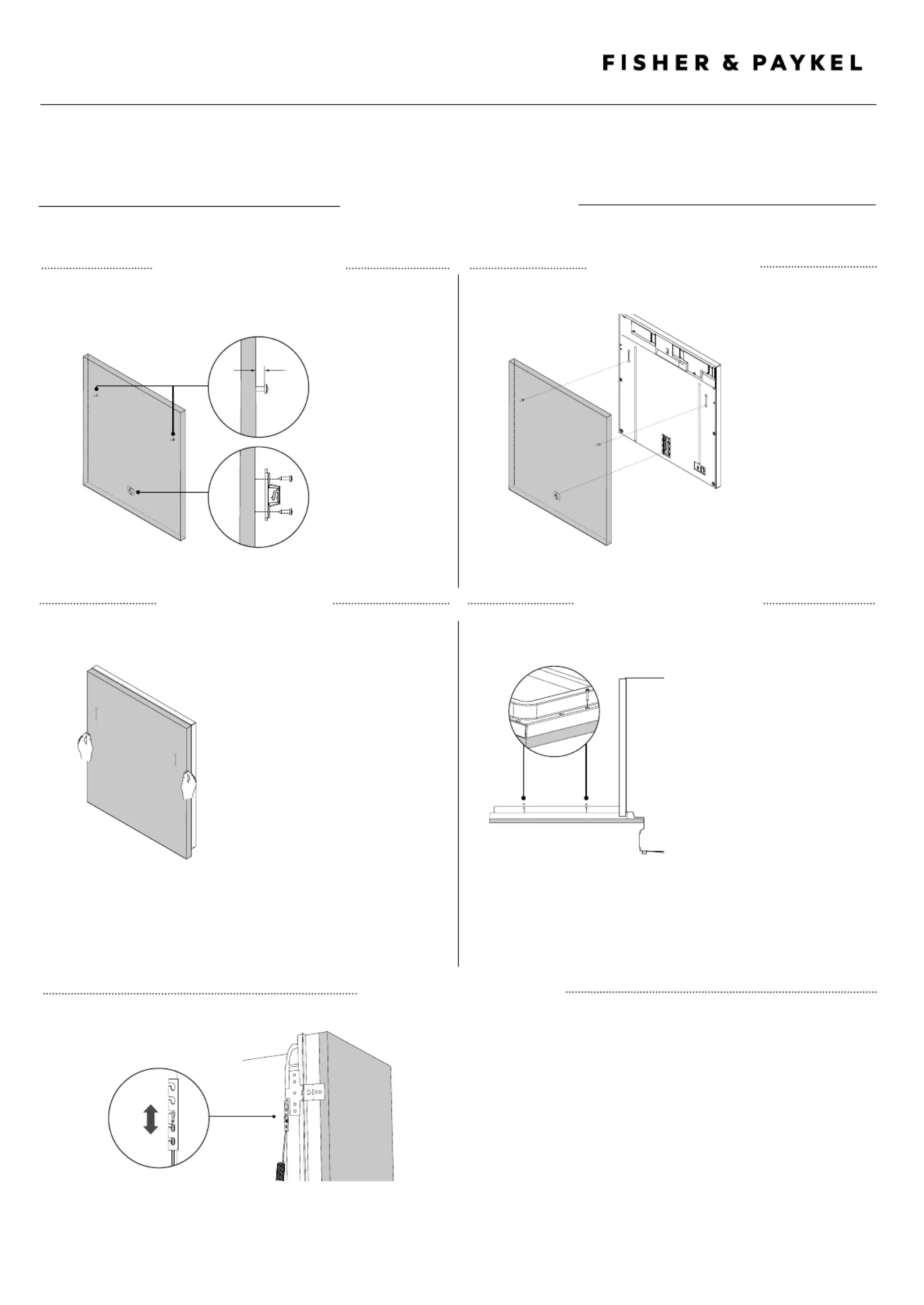

INSTALLATION GUIDE
ACCESSORY DOOR PANELS FOR DISHWASHER
FIX SLIDER BRACKET
Close the door of the
dishwasher and align
the screws of the
accessory panel into
the lower keyhole of
the dishwasher door.
Fix the slider bracket
to the panel through
the lower pilot holes
IMPORTANT!
zThis guide is provided to assist in safely installing this accessory door panel to the dishwasher.
zFor more information, refer to the Installation Guide supplied with your dishwasher.
zHandles are not supplied with this kit and can be purchased separately through an authorised Fisher & Paykel dealer.
3mm
Top screw detail
(between panel and screw head)
Slide the custom panel up so
that the top of the door panel is
flush with the control panel.
The panel can only slide
upwards and can be lifted off
and reinstalled if required
1 2
zCheck the door balance by opening
and closing the door.
zIf the door drops when released,
increase the tension.
zIf the door rises when released,
decrease the tension.
34
5
HANG DOOR PANEL
ALIGN DOOR PANEL
Open the door and remove the
four screws and replace with
Ø3.9 x 1 1/2” (38mm) screws to
fix the panel into place.
ADA DOOR PANEL (82085)
The selected handle must be fitted to the panel prior to installation onto the product.
CHECK DOOR BALANCE
SECURE DOOR PANEL
INSTALLATION GUIDE
ACCESSORY DOOR PANELS FOR DISHWASHER
INSTALL INFILL BRACKET
1
zOpen the door.
zPush a small screwdriver
downward through the
screwhole from the
top of the appliance to
remove the plastic plug.
zDo not install the
mounting bracket!
2
zRemove two screws pre-installed
from the infillbracket.
zUse the same screws to attach
the bracket to the topof the
appliance. Do not tighten fully.
side wings
zPush the appliance into the cabinetry.
Ensuretheinfillbracket do not hit the top of the
cabinet while pushing.
zSlide the side wings of the bracket outward to
cover the hollow space.
zHand tighten the two screws for the infill bracket
and reinstall the hole plugs.
3
4
Before installing the standard (tall) door panel, an infill bracket must be attached as a cosmetic feature to fill the gap between the
top of the dishwasher and underside of cabinet top. The infill bracket is not needed for cabinets using ADA door panels.
ALIGN DISHWASHER IN CABINETRY
ALIGN AND SECURE DOOR PANEL
zFix slider bracket
(See step 1 of ADA door panel)
zHang door panel
(See step 2 of ADA door panel)
zAlign door panel
Slide the standard door panel up so that the distance
between the top of the door panel and control panel
is 1.65” (42mm).
The panel can only slide upwards and can be lifted
off and reinstalled if required.
zCheck door balance
(See step 4 of ADA door panel)
zSecure door panel
(See step 5 of ADA door panel)
1.65” (42mm)
REMOVE HOLE PLUGS
The selected handle must be fitted to the panel prior to installation onto the product.
STANDARD (TALL) DOOR PANEL (82084)
5957 03A 12.19
