Pagina 1/3

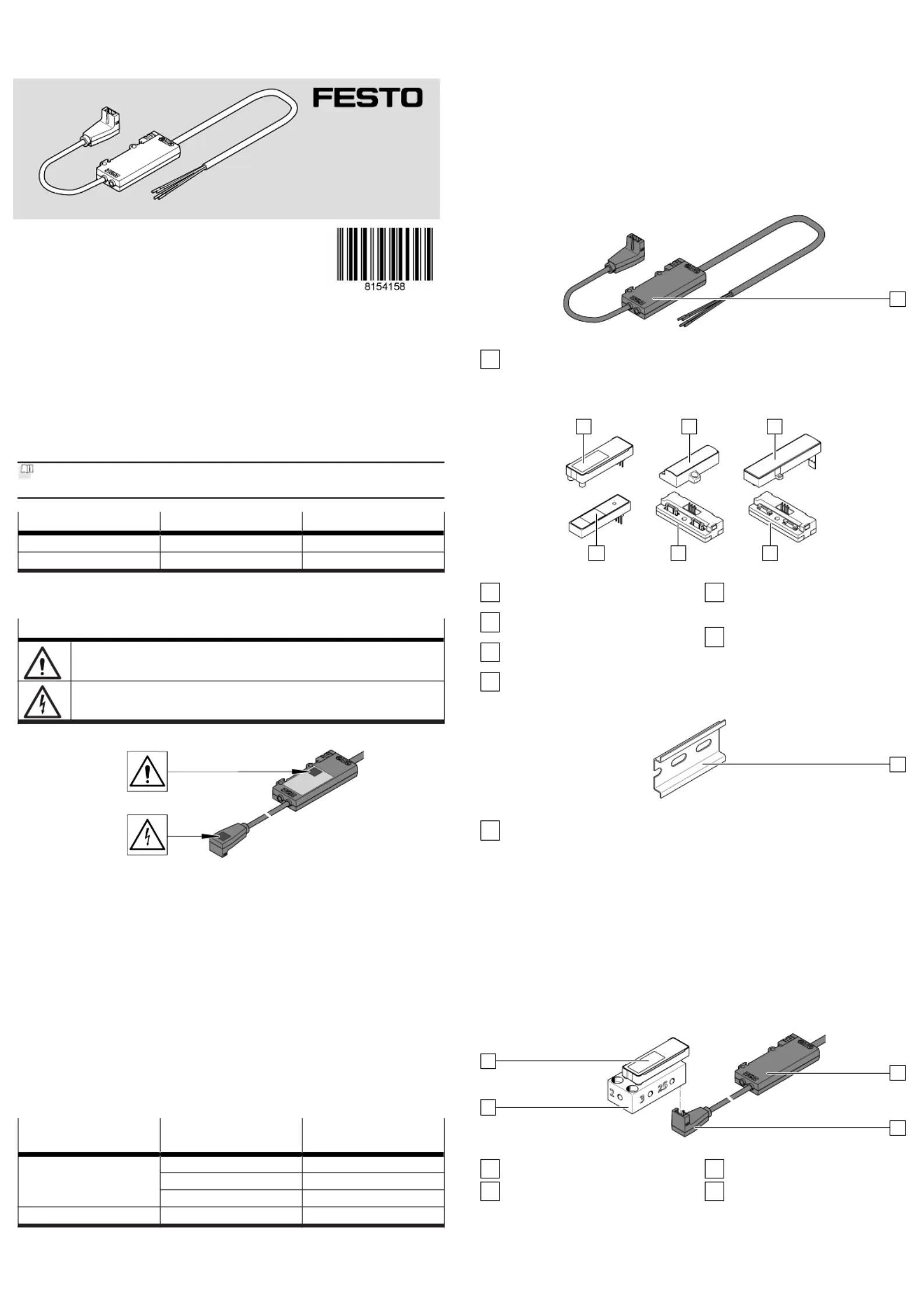

VAVE-P...-TP
Electronics module
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Operating instructions
8154158
2021-03a
[8154160]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1 About this document
1.1 Applicable documents
All available documents for the product
è www.festo.com/sp.
Document Product Table of contents
Operating instructions Piezo valve VEMP-BS-3 –
Operating instructions Piezo valve VEAE-BB-6-...-X4 –
Tab. 1: Applicable documents
1.2 Product labelling
Warning symbols on the product
If the housing is damaged, protection against dangerous voltages is no longer guaran-
teed.
Dangerous voltages up to 310 V are generated during operation.
Tab. 2: Meaning of the warning symbols
Fig. 1: Position of the warning symbols
2 Safety
2.1 Safety instructions
–Only use the product in original status without unauthorised modifications.
–Only use the product if it is in perfect technical condition.
–Provide suitable protective measures against impact loads.
–Do not subject the product to mechanical stress.
–Take into consideration the ambient conditions at the location of use.
–Before working on the product, switch off the power supply and secure it
against being switched on again.
–Do not damage product labels and warning symbols.
2.2 Intended use
The electronics module is intended for the control and power supply of Festo
piezo valves.
Electronics module with electrical plug-in
base
for piezo valve
VAVE-P12-TP-5YL1-P – VEMP
NEFV-V13-XX4G3-T1G3 VEMR
NEFV-V14-XX4G3-T1G3 VEAE
VAVE-P17-TP-5YL1-P – VEMC
Tab. 3: Use of the electronics module
2.3 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel have skills and
experience in dealing with electrical (open-loop) control technology.
3 Additional information
–Contact the regional Festo contact if you have technical problems
è www.festo.com.
–Accessories è www.festo.com/catalogue.
4 Product range overview
4.1 Scope of delivery
1
Fig.2
1
Electronics module (1x)
VAVE-P...-TP
4.2 Not in scope of delivery
2 3 4
5 6 7
Fig.3
2
Piezo valve (1x)
VEMP
3
Piezo valve (1x … 2x)
VEMR
4
Piezo valve (1x … 2x)
VEAE
5
Piezo valve (1x)
VEMC
6
Electrical plug-in base (1x)
NEFV-V13-XX4G3-T1G3
(for piezo valves VEMR)
7
Electrical plug-in base (1x)
NEFV-V14-XX4G3-T1G3
(for piezo valves VEAE)
8
Fig.4
8
H-rail (1x)
60715 TH35-...
4.3 Function
The electronics module is a two-channel, unregulated piezo controller with inte-
grated high-voltage generation for piezo valves.
5 Transport and storage
–Store the product in a cool, dry environment protected from UV and corrosion.
Keep storage times short.
6 Assembly
6.1 Combination of VAVE-P12-TP with piezo valve VEMP
1
10
2
9
Fig.5
1
Electronics module
2
Piezo valve
9
Sub-base
10
Socket
1. Mount the piezo valve on the sub-base
è 1.1 Applicable documents.
2. Push the piezo valve plug into the socket to the stop.
3. Lock socket to prevent loosening.

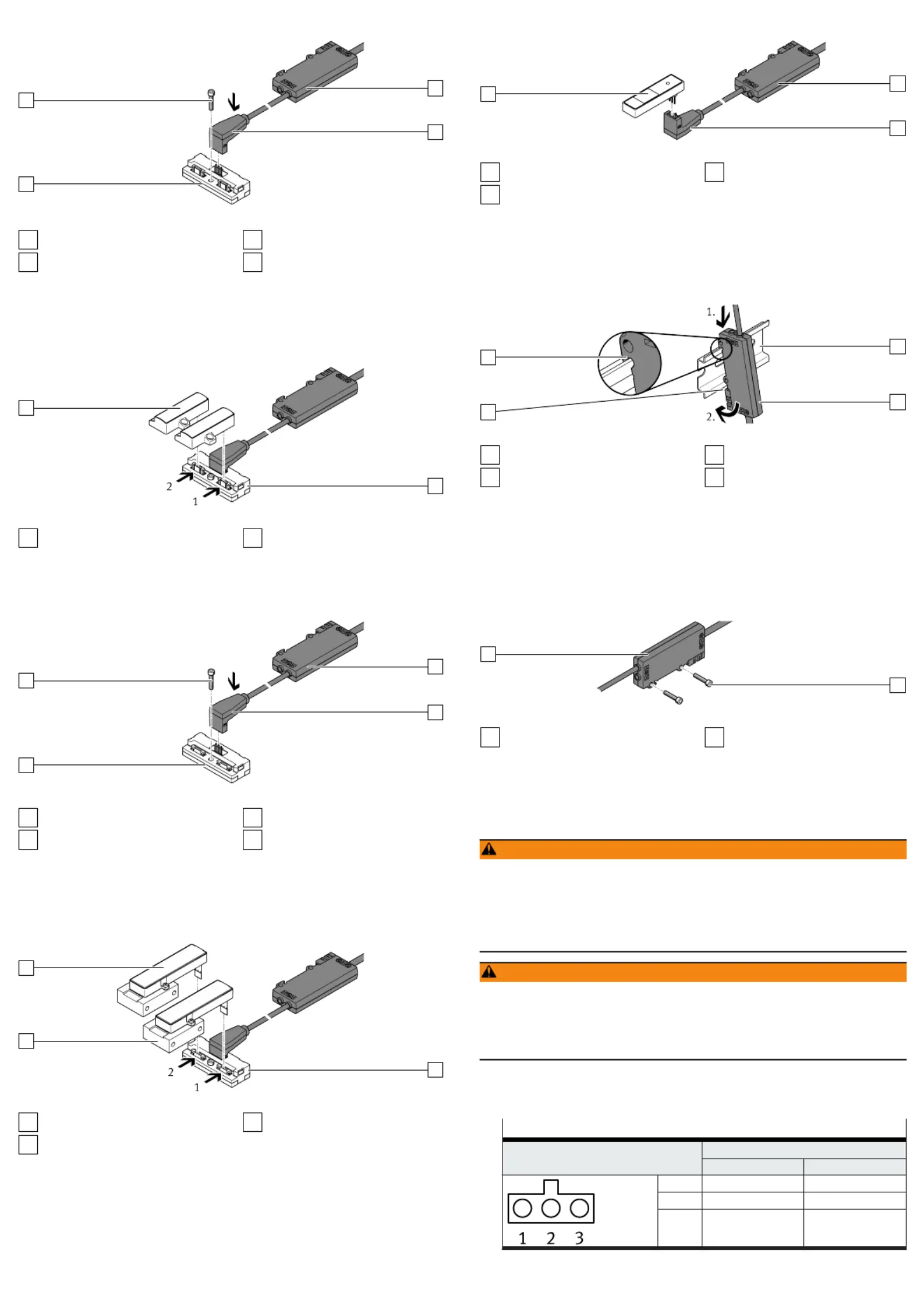

6.2 Combination of VAVE-P12-TP with piezo valve VEMR
1
10
6
11
Fig.6
1
Electronics module
6
Electrical plug-in base
10
Socket
11
Screw
1. Select screw suitable for the installation situation. Screw size: M3
2. Mount the electrical plug-in base on the mounting surface using the screw.
Tightening torque: 0.5 Nm ± 5%
3. Push the socket onto the plug of the electrical plug-in base.
4. Lock socket to prevent loosening.
3
6
Fig.7
3
Piezo valve
6
Electrical plug-in base
1. Note the position of piezo valve slots 1 and 2 on the electrical plug-in base.
2. Insert the flex conductor of the piezo valves into the electrical plug-in base.
6.3 Combination of VAVE-P12-TP with piezo valve VEAE
1
10
7
11
Fig.8
1
Electronics module
7
Electrical plug-in base
10
Socket
11
Screw
1. Select screw suitable for the installation situation. Screw size: M3
2. Mount the electrical plug-in base on the mounting surface using the screw.
Tightening torque: 0.5 Nm ± 5%
3. Push the socket onto the plug of the electrical plug-in base.
4. Lock socket to prevent loosening.
7
4
12
Fig.9
4
Piezo valve
7
Electrical plug-in base
12
Sub-base
1. Note the position of piezo valve slots 1 and 2 on the electrical plug-in base.
2. Mount the piezo valves on the sub-bases
è 1.1 Applicable documents.
3. Insert the flex conductor of the piezo valves into the electrical plug-in base.
6.4 Combination of VAVE-P17-TP with piezo valve VEMC
1
10
5
Fig.10
1
Electronics module
5
Piezo valve
10
Socket
1. Push the piezo valve plug into the socket to the stop.
2. Lock socket to prevent loosening.
7 Mounting
7.1 H-rail mounting
1
8
13
14
Fig.11
1
Electronics module
8
H-rail
13
Hook
14
Lug
1. Mount H-rail horizontally.
2. Attach the electronics module to the top edge of the H-rail.
ÄThe hook is located behind the upper edge of the H-rail.
3. Press electronics module downwards.
4. Swivel electronics module against the H-rail.
ÄLug clips behind the lower edge of the H-rail.
7.2 Wall mounting
1
15
Fig.12
1
Electronics module
15
Screw
1. Select screws suitable for the installation situation. Screw size: M3
2. Mount the electronics module on the mounting surface with two screws.
Tightening torque: 0.5 Nm ± 5%
8 Electrical installation
WARNING
Risk of Injury due to Electric Shock.
• For the electric power supply, use only PELV circuits that ensure a reliable
electric disconnection from the mains network.
• Observe IEC 60204-1/EN 60204-1.
• The unit must be powered by a power source that fulfils the requirements of an
energy-limited circuit in accordance with IEC 61010-1/EN 61010-1.
WARNING
Risk of injury due to electric shock.
If the housing is damaged, protection against dangerous voltage is no longer
guaranteed.
• Do not start the device.
• Immediately shut down the device.
1. Install electrical connecting cables without crushing, kinking or stretching
them.
2. Connect field device side.
Socket
Pin Signal
VAVE-P12-TP VAVE-P17-TP
1 GND 0 … 310 V, channel 1
2 0 … 310 V, channel 1 GND
3 0 … 310 V, channel 2 0 … 310 V, channel 2

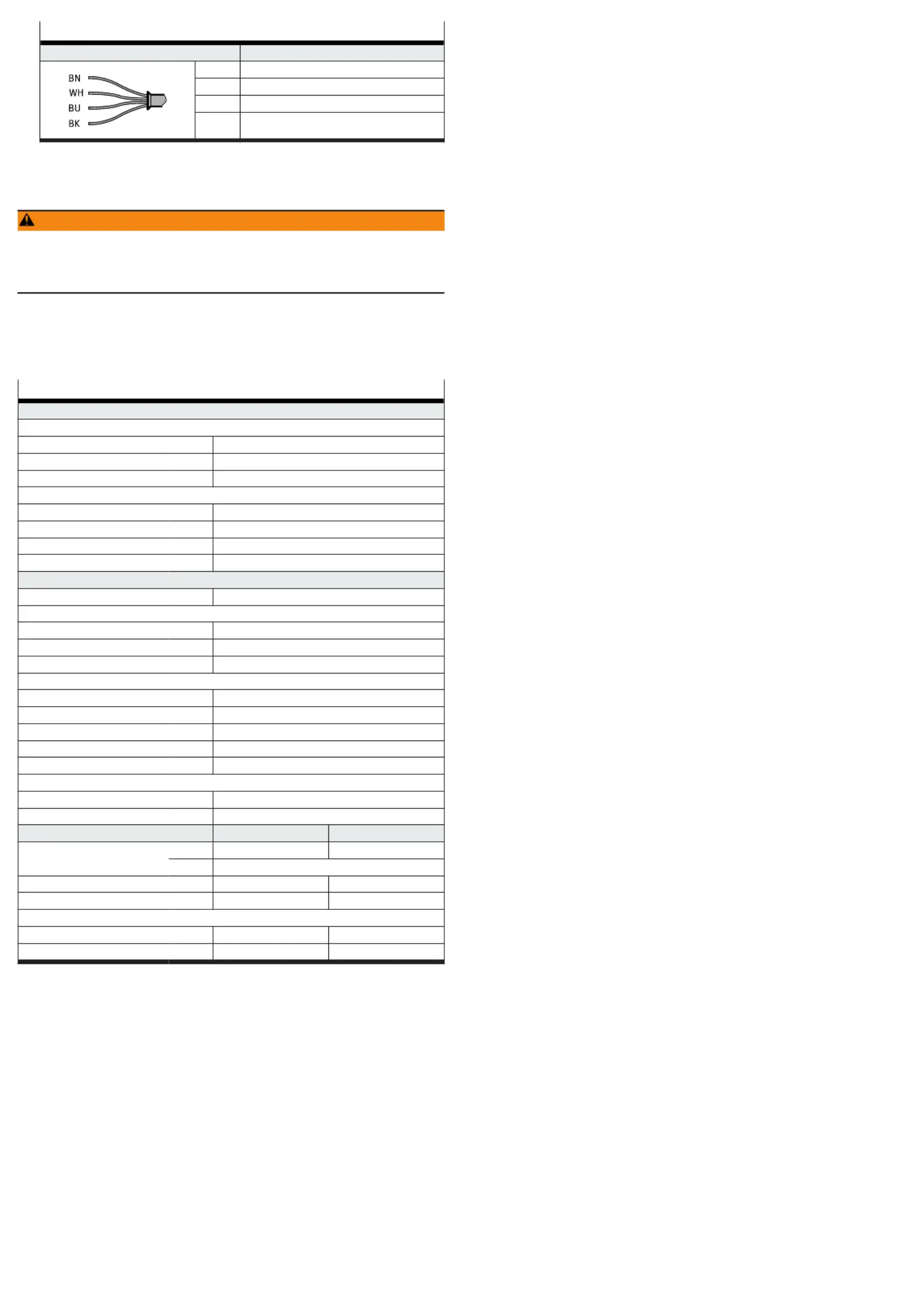

3. Connect controller side.
Cable
Wire ends Signal
BN 12 … 24 V DC, supply
WH 0 … 10 V DC, analogue2
BU GND
BK 0 … 10 V DC, analogue1
When it is switched off, the unit may generate an electrical impulse, which causes
a short pressure pulse on the piezo valves.
9 Operation
WARNING
Danger of burns from hot housing surfaces.
The product does not have short circuit protection. The housing surface of the
product can become hot in the event of a short circuit in the piezo valve.
• Before touching the housing surface, check the temperature.
10 Cleaning
–If necessary, clean the product with a dry, soft cloth without cleaning agents.
11 Technical data
VAVE-P...-TP
Technical data, general
Mounting position
H-rail mounting horizontal
Wall mounting any
Degree of protection IP40
Temperature range
Environment [°C] −10 … +60
Storage [°C] −40 … +80
Maximum operating height [m] 2000
Ambient conditions dry indoor environment IEC 61010è
Technical data, electrical
Operating voltage range [V DC] 12 … 24
Maximum input voltage
VEMP-...-22T1 [V DC] 8.06
VEMP-...-28T1 [V DC] 10.0
VEMC, VEAE, VEMR [V DC] 9.67
Maximum output voltage
VEMP-...-22T1 [V DC] 250
VEMP-...-28T1 [V DC] 310
VEMC, VEAE, VEMR [V DC] 300
Voltage fluctuations [%] ± 10
Relative duty cycle [%] 100
Maximum switching frequency
12 V operating voltage [Hz] 5
24 V operating voltage [Hz] 10
Technical data, cable Field device side Controller side
Cable composition [mm ] 2x0.25 + 1x0.14 4x0.25"
shielded
Cable diameter [mm] 3.4 4.5
Cable sheath material TPE-U (PUR) PVC
Cable bending radius
fixed cable installation [mm] 10.2 13.5
flexible cable installation [mm] 34 45
Tab. 4: Technical data
