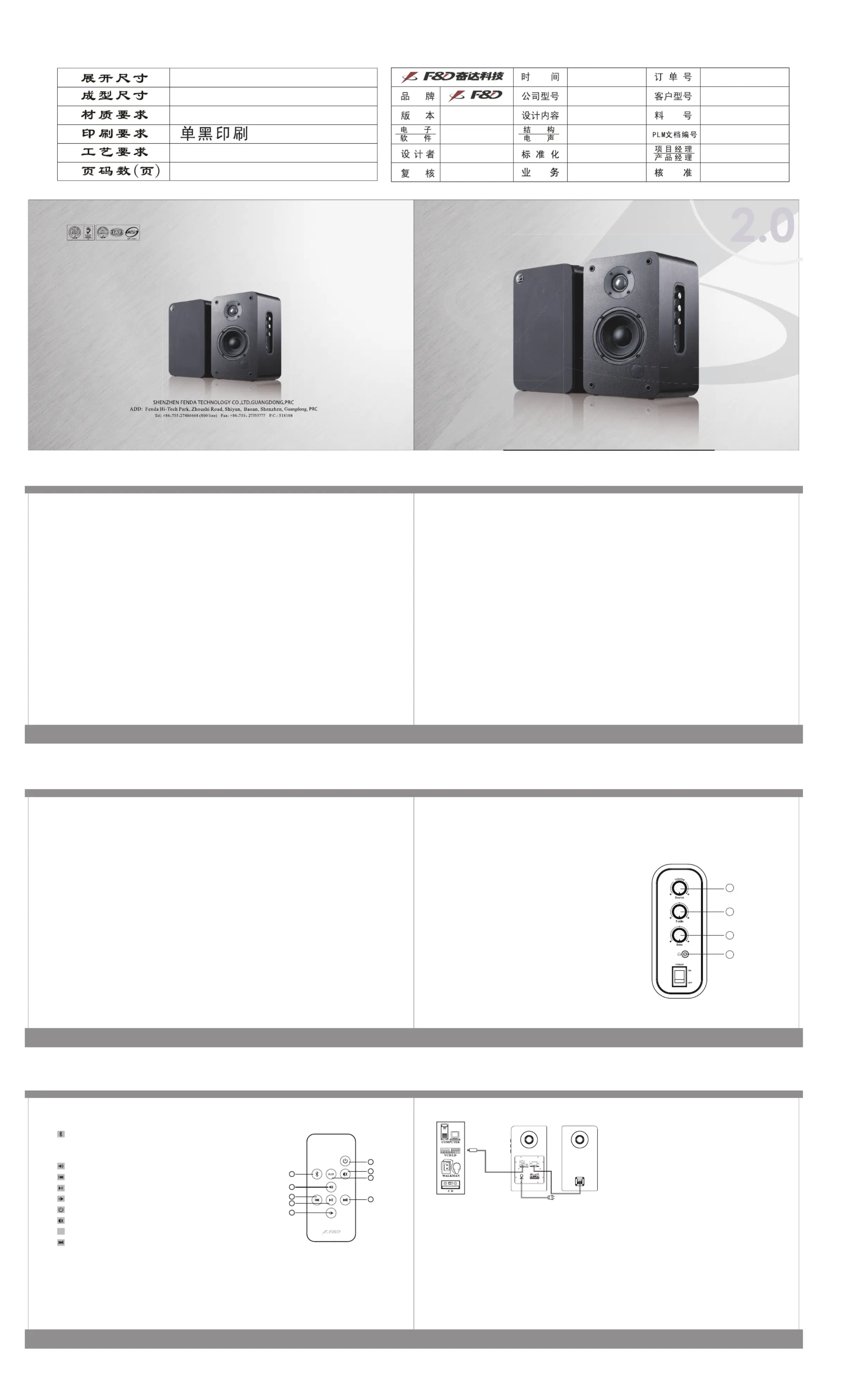

Pagina 1/1

说明书

杨改改

R30BT R30BT

17.7.030.0837

自然切入

20161024

145X95MM

290X95MM

108G铜版纸

书钉

4页(成型）

R30BT

Locating

• Place the speakers symmetrically to the listeners to the distance not less than one metre.

• Port tube is located at the back panel of the speaker cabinet, please locate it about 20—30 cm

from the wall or other object.

Side control panel functions:

1.Volume Knob:

a.Power ON and control volume: Adjust the volume knob to Power ON and control the main

volume level:

b. Short press to switch between Bluetooth or AUX mode.

c. long press entering pairing mode,blue LED will flash fast.

2.Treble knob:

Adjust Treble knob to control the Treble level

3.Bass Knob:

Adjust Bass knob to control the Bass level

4.Earphone socket

Package contents

Speakers ------------------------------- 1set

Operation Manual ------------------- 1pc

signal cable ---------------------------- 2pcs

Connection Cable ------------------- 1pc

Remote control ----------------------- 1pc

Specification

Output power --------------------------------25W x2

Voltage supply --------220-240V~50/60Hz 0.3A

Speaker units

woofer -------------------------------------------------4"

tweeter ------------------------------------------------1"

Impedance ----------------------------------------- 8Ω

Frequence Response ----------------30Hz~20KHz

Product dimensions ----W160xD205xH280mm

Product net weight ----------------------------6.3kg

(Connection diagram)

Singal Cable

Connection Cable

Power Cable

Remote Control key buttons function:

Bluetooth mode :

1. Short press to enter BT mode, blue LED indicator light is on.

2. Under BT mode, long press to enter pairing mode.

Volume increase.

Short press to select previous song under BT mode.

Short press to play/pause.

Volume decrease.

Standby: Short press to power on/off.

Short press to mute or unmute.

AUX: Short press to enter AUX mode, green LED indicator light is on.

Short press to select next song under BT mode.

AUX

Bluetooth mode

a. Active “Bluetooth” function on your device and search for “Fenda R30BT”.

Enter “0000” if your device asks for the PIN code.

b. After pairing successfully, blue LED bright, and ready for playing music.

Recommend to adjust suitable volume before playing music.

Notice: After switch to Bluetooth source,the unit will automatically search the Bluetooth device

and connect it.If the device paired before. If can’t find paired device,it will enter pairing

mode automatically and the blue LED will flash quickly. Bluetooth device should active

“Bluetooth” function during pairing and search for “Fenda R30BT”.

Pairing a bluetooth device supporting NFC

If your Bluetooth device supports Near Field Communication (NFC), make sure that NFC feature

is activated. Touch the NFC area of your Bluetooth device to top of R30BT in order to automatically

pairing.

Note: If your phone has NFC support but it is running an OS below Android 4.1, you will need

to download an NFC Bluetooth APP from Google play or a similar online store.

Installation and operation guide

A. Before making connections make sure the speaker is switched off.

B. Connect speakers with the connection cable.

C. Insert input signal cable (RCA socket) into input port on back panel and the other end into

output port of your PC, MP3, etc.

D. Plug connector to power socket.

E. Adjust the volume knobs to the minimum, revolve the power button on the side of the master

speaker.

F. Adjust the volume knob to the necessary volume.

G. Adjust TREBLE and BASS knobs to desired level.

Notes:

The specifications may be changed without preliminary notice.

SAFETY PRECAUTIONS

• Never push objects of any kind (needles, hair-pins, coins, insects) into this system.

• Do not put the system in damp circumstances, prevent from ingress of moisture and dust. (Do not

place flower vases and other objects on it).

• Prevent the system from heating. (Do not install the system near heat sources and prevent it from

• Do not use petrol, alcohol and other solvents when cleaning, as they may damage stained surface.

Clean only with dry soft cloth.

• In order to avoid electric shock and other accidents, never open the back cover for repair without

any professional guidance.

• Switch off the power and take off the plug from the power jack when the system is not on work.

direct sunlight).

Product specificaties

Merk:	F&D
Categorie:	Speaker
Model:	R30BT
Kleur van het product:	Zwart
Gewicht:	6300 g
Breedte:	60 mm
Diepte:	205 mm
Hoogte:	280 mm
Bluetooth:	Ja
Stroom:	0.3 A
Afstandsbediening:	Draadloos
Bluetooth-versie:	4.0
Connectiviteitstechnologie:	Bedraad en draadloos
Type stroombron:	AC
Gemiddeld vermogen:	50 W
Volumeregeling:	Draaiknop
Aanbevolen gebruik:	Universeel
Impedantie:	8 Ohm
3,5mm-connector:	Ja
Audio-uitgangskanalen:	2.0 kanalen
Speaker plaatsing:	Tafelblad/Boekenplank
Woofer:	Ja
Frequentiebereik:	30 - 20000 Hz
Op afstand bedienbaar:	Ja
Signaal/ruis-verhouding:	70 dB
Bereik van Bluetooth:	10 m
Luidspreker soort:	2-weg
Diameter woofer:	4 "
Diameter hogetonenluidspreker:	1 "
RMS-vermogen luidsprekers:	25 W
Regeling van bass-niveau:	Ja
Tweeter:	Ja
AC-ingangsspanning:	220 - 240 V
AC-ingangsfrequentie:	50 - 60 Hz
Treble adjustment:	Ja
