Pagina 1/12

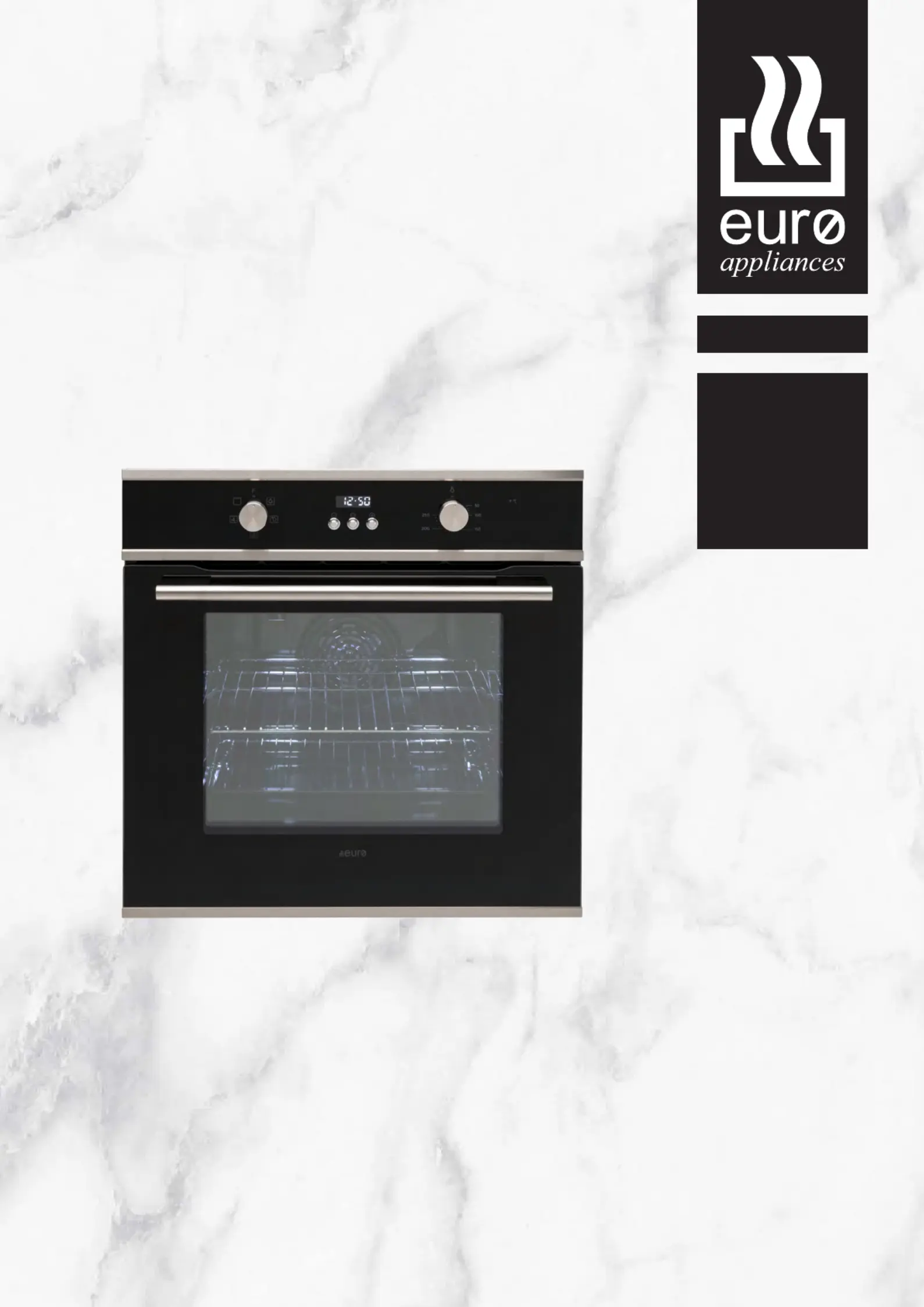

U S A G E A N D
C A R E GUID E
PROD UC T
CODE:
EO6 05S X
cooking
-Remove the power cable and replace it with one of the H05VV-F, and H05V2V2-F type .
-The cable must be able to bear the electrical current required by the oven.
-Cable replacement must be carried out by properly qualified technicians.
ACKNOWLEDGEMENT
Thank you for purchasing our product.We hope you enjoy using the many features and benefits it provides.
Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe
place for future reference.Ensure that other people using the product are familiar with these instructions
as well.
WARNING
When the oven is first switched on, it may give off an unpleasant smell. This is due to the bonding agent
used for the insulating panels within the oven.This is completely normal, if it does occur, you merely have
wait for the smell to clear before putting food into the oven.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass of the oven. This can
scratch the surface and may result in permanent damage to the glass.
During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements
inside the oven.
Do not allow children to go near the oven when it is operating , especially when the grill is on.
Ensure that the appliance is switched off before replacing the oven lamp to avoid the possiblity of
electric shock.
It i necessary to allow disconnection of the appliance from the supply after installatio The disconnection s n.
can be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance
with the wiring rules.
Conductors of supply cords shall have a nominal cross-sectional area not less than 3G1.5mm2.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by person responsible for their safety.
Chil should be supervised to ensur that they do not play with the appliance.dren e
WARNING: Accessible parts may become hot during use. Young chil should be kept away.dren
The oven must not be installed behind a decorative door in order to avoid overheating.
SAFETY HINTS
The oven must be used only of the purpose for which it was designed; it must only be used for cooking
food. Any other use,e.g. as a form of heating is a breech of use and is therefore dangerous. The
manufacturer will not be held liable or responsible for any damage to a property caused through incorrect
use. When using any electrical appliance you must follow a few basic rules.
Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or
damp hands or feet.
Do not allow children or irresponsible people to use the oven unless they are carefully supervised.
If the above instructions are not adhered to the manufacture cannot guarantee the safe operation of
the oven.
Do not use the power cord with an adapter, power board or extension cable.
If the supply is damaged, it must be replaced by the manufacturer, it service agent or similarly cord s
qualified person in order to avoid a hazard.s
If the oven breaks down or develops a fault, switch it off at the mains and do not touch it. Please contact
the After Sales Service Centre.
If the cable is at all damaged it must be replaced promptly. When replacing the cable, follow these
instructions.
2
-The earthing cable (yellow-green) must be 10mm longer than the power cable.
Heating resistance temperature of power cord is above 70
OC.The power cord should be connected with
duplex switch,which is no less than 250V and 10 AMP.
FITTING THE OVEN INTO THE KITCHEN UNIT
Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a work top or into an
upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the frame.
To locate the fixing holes,open the oven door and look inside.To allow adequate ventilation, the
measurements and distances adhered to when fixing the oven.
IMPORTANT
If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that
are next to the oven must be made of a heat resistant material. Ensure that the glues of units that are
made of veneered wood can with stand temperatures of at least 120
ºC
. Plastics or glues that cannot
withstand such temperatures will melt and deform the unit,once the oven has been lodged inside the
units, electrical parts must be completely insulated.This is a legal safety requirement.All guards must
be firmly fixed into place so that it is impossibl to remove them without using special tools. Remove
the back of the kitchen unit to ensure an adequate current of air circulates around the oven.The hob
must have a rear gap of at least 45 mm.
DECLARATION OF COMPLIANCE
When you have unpacked the oven, make sure that it has not been damaged
in any way. If you have any doubts at all, do not use it: contact a professionally
qualified person. Keep packing materials such as plastic bags, polystyrene,
or nails out of the reach of children because these are dangerous to children.
3
