Pagina 1/4
page 1 of 4

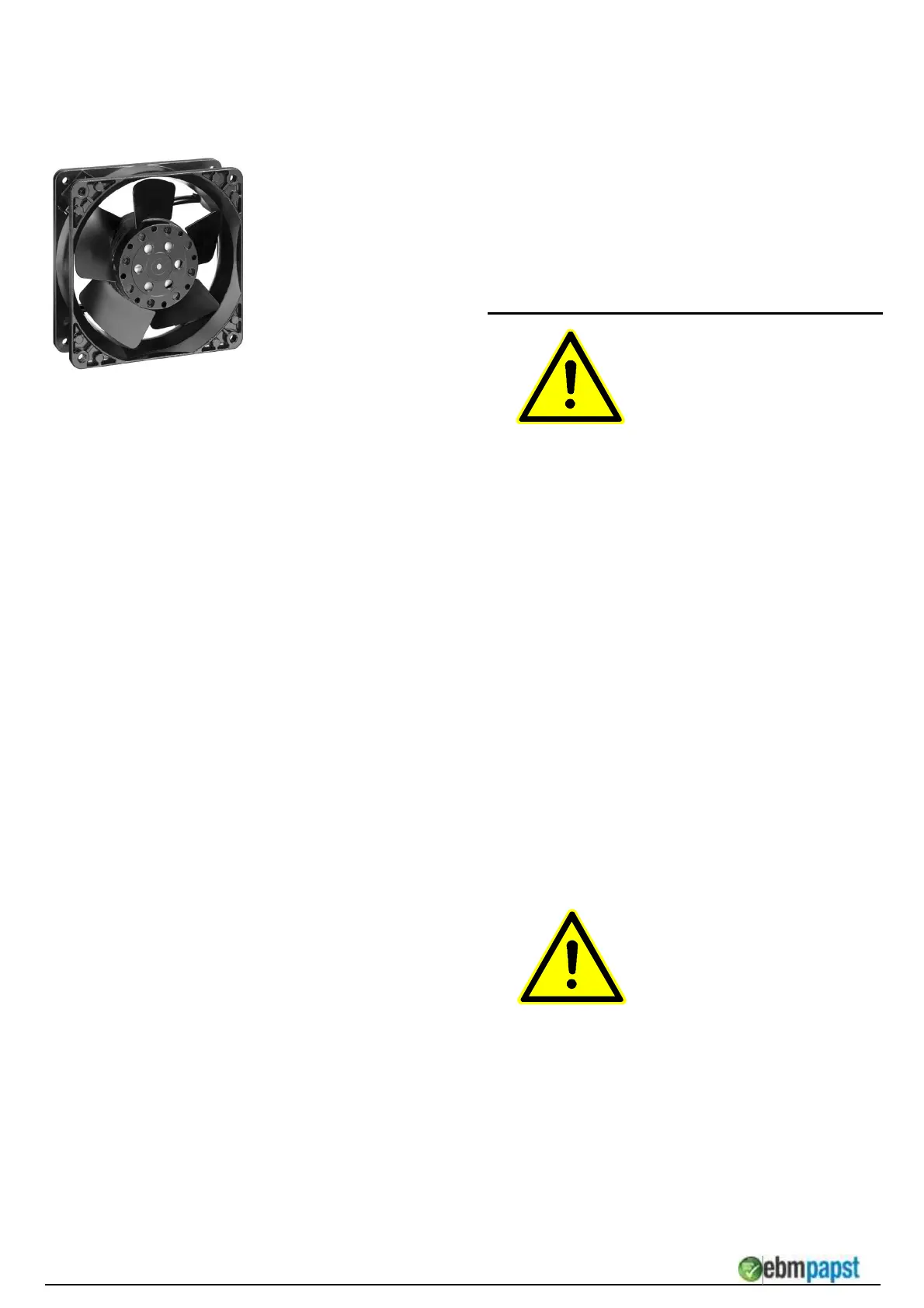

Operating manual
4890 N
Product type, manufacturing date (calendar week/year of construction)
and if required, conformity mark can be found on the nameplate on the
product.
Please provide us with the contents of the nameplate when making
enquiries about the product.
ebm-papst St.Georgen GmbH & Co. KG
Hermann-Papst-Straรe 1
D - 78112 St.Georgen
Phone: +49 (0) 7724 / 81-0
Fax: +49 (0) 7724 / 81-1309
info2@de.ebmpapst.com
www.ebmpapst.com
As per: 04.06.2012
Version 1 1
Article number: 9244014264
Original operating manual
INDEX
1 SAFETY REGULATIONS AND INFORMATION 1
2 INTENDED USE 2
3 TECHNICAL DATA 3
4 CONNECTION AND COMMISSIONING 3
5 FAULTS, POSSIBLE CAUSES AND REMEDIES 4
6 APPROVALS 4
1 SAFETY REGULATIONS AND INFORMATION
Read the operating manual carefully before commencing work at the
product. Pay attention to the following warnings to avoid risk to
persons or malfunctioning.
This operating manual is an integral part of the product.
In the event of resale or change of ownership the operating manual
must accompany the product. This operating manual may be copied
and provided as information on potential risks and their avoidance.
Hazard classi๎cation of warning notices
The following risk ratings are used in this operating manual to denote
potential risk situations and important safety instructions:
DANGER
This is a potentially dangerous situation
and warns of an impending health risk
or risk of fatal injury if this warning is
not observed. Observe this warning.
WARNING
The dangerous situation can occur and
can result in major or fatal injuries if the
warning is not observed. Work with
extreme care.
CAUTION
The dangerous situation can occur and
can result in minor injuries or damage
to property if the warning is not
observed.
NOTE
A potentially dangerous situation can
occur and results in damage to
property if not avoided.
Quali๎cation of personnel
Only skilled electricians are permitted to install the product, to carry out
the test run and to work at the electrical unit.
Only instructed and authorized skilled personnel are permitted to
transport, unpack, operate and service the product.
Basic safety regulations
Safety risks related to the product must be reassessed after installing
in the ๎nal device.
The operating manual was developed in accordance with European
market requirements and may need adapting to the market
requirements of the country in question.
When working at the product, observe the following:
๎ Do not make any changes to the product.
WARNING
Impermissible high load
๎ Stop the product immediately after
impermissible loading (e.g. impact,
heat, overvoltage).
page 2 of 4
Electrical voltage and current
DANGER
Electrical voltage
Regularly check the electrical
equipment of the product.
๎ Eliminate immediately loose
connections and defective cables.
CAUTION
In the event of a fault, the product is
energized.
Product has basic insulation.
๎ Do not touch the product after
installing.
Safety and protective functions
DANGER
Missing safety device and faulty
protective equipment.
Without protective equipment severe
injuries can occur, e.g. by taking hold of
the rotating equipment.
๎ Operate the product with protection
guards only.
Electromagnetic radiation
Electromagnetic compatibility (EMC) may a๎ect the system integration
of the product due to interaction.
๎ Ensure the electromagnetic compatibility of the entire system.
Moving parts
DANGER
Self-starting product
If voltage is applied, the motor
automatically restarts after a mains
failure or when blocking has been
eliminated.
๎ Do not stand in the danger zone of
the product.
๎ Switch o๎ the mains voltage when
working on the product and secure
against switching on again.
WARNING
Rotating fan
Long hair, loose-๎tting garments and
jewellery can be caught and pulled into
the product. Risk of injury.
๎ Do not wear loose-๎tting garments
or jewellery when working on
moving parts.
๎ Protect long hair by wearing a hair
net.
CAUTION
High risk of ๎re spreading
Can cause ๎re to spread.
๎ Never direct the air๎ow
(intake/exhaust side) at a potential
source of fire.
Hot surface
CAUTION
High temperature at motor housing.
Risk of burns
๎ Provide adequate protection against
accidental contact.
Transport
Only transport the product in its original packaging. Secure during
transport.
The vibration values, temperature and climate ranges should not be
exceeded during transport.
Storage
Store the product in a dry and clean environment that is well protected.
Ensure that the storage temperature is adhered to,see Chapter 3,
Technical Data.If the product is not operated for a longer period of
time, we recommend running it for approx. 15 minutes annually to
move the motor bearings.
Cleaning
NOTE
Product damaged during cleaning
๎ Clean the product carefully with a
moist cloth without applying
pressure to the rotor. Do not use
cleaning agents that contain acids,
caustic solutions or solvents.
Disposal
When disposing of the product, observe all requirements and
regulations that are relevant in your country.
2 INTENDED USE
The product is designed exclusively as a built-in device for conveying
air according to the technical data.
Every use that is not in accordance with the intended purpose, is
regarded as misuse of the product.
On-site installations must comply with the mechanical, thermal and
service life requirements, see Chapter 3, Technical Data.
Intended use includes:
- Operating the product with all protective equipment
- Do not put the product into operation before it has been installed in
the customer's application
- Observation of the operating manual
Use for other than the intended purpose
Using the product for the purposes mentioned below is prohibited and
can be dangerous:
- Conveyance of air that contains abrasive particles.
- Conveyance of air that has a highly corrosive e๎ect.
- Conveyance of air that has a high dust load, e.g. vacuuming
sawdust.
- Conveyance of in๎ammable gases/particles.
- Contact with materials that can damage the product, e.g. acids,
caustic solutions, solvents.
- Exposure to radiation that can damage product components, e.g.
strong UV rays or thermal radiation.
- Operating during external vibration.
- Operating the product close to inflammable materials or
components.
- Operating the product in an explosive atmosphere
- Use of the prouct as a safety component or for performing safety-
relevant functions.
- Operating in medical devices with life-sustaining or life-saving
function.
- Operating in non-stationary systems, e.g. railway vehicles, aircraft
and spacecraft.
- Operating with fully or partially dismantled or manipulated protective
equipment.
- Operating the product under conditions other than those mentioned
in the technical data.
- Furthermore, all ๎elds of application not mentioned under intended
use.
page 3 of 4
An in situ assessment must be conducted of the heating behavior
(appropriate and inappropriate operation), the protection against
contact, electrical shocks, impact of foreign objects or water and the
usage at altitudes higher than 2000 meters.
Contact ebm-papst if you have specific queries regarding the product.
3 TECHNICAL DATA
Drawing, see annex
Technical description
Air๎ow direction Air outlet over struts
Rotational direction
looking at rotor clockwise
Frequency 50 Hz 60 Hz
Nominal voltage 230,0 V 230,0 V
Current consumption 65 mA 58 mA
Power consumption 11,0 W 10,0 W
Nominal voltage
Current consumption
Power consumption
Speed 1.500 1/min 1.550 1/min
Max. free-air ๎ow 73,0 m3/h 76,0 m3/h
Weight 0,535 kg
Protection class I
Max. torque when
mounted across both
mounting ๎anges
wire outlet corner: 190 Ncm
remaining corners: 310 Ncm
Screw size
ISO 4762 - M4 degreased,
without an additional brace and
without washer
The product is intended for use in sheltered rooms with controlled
temperature and controlled humidity. Directly exposure to water must
be avoided.
Pollution degree 1 (according DIN EN 60664-1)
There is either no pollution or it occurs only dry, non-conductive
pollution. The pollution has no negative impact.
Ambient conditions
Permitted ambient temperature
Transport and storage Operation
50 Hz 60 Hz
-40 ยฐC ... 80 ยฐC -10 ยฐC ... 70 ยฐC -10 ยฐC ... 75 ยฐC
Vibration and shock load
At stationary operation:
sinus vibration 1,0 g; 5 - 500 Hz; 3 x 1 sweep
(Resonance search run)
Noise
0,5 m2/s3, 10 - 50 Hz; +12
dB/oct f. 5 - 10 Hz; -12 dB/oct f.
50 - 100 Hz; 3 x 30 min
Repetitive shock Half sine; 5 g, 11 ms; 6 x 100
shocks
Transport and storage:
Noise 2,0 m2/s3, 5 - 20 Hz; -3 dB/oct f.
20 - 500 Hz; 3 x 30 min
Thrusts Half sine; 18 g, 6 ms; 6 x 100
shocks
Do not operate your product in the resonance range.
4 CONNECTION AND COMMISSIONING
Connect mechanical parts
CAUTION
Risk of cutting/squashing when
removing the product from the
packaging and during mounting.
Grasp the housing and lift the product
carefully out of the packaging. Avoid
impact.
๎ Wear safety boots and cut-resistant
gloves.
Connect electrical parts
Connect to the mains after installation.
DANGER
Do not touch. Risk of fatal injury
from electrical current.
๎ Ensure that the electrical lines are
de-energized.
๎ Secure the operating voltage against
switching on again.
๎ Never work on parts that are
energized. Only allow skilled
electricians to work on the product.
DANGER
Compliance with the electrical
installation regulations
๎ Observe the connection regulations
that are valid in your country. (e.g.
fusing, GFCI)
CAUTION
Electrical voltage
The product is a built-in
component and has no switch for
disconnecting power.
๎ Only connect the product to
current circuits that can be
switched o๎ by a switch (all poles
disconnected). When working on
the product, secure the
system/machine in which the
product is installed against
switching on again.
NOTE
Electromagnetic compatibility (EMC) may a๎ect the system integration
of the product due to interaction.
๎ Ensure the electromagnetic compatibility of the entire system.
Ground fault interrupter GFI
Only current-sensitive GFIs (type B)
are permissible. Personal protection is
not possible with GFIs when the
product is in operation (see also
frequency converters).
Requirements:
- Before connecting the product, ensure that the supply voltage
corresponds with the product voltage.
- Check whether the data on the nameplate corresponds with the
interface data.
Product specificaties
| Merk: | Ebm-papst |
| Categorie: | Ventilator |
| Model: | 8880 N |
Heb je hulp nodig?
Als je hulp nodig hebt met Ebm-papst 8880 N stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Ventilator Ebm-papst
4 September 2024
18 Mei 2024
18 Mei 2024
17 Mei 2024
17 Mei 2024
17 Mei 2024
17 Mei 2024
17 Mei 2024
17 Mei 2024
17 Mei 2024
Handleiding Ventilator
- Ventilator Bosch
- Ventilator Philips
- Ventilator Delonghi
- Ventilator Panasonic
- Ventilator AEG
- Ventilator BEKO
- Ventilator DeWalt
- Ventilator Honeywell
- Ventilator Inventum
- Ventilator JBL
- Ventilator Medion
- Ventilator Quigg
- Ventilator Siemens
- Ventilator Tefal
- Ventilator Unold
- Ventilator Adler
- Ventilator Afk
- Ventilator Airis
- Ventilator Akasa
- Ventilator Alpina
- Ventilator Alpine
- Ventilator Andrews
- Ventilator Argo
- Ventilator Ariete
- Ventilator Asko
- Ventilator Baseline
- Ventilator Basetech
- Ventilator Be Cool
- Ventilator Beem
- Ventilator Beper
- Ventilator Bestron
- Ventilator Beurer
- Ventilator Bionaire
- Ventilator Blaupunkt
- Ventilator BlueBuilt
- Ventilator Blumill
- Ventilator Bodin
- Ventilator Bomann
- Ventilator Boneco
- Ventilator Brandson
- Ventilator Breville
- Ventilator Briebe
- Ventilator Bulex
- Ventilator Daikin
- Ventilator Defy
- Ventilator Dimplex
- Ventilator Domo
- Ventilator Duracraft
- Ventilator Duronic
- Ventilator Duux
- Ventilator Dyson
- Ventilator Easymaxx
- Ventilator Efbe-schott
- Ventilator Eglo
- Ventilator Einhell
- Ventilator Elro
- Ventilator Emerio
- Ventilator Esperanza
- Ventilator Eurom
- Ventilator Everglades
- Ventilator Evolar
- Ventilator EXCELLENT Electrics
- Ventilator Exquisit
- Ventilator Fagor
- Ventilator Fakir
- Ventilator Fisher And Paykel
- Ventilator Frankische
- Ventilator Fresh
- Ventilator Frigidaire
- Ventilator Fuave
- Ventilator G3 Ferrari
- Ventilator Gaggenau
- Ventilator Gamma
- Ventilator Gembird
- Ventilator Gemini
- Ventilator Goobay
- Ventilator Gorenje
- Ventilator Guardo
- Ventilator Gutfels
- Ventilator H.Koenig
- Ventilator Hama
- Ventilator Handson
- Ventilator Helios
- Ventilator Hema
- Ventilator Hikoki
- Ventilator Home Electric
- Ventilator Homedics
- Ventilator Hornbach
- Ventilator House Of Marley
- Ventilator HQ
- Ventilator Hunter
- Ventilator Husqvarna
- Ventilator Hyundai
- Ventilator Ices
- Ventilator IHome
- Ventilator Innoliving
- Ventilator Itho
- Ventilator Kalorik
- Ventilator Kambrook
- Ventilator Kenmore
- Ventilator Klarbach
- Ventilator Klarstein
- Ventilator Koenic
- Ventilator Kogan
- Ventilator Korona
- Ventilator Kuppersbusch
- Ventilator Livington
- Ventilator Livoo
- Ventilator Logik
- Ventilator Maestro
- Ventilator Makita
- Ventilator Martin
- Ventilator Master
- Ventilator Meaco
- Ventilator Melissa
- Ventilator Mesko
- Ventilator Metabo
- Ventilator Midea
- Ventilator Migros
- Ventilator Milwaukee
- Ventilator Monacor
- Ventilator MPM
- Ventilator Nabo
- Ventilator Nedis
- Ventilator Perel
- Ventilator Powerplus
- Ventilator Prem-i-air
- Ventilator Primo
- Ventilator Princess
- Ventilator Profile
- Ventilator Proklima
- Ventilator Proline
- Ventilator Protector
- Ventilator Qazqa
- Ventilator Qlima
- Ventilator Renkforce
- Ventilator RestantOutlet
- Ventilator Rovus
- Ventilator Rowenta
- Ventilator Royal Sovereign
- Ventilator Ryobi
- Ventilator Sencor
- Ventilator Severin
- Ventilator Sharkoon
- Ventilator Sichler
- Ventilator Silvercrest
- Ventilator Smartwares
- Ventilator SMC
- Ventilator Sogo
- Ventilator Solac
- Ventilator Solis
- Ventilator Sonnenkonig
- Ventilator Sportstech
- Ventilator SPT
- Ventilator Stadler Form
- Ventilator Stanley
- Ventilator Steba
- Ventilator Stirling
- Ventilator Stylies
- Ventilator Sunbeam
- Ventilator Suntec
- Ventilator Superior
- Ventilator Swan
- Ventilator Sygonix
- Ventilator Taurus
- Ventilator Team
- Ventilator Techwood
- Ventilator Tecnolux
- Ventilator Termozeta
- Ventilator Tomado
- Ventilator Toolcraft
- Ventilator Trebs
- Ventilator Tristar
- Ventilator Trotec
- Ventilator Trumatic
- Ventilator Trust
- Ventilator Ufesa
- Ventilator V-Tac
- Ventilator Velleman
- Ventilator Vivax
- Ventilator Vonroc
- Ventilator Vornado
- Ventilator Wahlbach
- Ventilator Waves
- Ventilator Weasy
- Ventilator Westinghouse
- Ventilator White Knight
- Ventilator Worx
- Ventilator Zehnder
- Ventilator Zelmer
- Ventilator Jata
- Ventilator Jocel
- Ventilator OK
- Ventilator OneConcept
- Ventilator Orcon
- Ventilator Orion
- Ventilator Ozito
- Ventilator Clas Ohlson
- Ventilator Crivit
- Ventilator Becken
- Ventilator Black And Decker
- Ventilator Camry
- Ventilator Clatronic
- Ventilator Concept
- Ventilator ECG
- Ventilator Elba
- Ventilator Essentiel B
- Ventilator German Pool
- Ventilator Guzzanti
- Ventilator Heinner
- Ventilator Izzy
- Ventilator Khind
- Ventilator Mellerware
- Ventilator Optimum
- Ventilator Orbegozo
- Ventilator Scarlett
- Ventilator Sinbo
- Ventilator Trisa
- Ventilator Vox
- Ventilator CSL
- Ventilator Anslut
- Ventilator Nitecore
- Ventilator Kunft
- Ventilator Soler And Palau
- Ventilator Aspes
- Ventilator Comfee
- Ventilator Costway
- Ventilator EMOS
- Ventilator Infiniton
- Ventilator Nevir
- Ventilator Orima
- Ventilator Svan
- Ventilator Cotech
- Ventilator Ardes
- Ventilator Eldom
- Ventilator Grunkel
- Ventilator Premium
- Ventilator Teesa
- Ventilator Heylo
- Ventilator Prime3
- Ventilator Proficare
- Ventilator SereneLife
- Ventilator Thermaltake
- Ventilator Brentwood
- Ventilator Arno
- Ventilator DCG
- Ventilator Biltema
- Ventilator Sun Joe
- Ventilator Eurolite
- Ventilator Corsair
- Ventilator Broan
- Ventilator Day
- Ventilator NuTone
- Ventilator Canarm
- Ventilator CasaFan
- Ventilator Fanco
- Ventilator Jan Des Bouvrie
- Ventilator KDK
- Ventilator Kichler
- Ventilator Lucci
- Ventilator Martec
- Ventilator Vortice
- Ventilator Bimar
- Ventilator Crane
- Ventilator Kemot
- Ventilator Lasko
- Ventilator Tripp Lite
- Ventilator Antari
- Ventilator Tesy
- Ventilator Craftsman
- Ventilator Orava
- Ventilator Signature
- Ventilator SPC
- Ventilator Cecotec
- Ventilator Baxi
- Ventilator Thermex
- Ventilator Keystone
- Ventilator Enermax
- Ventilator EVOLVEO
- Ventilator Carrier
- Ventilator Fantini Cosmi
- Ventilator LC-Power
- Ventilator Tornado
- Ventilator LifeSmart
- Ventilator EcoAir
- Ventilator SHE
- Ventilator Perfect Aire
- Ventilator Air & Me
- Ventilator Ausclimate
- Ventilator Cli-Mate
- Ventilator Be Quiet!
- Ventilator Air King
- Ventilator Wahoo Fitness
- Ventilator Argoclima
- Ventilator Heller
- Ventilator PAX
- Ventilator Clean Air Optima
- Ventilator Tron
- Ventilator Arctic Cooling
- Ventilator ORNO
- Ventilator StarTech.com
- Ventilator Gamdias
- Ventilator Schweigen
- Ventilator Salco
- Ventilator Lian Li
- Ventilator NewAir
- Ventilator Arebos
- Ventilator Portacool
- Ventilator Neo
- Ventilator Rok
- Ventilator Madeira
- Ventilator Siku
- Ventilator PureGuardian
- Ventilator Aerian
- Ventilator Claro
- Ventilator IXL
- Ventilator XPower
- Ventilator JAP
- Ventilator O2 Cool
- Ventilator Elix
- Ventilator Arcoaire
- Ventilator Djive
- Ventilator InnoGIO
- Ventilator Casablanca
- Ventilator B-Air
- Ventilator Wallair
- Ventilator White Shark
- Ventilator Maico
- Ventilator Envira-North
- Ventilator Vitammy
- Ventilator GoldAir
- Ventilator Sรดlt
- Ventilator SEPA
- Ventilator Ravanson
- Ventilator SchwankAir
- Ventilator Calibo
- Ventilator Create
- Ventilator Fantech
- Ventilator Aeratron
- Ventilator ActiveJet
- Ventilator Big Ass Fans
- Ventilator Haus & Luft
- Ventilator Omega Altise
- Ventilator SpeedComfort
- Ventilator Klimat
- Ventilator Eligent
- Ventilator Gewiss
- Ventilator Phaesun
- Ventilator Middle Atlantic
- Ventilator Kincrome
- Ventilator AireRyder
- Ventilator Fanimation
- Ventilator Air Logic
- Ventilator Sandia Aerospace
- Ventilator HPM
- Ventilator Geek Aire
- Ventilator Magmatic
- Ventilator Imarflex
- Ventilator Mystery
- Ventilator S&P
- Ventilator Modern Fan Co.
- Ventilator Quorum International
- Ventilator Yamazen
- Ventilator Windmill
- Ventilator Soler & Palau
Nieuwste handleidingen voor Ventilator
20 December 2024
20 December 2024
20 December 2024
18 December 2024
14 December 2024
14 December 2024
14 December 2024
14 December 2024
13 December 2024
13 December 2024
