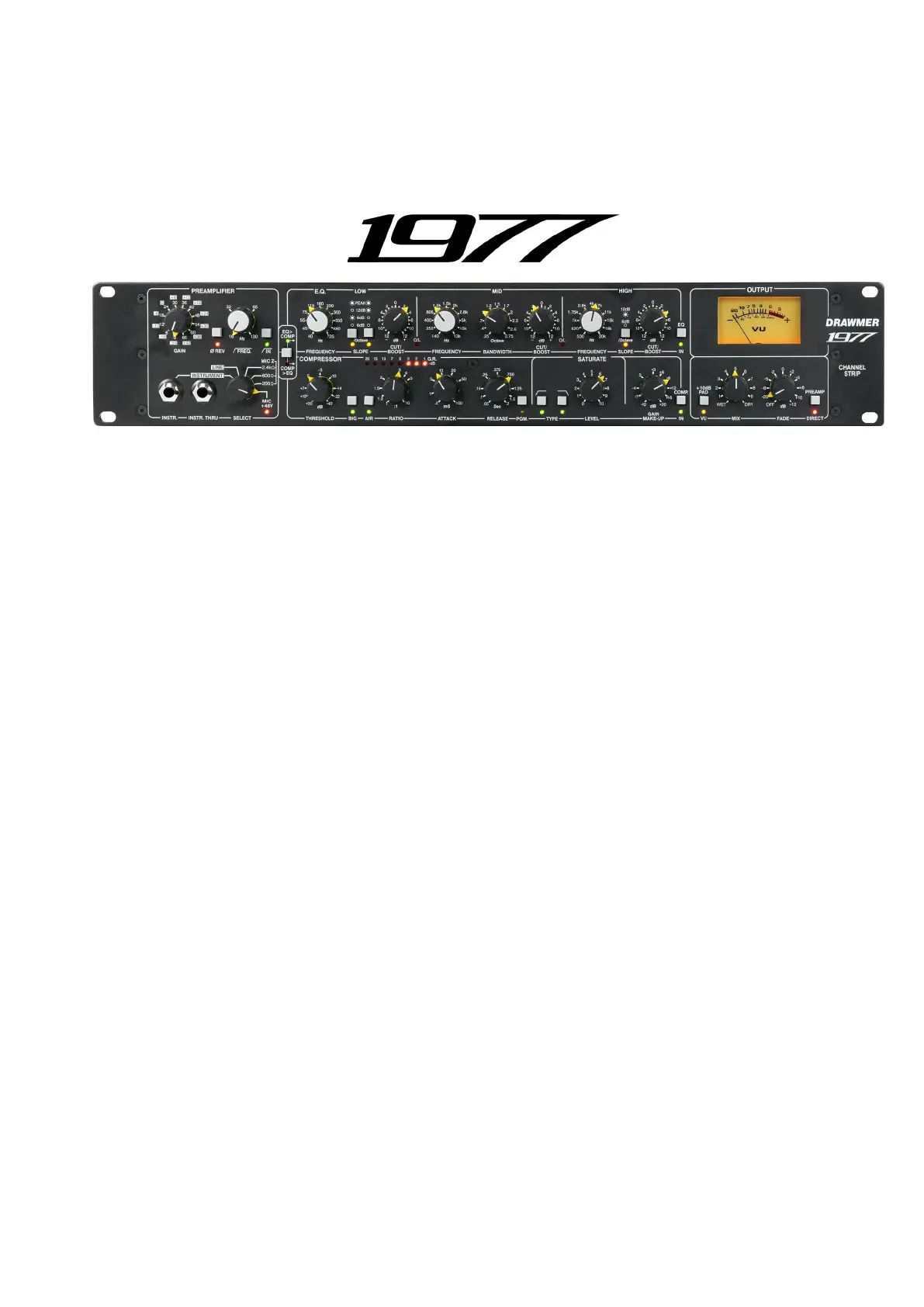

OPERATOR’S MANUAL

CONTENTS

Warranty

Safety Consideration

Chapter 1 - Introduction

Introduction

Installation

Power Connection

Audio Connections

Chapter 2 - Control Description

Control Description

Chapter 3 - General Information

If a fault develops

Contacting Drawmer

Specication Data

Block Diagram

Recall Sheet

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2 1977 OPERATOR’S ANUALM

Drawmer Electronics Ltd., warrants the Drawmer 1977

Channel Strip to conform substantially to the specications

of this manual for a period of one year from the original

date of purchase when used in accordance with the

specications detailed in this manual. In the case of a

valid warranty claim, your sole and exclusive remedy

and Drawmer’s entire liability under any theory of liability

will be to, at Drawmer’s discretion, repair or replace the

product without charge, or, if not possible, to refund the

purchase price to you. This warranty is not transferable.

It applies only to the original purchaser of the product.

For warranty service please call your local Drawmer

dealer. Alternatively call Drawmer Electronics Ltd. at

+44 (0)1709 527574. Then ship the defective product,

with transportation and insurance charges prepaid, to

Drawmer Electronics Ltd., Coleman Street, Parkgate,

Rotherham, S62 6EL UK. Write the RA number in large

letters in a prominent position on the shipping box.

Enclose your name, address, telephone number, copy

of the original sales invoice and a detailed description of

the problem. Drawmer will not accept responsibility for

loss or damage during transit.

This warranty is void if the product has been damaged by

misuse, modication or unauthorised repair.

THIS WARRANTY IS IN LIEU OF ALL WARRANTIES,

WHETHER ORAL OR WRITTEN, EXPRESSED,

IMPLIED OR STATUTORY. DRAWMER MAKES NO

OTHER WARRANTY EITHER EXPRESS OR IMPLIED,

INCLUDING, WITHOUT LIMITATION, ANY IMPLIED

WARRANTIES OF MERCHANTABILITY, FITNESS FOR

A PARTICULAR PURPOSE, OR NON-INFRINGEMENT.

PURCHASER’S SOLE AND EXCLUSIVE REMEDY

UNDER THIS WARRANTY SHALL BE REPAIR OR

REPLACEMENT AS SPECIFIED HEREIN.

IN NO EVENT WILL DRAWMER ELECTRONICS LTD.

BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES

RESULTING FROM ANY DEFECT IN THE PRODUCT,

INCLUDING LOST PROFITS, DAMAGE TO PROPERTY,

AND, TO THE EXTENT PERMITTED BY LAW, DAMAGE

FOR PERSONAL INJURY, EVEN IF DRAWMER HAS

BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

Some states and specic countries do not allow the

exclusion of implied warranties or limitations on how long

an implied warranty may last, so the above limitations may

not apply to you. This warranty gives you specic legal

rights. You may have additional rights that vary from state

to state, and country to country.

In the interests of product development, Drawmer reserve the right to modify or im-

prove specications of this product at any time, without prior notice.

ONE YEAR LIMITED WARRANTY

laws, no part of this publication may be reproduced, transmitted, stored in a retrieval system or translated

into any language in any form by any means, mechanical, optical, electronic, recording, or otherwise, without

the written permission of Drawmer Electronics Ltd.

1977

Channel Strip

SAFETY CONSIDERATIONS

CAUTION - MAINS FUSE

TO REDUCE THE RISK OF FIRE

REPLACE THE MAINS FUSE ONLY WITH

A FUSE THAT CONFORMS TO IEC127-2.

250 VOLT WORKING, TIME DELAY TYPE

AND BODY SIZE OF 20mm x 5mm.

THE MAINS INPUT FUSE MUST BE

RATED AT 230V=T250mA and 115V=T500mA.

CAUTION - MAINS CABLE

DO NOT ATTEMPT TO CHANGE

OR TAMPER WITH THE

SUPPLIED MAINS CABLE.

CAUTION - SERVICING

DO NOT PERFORM ANY SERVICING.

REFER ALL SERVICING TO QUALIFIED

SERVICE PERSONNEL.

WARNING

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR MOISTURE.

1977 OPERATOR’S ANUALM

CHANNEL STRIP

CHAPTER 1

INTRODUCTION

If you’re looking to add vintage characteristics and

analogue musicality to your recordings then look no further

than the 1977, Drawmer’s most comprehensive channel

strip to date.

The 1977 gives you the clarity of an ultra clean preamplier,

the precision of the three band parametric equaliser, the

silkiness of the soft knee compressor and added to this

the ability to dial in as much warmth as you desire via the

3 types of variable harmonic saturation.

The pristine preamplier not only incorporates mic, line and

instrument D.I. with 66dB of stepped gain, allowing you

to make ultra clean, transparent and precise recordings,

sweeten up dull audio or perfect your guitar sound, but

also mic matching via switched impedance that brings out

the best of every mic in your studio. Whether high-end,

ribbon or even your dullest mic you will be able to nd it’s

sweet spot.

The 1977 incorporates a true ‘parametric’ equaliser, with

three bands of fully variable frequency control and cut

and boost of +/-12dB’s and, in addition, a fully variable

bandwidth control of the mid band, making it incredibly

versatile and capable of modifying everything from subtle

ne tuning to tone sculpting problematic recordings, and,

of course, anything in between.

A full featured compressor allows you to control the

dynamics of your recordings and our trademark ‘Big’

and ‘Air’ modes help to preserve the very deep lows and

enhance the sparkling highs that lesser compressor’s

remove. The compressor section also incorporates variable

harmonic Saturation with a choice of 3 styles, that will allow

you to warm up your recordings with complete precision.

The output section includes wet/dry mix for parallel a

processing that allows you to easily dial in how much EQ

and compression is used via a single knob, plus an output

fade control to either add fade outs or to boost the level to

match high end audio interface audio input levels, along

with a large backlit VU meter for accurate monitoring.

And nally, a Preamp Direct switch that bypasses the EQ,

compressor and Saturation completely to provide an ultra

clean microphone output.

The result of all these features is a modern take on vintage

gear that gives you an incredible degree of control over

the clarity, tone and warmth of your recordings, helping

you to capture perfect audio every time.

Features:

• A THAT Corporation ultra clean mic preamplier with

66dB of gain with phantom power and switchable mic

impedance for accurate mic matching

• Separate Line & Mic input XLR’s and pro quality

instrument DI input with through output. Plus an XLR

for the dedicated ultra clean direct pre-amp output and

also for the overall output.

• FETs can be bypassed altogether to provide ultra clean

outputs.

• A variable high pass lter control removes any rumble

and allows you to tighten up the bottom end

• Phase reverse.

• Vintage-style three band full parametric EQ which takes

it’s inspiration from 1970’s-era analogue gear, with

variable frequency, +/-12dB cut and boost and variable

bandwidth. Switch able slopes plus low peak settings

allows you to adjust the focus and also magnify the

bottom and top ends.

• Compressor includes standard controls and also ‘Big’

and ‘Air’ Modes Help to preserve the very deep lows

and enhance the sparkling highs.

• Rear panel Side-chain insert point provides even further

control.

• 3 types of variable Saturation adds vintage warmth.

• The order of the EQ and Compressor can be swapped

and also each can bypassed to allow for comparisons.

• Variable Wet/Dry Mix plus Output Gain knobs give a

‘Parallel E.Q. and Compression’ function without the

need for external mixing devices, providing complete

and e󰀨ortless control over the amount of equalisation

and compression used and output levels.

• A backlit Analogue V.U. Meter with Switch able +10dB

Re-scale Mode.

• Time delay relays on the output for clean power up/down.

• Internal Low Hum Toroidal Linear Power Supply with

Voltage Selector Switch.

• Classic Drawmer build quality with rugged steel chassis

and aluminium front panel.

• Designed and Handmade by Drawmer in the UK.
