Subject to change without notice

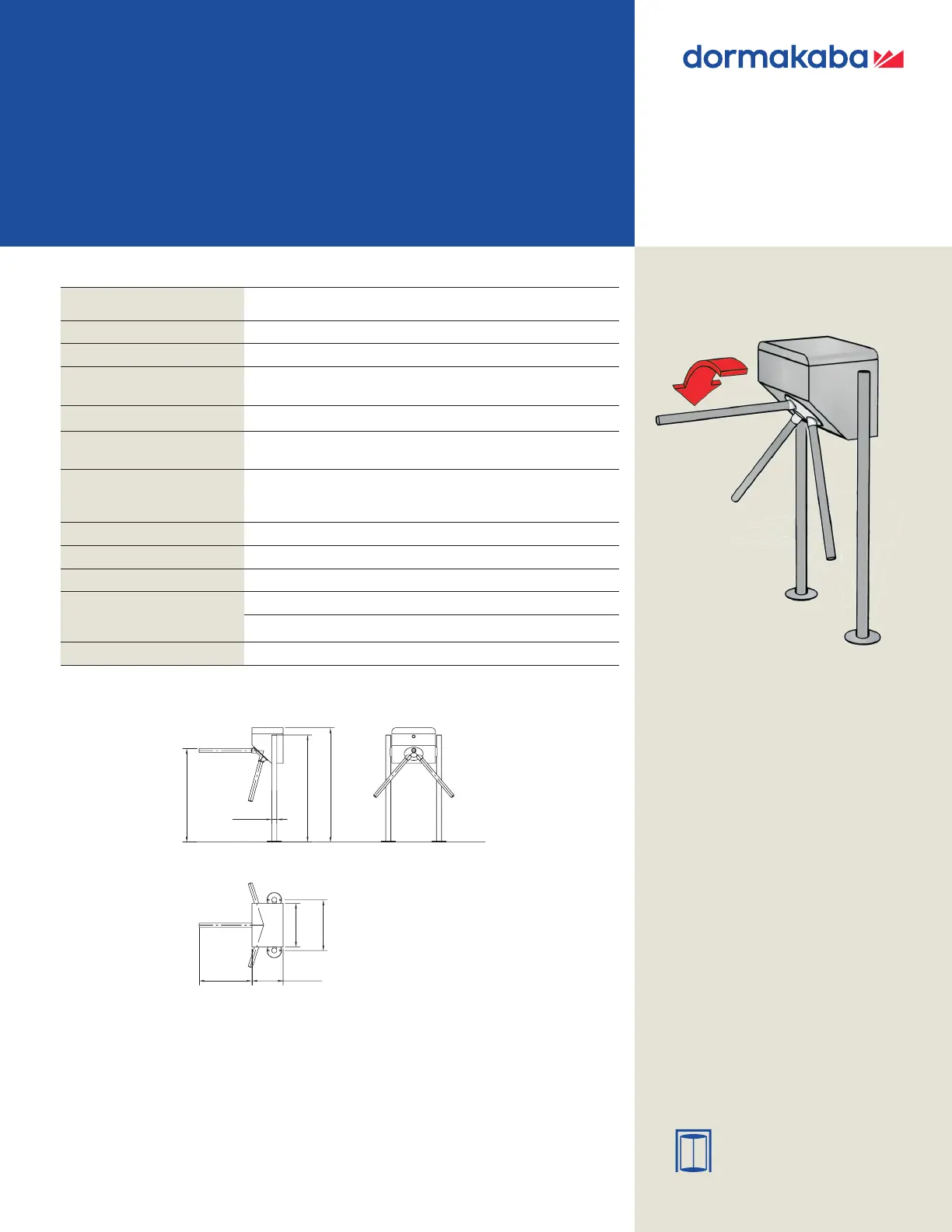

TPB-S03
Tripod turnstiles
Entrance systems
Standard units TPB-S03
Construction Housing with base column and flange plate.
Housing material Aluminium.
Base column, base or flange
plate material
AISI 304 stainless steel.
Crossbar material AISI 304 stainless steel.
Finish Stainless steel satin finish.
Aluminium housing painted in RAL 9006.
Function Power assist—Power-assisted motion; servo-positioning drive/
electronically controlled in both directions behavior inevent of
power failure can be selected for each direction: free or blocked).
Electrical equipment Control system integrated in the unit.
Power supply 110 – 230 VAC, 50/60 Hz, 253 VA.
Standby power consumption 10 VA.
Installation Fnished floor
Suitable for outdoor installation.
Protection classes Housing IP33, components conducting supply voltage IP43.
Note
Dimensions are shown as
inches followed by millimeters;
for example, 1" (25).
35-7/16"
(900)
40- 16"9/
(1030)
43-5/16"
(1110)
Ø1-7/8"
(Ø48)
20-1/16"
(510)
11-13/16"
(300)
16-9/16"
(420)
19 "-1/4
(488)
TPB-S03 elevation drawings
35-7/16"
(900)
35-7/16"
(900)
43-5/16"
(1100)
1- 16" 9/ (40)
dormakaba TPB-S03 tripod turnstiles
EO 8.18
TPB-S03
Installation drawings
dormakaba USA Inc.
Dorma Drive, Drawer AC
Reamstown, PA 17567
844.SPECNOW
www.dormakaba.us
Function
Counter. â—‹
Collapsible bars. â—‹
Electrical equipment
Operating panels and frames or surface mount housing. â—‹
Various signal devices. â—‹
Installation
Pallet with stainless steel ramp and rubber covering, approx. 3' 3-5/16" x 4' 11-1/16"
(1.0 m x 1.5 m), height approx. 1-1/4" (32 mm). â—‹
With cast-in clamping sleeves and rosettes for structural floor level. â—‹
â—‹ optional
Options
OPL 05 operating panel.
Signal device LED arrow-cross
(installed in the housing or in
the cover plate on both sides).
Ø1-7/8"
(Ø48)
5-15/16"
(150)
Ø3-7/16"
(Ø87)
FFB
Rosette Ø4-1/8" (Ø105)
Cast-in
35-7/16"
(900)
35-7/16"
(900)
43-5/16"
(1100)
1- 16" 9/ (40)
2-3/4" (70)
127" (3225)
149" (3785)
113-3/16" (2875)
81-5/16"
(2065)
78-9/16"
(1995)
75-13/16"
(1925)
55-11/16" (1415)
38-3/16" )(970
0
22-1/16"
(560)
11-13/16" (300)
20-1/16"
(510)
35-7/16"
(900)
14 1/16"7-
(3735)
149" (3785)
113-3/16" (2875)
81-5/16"
(2065)
78-9/16"
(1995)
75-13/16"
(1925)
43-7/8" (1115)
38-3/16"
(970)
0
2-3/4" (70)
22-1/16"
(560)
11-13/16" (300)
20-1/16"
(510)
35-7/16"
(900)
