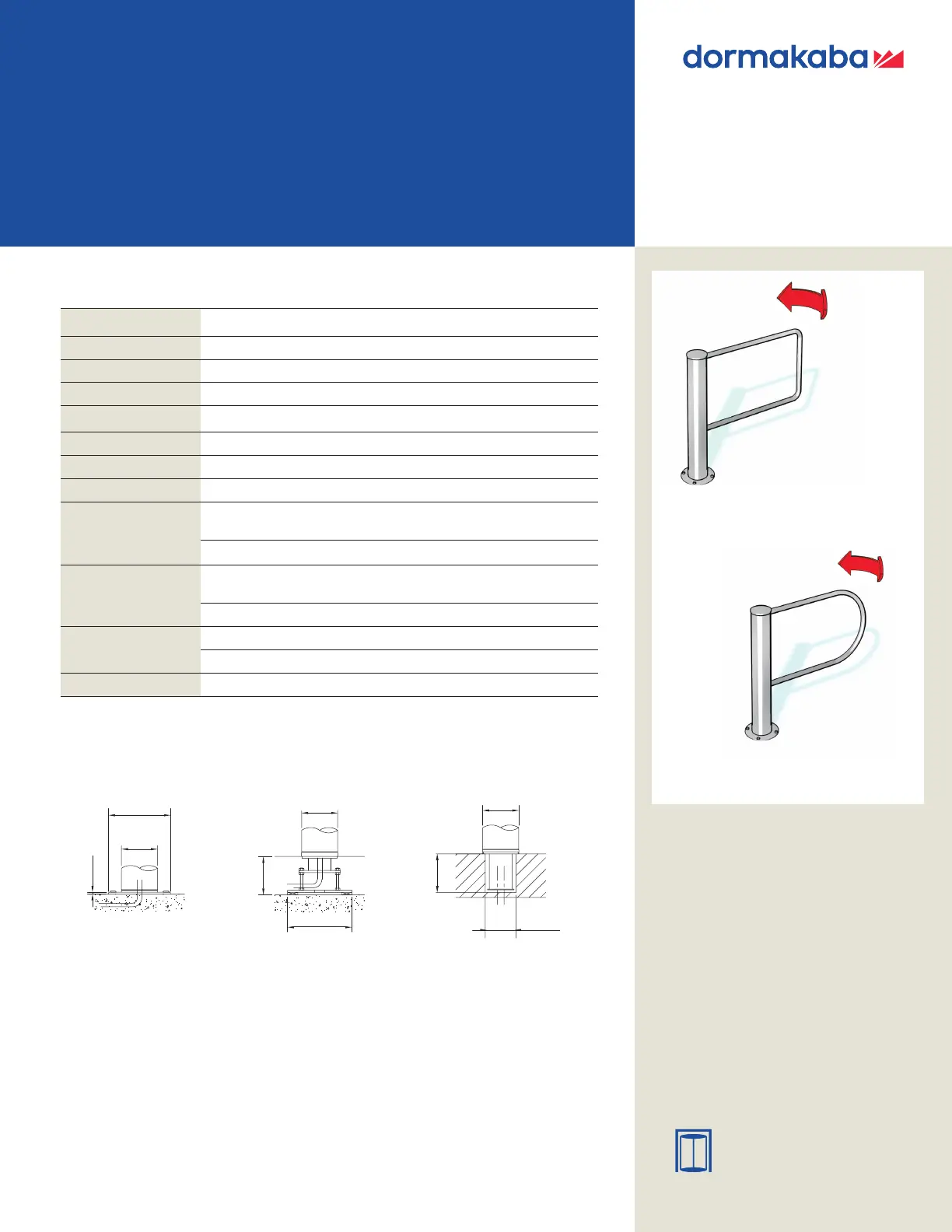

HSD-E01/E02
Half-height swing doors
Entrance systems
Standard units HSD-E01/E02
Construction
Tubular column Made of AISI 304 stainless steel, Ø 5-1/2”(Ø 140)
Barrier element U-shaped, Ø 1-9/16” (Ø 40) made of AISI 304 tubular stainless steel.
Leaf radius 35-7/16" (900)
Leaf upper edge 35-7/16” (900)
Locking system Drive and toothed holding brake installed in tubular column.
Finish Stainless steel satin finish.
Function Type 2: Power-assisted motion, servo-positioning drive/electrically
controlled in 2 directions.
90Β° opening in entrance and exit directions.
Electrical equipment Control unit and power supply unit in an external switch cabinet
H = 11-1/8" (283) / W = 6-5/8” (168) / D = 4-1/2” (115).
Power supply 100–240 VAC 50/60 Hz.
Installation Dowelled on finished floor level, FFL.
Suitable for outdoor installation.
Protection classes Housing IP43, components conducting supply voltage IP54.
Subject to change without notice
Installation alternatives
Entrance systems
Dowelled on finished
floor (standard)
With mounting plate
on subfloor level
Cast-in in finished
floor level
Ø 5-1/2"
Ø 140
Ø 9-7/16"
Ø 240
5/16"
(8)
Ø 5-1/2"
Ø 140
9-13/16"
(250)
X
"Ø 5-1/2
Ø 140
Ø 4-3/4"
Ø 120
5-15/16"
(150)
Note
Dimensions shown as inches
followed by millimeters; for
example, 1" (25).
HSD-E01
HSD-E02
2
dormakaba HSD-E01/E02 half-height swing door
dormakaba USA Inc.
Dorma Drive, Drawer AC
Reamstown, PA 17567
844.SPECNOW
www.dormakaba.us
EO 12.18 07000508-1
HSD-E01/E02 options
Construction
Passage width 39-3/8" (1000).
Passage width:
min. 25-9/16” (650), max. 47-1/4” (1200).
Special leaf width: minimum 25-9/16” (650).
Door leaf panel in TSG (sealed at the top and bottom).
Special height:
Door leaf raised to max. 47-1/4” (1200), 55-1/8” (1400).
Function
Master for linking two units as a double swing door.
Electrical equipment
Operating panels and frames or surface mount housing.
Additional circuit boards for expanding existing inputs and outputs.
Distribution board (connection of max. 4 OPL05 possible).
Installation
Mounting plate with variable substructure, measure X = 3-1/8” – 7-1/16” (80 – 180).
Cast-in with floor element.
35-7/16"
(900)
22-13/16"
(580)
12-5/8"
320
Ø 5-1/2"
Ø 140
35-7/16" (900)
35-7/16"
(900)
22-13/16"
(580)
12-5/8"
320
Ø 5-1/2"
Ø 140
Elevation drawings
HSD-E01 HSD-E02
