PERFORMANCE SERIES
CAR AUDIO SPEAKERS
WELCOME
Thank you for buying a DLS Performance series spea-
ker.
This manual will show you how to do a correct installa-
tion. Please read the entire manual before beginning the
installation.
Install the speakers yourself if you feel confident with our
instructions and if you have the proper tools. However if
you feel unsure, turn over the installation job to someone
better suited to it.
INSTALLATION
Mount the speakers in the door or in the dashboard of
your car. Normally they will fit in the facory pre-made
mounting holes. If you want an improved sound reinforce
with a baffle of MDF-board or similar. An installation high
up on the door side is to be prefered. An alternative in-
stallation is in so called kick panels down on each side of
the floor with the speakers facing up- and inwards
towards the listener.
For two- or three way speaker systems with separate
tweeter an installation of the tweeter close to the bass/
mid element is to be prefered. The tweeter can also be
installed on the dash-board, or recessed in the door with
the accessories in the tweeter box.
It is important to fasten the speakers properly in order to
avoid bad sound or rattling.
For speakers with separate filters in boxes or similar it is
vital that they are attached properly to the interior of the
vehicle to avoid rattling. DonΒ΄t place them close to the
internal wiring of the car, this can cause interference.
Avoid to install filter boxes in the door sides because
they can easily be broken because of rattling or
moisture. Make sure the cables donΒ΄t get jammed
causing a short circuit to ground. This can damage the
output circuits of the head unit or amplifier.
All models except for 257 and 457 comes with grilles.
The tweeter installation for kits with separate tweeter is
described on last page, or in the instruction sheet
coming with the tweeters.
SPEAKER ENCLOSURES
If you want to install the speaker in an enclosure the nor-
mal size for a sealed type is:
4β (10 cm) speakers : 2-4 liters
5,25β (13 cm) speakers : 6-8 liters
6,5β (16,5 cm) speakers : 10-12 liters
8β (20 cm) speakers : 15-20 liters
6 x 9β speakers : 15-20 liters
These volumes are only a guideline, they can vary
between different speakers. Contact your local DLS
dealer for more exact information about your specific
speaker.
124, 125,126,1269
224, 225, 226, 257, 269
424, 425, 426, 457, 428
960, 962
B5A, B6A, C4, C5A, C6A, C36
SPEAKERS 124, 125, 126 & 1269
DLS 124, 125 & 126 & 1269 are coaxial speaker with
integrated filter.
COAXIAL SPEAKERS 224, 225, 226, 257, 269 &
960
The 224, 269 and 960 models have an integrated tweeter
filter. DLS 225, 226 and 257 have a separate cable filter
wrapped in plastic cover. Inside the cover there is both a
lowpass filter for the woofer and a highpass filter for the
tweeter. On next page you can see how to connect the
filter.
The filters must be used, if you connect without them
the sound becomes bad and you will destroy the
tweeter.
COAXIAL SPEAKERS 424, 425, 426, 457, 428 &
962.
These speakers have a separate filter box with lowpass
filter for the woofer and a highpass filter for the tweeter.
The tweeter level can be adjusted inside the filter box in
two steps, high and low. Install the filter box in a dry place.
On next page you can see how to connect the filter.
The filters must be used, if you connect without them
the sound becomes bad and you will destroy the
tweeter.
TWO-WAY SYSTEMS B5A & B6A
These systems have a separate tweeter. The filters are
separate lowpass and highpass in small plastic boxes with
selectable tweeter level in two steps. The bass/mid spea-
ker driver uses the new DLS EFR technology for improved
sound quality.
On next page you can see how to connect the filter.
The filters must be used, if you connect without them
the sound becomes bad and you will destroy the
tweeter.
TWO/THREE-WAY SYSTEMS C4, C5A, C6A & C36
The 2-way systems have a separate tweeter. The filters
are separate lowpass and highpass in small plastic boxes
with selectable tweeter level in three steps inside. C36 is
a 3-way system with a filter box where you can connect a
woofer, a midrange speaker and a tweeter. The tweeter
level can be adjusted in three steps inside the filter box.
On next page you can see how to connect the filter.
The filters must be used, if you connect without them
the sound becomes bad and you will destroy the
tweeter.
Model Woofer Mid Tweeter Nom. Max Sensi- Magnet Inst. Mounting Crossover
power power tivity size depth hole
125 10 cm / 4β 16 mm / 0,63β 50 W 80 W 93 dB 70 mm / 2,75β 45 mm / 1,7β 102 mm β 4β Integrated
125 13 cm / 5,25β 16 mm / 0,63β 50 W 80 W 92 dB 70 mm / 2,75β 50 mm / 1,97β 120 mm / 4,72β Integrated
126 16,5 cm / 6,5β 16 mm / 0,63β 50 W 80 W 92 dB 80 mm / 3,15β 28 mm / 2,28β 145 mm / 5,7β Integrated
1269 6 x 9β 50 mm / 2β 60 W 120 W 92 dB 80 mm / 3,15β 75 mm / 3β 150x220 mm / 5,9x8,7β Integrated
224 10 cm / 4β 16 mm / 0,63β 50 W 80 W 93 dB 70 mm / 2,75β 50 mm /1,97β 102 mm / 4β Integrated
225 13 cm / 5,25β 16 mm / 0,63β 50 W 80 W 92 dB 80 mm / 3,15β 54 mm / 2,12β 120 mm / 4,72β Integrated
226 16,5 cm / 6,5β 16 mm / 0,63β 50 W 80 W 92 dB 80 mm / 3,15β 52 mm / 2β 145 mm / 5,7β Integrated
269 6 x 9β 50 mm 16 mm / 0,63β 80 W 120 W 92 dB 100 mm / 3,94β 80 mm / 3,15β 150x220 mm / 5,9x8,7β Integrated
257 5 x 7β 16 mm / 0,63β 50 W 80 W 92 dB 80 mm / 3,15β 60 mm / 2,36β 130 x 185 mm / 5,1x7,3β Integrated
424 10 cm / 4β 20 mm / 0,8β 50 W 80 W 94 dB 80 mm / 3,15β 58 mm / 2,28β 102 mm / 4β Separate box
425 13 cm / 5,25β 20 mm / 0,8β 60 W 90 W 93 dB 90 mm / 3,54β 61 mm / 2,4β 117 mm / 4,6β Separate box
426 16,5 cm / 6,5β 20 mm / 0,8β 60 W 90 W 94 dB 100 mm / 4β 62 mm / 2,44β 145 mm / 5,7β Separate box
428 20 cm / 8β 25 mm / 1β 80 W 120 w 94 dB 105 mm / 4,1β 87 mm / 3,43β 185 mm / 7,282 Separate box
457 5 x 7β 20 mm / 0,8β 60 W 90 W 93 dB 100 mm / 4β 58 mm / 2,28β 130 x 185 mm / 5,1x7,3β Separate box
960 6 x 9β 50 mm 20 mm / 0,8β 80 W 120 W 93 dB 100 mm / 4β 83 mm / 3,27β 150x220 mm / 5,9x8,7β Integrated
962 6 x 9β 25 mm / 0,8β 80 W 120 W 93 dB 100 mm / 4β 83 mm / 3,27β 150x220 mm / 5,9x8,7β Separate box
B5A* 13 cm / 5,25β 16 mm / 0,63β 50 W 80 W 91 dB 80 mm / 3,15β 63 mm / 2,48β 117 mm / 4,6β Separate LP/HP
B6A* 16,5 cm / 6,5β 16 mm / 0,63β 50 W 80 W 91 dB 80 mm / 3,15β 63 mm / 2,48β 146 mm / 5,75β Separate LP/HP
C4 10 cm / 4β 20 mm / 0,8β 50 W 80 W 92 dB 70 mm / 2,75β 58 mm / 2,28β 102 mm / 4β Cable filter
C5A 13 cm / 5,25β 20 mm / 0,8β 50 W 80 W 93 dB 80 mm / 3,15β 60 mm / 2,36β 120 mm / 4,72β Separate boxes
C6A 16,5 cm / 6,5β 20 mm / 0,8β 60 W 90 W 93 dB 80 mm / 3,15β 63 mm / 2,48β 156 mm / 5,75β Separate boxes
C36 16,5 cm / 6,5β 4β 20 mm / 0,8β 60 W 90 W 93 dB 80 / 70 mm 63 / 58 mm 146 / 102 mm Separate boxes
* Speakers using the DLS EFR technology for improved sound quality.
SPEAKER FACTS FOR DLS PERFORMANCE SERIES
RUNNING-IN PERIOD
Allow the speakers to play for at
least 15-20 hours. After this time the
performance is correct.
Speaker
connection and
tweeter level
select:
Use the red, blue and black
cables to connect between
the filter box and speaker
terminal. Note the speaker
terminal colour marking.
Select tweeter level by
moving the jumper inside
the filter box between high /
low. Make your own tests
for best result.

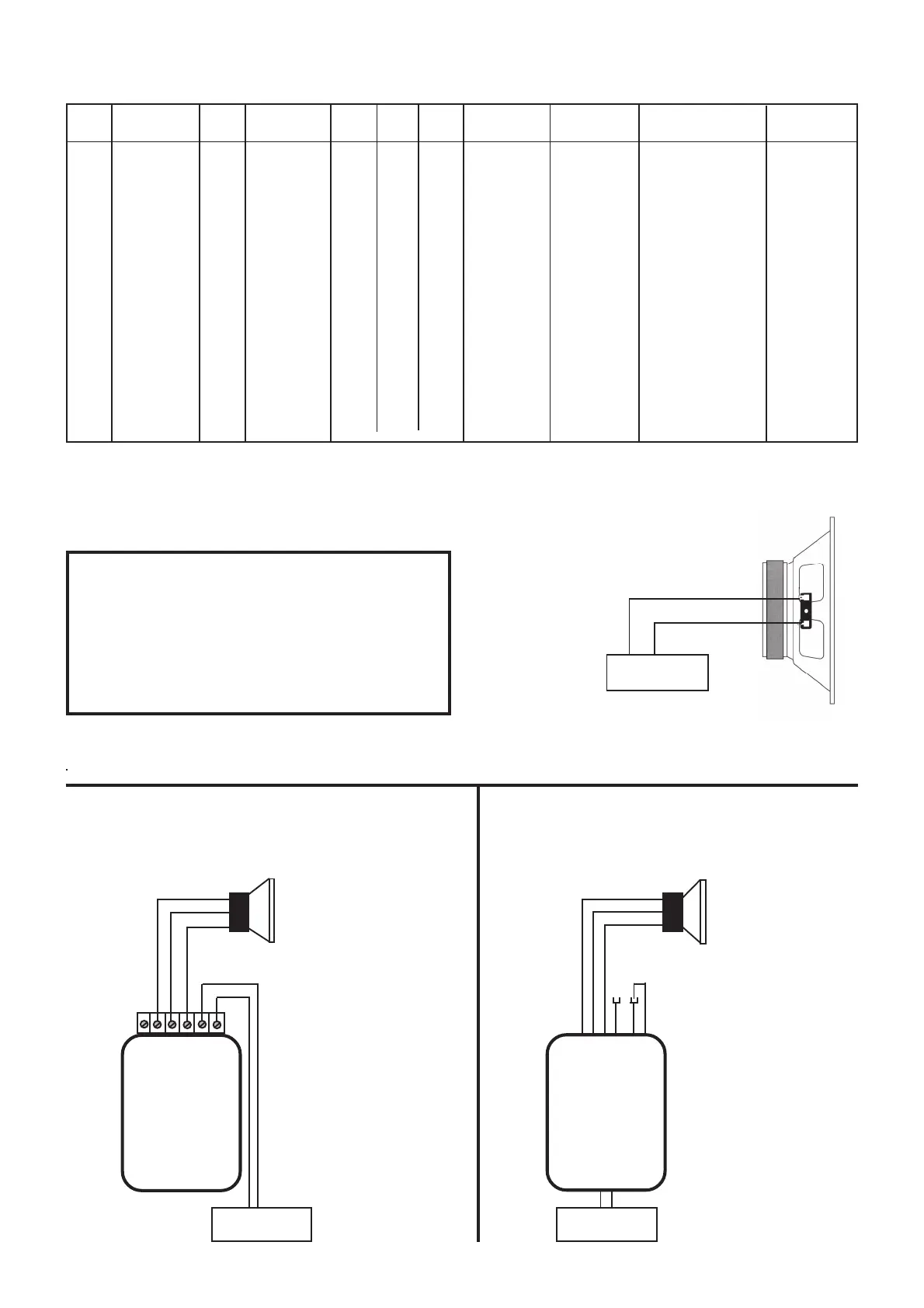

Filter installation and connection of coaxial
speakers 424, 425, 426 and 457
Red +
Blue +
Black -
INPUT WOOFER TW
+ - + - + -
coaxial
2-way crossover
Car stereo or
amplifier
coaxial
2-way crossover
Green
Red
Yellow
Tweeter level
Green to red=high
Green to yellow=low
Red +
Blue +
Black -
Car stereo or
amplifier
Filter installation and connection of coaxial
speakers 962 and 428
On the cable filter box
without screw terminals
the level select is made
on the outside by
connecting the green
cable to either the red
or yellow one coming
out from the box.
Tweeter level select:
High level: Connect
green and red wire.
Low level: Connect
green and yellow wire.
FILTER/CROSSOVER INSTALLATIONS
Car stereo or
amplifier
CONNECTION OF SPEAKERS
For speakers with integrated filters
you just connect like this. Make sure
the polarity is correct for both left
and right side.
SPEAKER PHASING
To be sure to have the correct speaker polarity (phase) you can
check this by using a 1,5 Volt battery.
Connect a cable from the battery plus-pole to the speaker plus,
and a cable from the battery minus to the speaker minus.
If the speakers are correctly connected the speaker cone should
move outwards on both right and left channel.
This check must be made on the cables going from the speakers,
to the output terminals of your car stereo or amplifier.
+
+--
FILTER/CROSSOVER INSTALLATIONS
Cable filter
High pass
(red)
Red + Black -
Yellow
Red
Cable filter
Low pass
(blue)
Black - Blue +
Car stereo or
amplifier
Filter installation B5A and B6A
Tweeter
level select:
For High level
connect yellow
and red wire.
Disconnect for
Low level
Tweeter
Cable filter
High pass
(yellow)
Transp - Red +
Yellow
Red
Blue
High pass
Cable filter
Low pass
(green)
Black - Red +
Low pass
Car stereo or
amplifier
Filter installation C5A
Black - Blue +
Black - Red +
Tweeter level select:
High level: Connect yellow
and red wire.
Mid level: Connect yellow
and blue wire.
Low level: All circuits open.
Black - Red + Black - Red +
Black - Red +
Cable filter
High pass
(yellow)
Transp - Red+
High pass
Cable filter
Low pass
(green)
Black - Red +
Low pass
Car stereo or
amplifier
Filter installation C4
Tweeter
Tweeter
Tweeter level
select:
High level: Connect
Red and yellow wire.
Low level:
Disconnect red and
yellow wire.
Black - Red +
Black - Red +
Black - Red +
Head unit / amp.
Mid-
bass
-
Red +
+ IN - + TW - + MID - + WF -
Midrange
-
Red +
Tweeter
Red +
-
+ IN - + TW - + MID - + WF -
J1
IN
OUT
J2
0
-2 dB
-4 dB
CONNECT/DISCONNECT THE MIDBASS, JUMPER J1:
If you want to run the midbass driver with an active crossover
using a separate amplifier, and run the midrange and tweeter
through the passive filter box, you must move the jumper J1 to
position OUT. The normal position for this jumper is IN.
TWEETER LEVEL SELECT, JUMPER J2:
The tweeter level can be selected in three step by moving jum-
per J2 between 0, -2dB or -4dB. The lowest tweeter level is
achieved in the -4dB position.
Filter installation 225, 226 and 257
Filter installation and connection of C36
Low pass
High pass
Car stereo or
amplifier
Cable filter
Black - Red +
Connect the three
cables from the
speaker terminals to
the filter according to
drawing. Black cable
is common minus for
both tweeter and
woofer.
Black - Blue + Red+
IN TWEETER
+ - + -
Tweeter
+
-
Head unit / amp
+ -
Woofer
+
-
IN WOOFER
+ - + -
Silver/red
Silver
Black/blue
Black
Tw level
Hi Mid Lo
Tweeter level select:
Select tweeter level by moving the
jumper inside the filter box between
high, mid or low. Make your own
tests for best result.
Filter installation C6A
Yellow
Red
Product specificaties
Merk: | DLS |
Categorie: | Luidspreker |
Model: | 224 |
Heb je hulp nodig?
Als je hulp nodig hebt met DLS 224 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Luidspreker DLS
22 Augustus 2023
Handleiding Luidspreker
- Luidspreker Sony
- Luidspreker Samsung
- Luidspreker LG
- Luidspreker Huawei
- Luidspreker AEG
- Luidspreker Grundig
- Luidspreker Gigaset
- Luidspreker JVC
- Luidspreker JBL
- Luidspreker Motorola
- Luidspreker Medion
- Luidspreker Onkyo
- Luidspreker Pioneer
- Luidspreker Yamaha
- Luidspreker ADAM Audio
- Luidspreker Adler
- Luidspreker Aiptek
- Luidspreker Akai
- Luidspreker Alphatronics
- Luidspreker Anker
- Luidspreker AquaSound
- Luidspreker Argon
- Luidspreker Art Sound
- Luidspreker Audica
- Luidspreker Audizio
- Luidspreker Auna
- Luidspreker Aurum
- Luidspreker Bang Olufsen
- Luidspreker Behringer
- Luidspreker Bigben
- Luidspreker BML
- Luidspreker Bose
- Luidspreker Boston
- Luidspreker Boston Acoustics
- Luidspreker Bowers Wilkins
- Luidspreker Brandt
- Luidspreker Definitive Technology
- Luidspreker Denver
- Luidspreker Devialet
- Luidspreker Dyon
- Luidspreker Easymaxx
- Luidspreker Elac
- Luidspreker Eltax
- Luidspreker Energy
- Luidspreker Envivo
- Luidspreker Eufy
- Luidspreker Fender
- Luidspreker Fenton
- Luidspreker Gear4
- Luidspreker Gingko
- Luidspreker Goobay
- Luidspreker Hama
- Luidspreker Harman Kardon
- Luidspreker Heco
- Luidspreker Hercules
- Luidspreker HTC
- Luidspreker Hyundai
- Luidspreker Iluv
- Luidspreker IRC
- Luidspreker Karcher Audio
- Luidspreker KEF
- Luidspreker Klipsch
- Luidspreker Koolsound
- Luidspreker KRK Systems
- Luidspreker Lab 31
- Luidspreker Lamax
- Luidspreker Leitz
- Luidspreker Lenco
- Luidspreker Lexon
- Luidspreker Libratone
- Luidspreker Mackie
- Luidspreker Macrom
- Luidspreker Magnat
- Luidspreker Marshall
- Luidspreker Metronic
- Luidspreker Mission
- Luidspreker Monitor Audio
- Luidspreker Mordaunt Short
- Luidspreker Muse
- Luidspreker Naim
- Luidspreker Nebula
- Luidspreker Nubert
- Luidspreker Paradigm
- Luidspreker Peaq
- Luidspreker Polk
- Luidspreker Pure
- Luidspreker Pure Acoustics
- Luidspreker Q Acoustics
- Luidspreker Quadral
- Luidspreker Reflexion
- Luidspreker Rel
- Luidspreker REL Acoustics
- Luidspreker Roland
- Luidspreker S-Digital
- Luidspreker Samson
- Luidspreker Scansonic
- Luidspreker Schaub Lorenz
- Luidspreker Sinji
- Luidspreker Sonoro
- Luidspreker Sonos
- Luidspreker Soundlogic
- Luidspreker Soundmaster
- Luidspreker Speedlink
- Luidspreker SuperTooth
- Luidspreker Swisstone
- Luidspreker Tannoy
- Luidspreker Technisat
- Luidspreker Telestar
- Luidspreker Terris
- Luidspreker Teufel
- Luidspreker Tevion
- Luidspreker Trust
- Luidspreker US Blaster
- Luidspreker Veho
- Luidspreker Vifa
- Luidspreker Vonyx
- Luidspreker Wharfedale
- Luidspreker Jamo
- Luidspreker JGC
- Luidspreker OK
- Luidspreker Omnitronic
- Luidspreker QTX
- Luidspreker Silvergear
- Luidspreker ISY
- Luidspreker Malone
- Luidspreker One Acoustics
- Luidspreker Zvox
Nieuwste handleidingen voor Luidspreker
2 November 2024
21 December 2023
25 Oktober 2023
25 Oktober 2023
25 Oktober 2023
15 Oktober 2023
9 Oktober 2023
8 Oktober 2023
8 Oktober 2023
8 Oktober 2023
