Pagina 1/23

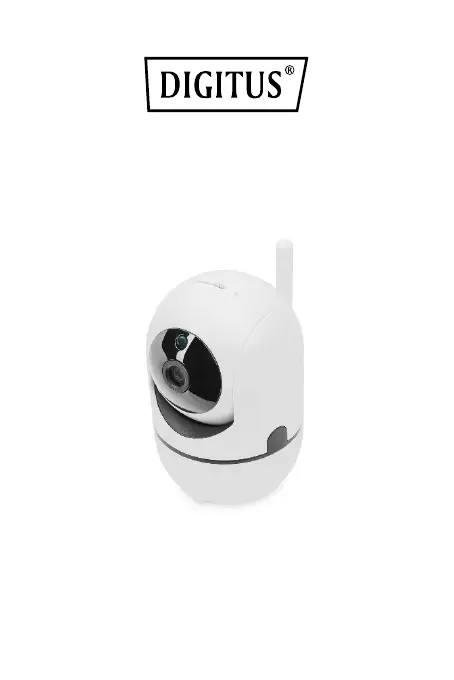

Smart Full HD PT Indoor Camera with

Auto Tracking, WiFi + Voice Control

Quick Installation Guide

DN- 18603

1. Introduction

The WiFi camera from DIGITUS® can be rotated by 355° and

panned by 90° and is equipped with auto-tracking, this

enables automatic tracking of movements within the field of

view. Thanks to the wide- -angle lens of 100° with razor sharp

Full HD resolution, you won't miss a single detail. The

automatic switching from day to night vision offers a clear

view even in absolute darkness. Thanks to WLAN operation,

you are 100% flexible as far as the installation location is

concerned; all you have to do is position the camera within

the range of your wireless network and supply it with power.

Via Amazon Alexa and Google Assistant, the camera image

can be displayed on corresponding Amazon and Google

displays by voice command. The camera is also able to detect

and track movements in the image area and send a

corresponding push notification to your smartphone. The

available MicroSD card slot can be equipped with memory

cards of up to 128 GB, so that recordings can be stored for a

longer period of time and retrieved at any time. The two-way

audio transmission allows you to communicate with people in

front of the camera. The camera's live image and all settings

can be conveniently accessed and adjusted via app -

regardless of your current location (assuming cellular

reception). The camera is designed for a variety of uses, such

as indoor surveillance of all kinds, baby or pet monitoring.

Thanks to the included bracket, the camera can be

individually aligned and mounted - alternatively via the

integrated 1/4" screw thread. Go for security and flexibility

with the voice-controlled Full HD PT indoor camera from

DIGITUS®.

2. Main features

• Full HD video resolution 1080p with a wide angle of

100°.

• Auto tracking function (tracking of movements)

• Rotates 355° (PAN) / tilts 90° (TILT)

• Voice control via Amazon Alexa & Google Assistant

possible

• Motion detection with push notification via app

• Supports two way audio transmission-

• Night vision mode (6 IR LEDs)

• Recording to MicroSD card or cloud possible

(manual/motion/schedule)

• Free smart life app (Tuya) available for iOS and Android

• Easy installation possible by scanning the QR code

3. Package Contents

• 1 x Smart Full HD PT Indoor Camera with Auto Tracking,

WiFi + Voice Control.

• 1 x USB power supply incl. USB cable x 1m

• 1 x Mounting adapter / mounting material

• 1 x Quick Start Guide

IMPORTANT: If any part is missing or damaged, please

contact your local dealer or reseller for assistance.

Product specificaties

Merk:	Digitus
Categorie:	Bewakingscamera
Model:	DN-18603
Kleur van het product:	Wit
Gewicht:	280 g
Breedte:	67 mm
Hoogte:	105 mm
Gewicht verpakking:	340 g
Breedte verpakking:	138 mm
Diepte verpakking:	118 mm
Hoogte verpakking:	88 mm
Soort:	IP-beveiligingscamera
Materiaal behuizing:	Kunststof
Bluetooth:	Nee
Type verpakking:	Doos
Montage gereedschap:	Ja
Maximale capaciteit van de geheugenkaart:	128 GB
Wi-Fi-standaarden:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ondersteund audioformaat:	G.711
Ondersteunde videoformaten:	H.264
Vormfactor:	Dome
Video recording:	Ja
USB-poort:	Ja
Ondersteuning voor plaatsing:	Binnen
Connectiviteitstechnologie:	Draadloos
Ethernet LAN:	Nee
Montagewijze:	Plafond/wand/bureau
Ondersteunde video-modi:	1080p, 720p
Maximum resolutie:	1920 x 1080 Pixels
Totaal aantal megapixels:	2 MP
Type stroombron:	USB
Stroomuitvoer (volt):	5
Stroomuitvoer (ampère):	1.5 A
Minimale belichting:	0.1 Lux
Field of view (FOV) hoek:	100 °
Aantal cameras:	1
Meegeleverde kabels:	USB
Geïntegreerde geheugenkaartlezer:	Ja
Compatibele geheugenkaarten:	MicroSD (TransFlash)
Ingebouwde HDD:	Nee
Nachtvisie:	Ja
LED-type:	IR
Video bewegings-detectie:	Ja
Audiosysteem:	2-weg
Land van herkomst:	China
Ingebouwde luidsprekers:	Ja
Vermogensverbruik (max):	4 W
Omvang optische sensor:	1/2.7 "
Type beeldsensor:	CMOS
Ingebouwde microfoon:	Ja
Soort antenne:	Extern
Antennas quantity:	1
Lengte:	85 mm
Maximaal 30 frames per seconde:	25 fps
Ondersteunde netwerkprotocollen:	CP/IP, UDP, DDNS, P2P, RTSP, Private Cloud, ONVIF
Stroomverbruik:	350 mA
Snelle installatiehandleiding:	Ja
Draaihoek:	355 °
Pan bereik:	0 - 355 °
Dag/nacht modus:	Ja
Maximum aperture number:	1.2
Videostreaming:	Ja
Montagebeugels meegeleverd:	Ja
Nachtkijker afstand:	10 m
Aantal verlichtingen LEDS:	6
Infrarood (IR)-afsluitingsfilter:	Ja
Bitrate:	16 Kbps - 2 Mbps
Wifi:	Ja
AC-ingangsspanning:	100 - 240 V
AC-ingangsfrequentie:	50 - 60 Hz
Bedrijfstemperatuur (T-T):	-10 - 50 °C
Relatieve vochtigheid in bedrijf (V-V):	10 - 90 procent
Bereik kantelhoek:	0 - 90 °
Code geharmoniseerd systeem (HS):	85258900
Lens diameter:	3.6 mm
Auto-tracking:	Ja
Niveau gebruikerstoegang:	Gebruiker
