8 - - 1 514 224 001 REV A page
COMMERCIAL WASHER
MODEL T- 0 35 EXPRESS VENDED
C- SERIES CONTROL
OPERATOR’S MANUAL
INSTALLATION & OPERATION
INSTRUCTIONS
Please read this information and retain for reference.
WARNING - THIS WASHER IS EQUIPPED WITH DEVICES AND FEATURES RELATING TO ITS SAFE
OPERATION. TO AVOID INJURY OR ELECTRICAL SHOCK, DO NOT PERFORM ANY SERVICING UNLESS
QUALIFIED TO DO SO.
IT IS THE RESPONSIBILITY OF THE OWNER TO CHECK THIS EQUIPMENT ON A FREQUENT
BASIS TO ASSURE ITS SAFE OPERATION.
A machine should not be allowed to operate if any of the following occur:
- Excessively high water level.
- If machine is not connected to a properly grounded circuit.
- If the door does not remain securely locked during the entire cycle.
- Vibration or shaking from an inadequate mounting or foundation.
WARNING - FOR SAFETY
1. Always shut off power and water supply before servicing.
2. Do not overload the washer.
3. Do not open door when cylinder is in motion or it contains water.
4. Do not bypass any safety devices of this washer.
5. Do not use volatile or flammable substances in or near this washer.
6. Keep all panels in place. They protect against shock and injury and add rigidity to the washer.
PREVENTIVE MAINTENANCE REQUIREMENTS
DAILY
- Check that the loading door remains securely locked and cannot be opened during the entire cycle.
- Check the water connections for leaks.
- Clean the top and sides of the cabinet to remove residue.
- Clean the soap dispenser and lid and check that all dispenser mounting screws are in-place and tight.
- Check the drain valve for leaking and that it opens properly.
- Check the loading door for leaks. Clean the door seal of all foreign matter.
- Leave the loading door open to aerate the washer when not in use.
QUARTERLY
- Make sure the washer is inoperative by switching off the main power supply.
- -Check the V belts for wear and proper tension.
- Clean lint and other foreign matter from around motor.
- Check all water connections for leaks.
- Wipe and clean the inside of the washer and check that all electrical components are free of moisture
and dust.
- Remove and clean water inlet hose filters. Replace if necessary.
- Check anchor bolts - retighten if necessary
IMPORTANT: Replace any and all panels that were removed to perform daily and/or quarterly
maintenance.
8 - - 2 514 224 001 REV A page
TABLE OF CONTENTS
Page
No.
Washer Specifications
2

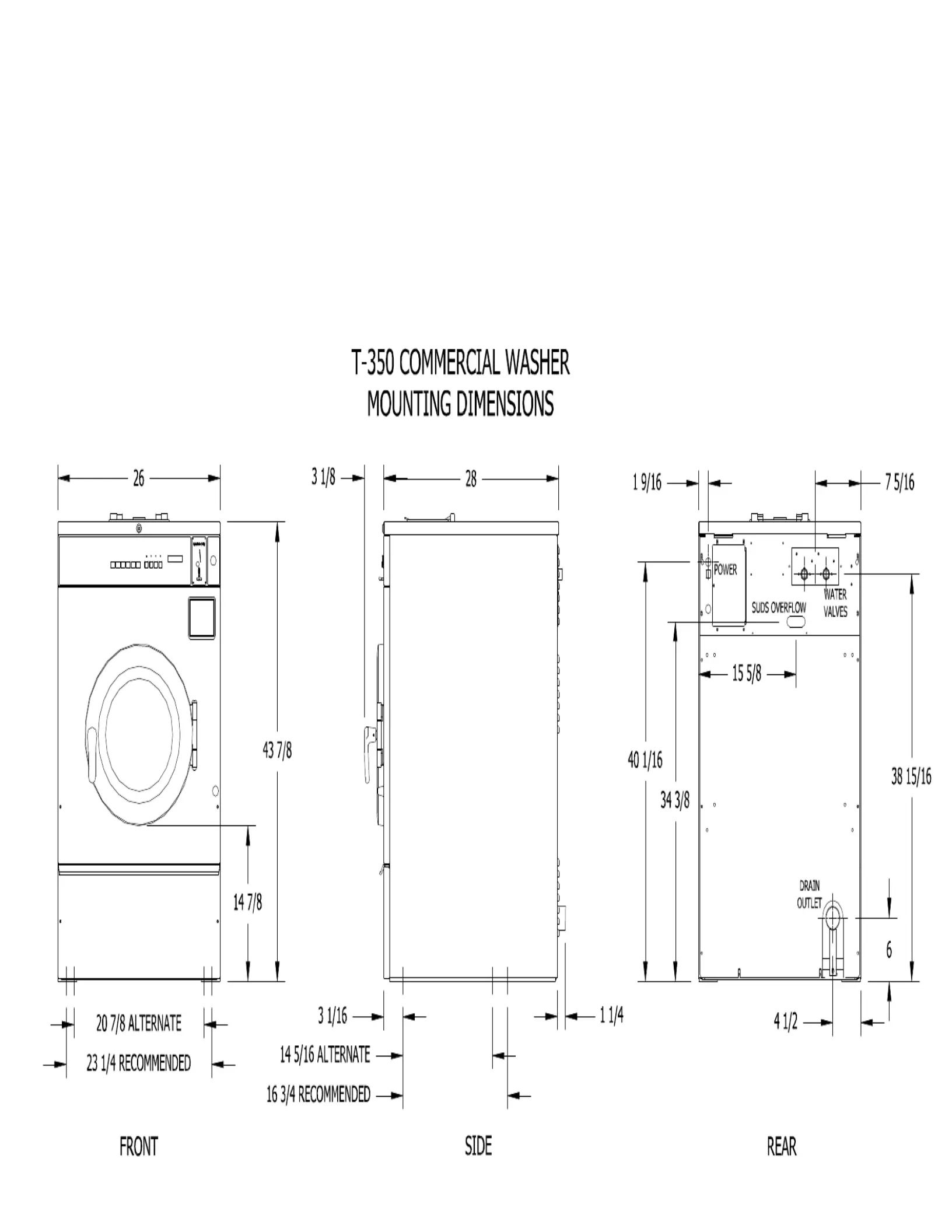

Mounting Dimensions
3
Installation Instructions
4
Operating Instructions
8
Programming the Washer Control
10
Displayed Washer Faults
24
Servicing and Troubleshooting
30
Accessories and Contact Information
34
WASHER SPECIFICATIONS
MODEL
T- 0 EXPRESS 20 LB. WASHER 35
CAPACITY
CYLINDER SIZE
ELECTRICAL
DRIVE SYSTEM
WASH SPEED
INTERMEDIATE
EXTRACT
FINAL EXTRACT
MACHINE CONTROL
WATER INLET
DRAIN VALVE
20 LBS/2.7 CUBIC FT. (9.1 kg/76.5L)
21” DIA X 13 1/2” DEEP (53cm X 34cm)
208 240 VAC, 60 HZ, 1 OR 3 PHASE-
SOFT START REVERSING INVERTER DRIVE, 1 HP MOTOR
55 RPM
449 RPM (60 G’S)
819 RPM (200 G’S)
PROGRAMMABLE COMPUTER
2 SOLENOID OPERATED VALVES
FLOW RATE: 9 GAL/MIN EACH, 30- 120 PSI
2 1/4” DIAMETER (5.7 cm)
