Pagina 1/16
INSTALLATION MANUAL
EKHWSU150BA3V3
EKHWSU200BA3V3
EKHWSU300BA3V3
EKUHWBB
Domestic hot water tank with option kit for air to
water heat pump system
Installation manual
1
EKUHWBB + EKHWSU150~300BA3V3
Domestic hot water tank with option kit for air to water heat pump
system
4P610549-1 – 2020.01
Contents Page
Introduction ....................................................................................... 1
General information.................................................................................. 1
Scope of this manual................................................................................ 1
Model identification .................................................................................. 1
Accessories....................................................................................... 1
Accessories supplied with the EKHWSU domestic hot water tank .......... 1
Accessories supplied with the EKUHWBB option kit for the
domestic hot water tank ........................................................................... 2
Checklist for the required DHW accessories............................................ 2
Installation of the EKHWSU domestic hot water tank ....................... 2
Main components..................................................................................... 3
Outlook diagram....................................................................................... 4
Installation guidelines............................................................................... 4
Installing the domestic hot water tank ...................................................... 4
Connecting the water circuits ................................................................... 4
Field wiring ............................................................................................... 6
Installation of the option kit on the domestic hot water tank.............. 9
Piping requirements ................................................................................. 9
Installation procedure of the option kit ................................................... 10
Commissioning................................................................................ 10
Filling up...................... ..................... ...................................................... 10
Draining .................................................................................................. 10
Maintenance.....................................................................................11
Troubleshooting................................................................................11
General guidelines ..................................................................................11
General symptoms ..................................................................................11
Technical specifications................................................................... 12
Domestic hot water tank specifications .................................................. 12
Pressure reducing valve specifications .................................................. 13
Field wiring diagram ............................................................................... 13
Test results in accordance with EN12897 (2016)................................... 13
Warning label ......................................................................................... 13
Introduction
General information
Thank you for purchasing this Daikin Altherma EKHWSU domestic
hot water tank.
The Daikin Altherma domestic hot water tank must be installed by a
competent person and be installed in compliance with instructions as
of subject in this manual, all current legislation, codes of practice and
regulations governing the installation of unvented hot water cylinders
in force at the date of installation.
This installation is subject to building regulation approval, notify
Local Authority of intention to install.
The domestic hot water tank is to be connected to the Daikin
Altherma unit.
The EKHWSU domestic hot water tank with integrated 3 kW
electrical booster heater is available in three types: 150, 200 and 300.
All models are floor mounted.
Scope of this manual
This installation manual describes the procedures for installing and
connecting the EKHWSU domestic hot water tanks with the
EKUHWBB option kit.
Model identification
Domestic hot water tank

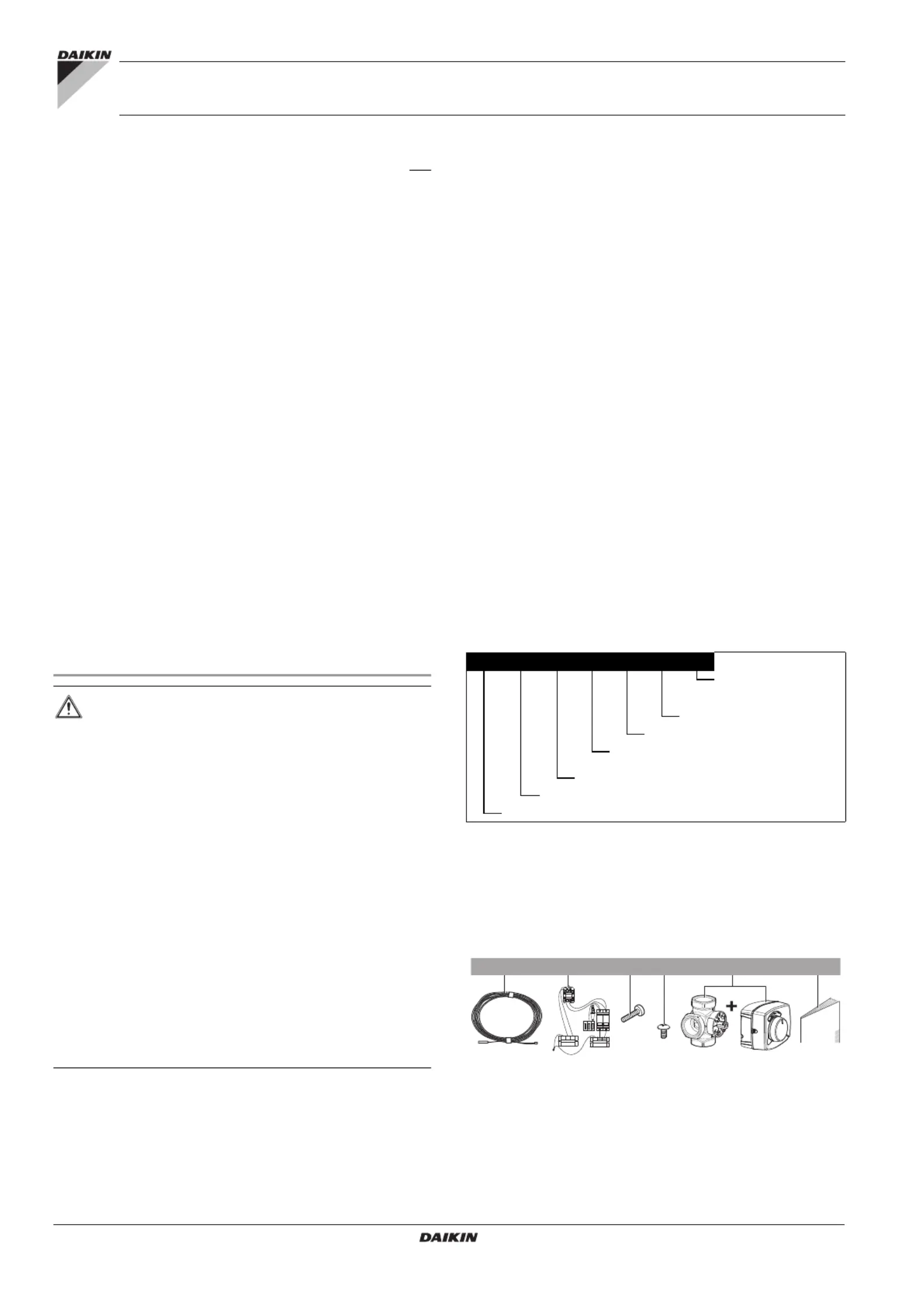

Accessories
Accessories supplied with the EKHWSU domestic hot
water tank
1Thermistor + connection wire (12 m)
2Contactor - fuse assembly
3Contactor fixing screw
4Tapping screw
53-way valve + motor
6Installation manual
EKHWSU150BA3V3
EKHWSU200BA3V3
EKHWSU300BA3V3
Domestic hot water tank with option kit for air to
water heat pump system Installation manual
READ THESE INSTRUCTIONS CAREFULLY BEFORE
INSTALLATION. KEEP THIS MANUAL IN A HANDY
PLACE FOR FUTURE REFERENCE.
MAKE SURE THAT THE USER HAS THE PRINTED
DOCUMENTATION AND ASK HIM/HER TO KEEP IT
FOR FUTURE REFERENCE.
PLEASE LEAVE THIS MANUAL WITH THE EKHWSU
DOMESTIC HOT WATER TANK AFTER INSTALLATION.
IMPROPER INSTALLATION OR ATTACHMENT OF
EQUIPMENT OR ACCESSORIES COULD RESULT IN
ELECTRIC SHOCK, SHORT-CIRCUIT, LEAKS, FIRE OR
OTHER DAMAGE TO THE EQUIPMENT. BE SURE ONLY
TO USE ACCESSORIES MADE BY DAIKIN WHICH ARE
SPECIFICALLY DESIGNED FOR USE WITH THE
EQUIPMENT AND HAVE THEM INSTALLED BY A
PROFESSIONAL.
IF UNSURE OF INSTALLATION PROCEDURES OR USE,
ALWAYS CONTACT YOUR DAIKIN DEALER FOR
ADVICE AND INFORMATION.
THE UNIT DESCRIBED IN THIS MANUAL IS DESIGNED
FOR INDOOR INSTALLATION ONLY AND FOR AMBIENT
TEMPERATURES RANGING 0°C~35°C.
EK V3HWS U 3150 BA
Booster heater voltage
V3=1P, 230 V
Capacity booster heater: 3 kW
Series
Indication of storage capacity in litres
Special version for United Kingdom only
Standard version when no letter is mentioned
Hot Water stainless Steel tank
European Kit
1x 2x 1x1x1x 4x
1 3 5 62 4
EKUHWBB + EKHWSU150~300BA3V3
Domestic hot water tank with option kit for air to water heat pump
system
4P610549-1 – 2020.01
Installation manual
2

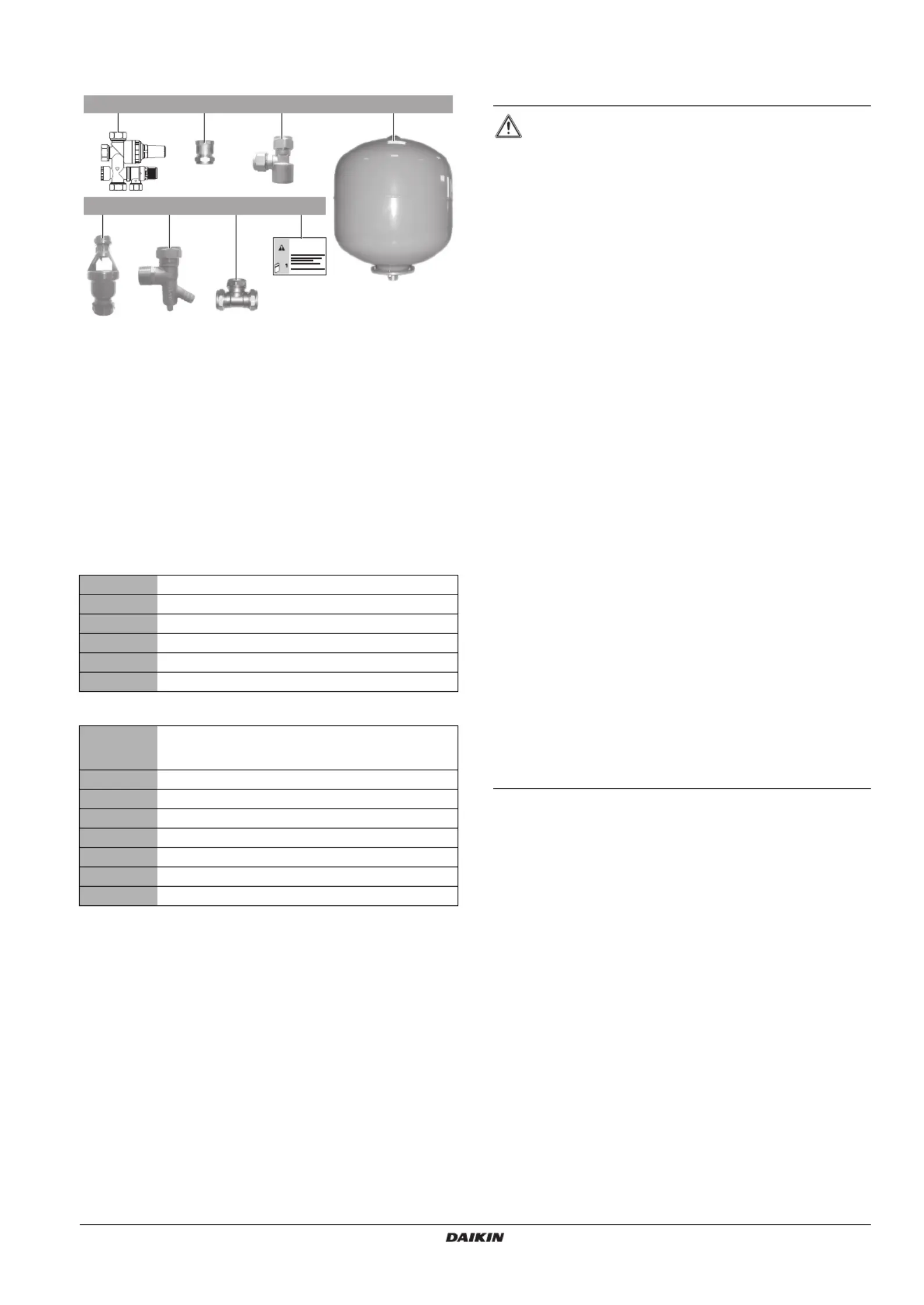

Accessories supplied with the EKUHWBB option kit for
the domestic hot water tank
1Pressure reducing valve and expansion relief valve. Water
inlet and water outlet 22 mm connection, discharge piping
connection 15 mm
2Adaptor 22 mm×3/4" Female BSP
3T-piece 1/2" Female BSP×15 mm×15 mm
4Expansion vessel of 18 litres 3/4" Male BSP
5Tundish 15 mm inlet, 22 mm outlet
6Elbow/Drain valve 22 mm×3/4" Male BSP
7T-piece 22 mm×22 mm×22 mm
8Instruction sheet
Checklist for the required DHW accessories
For installation compliant with section G3 of the Building Regulations,
you must verify that the following accessories are present.
Delivered with EKHWSU domestic hot water tank:
Delivered with EKUHWBB kit:
Installation of the EKHWSU domestic hot
water tank
Thermistor + connection wire (12 m)
Contactor - fuse assembly
Contactor fixing screw
Tapping screw
3-way valve + motor
Installation manual
Pressure reducing valve and expansion relief valve. Water
inlet and water outlet 22 mm connection, discharge piping
connection 15 mm
Adaptor 22 mm×3/4" Female BSP
T-piece 1/2" Female BSP×15 mm×15 mm
Expansion vessel of 18 litres 3/4" Male BSP
Tundish 15 mm inlet, 22 mm outlet
Elbow/Drain valve 22 mm×3/4" Male BSP
T-piece 22 mm×22 mm×22 mm
Instruction sheet
1x
1x
1x1x
1x 1x1x
1x
1 3 4
65 8
2
7
The total Daikin Altherma system is designed for
combination with a Daikin Altherma domestic hot
water tank. In case another tank or a spare part other
than native Daikin is being used in combination with
the Daikin Altherma unit, Daikin cannot guarantee
neither good operation nor reliability of the system.
For those reasons Daikin cannot give warranty of the
system in such case.
The equipment is not intended for use in a potentially
explosive atmosphere.
For safety reasons, it is not allowed to add ethylene
glycol to the water circuit. Adding ethylene glycol
might lead to contamination of the domestic water if a
leakage would occur in the heat exchanger coil.
Domestic water quality must be according to EN
directive 98/83 EC.
Wherever possible the main supply pipe should be in
22 mm. The minimum main water supply requirement
should be 1.5 bar working pressure and 20 litres per
minute flow rate. At these values outlet flow rates may
be poor if several outlets are used simultaneously, the
higher the available pressure and flow rate the better
the system performance will be.
It is important that the storage capacity of the
domestic water tank meets normal daily fluctuations in
consumption of hot water without any fall of the water
outlet temperature during use.
Immediately after installation, the domestic hot water
tank must be flushed with fresh water. This procedure
must be repeated at least once a day the first 5
consecutive days after installation.
If applicable legislation requires a chemical
disinfection in specific situations, involving the
Altherma domestic hot water tank, please be aware
that the domestic hot water tank is a stainless steel
cylinder containing an aluminium anode. We therefore
advise in these circumstances to use a non-chloride
based disinfectant approved for use with water
intended for human consumption.
Where the secondary return circuits are used an
additional expansion vessel may be required.
