Pagina 1/34

Version 2.02

ANT24-Series

ANT70-Series

D-Link Antenna Kits

User’s Guide

D-Link Antenna-kit Installation Guide

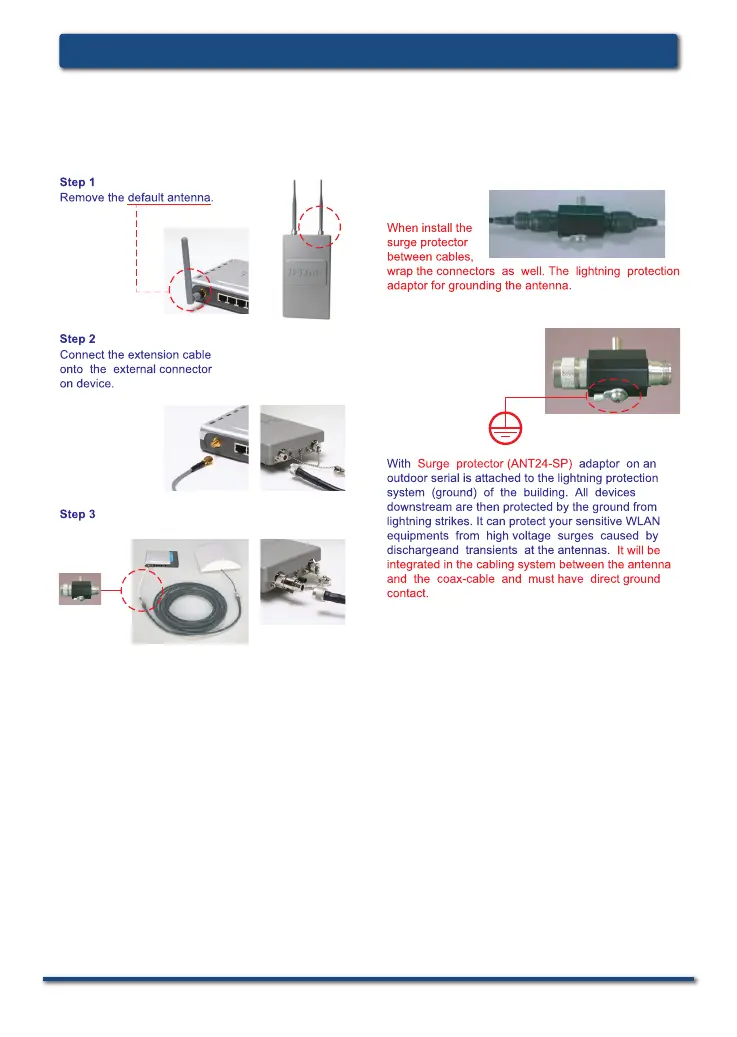

Installation

(If needed)

Install the surge protector. (You can install with

optional ANT24 series low loss cables)

Note:

/antenna

ents

Installation

D-Link Antenna-kit Installation Guide

ANT24-SP Surge protector

Installation guide

for outdoor antenna-kit

Step 1

loosen the screw from the surge protector.

Step 2

get a normal conductive copper wire with 2 sides stripped long enough to be conductive,

these wires can lead high voltage surges into the grounding.

Remark:

(1) for the ground screw you use, we suggest the longer (deeper into ground) the better performance it has.

(2) please use a copper wire with diameter at least from 2.0mm, the thicker the diameter, the higher

voltage it can sustain.

Option (1) Option (2)

Ground

Step 3

find a conductive material nearby the antenna installation sites, connect another end of the wire

into position, there are several options:

(1) Use a long screw to stick into the ground tightly, connect another wire onto.

(2) fix or solder another end of wire onto a steel material/ bar under steel construction,

such as wall for buildings, railings or other conductive materials which set up from

the ground.

Product specificaties

Merk:	D-Link
Categorie:	Niet gecategoriseerd
Model:	ANT70-1800
Gewicht:	400 g
Breedte:	218 mm
Diepte:	200 mm
Hoogte:	50 mm
Snoerlengte:	0.5 m
Frequentieband:	2.4/5 GHz
Impedantie:	50 Ohm
Maximale afstand:	8000 m
Bedrijfstemperatuur (T-T):	-40 - 80 °C
Power handling:	10 W
Polarisatie:	Verticale polarisatie
