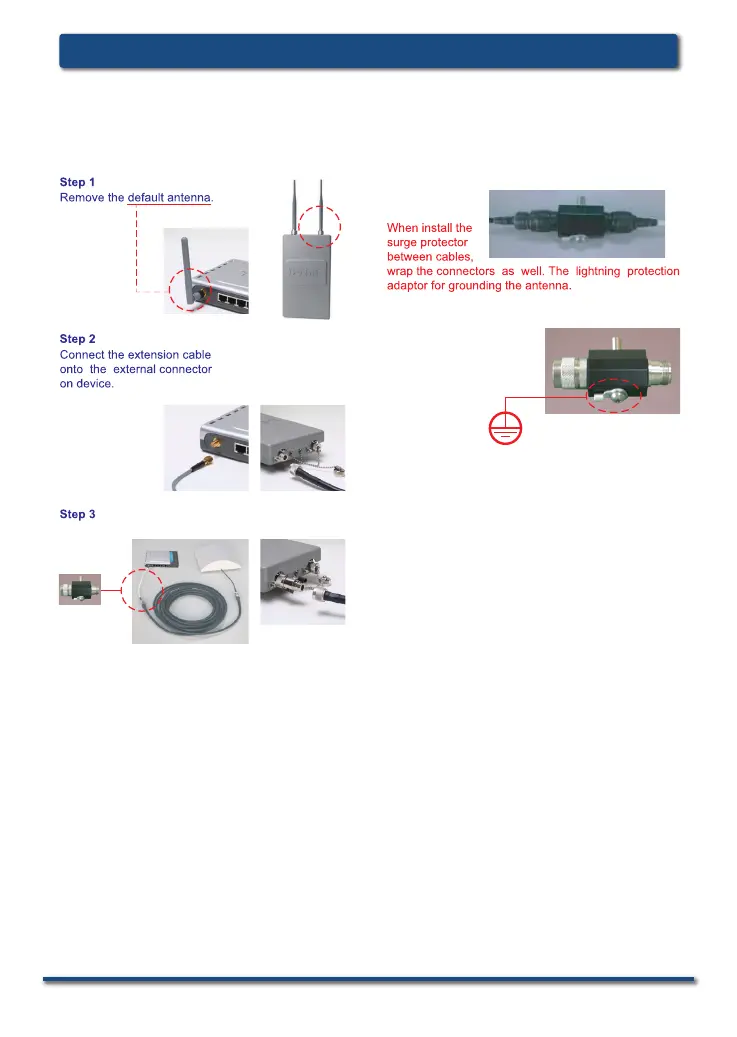

D-Link Antenna-kit Installation Guide

Installation

(If needed)

Install the surge protector. (You can install with

optional ANT24 series low loss cables)

Note:

With adaptor on an outdoor serial is

Surge protector

attached to the lightning protestion system (ground)

of the buildi ng . All devic es downstream are then

protected by the ground from lightning strikes.It can

protect your sensitive WLAN equipments from high

voltage surges caused by dischargeand transients

at the antennas. It will be integrated in the cabling

system between the antenna and the coax-cable and

must have direct ground contact.

Installation

D-Link Antenna-kit Installation Guide

Surge protector

Installation guide

for outdoor antenna-kit

Step 1

loosen the screw from the surge protector.

Step 2

get a normal conductive copper wire with 2 sides stripped long enough to be conductive,

these wires can lead high voltage surges into the grounding.

Remark:

(1) for the ground screw you use, we suggest the longer (deeper into ground) the better performance it has.

(2) please use a copper wire with diameter at least from 2.0mm, the thicker the diameter, the higher

voltage it can sustain.

Option (1) Option (2)

Ground

Step 3

find a conductive material nearby the antenna installation sites, connect another end of the wire

into position, there are several options:

(1) Use a long screw to stick into the ground tightly, connect another wire onto.

(2) fix or solder another end of wire onto a steel material/ bar under steel construction,

such as wall for buildings, railings or other conductive materials which set up from

the ground.

Product specificaties

Merk:	D-Link
Categorie:	Niet gecategoriseerd
Model:	ANT24-0800
Gewicht:	3340 g
Breedte:	19 mm
Diepte:	19 mm
Hoogte:	630 mm
Snoerlengte:	0.5 m
Frequentieband:	2.4 - 2.5 GHz
Soort antenne:	Omnidirectionele antenne
Antenne versterkingsniveau (max):	8 dBi
Impedantie:	50 Ohm
Bedrijfstemperatuur (T-T):	-40 - 80 °C
Polarisatie:	Verticale polarisatie
H-plane (3 dB straalbreedte):	360 °
E-plane (3 dB straalbreedte):	15 °
Voltage Standing Wave Ratio (VSWR):	2.0
