Triple-Screen Adjustable Kiosk
with Universal Security Enclosure
PAD-PARAMULTI
INSTRUCTION - MANUAL
888-733-4448
CONTENTS:
INSTALLATION:
A

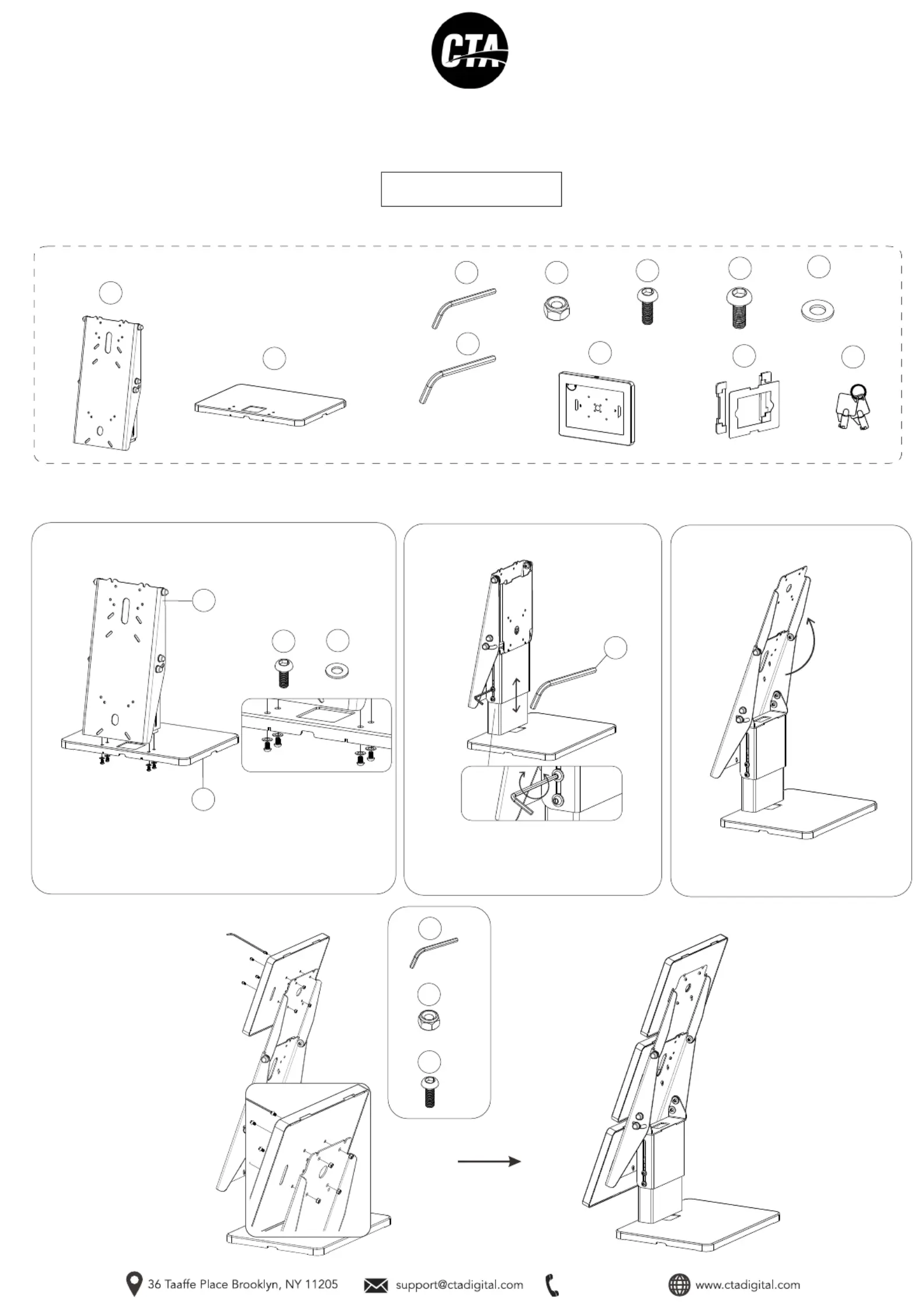

1A. Align base (B) to body (A) as shown. From below, rotate in (4)
screws (G) and washers (H) as shown using provided tool (D) until
securely tightened.
1. Setting up Base to Body
B
C
D
EFGH
2. Adjusting Height 3. Setup Configuration
4. Setting up
Tablet Enclosures
2A. Loosen the side bolt using provided tool (D)
to raise or lower to height to your preference.
Rotate opposite direction to securely tighten and
set your height.
3A. Identify the top VESA plate, Tilt it down
for a 2-direction setup or keep it up for a
1-direction setup as required.
4A. Identify the (3) VESA
locations. Align enclosures VESA
holes (I) with the body VESA
holes (A). Then using the screw
and hex nuts (E & F),screw in
from the front using provided tool
(C) while holding the hex nuts
from behind until securely
tightened. Repeat for all other
VESA locations with enclosures.
M5 Allen Key
M6 Allen Key
M5 Nut M5 x 12 M6 x 12 M6 Washer
Foam Adapter &
Sheet Bundle
x3 x3
IJ
B
A
K
x3
GHD
C
E
F

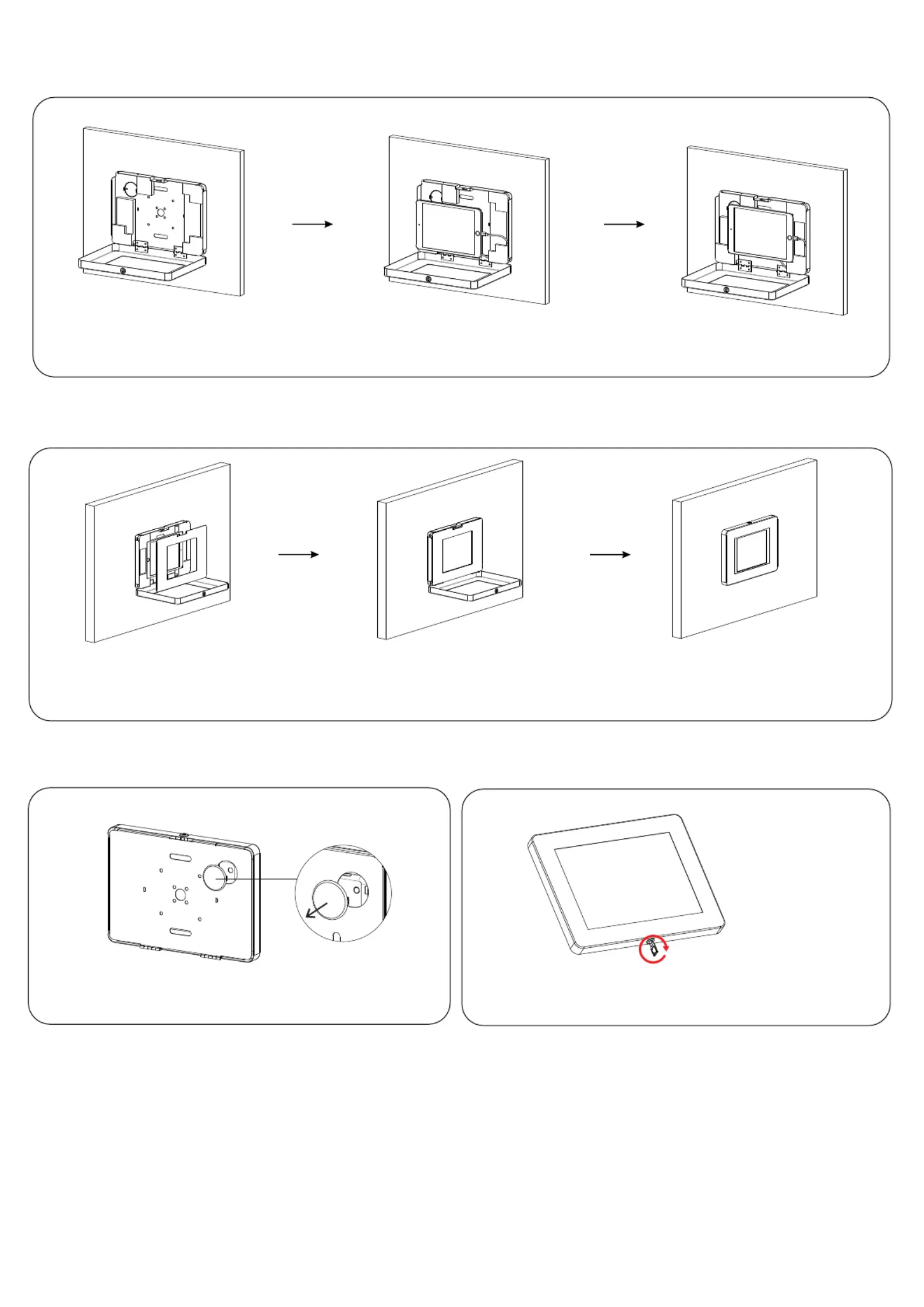

5. Setting Up Foam Adapters
5A. Identify the correct foam adapters
from the bundle that’ll fit for your device
inside the tablet enclosure. There should
be a sticker on the corner identifying
compatibility.
5B. Once correct foam set is found,
insert tablet and plug in cord as shown
above and route out the holes on the
back of the enclosure
6. Setting Up Sheet Adapter
6A. Identify the sheet bundle and find the
right sheet for your device if needed.
6B. You know you have the right sheet
adapter when you close the enclosure,
only the screen should be visible for a
more fitted look.
7. Setting Up Enclosure Openings
7A. When setting up enclosure for use,
make sure to remove any of the opening
covers for correct setup and usage.
8. Enclosure Security
8A. Using provided keys (K), rotate
clockwise or counterclockwise to lock or
unlock enclosure as needed.


Product specificaties

Merk: CTA Digital
Categorie: Niet gecategoriseerd
Model: PAD-PARAMULTI
Kleur van het product: Zwart
Breedte: 304 mm
Diepte: 304 mm
Hoogte: 787 mm
Paneelmontage-interface: 75 x 75, 100 x 100 mm
Breedte van de standaard: 254 mm
Hoogte van de standaard: 279 mm
