C2N-CBD-P/C2N-CBD-P-KP/C2N-CBD-E/C2N-CBF-P/C2N-CBV-P/C2N-CBV2-P
Cameo® Keypads
Installation & Operation Guide
Screws (2)
2-28 x 3/16˝
Bezel
Light sensor
(C2N-CBD-P Only)
LEDs
LED
holes
Screws (2)
2-28 x 3/16˝
Bezel
Light sensor
LEDs
LED
holes

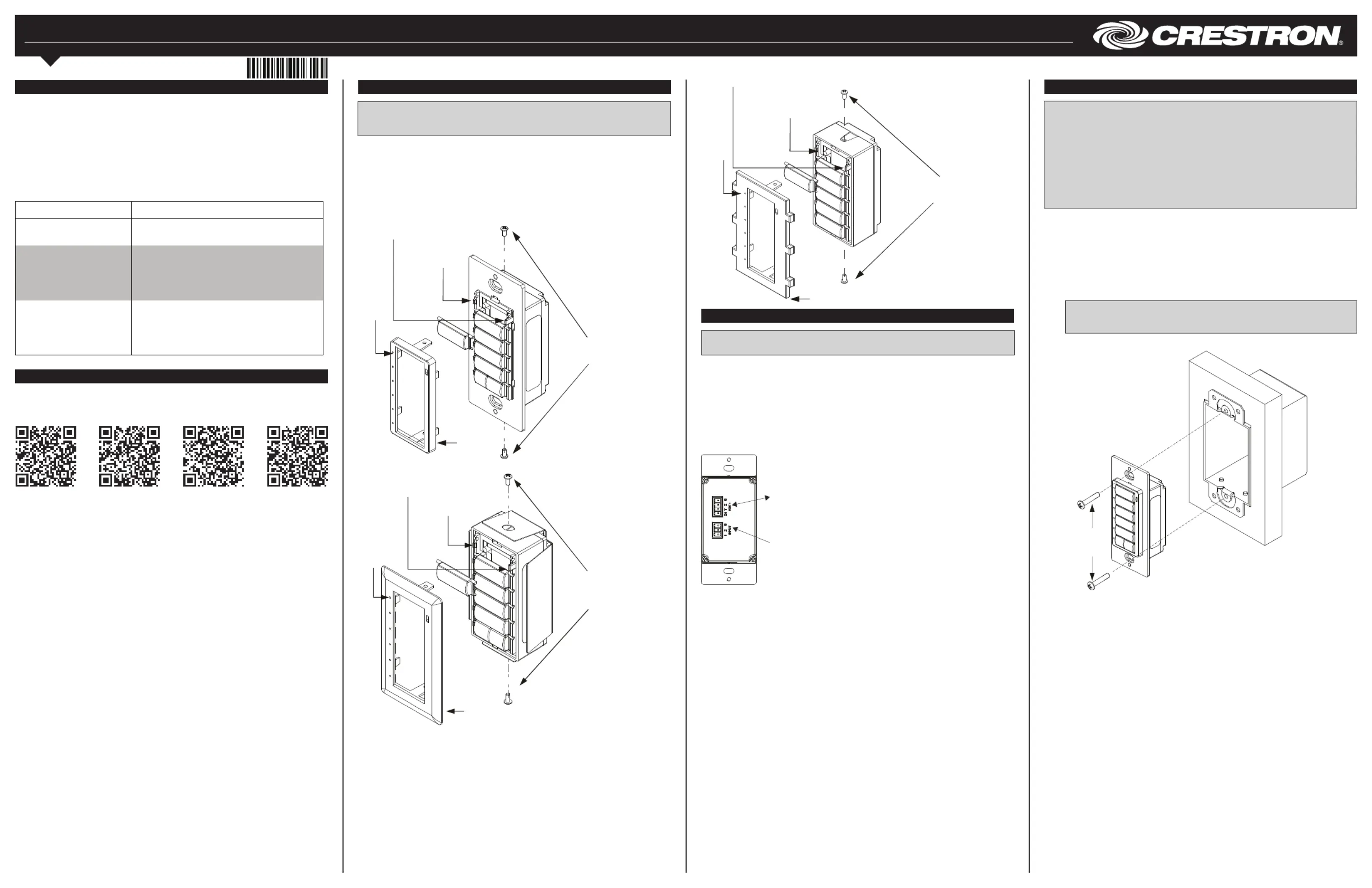

Assembling the Keypad (C2N-CBF-P Shown)
Assemble the Keypad
NOTE: The C2N-CBD-P-KP comes preassembled with either and buttons or ON OFF
SCENE 1 4 UP DOWN OFF to , , , and buttons. The devices do not come with extra
button caps.
Attach the buttons to the keypad.
1. Arrange the button caps in position on the rear housing assembly according to the
program plan.
2. Carefully position the bezel over the button caps on the rear housing assembly.
3. Install and tighten the two supplied #2-28 x 3/16˝ screws.
4. Press and release each button to ensure that the button caps move freely.
Assembling the Keypad (C2N-CBD-P Shown)
Hardware Hookup
CAUTION: Turn the Cresnet system power off before making connections. Do not
turn the system power on until the device is fully installed in the mounting surface.
When making terminal block connections, strip the ends of the wires approximately 1/4
in (6 mm). Use care to avoid nicking the conductors. Twist together the ends of the wires
that share a connection.
Make connections to the NET and INPUT ports.
• Using the supplied 4-pin connector, connect the Cresnet cable to the NET port of
the keypad.
• Using the supplied 3-pin connector (all except C2N-CBD-E), connect the contact
closure input cable to the INPUT port of the keypad.
Hardware Hookup
Description
The Crestron® Cameo keypads present a fresh, innovative concept in keypad design,
featuring a highly congurable 1-gang wall mount form factor that is at once inviting to
the touch and appealing to the eye. The C2N-CBD-P, C2N-CBD-P-KP, C2N-CBD-E,
C2N-CBF-P, C2N-CBV-P, and C2N-CBV2-P easily install alongside other low-voltage
in-wall devices to deliver a fully customizable keypad control solution as part of a
complete Crestron control system.
The C2N-CBD-P, C2N-CBD-P-KP, C2N-CBD-E, C2N-CBF-P, C2N-CBV-P, and
C2N-CBV2-P are functionally identical. For simplicity within this guide, the term
“C2N-CBD/CBF/CBV” is used except where noted.
Specications
Additional Resources
Visit the product page on the Crestron website (www.crestron.com) for additional
information and the latest rmware updates. Use a QR reader application on your mobile
device to scan the QR image.
Screws (2)
2-28 x 3/16˝
Bezel
Light sensor
LEDs
LED
holes
NET:
To control system or
other network devices
INPUT:
From contact closure
(not available on C2N-CBD-E)
Installation
NOTES: Observe the following points:
• Install and use this product in accordance with appropriate electrical codes and
regulations.
• A licensed electrician should install this product.
NOTE: Before using the C2N-CBD/CBF/CBV, ensure the device is using the latest
rmware. Check for the latest rmware for the C2N-CBD/CBF/CBV at
www.crestron.com/rmware. Load rmware onto the device using Crestron Toolbox™
software.
NOTE: Ensure that Cresnet power is off until the keypad is fully installed.
The C2N-CBD/CBF/CBV can be installed into an electrical box (C2N-CBD-P,
C2N-CBD-P-KP, C2N-CBD-E), ush mounted (C2N-CBF-P), or installed into a Vimar box
(C2N-CBV-P). Refer to the appropriate procedure below.
Electrical Box Installation
After the Cresnet network wiring has been installed and veried, install the keypad into a
standard 1-gang electrical box.
1. Holding the keypad with the LEDs on the left, place it in the electrical box.
2. Secure the keypad using the included #6-32 x 3/4˝ screws.
CAUTION: Excess wire pinched between the keypad and electrical box could
short out. Make sure all excess wire is completely inside the electrical box and
not between the box and the keypad.
Mounting the Keypad in a 1-Gang Electrical Box
Screws (2)
#6-32 x 3/4˝
3. Attach the desired decorator style faceplate (not supplied).
4. Turn the Cresnet system power on.
C2N-CBD-E C2N-CBF-P C2N-CBV2-P/
C2N-CBV-P
SPECIFICATION DETAILS
Power Requirements
Cresnet® Power Usage 1 W (0.05 A @ 24 Vdc)
Environmental
Temperature
32º to 113 ºF (0º to 45 ºC)
Humidity
10% to 90% RH (noncondensing)
Heat Dissipation
3.4 Btu/h
Weight
Standard Mount 3 oz (64 g)
Flush Mount
3 oz (75 g)
Vimar Mount
2 oz (50 g)
C2N-CBD-P/
C2N-CBD-P-KP
This product is Listed to applicable UL
® Standards and requirements by Underwriters Laboratories
Inc.
Ce produit est homologué selon les normes et les exigences UL applicables par Underwriters
Laboratories Inc.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following
conditions:(1) This device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by the manufacturer responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
Crestron Electronics, Inc. Installation & Operation Guide - DOC. 7063H
15 Volvo Drive Rockleigh, NJ 07647 (2028549)
Tel: 888.CRESTRON 10.16
Fax: 201.767.7576 Specications subject to
www.crestron.com change without notice.
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Compliance Statement
CAN ICES-3(B)/NMB-3(B)
The product warranty can be found at www.crestron.com/warranty.
The specic patents that cover Crestron products are listed at patents.crestron.com.
Certain Crestron products contain open source software. For specic information, please visit
www.crestron.com/opensource.
Crestron, the Crestron logo, Cameo, Cresnet, Crestron Studio, and Crestron Toolbox are either
trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other
countries. UL and the UL logo are either trademarks or registered trademarks of Underwriters
Laboratories, Inc. in the United States and/or other countries. Other trademarks, registered trademarks,
and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Crestron disclaims any proprietary interest in the marks and names of others.
Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2016 Crestron Electronics, Inc.

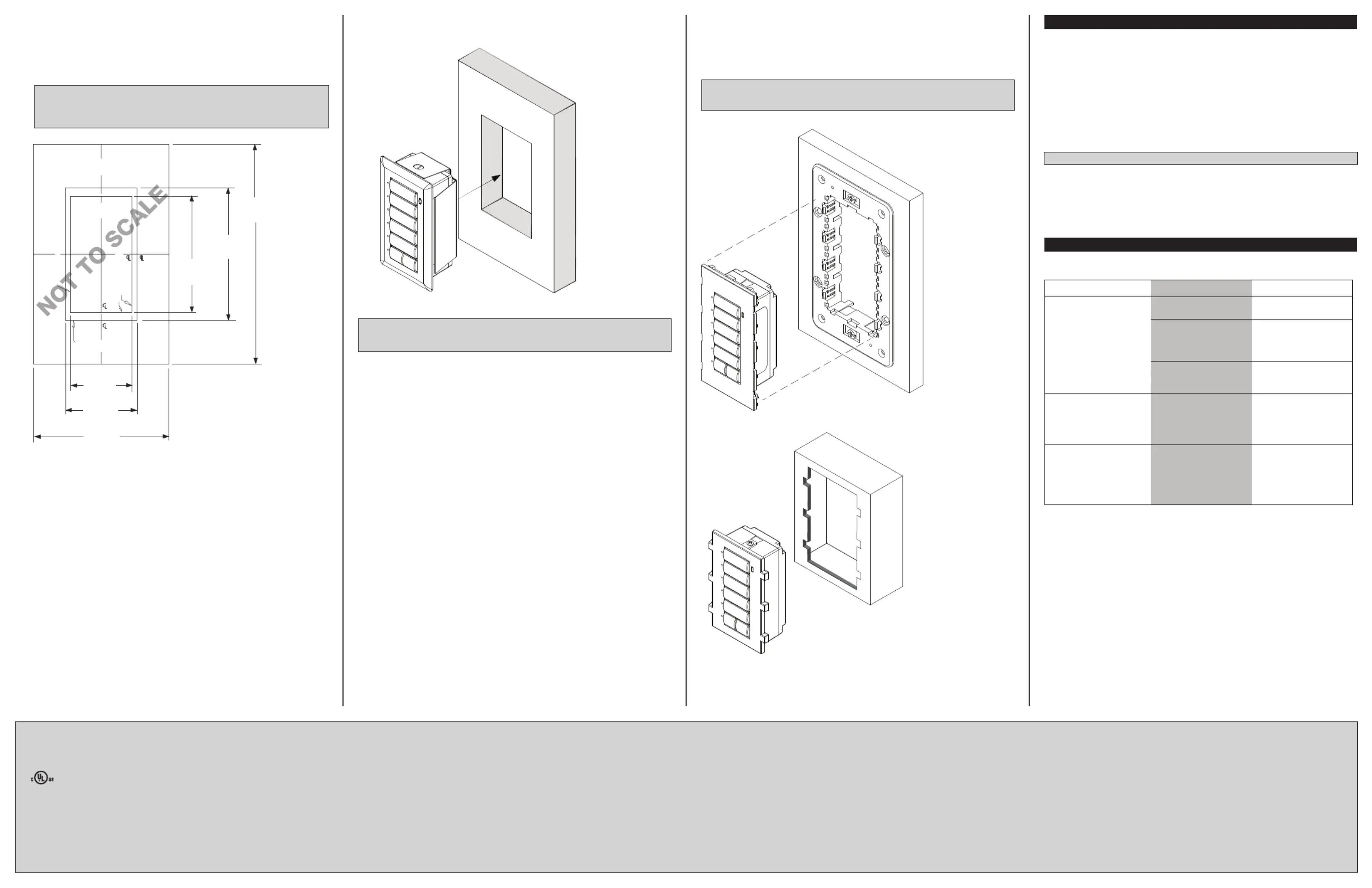

Flush Mount Installation
After the Cresnet network wiring has been installed and veried, install the keypad in the
prepared hole.
1. Use the supplied template as a guide to cut the mounting hole for the C2N-CBF-P.
Ensure that the template is level and properly located on the wall. The keypad does
not offer a means of adjusting the keypad in the opening. The following illustration
(not to scale) shows the dimensions of the cutout template.
NOTE: Be very careful when cutting the hole. There are no adjustments for
alignment with the spring clamp. The optional MMK-G1-CBF-T Mud Ring Mount
Kit for Cameo Flush Mount Keypads (sold separately) may be used if the cutout
in the mounting surface is too large for the keypad.
Cutout Template (Not to Scale)
TEMPLATE - OV40096
FOR C2N-CBF
TH IS PIEC E I S F OR CEN TER LI NE
REFERENCE ONLY.
DO NOT USE THI S PI ECE
AS A CU TT IN G TEMPLAT E
CUT ALONG THIS LINE
CUT ALONG THIS LINE
CLEARANCE AREA
FOR BEZEL
5-3/5 in
(137 mm)
3-1/4 in
(83 mm)
2-7/8 in
(73 mm)
1-1/2 in
(39 mm)
1-3/4 in
(45 mm)
3-5/16 in
(85 mm)
Vimar Mount Installation
After the Cresnet network wiring has been installed and veried, install the keypad in the
Vimar style electrical box.
1. Holding the keypad with the LEDs on the left, place it in the Vimar style electrical
box. The keypad snaps into place.
2. Turn the Cresnet system power on.
CAUTION: Excess wire pinched between the keypad and electrical box could short
out. Make sure all excess wire is completely inside the electrical box and not between
the box and the keypad.
Mounting the C2N-CBV2-P in a Vimar Style Electrical Box
3. Turn the Cresnet system power on.
NOTE: If the keypad needs to be removed from the mounting surface, use a small
at-blade screwdriver to carefully pry the keypad away from the mounting surface.
Without damaging the keypad or mounting surface, gently remove the keypad.
2. Holding the keypad with the LEDs on the left, place it in the hole. The spring clamp
holds the keypad in position.
Mounting the C2N-CBF Keypad
Mounting the C2N-CBV-P in a Vimar Style Electrical Box
Ambient Light Sensor Operation
The C2N-CBD-P, C2N-CBD-P-KP, C2N-CBF-P, C2N-CBV-P, and C2N-CBV2-P keypads
have an ambient light sensor that can be used to automatically congure the backlight to
operate in either Day mode or Night mode.
Backlight operation is based on ambient light level and a programmed threshold. Presets
based on the keypad color set the optimum backlight level for Day mode and Night
mode.
When using presets, observe the following:
• For light-colored keypads with dark engraving, the backlight turns on dim when in
Night mode and off when in Day mode.
• For dark-colored keypads, the backlight turns on dim when in Night mode and on
bright when in Day mode.
NOTE: Backlight levels can also be set manually.
The indicator LEDs automatically adjust their brightness based on ambient light, going
bright when the keypad is well lit and going dim when the room is dark.
When two or more keypads are to be installed side by side, ensure that the backlights on
all units are in sync. To do this, use the signals that are available on the programming
symbol to allow one unit to act as the master backlight controller and the rest as slaves.
Refer to the Crestron Studio® or SIMPL Windows help le for more information.
Troubleshooting
The following table provides corrective actions for possible trouble situations. If further
assistance is required, please contact a Crestron customer service representative.
TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION
The keypad does not
function.
The wrong power supply
is being used.
Use a Crestron power
supply.
The unit is not receiving
power or it is receiving
insufcient power.
Verify the cable plugged
into the NET port is
secure. Verify that the
power supply is correct.
There is a loose
connection in the
network.
Verify the cable plugged
into the NET port is
secure.
The keypad does not
function. All six feedback
LEDs are on low.
The wrong Net ID is
being used.
Verify that the
C2N-CBD/CBF/CBV’s
Net ID matches the Net
ID in the software
program.
The keypad does not
function or does not
function as expected.
However, it reports on
Cresnet at the proper
Net ID.
The unit is not
programmed correctly.
Use SIMPL Debugger to
check the behavior when
buttons are pressed.
Revise and reload the
program as needed to
correct the behavior.

Product specificaties

Merk: Crestron
Categorie: Toetsenbord
Model: C2N-CBD-P

Heb je hulp nodig?

Als je hulp nodig hebt met Crestron C2N-CBD-P stel dan hieronder een vraag en andere gebruikers zullen je antwoorden


Handleiding Toetsenbord Crestron

Crestron

Crestron C2N-CBD-P Handleiding

11 Maart 2025

Handleiding Toetsenbord

Nieuwste handleidingen voor Toetsenbord

Bluestork

Bluestork KB-BT-MAC Handleiding

4 Maart 2025
Royal Kludge

Royal Kludge RK96 Handleiding

25 Februari 2025
STANDIVARIUS

STANDIVARIUS Freedom Handleiding

25 Februari 2025
Logitech

Logitech Silent Wireless Combo MK295 Handleiding

21 Februari 2025
IOPLEE

IOPLEE IOPEXTBUNDLE315BTR Handleiding

20 Februari 2025
Gembird

Gembird KB-UM-101 Handleiding

20 Februari 2025
Hamlet

Hamlet XKK400CWB-IT Handleiding

10 Februari 2025
Hamlet

Hamlet XKKITA2-U4W-BK Handleiding

10 Februari 2025
Hamlet

Hamlet XMICEBTW-RB Handleiding

10 Februari 2025
Savio

Savio Whiteout X2 Handleiding

7 Februari 2025
