CLUB3D CSV-1568 Handleiding

CLUB3D Overige computer accessoire CSV-1568

Lees hieronder de 📖 handleiding in het Nederlandse voor CLUB3D CSV-1568 (1 pagina's) in de categorie Overige computer accessoire. Deze handleiding was nuttig voor 42 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld

Download PDF

Pagina 1/1

Power Switch

USB-A

Shared

max. 10G

USB-C

3.5mm Stereo jack

(Headphone/Mic)

Led Indicator

Metal Casing

Front

CSV-1568

USB-A Quick Charge

USB-A max. 5Gbps

Toslink SPDIF

RJ45 jack

DC Power in to Adapter

USB-C PD

Anti-theft lock

HDMI (4k 60Hz)

USB- C Connect to Host

DisplayPort™ (4k 60Hz)

VGA (1200P)

Back

Thank you for purchasing our CSV-1568 Product.

After unpacking the product, please make sure you have all the

items provided and checked for any damages. In case of any missing/

damaged parts please inform your supplier immediately.

You should have:

• CSV-1568 Docking Station

• PowerSupply. Input: 100-110/240VAC. Output: up to 120W

• 1x USB Type-C cable connection to Host 1m / 3.28ft

• Detachable stand

• Quick Install Guide

Please make sure:

Your Host System has the latest drivers updates,

and is connected to the external power supply.

Note:

1. This dock will not work without external power supply

2. After connecting to the host, the product and the white light

will turn on by default. Press the power button,the product and

the white light will be turn o. The keystroke interval should be

greater than 2 seconds.

3. To achieve the above max resolution of each port, the connected

host should support DP1.4 Alt mode. The above resolution will

be decreased if the host only support DP1.2 due to bandwidth

limitation.

4. The above resolution combination is for reference, the actual video

output resolution depends on the connected host and displays.

• Designed for DP 1.4 Alternate Mode supported Type C and

Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc).

• Supports Output through MST up to 3 displays

(2 HDMI + VGA or 2 HDMI + DP).

DP and VGA are alternate (DP is has priority over VGA).

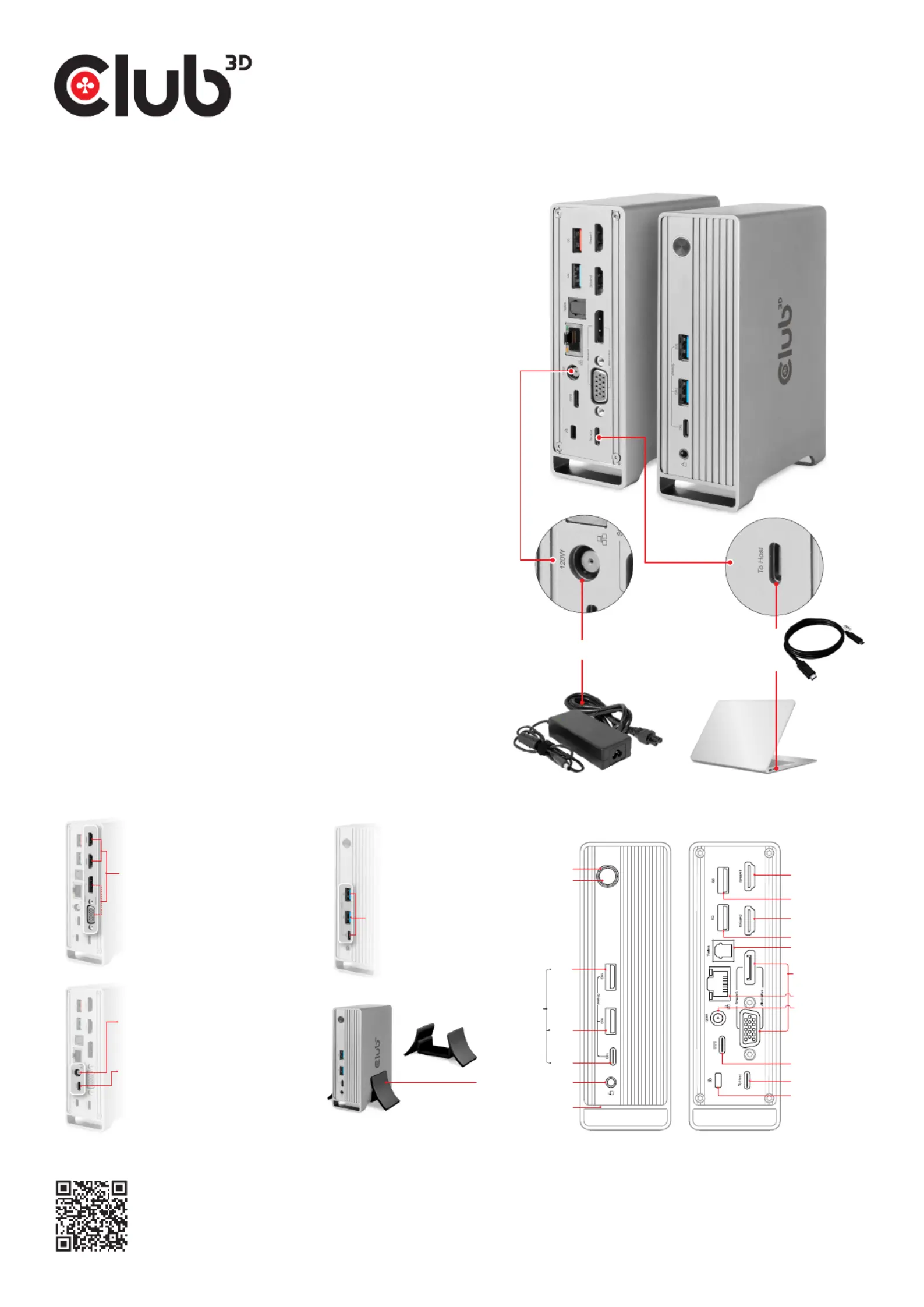

How to connect:

CS V-1568 QUICK INSTAL L ATION GUIDE

To USB-C port

PowerSupply 120W

CSV-1568

Back

Front

CSV-1568 QIG Rev. October -2021

For any Questions please check our forum section on our website www.club-3d.com

Included:

A detachable stand

No assembly required:

Simply slide it in!

Connect DC in

to adapter

USB-C To Host

Connect the USB

Type C cable to your

laptop

•

Support to output 3 videos (2 HDMI+VGA or

2 HDMI+DP) simultaneously under both SST

and MST mode, DP and VGA are alternative

(DP is prior to VGA when 2 ports are connected

simultaneously)

•

3 videos share max 16.2Gbps bandwidth

•

When one video port is connected, support

HDMI max 4K/60Hz, DP max 4K/60Hz,

VGA max 1920x1200/60Hz

•

Support dual power supplies:

Type-C PD charging or DC Jack

•

Max 120W power supply from DC Adapter,

support smart power according to actual

consumption of the connected devices the

host can get power ranging from 60w to 100w

•

Type-C female supports max 100W PD

Charging with fast role swap of PD3.0, support

smart power which allows to distribute power

according to actual consumption of the

connected devices

•

Max 10Gbps.

3 ports share max 10Gbps

Product specificaties

Merk:	CLUB3D
Categorie:	Overige computer accessoire
Model:	CSV-1568
Kleur van het product:	Metallic
Gewicht:	563 g
Breedte:	139 mm
Diepte:	90 mm
Hoogte:	44 mm
Gewicht verpakking:	1359 g
Breedte verpakking:	225 mm
Diepte verpakking:	155 mm
Hoogte verpakking:	97 mm
Type aansluitplug:	3,5 mm
Connectiviteitstechnologie:	Docking
Ethernet LAN:	Ja
Type stroombron:	DC
Geïntegreerde geheugenkaartlezer:	Ja
Snelstartgids:	Ja
Inclusief AC-adapter:	Ja
Land van herkomst:	China
VGA (D-Sub)poort(en):	1
Aantal HDMI-poorten:	2
Aantal Ethernet LAN (RJ-45)-poorten:	1
Vermogensverbruik (max):	120 W
Certificering:	Meets ROHS, FCC, and CE EMI requirements
HDCP:	Ja
Netvoeding:	120 W
Maximale refresh snelheid:	60 Hz
HDR-ondersteuning:	Ja
Aansluiting voor netstroomadapter:	Ja
Plug and play:	Ja
Aantal DisplayPorts:	1
Aantal per verpakking:	1 stuk(s)
Ondersteunt Windows:	Ja
Merkcompatibiliteit:	Apple
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A:	1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C:	1
Combo koptelefoon/microfoon port:	Ja
Ondersteunt Mac-besturingssysteem:	Ja
Spanning:	20.5 V
Hostinterface:	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Staander inbegrepen:	Ja
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A:	2
DisplayPort versie:	1.4
Compatibiliteit:	Lenovo\nDell\nAcer\nAsus\nMSI\nToshiba\nApple\nHP\nRazer
USB Power Delivery:	Ja
USB Power Delivery herziening:	3.0
USB Power Delivery tot max.:	100 W
USB Type-C DisplayPort alternatieve modus:	Ja
HDCP versie:	1.4/2.2
Netstekker:	USB Type-C
Speciale eigenschappen:	In the box:\nCSV-1568 Docking Station\nPowerSupply Input:100-110/240VAC, Output: up to 120W\nUSB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft\nDetachable stand\nQuick Install Guide
Overdrachtssnelheid:	16.2 Gbit/s
AC-ingangsspanning:	100 - 240 V
Code geharmoniseerd systeem (HS):	84733020
Sleutelsleuf:	Ja
Lengte stroomkabel:	1 m
Thunderbolt 3 Power Delivery:	Ja
