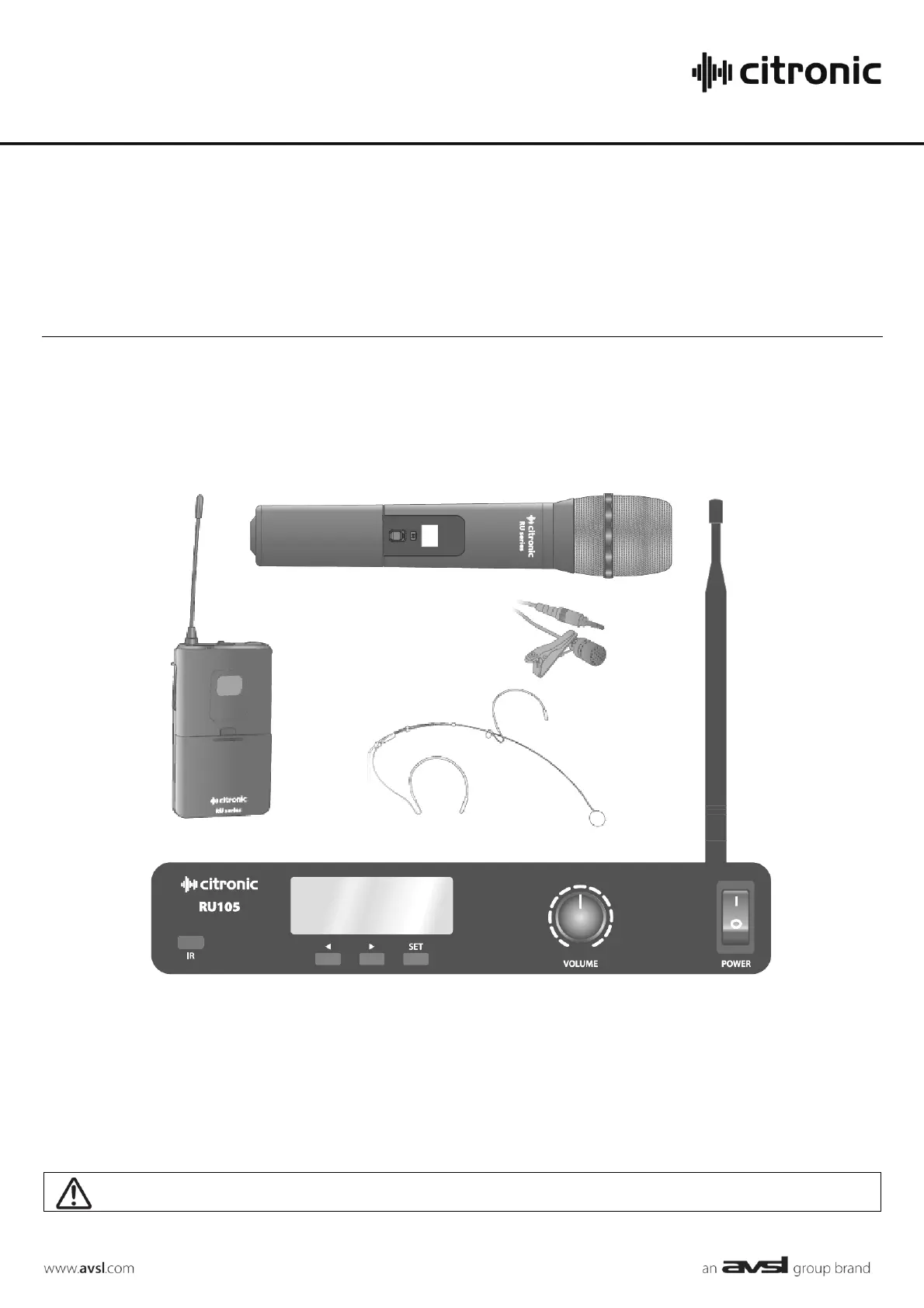

RU105
Multi-UHF Wireless System
Item ref: 2UK, 171.973171.97 UK
User Manual
Version 1.1
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
171.972UK, 171.973UK User Manual
Introduction
Thank you for choosing the Citronic RU105 wireless system. This professional wireless set provides a high
quality microphone with a PLL tuned UHF radio system for freedom of movement without loss of audio quality.
Please read this manual before using this equipment in order to avoid damage through incorrect operation
and to get the best performance from your purchase.
Package Contents
• UHF wireless receiver
• 19” rack ears
• UHF antenna
• BNC antenna extension lead
• Handheld transmitter or bodypack receiver with neckband and lavalier microphones
• Mains power adapter
• 6.3mm mono jack lead
• 2 x 1.5V AA battery
If you find any accessory is missing or the product has arrived with any problems, please contact your retailer
at once.
This product contains no user-serviceable parts so make no attempt to try to fix or modify this item yourself
as this will invalidate the warranty. We recommend you keep the original package and proof of purchase for
any possible replacement or returned demand.
Warning
To prevent the risk of fire or electric shock, do not expose any of the components to rain or moisture.
If liquids are spilled on any component, stop using immediately, allow unit to dry out and have checked by
qualified personnel before further use.
Avoid impact or heavy vibration to any of the components, dropping microphone can cause capsule failure. a
No user serviceable parts inside transmitter or receiver - refer servicing to qualified service personnel.
Safety
• Ensure that the correct adapter is used with adequate current rating and that the mains voltage is as
stated on the adapter.
• Avoid ingress of water or particles into the transmitters or receiver.
• Use alkaline or NiMH batteries in the transmitters and remove if unused for long periods.
• Observe the correct polarity when replacing batteries.
Placement
• Keep all components out of direct sunlight and away from heat sources.
• Do not place heavy objects on top of the receiver or transmitters.
• If rack-mounting, use rack ears provided and do not place heavy equipment above the receiver.
• Keep the transmitters and receiver away from damp or dusty environments.
Cleaning
• Use a soft cloth with a neutral detergent to clean the body of the handheld transmitter and receiver.
• Lightly damp sterile wipes may be used on the microphone grille for hygiene purposes.
• To avoid damage, do not use solvents to clean the components.
171.972UK, 171.973UK User Manual
Receiver
Transmitter
Setting Up
Insert the supplied AA batteries into the transmitter by carefully unscrewing the base of the
handheld or opening the flap of the bodypack to reveal the battery compartment Insert the batteries .
(ensuring that + and - are the correct way round for each cell) and carefully replace the cover.
For neckband or lavalier microphones, connect the 3.5mm jack into the bodypack, screwing the
threaded jack securely into the socket.
The receiver antenna may be connected directly to the BNC connector on the rear panel or
alternatively front-mounted onto rack ears (see below)
1.
IR sync sender
2.
LCD display
3.
Previous (Group/Channel setting)
4.
Next (Group/Channel setting)
5.
Set (Group/Channel)
6.
Output volume control
7.
Power on/off switch
8.
Balanced XLRM output
9.
Unbalanced 6.3mm jack output
10.
DC power in jack (5.5 x 2.1mm)
11.
Antenna connector (BNC)
12.
LCD display
13.
IR sync detector
14.
On/off switch
15.
Battery compartment
16.
Antenna
17.
On indicator
18.
Mute switch
19.
3.5mm threaded jack socket
20.
LCD display and on
21.
On/off button
22.
Battery compartment
