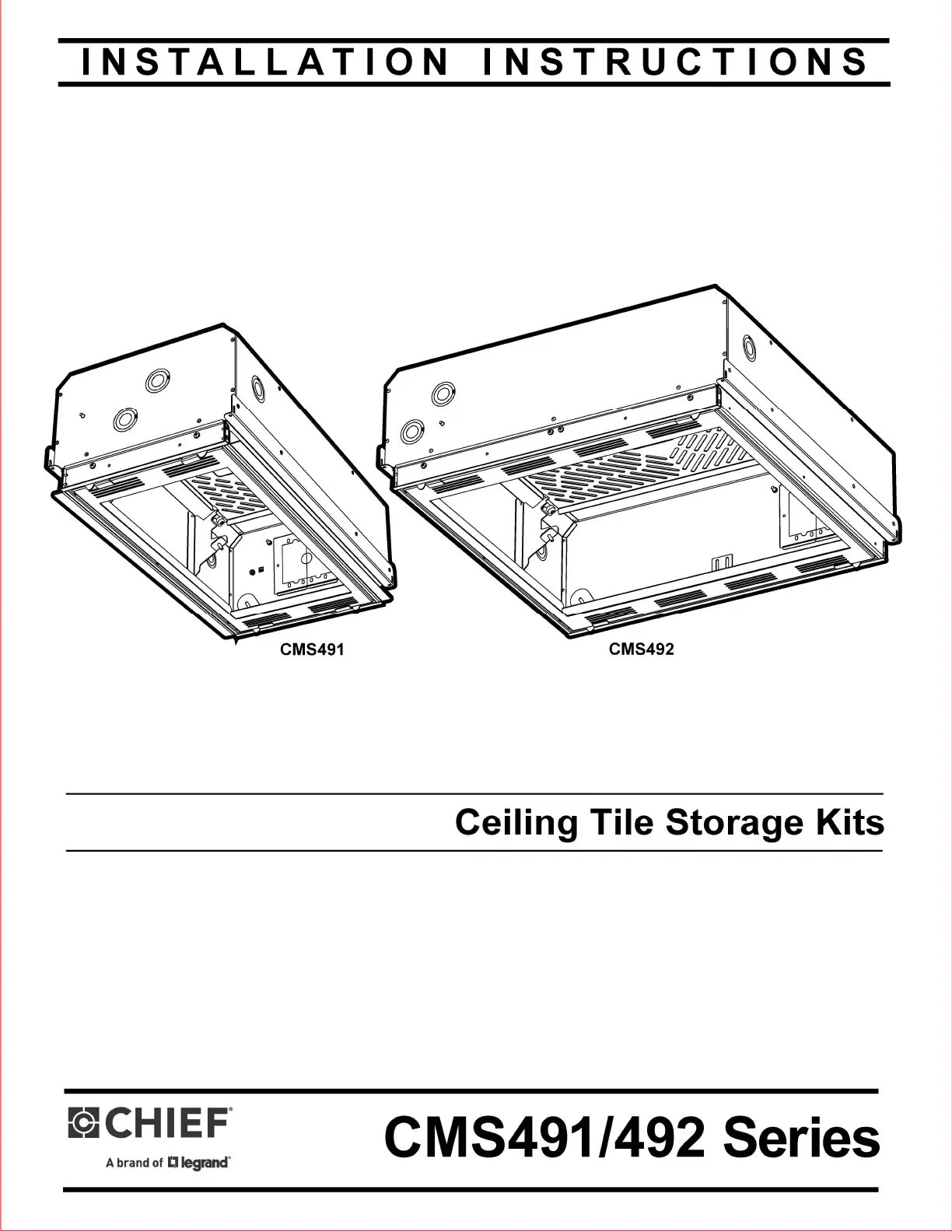

Ceiling Tile Storage Kits

I N S T A L L A T I O N I N S T R U C T I O N S

CMS491/492 Series

Installation Instructions

CMS491/492

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and

subsidiaries (collectively “Milestone”), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this accessory can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this accessory is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of:

• all components located in the complete accessory does

not exceed 100 lbs (45 kg).

• all components attached to the CMS491/CMS492

Series component shelf may not exceed 25 lbs (22 kg)

per shelf;

• all components attached to the extension column,

(CMS491C/CMS492C models only) does not exceed

50 lbs (22 kg).

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center

for examination and repair.

IMPORTANT ! : The CMS491/492 has been designed to be

mounted recessed into a suspended ceiling secured by a

WireVice system.

IMPORTANT ! : The CMS491/492 has been designed to

support a single electrical receptacle or a double receptacle.

NOTE: It is the installer’s responsibility to ensure that the

enclosure is bonded to the ground in the switch box, in accord-

ance with the National Electric Code, ANSI/NFPA 70 or

Canadian Electrical Code, CSA C22.1. A green grounding

screw is provided in the enclosure for the purpose, if required.

NOTE: Spacings - To ensure safe operation of the equipment

installed in the enclosure, per National Electric Code,

ANSI/NFPA 70, a minimum separation between power cords

and signal or communication cables may be required.

NOTE: This Cabinet System is for use with Listed ITE or

Audio/Video equipment only.

NOTE: When selecting a Listed 120 Vac Receptacle for use as

the main power source for the CMS Series boxes (to power the

A/V equipment), make sure that AC Receptacle is rated at least

15A and it is used in the building's AC branch circuit that is

connected to a circuit breaker rated at least 15A. Do not

connect more than 12A from the 15A Receptacle, or 16A from the

20A Receptacle.

In the U.S., the equipment shall be installed per the applicable

requirements of the National Electrical Code, ANSI/NFPA 70.

In Canada, the equipment shall be installed per the applicable

requirements of the Canadian Electrical Code, CSA C22.1.

NOTE: The CMS491/492 Series consists of:

• CMS491 1x2 Standard Ceiling Box

• CMS491C 1x2 Ceiling Box with Column Drop

• CMS492 2x2 Standard Ceiling Box

• CMS492C 2x2 Ceiling Box with Column Drop

NOTE: The CMS491C and CMS492C each accommodate a

Listed Chief CMS Series extension column (not included).

--SAVE THESE INSTRUCTIONS--

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: For indoor use only.

DIMENSIONS

CMS491

CMS491C

Installation Instructions CMS491/492

B B

1 REMOVABLE SHELF INCLUDED

2 SPACES TOTAL AVAILABLE

1.38

34.9

DOOR DROP

1.13

28.6

TILE INSERTION SPACE

19.25

489.0

TILE WIDTH

0-0.25

6.4

SIDE TRIM EXTENSION

(MIN-MAX) DEPTH ADJUST

ELECTRICAL INSTALL PLATE SPACE FOR

A SINGLE GANG OUTLET1. DUAL GANG OUTLET2. PASS THROUGH FOR DUAL GANG3. OUTLET ATTACHED TO 1/2" CONDUIT

12.97

329.5

8.67

220.1

0.88

22.2

TRADE CONDUIT SIZE 1/2"

METRIC CONDUIT SIZE 16mm

1.38

34.9

TRADE CONDUIT SIZE 1"

METRIC CONDUIT SIZE 27mm

1.73

44.0

TRADE CONDUIT SIZE 1-1/4"

METRIC CONDUIT SIZE 35mm

DETAIL A

SCALE 1 : 2

23.67

601.1

MOUNTING WIDTH

1.91

48.4

TOP SHELF SPACE

2.25

57.2

BOTTOM SHELF SPACE

7.58

192.4

AVAILABLE

STORAGE HEIGHT

SECTION B-B

2.59

65.9

PIPE DROP

CENTER

13.63

346.1

PIPE DROP TRAVEL

5.02

127.5

PIPE DROP

MIN CENTER

B B

1 REMOVABLE SHELF INCLUDED

2 SPACES TOTAL AVAILABLE

ELECTRICAL INSTALL PLATE SPACE FOR

A SINGLE GANG OUTLET1. DUAL GANG OUTLET2.

1.38

34.9

DOOR DROP

19.25

489.0

TILE WIDTH

1.13

28.6

TILE INSERTION SPACE

0.25

6.4

SIDE TRIM EXTENSION

ELECTRICAL INSTALL PLATE SPACE FOR

A SINGLE GANG OUTLET1. DUAL GANG OUTLET2. PASS THROUGH FOR DUAL GANG3. OUTLET ATTACHED TO 1/2" CONDUIT

8.67

220.1

12.97

329.5

0.88 22.2

TRADE CONDUIT SIZE 1/2"

METRIC CONDUIT SIZE 16mm

1.73 44.0

TRADE CONDUIT SIZE 1-1/4"

METRIC CONDUIT SIZE 35mm

1.38 34.9

TRADE CONDUIT SIZE 1"

METRIC CONDUIT SIZE 27mm

DETAIL A

SCALE 1 : 2

23.67

601.1

MOUNTING WIDTH

1.91

48.4

TOP SHELF SPACE

2.25

57.2

BOTTOM SHELF SPACE

7.61

193.3

AVAILABLE

STORAGE HEIGHT

SECTION B-B

Product specificaties

Merk:	Chief
Categorie:	Projector accessoire
Model:	CMSUNV1
Kleur van het product:	Zilver
Gewicht:	680 g
Gewicht verpakking:	1000 g
Maximale gewichtscapaciteit:	11.3 kg
Certificering:	UL, TAA
Materiaal:	Metaal
Merkcompatibiliteit:	Chief
Compatibiliteit:	CMS491
Code geharmoniseerd systeem (HS):	85299097
