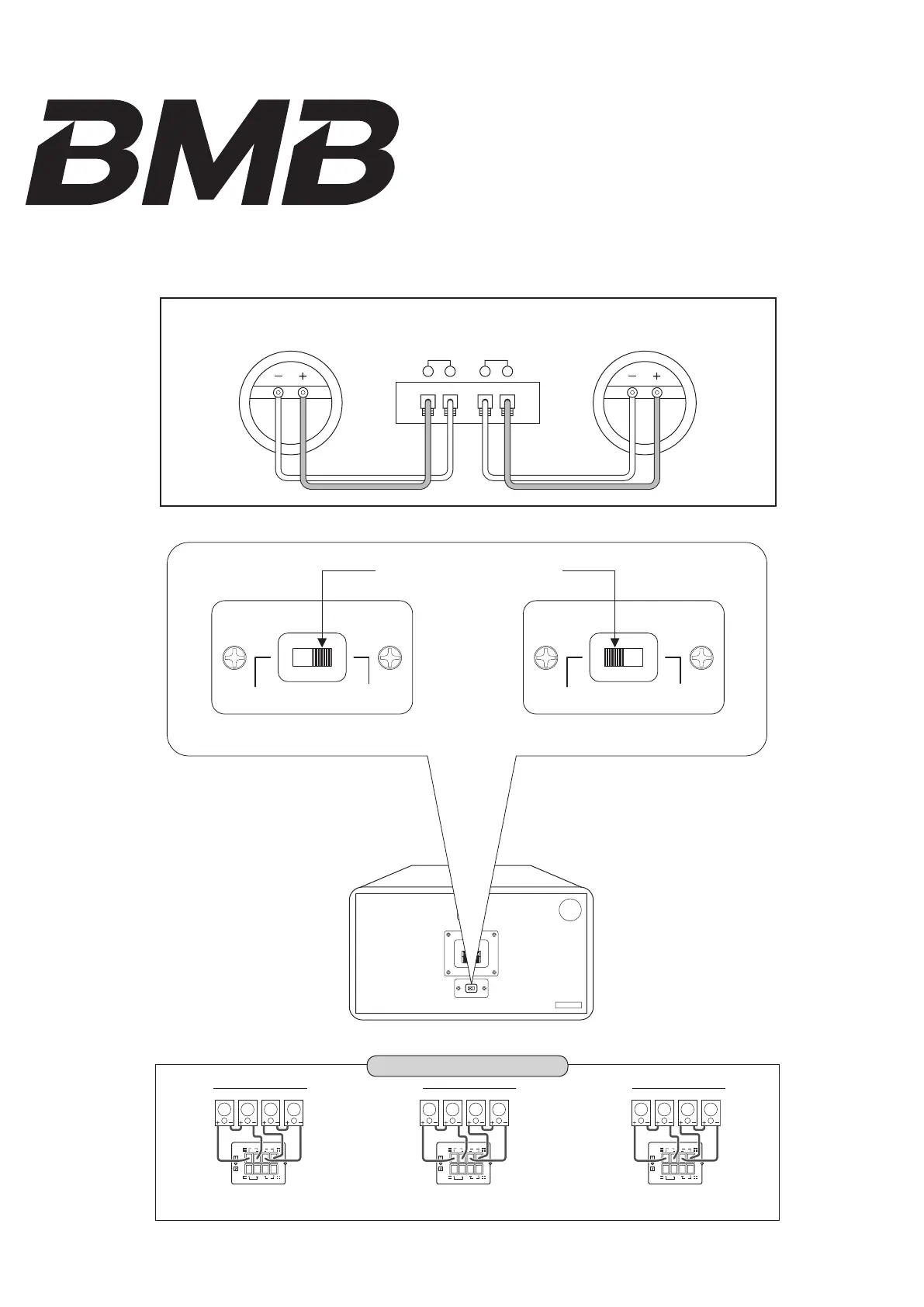

SPEAKER SYSTEM
CSJ-210(SE)
LR
+ – +–
Right speaker system Connected amplifier
(Speaker terminals)
Left speaker system
TREBLE
FLAT
TREBLE
FLAT
Position Selection
TREBLE position FLAT position
Allowable Examples
(Speaker terminals) (Speaker terminals) (Speaker terminals)
Allowable Example 1 Allowable Example 2 Allowable Example 3
OK: Combined impedance is OK: Combined impedance is 12 Ω14 ΩOK: Combined impedance is 16 Ω
R L
RL
R L
RL
R L
RL
6 6 6 6 8 6 6 8 8 8 8 8 Ω Ω Ω Ω Ω Ω Ω Ω Ω Ω Ω Ω
100
242
100
210
346
Not-allowable Example 1 Not-allowable Example 2 Not-allowable Example 3
R L
RL
R L
R L
R L
R L
6 6 6 6 Ω Ω Ω Ω 8 6 6 8 Ω Ω Ω Ω 8 8 8 8 Ω Ω Ω Ω
(Speaker terminals) (Speaker terminals) (Speaker terminals)
NG: Combined impedance is 3ΩNG: Combined impedance is NG: Combined impedance is 3.4 Ω4Ω
Not-allowable Examples
TREBLE Position Straight ahead from the tweeter)（
SPL (dB)
70
80
90
100
60
110
20 100 200 500 1K 2K 5K 10K 20K
(Hz)
(Hz)
TREBLE Position
20 100 200 500 1K 2K 5K 10K 20K
8
16
32
64
4
Impedance (Ω)
FLAT Position Straight ahead from the tweeter)（
70
80
90
100
60
110
20 100 200 500 1K 2K 5K 10K 20K
(Hz)
SPL (dB)
(Hz)
FLAT Position
8
16
32
64
420 100 200 500 1K 2K 5K 10K 20K
Impedance(Ω)
English
OWNER’S MANUAL THANK YOU VERY MUCH FOR PURCHASING
THIS BMB SPEAKERS SYSTEM. BEFORE USE,
PLEASE READ FOLLOWING INSTRUCTIONS
THROUGH CAREFULLY AND FAMILIARIZE
YOURSELF WITH THE OPERATION OF THE
SYSTEM.
BEFORE USE
Operating Precautions
The maximum input power of these speakers is 200 W (at peak). Higher levels of input power may cause damage
to the speaker system and so take every precaution to keep the power down to the specifi cation.
Even if an amplifi er with a maximum output power of less than 200 W is employed, do not use the speakers with
the volume turned up too high or the sound distorted. This may damage the speakers.
Make sure that the amplifi er’s power switch is at the OFF position when connecting the speakers to the amplifi er.
Make sure that the amplifi er’s volume control is turned down to its lowest setting when the amplifi er’s power switch
is set to the ON position.
CONNECTIONS
INSTALLATION
Make sure that you set the power switch on the amplifi er to the OFF position when connecting the speakers to the
amplifi er.
Align the (–) and (+) polarities of the speakers with the (–) and (+) polarities of the left (L) and right (R) channels of
amplifi er, and connect the speakers to the speaker terminals on the amplifi er.
* If the polarities of the left and right speakers are not aligned properly, the quality of the reproduced sound, the
ambience and the feeling of direction will all be markedly impaired.
* When making the connections, take every precaution to prevent the speaker cords’ central cores from being shorted.
Installing the Speakers
Avoid installing the speakers in a location exposed to direct sunlight and high levels of humidity.
Avoid also locations in the vicinity of stoves and other sources of heat.
With a speaker system, the sound which is heard varies greatly according to the installation location. Bear in mind
the following points in order to derive the most enjoyment from music.
) Install the speaker at the upper position than your ears level when you listen to the sound under normal listening
conditions.
) The best distance between the speakers is approx. 2 to 5 m.
) The bass sounds fuller if the speakers are installed on a solid and stable stand of shelf, or if they are placed
against a wall. The bass sound will lose its impact if objects which do not refl ect the bass well enough are placed
in front of the speakers.
If you plan to hang your speakers from the ceiling, contact a professional installer.
Caution:
If you want to suspend the CSJ-210(SE) from the ceiling, use adequate mounting hardware that can bear the load. In
addition, be sure to secure the mounting hardware onto a place of high-tensile strength using screws appropriate to the
ceiling materials.
MAINTENANCE OF CABINET
When the cabinets are dirty, clean off the dirt with a soft cloth. If the dirt is engrained, moisten a soft cloth in cold or
lukewarm water, wring it out, and then wipe off the dirt. Never use thinners or alcohol since these substances can
impair the fi nish of the cabinet. Also, avoid using insecticide and other sprays near the speakers.
Making Allowable Connections between Speakers and Your Amplifi er
(Ex. 4 Speakers)
Confi gure and wire the speakers so that the combined impedance falls within 6 to 32 Ω.
Note:
The specifi cation allows the combined impedance ranging 4 to 32 , however, 4 Ω Ω confi guration is not recommended; avoid it whenever possible.
ACCESSORIES
Owner’s manual: 1 pc
TONE CONTROL
This speaker system offers a slide switch that gives you two tone choices: TREBLE and FLAT. The TREBLE position is
intended for listening in a large room; the FLAT position is suitable for a small room. This switch is located on the rear face
of each speaker.

Product specificaties

Merk: BMB
Categorie: Speaker
Model: CSJ-210
