Pagina 1/9

With more standard features

than any other loop detector

on the market, the Matrix2-S

has the flexibility, compatibility

and performance to maximize

productivity and safety

on your site.

Try it NOW

The Future of Sensors, Now!

nMatrix2-S is a series of digital inductive, single loop detectors for vehicle access

control and safety for doors, gates, and numerous other applications.

High performance features include :

> PRESENCE time adjustability up to INFINITY

> Selection of PRESENCE and PULSE outputs

> AUTOMATIC SENSITIVITY BOOST increases the sensitivity upon detection, and allows

for continuous detection of high-bed vehicles

> Four frequency settings ensure NO CROSSTALK occurs between adjacent loops

> The microprocessed Matrix adjusts to OUTSIDE TEMPERATURES - detection is not

affected by long-term occupation of the loop

nThe Matrix2-S is available in two models to accommodate nearly any application

> Available in single channel mode, and power supply configurations of 110 or 220

volts AC, or 12-24 volts AC/DC, the Matrix is compatible with any door control or

application you may encounter

nUnlike traditional DIP switches, the Matrix2-S’s continuous mode adjustments allow

for precise settings to match your application

> Settings such as sensitivity and presence are adjusted via potentiometer so wide

ranges and precise adjustments are made easy

Matrix2-S

BEA’s digital inductive

single loop

solution

www.beasensors.com

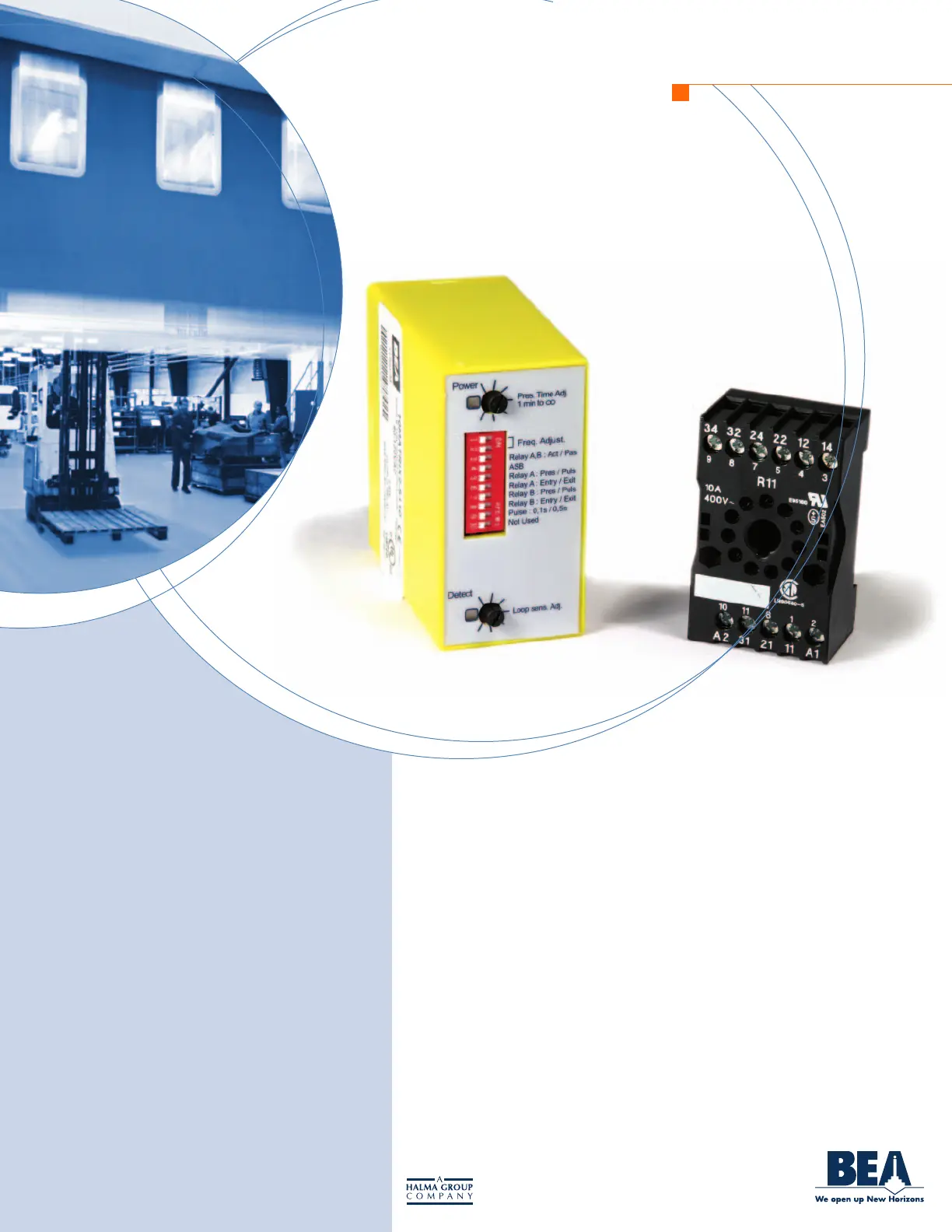

Matrix Components

Main connector (86CP11)

Power LED

Presence time potentiometer

DIP switches

Detection state LED

Sensitivity adjustment potentiometer

Matrix2-S applicationMatrix2-S Technical Specifications

Technology Inductive loop

Tuning automatic

Detection mode presence

Presence time 1 min to infinity (permanent presence)

with 250 steps.

Pulse time output 100 ms or 500 ms

Inductance range 20 micro to 1000 micro

Frequency range 20 kHz to 130 kHz

Frequency steps 4 for single loop / 2 for dual loop

(for each loop)

Sensitivity (DL/L) 0.005% to 0.5% with 250 steps

Reaction time 25ms for single loop

Setup time at power on 8 seconds maximum by channel

Setup time after configuration 2 seconds maximum by channel

Power supply 12-24 AC/DC ± 10% / 230 VAC

± 10% / 115 VAC ± 10%

(depending on model)

Frequency range 48 to 62 Hz

Power Consumption <2.5W

Temperature range -22°F to +158°F (-30°C to +70°C)

Degree of protection IP40

2 Output relays · Max contact voltage : 230 VAC

(free potential change-over contact)

· Max contact current : 5A (resistive)

LED indicators · 1 green LED : power

· 1 red LED : Loop status 1

· 1 red LED : Loop status 2

Protections · loop insulation transformer / Zener

diodes / gas discharge clamping.

Connection Standard 11-pin round connector

86CP11

Dimensions · Height: 3" (77mm) / Width: 1 5/8"

(40mm) / Depth: 3" (77mm)

Weight < 7 ounces

Immunity electromagnetic compatibility (EMC)

according to 89/336/EEC and its amendments

Contact Information

BEA Inc.

RIDC Park West

100 Enterprise Drive

Pittsburgh PA, 15275

Phone +1.412.249.4100

Fax +1.412.249.4101

Toll Free 1-800.523.2462

BEA West

2401 Pine Street

Los Angeles, CA 91767

Phone +1.909.596.3011

Fax +1.909.596.5411

Toll Free 1-877.232.9378 www.beasensors.com

Industrial Door:

The Matrix2-S will activate and

hold open an industrial door as

soon as a vehicle enters or stay in

its field of detection.

Gate opening and safety:

The Matrix2-S will activate

and hold open a gate

(parking as shown above)

as soon as a vehicle enters

or stay in its field of detection.

75.1046 V3 July 2005 [Rev. 7/21/2005] Page 1 of 6



The MATRIX Digital Inductive Loop Detector is the ideal solution for parking barrier control, motorized gates and doors, vehicle

access control and industrial control systems.

The MATRIX is a high performance single or dual-channel vehicle detector packaged in a compact housing. The connection is

made with a standard industrial 11-pin round connector.

The six versions listed below include single or dual-channel, and 3 possible power supplies:

10MATRIXS110 : Single loop detector with 110 to 120 V AC power supply.

10MATRIXS220 : Single loop detector with 220 to 240 V AC power supply.

10MATRIXS1224 : Single loop detector with 12 to 24 V AC/DC power supply.

10MATRIXD110 : Dual loop detector with 110 to 120 V AC power supply.

10MATRIXD220 : Dual loop detector with 220 to 240 V AC power supply.

10MATRIXD1224 : Dual loop detector with 12 to 24 V AC/DC power supply.

Technology : Inductive loop

Tuning : automatic

Detection mode : presence

Presence time : 1 min to infinity (permanent

presence) with 250 steps.

Pulse time output : 100 ms or 500 ms

Inductance range : 20 µH to 1000 µH

Frequency range : 20 kHz to 130 kHz

Frequency steps : 4 for single loop

2 for dual loop (for each loop)

Sensitivity ( L/L) ∆: 0.005% to 0.5% with 250 steps

Reaction time : 25ms for single loop

50ms for dual loop(each channel)

Setup time at power on : 8 s max by channel

Setup time after configuration : 2s max by channel

Power supply (depending on model) :

• ±12-24 AC/DC 10%

• ±230VAC 10 %

• ±115VAC 10 %

Power Frequency : 48 to 62 Hz

Power Consumption : < 2.5 W

Temperature range : -22 F to 158 F ° °

[-30°C to +70°C]

Degree of protection : IP40

2 Output relays (free potential change-over contact) :

• Max contact voltage : 230 VAC ;

Max contact current : 5A (resistive). •

: LED indicators

1 green LED : power ; •

1 red LED : Loop status 1 ; •

1 red LED : Loop status 2. •

Protections :

loop insulation transformer ;•

Zener diodes ; •

gas discharge clamping. •

Connection :

Standard 11-pin round connector 86CP11

Dimensions : 3 in (H) x 1.5 in (W) x 3 in (D)

[

77mm (H) x 40mm(W) x 75mm(D)]

Weight : 7 ounces [< 200g]

Product compliance :

R&TTE 1999/5/EC

EMC 89/336/EEC

FCC 47CFR15

IC RSS-210 Issue 5

• Shut off all power before attempting any wiring procedures.

• Maintain a clean & safe environment.

• Constantly be aware of traffic around the door or gate area.

• Always suspend traffic through the doorway or gate area when performing testing that may result in unexpected

reactions by the door or gate.

• Always check placement of all wiring and components before powering up to insure that moving parts will not catch

any wires and cause damage to equipment.

DESCRIPTION

OF THE

SENSOR

APPLICATIONS

TECHNICAL

SPECIFICATIONS

1.5 in

3 in

SAFETY

PRECAUTIONS

We open up New Horizons

USERS GUIDE

MATRIX

DIGITAL INDUCTIVE LOOP SENSORS
