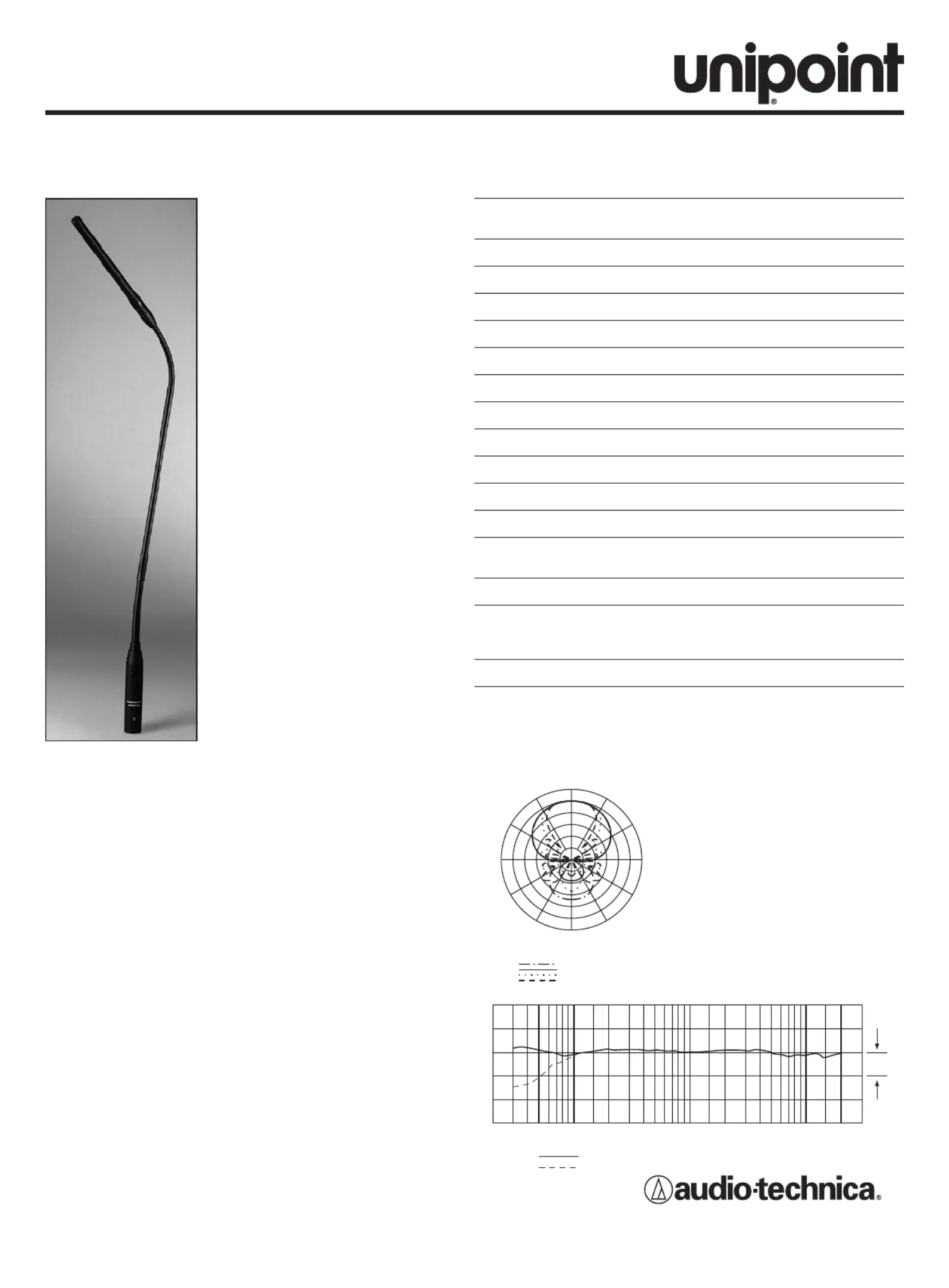

UNILINE™ CONDENSER QUICK-MOUNT
GOOSENECK MICROPHONE
- Designed for high-quality sound
reinforcement, professional record-
ing and broadcasting.
- UniLine™ polar pattern provides
narrow 90° acceptance angle.
- Superior o-axis rejection for maxi-
mum gain before feedback.
- UniGuard™ RFI-shielding technol-
ogy oers outstanding rejection of
radio frequency interference (RFI).
- Easy-to-adjust, rugged, small-
dimeter, alternating gooseneck with
virtually no “memory” permits quick
positioning into desired shape.
- UniSteep® lter provides a steep
low-frequency attenuation to im-
prove sound pickup without aect-
ing voice quality.
- Self-contained electronics eliminate
need for external power module.
- Accepts interchangeable elements
to permit angle of acceptance from
90° to 360°.
- Two-stage foam windscreen yields
dramatically improved resistance to
P-pops and other breath blasts.
- Quick-mount design with 3-pin XLRM-type connector insert at
base plugs into any standard XLRF-type surface or cable con-
nector.
- Optional shock mount attenuates noise, shock and vibration
transmitted through the mounting surface.
The U857QLU stands 603mm from the table or podium. The
model is require 11V to 52V phantom power for operation.
Output from the microphone's XLRM-type connector is low
impedance (Lo-Z) balanced. The signal appears across Pins
2 and 3; Pin 1 is ground (shield). Output phase is "Pin 2 hot" -
positive acoustic pressure produces positive voltage at Pin 2.
At integral 80 Hz high-pass UniSteep® filter provides easy
switching from a at frequency response to a low-end roll-off.
The roll-o position reduces the microphone's sensitivity to
popping in close vocal use. It also reduces the pickup of low-
frequency ambient noise (such as trafc, air-handling systems,
etc.), room reverberation and mechanically coupled vibrations.
Avoid leaving the microphone in the open sun or in areas where
temperatures exceed 43°C for extended periods. Extremely
high humidity should also be avoided.
SPECIFICATIONS
ELEMENT
POLAR PATTERN
FREQUENCY RESPONSE
LOW FREQUENCY ROLL-OFF
OPEN CIRCUIT SENSITIVITY
IMPEDANCE
MAXIMUM INPUT SOUND LEVEL
DYNAMIC RANGE (TYPICAL)
SIGNAL-TO-NOISE RATIO
PHANTOM POWER REQUIREMENTS
SWITCH
WEIGHT
DIMENSIONS
OUTPUT CONNECTOR
OPTIONAL INTERCHANGEABLE
ELEMENTS
ACCESSORIES FURNISHED
Fixed-charge back plate
permanently polarized condenser
Line Cardioid
30-20,000 Hz
80 Hz, 18 dB/octave
-35 dB (17.7 mV) re 1V at 1 Pa
250 ohms
135 dB SPL, 1 kHz at 1% T.H.D.
115 dB, 1 kHz at Max SPL
74 dB, 1 kHz at 1 Pa
11-52V DC, 2 mA typical
Flat, roll-o
167 g
603 mm - long,
12.2 mm - head diameter
Integral 3-pin XLRM-type
UE-C cardioid (120°)
UE-H hypercardioid (100°)
UE-O omnidirectional (360°)
AT8154 two-stage foam windscreen
10 dB
20k10k5k2k1k50020010050
8 kHz
200 Hz
1 kHz
5 kHz
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
Optional Accessories:
AT8662 shock mount.
AT8506 four-channel 48V phantom power
supply (AC powered).
AT8615 quick-mount plug-in microphone
desk stand.
AT8801/EU single-channel 48V phantom
power supply (AC powered).
Polar Pattern
Frequency Response
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
Frequency in Hertz
LEGEND 12” or more on axis
Roll-o
Response in dB
FORM No. ATGC-L0167-10-E
Machida • Tokyo • Japan

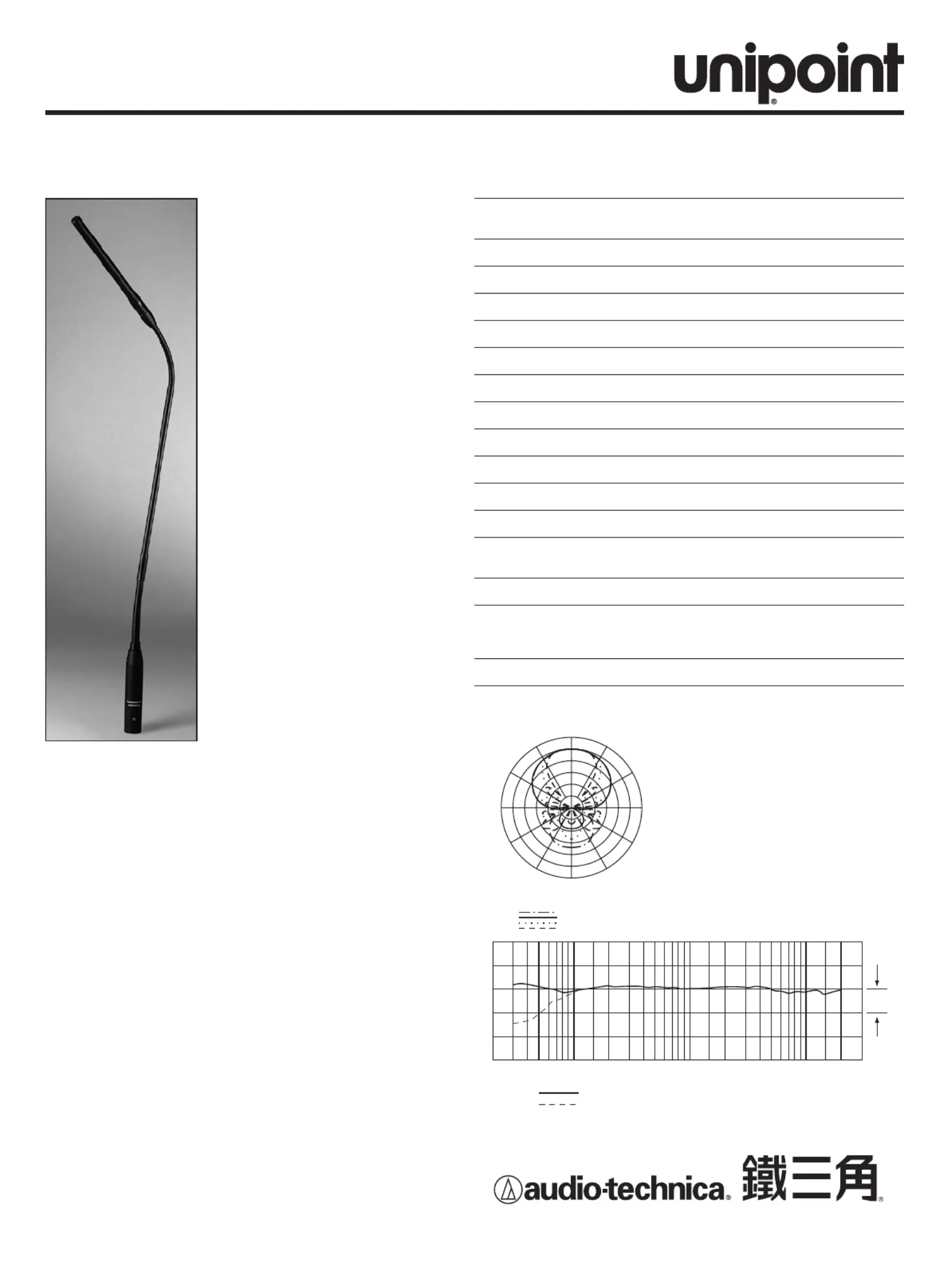

超指向性 快速安装式
专业型鹅颈式会议话筒
- 设计于高质量收音、专业录音、
电视广播、会议等高要求的收音
应用。
- UniLine™超指向收音头，提供窄
角度90°的收音角度。
- 良好的隔音设计，在最大增益时
仍能避免啸叫声的出现。
- UniGuard™ - 射频干扰(RFI)屏敝
技术，提供杰出的防止射频干扰
能力，避免收音时受到如手提电
话等的干扰。
- 易于调节、耐用、细小、可反覆
摆动而没有“记忆”效果的鹅颈
弯曲结构，可快速及随意地把话
筒收音头固定在合适的位置。
- UniSteep® - 高通滤波器，提供了
一个高效能的高通滤波，把低频
噪声作出衰减而无损话音的收音
质量。
- 内置话筒前置放大器供电组件，
无需使用外置供电模组。
- 更换式的收音头设计，可选配适
合的收音头配合实际的应用，收
音角度可由90°至360°。
- 附有双层式防风海棉罩，可减低在讲话时收到不雅的喷气声
及其他风声的情况出现。
- 快速安装设计，在话筒接线端为标准的3针卡农公头
XLRM，可连接到以任何以3针卡农母头XLRF设计的会议话
筒座上，亦可在有需要时直接连线到调音台上。
- 可选配桌面防震话筒座，把话筒固定安装在桌面或其他板面
上，并能减低碰撞平面时产生的敲击声及震动声。
U857QLU 全长为 603mm，可安装在桌面或控制板上使用，并
以直流 11V 至52V 幻象供电工作。
低阻抗的平衡音频输出，音频信号以卡农公头的 2号及3号针脚输
出，而1号针脚则为地线(屏蔽 )连接。输出相位将以正相位电平
设于2号针脚上。
内置高质量 UniSteep® 高通滤波电路，可轻易由平直的频率响
应，开启为于 80 Hz以下衰减的收音效果，应高通滤波器可减低
话筒在近距离讲话收音时的喷气声，并可减低收音环境中低频噪
声(如外间汔车引擎声，空调系统的风声等)，房间中的回声及机
械性的震动声。
把话筒暴露于高温中可能导致输出电平逐渐及永久性减弱，应避
免将话筒留在日晒的地方或长时间置于温度超过 43°C的地方，而
极高湿度也应避免。
技术指标
收音头
指向特性
频率响应
高通滤波
开通灵敏度
输出阻抗
最大承受声压
动态范围 (典型)
讯噪比
幻象供电
开关
重量
外形尺寸
输出连接器
可转换收音头
附属品
固定充电背板，
静电型电容式
超指向性
30-20,000 Hz
80 Hz, 18 dB/octave
-35 dB (17.7 mV) 以 1V 于 1 Pa
250 欧姆
135 dB 声压, 1 kHz 于 1% T.H.D.
115 dB, 1 kHz 于最高声压
74 dB, 1 kHz 于 1 Pa
直流 11-52V，耗电 2 mA 典型
平直，高通滤波
167 克
603 mm - 长，
12.2 mm - 收音头直径
内置式3
针卡农公头
UE-C 心形指向 (120°)
UE-H 超心形指向 (100°)
UE-O 全方向性 (360°)
AT8154 双层式防风海棉罩
10 dB
20k10k5k2k1k50020010050
8 kHz
200 Hz
1 kHz
5 kHz
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
选择配件:
AT8662 防震座。
AT8506 四通通48V幻象供电器 (交流供电)。
AT8615 座桌快速安装话筒座。
AT8801/EU 单通道48V幻象供电器
(交流供电)。
指向特性
频率特性
声压曲线
1刻度5 dB
频率
频率 (赫兹)
电平 平直
高通滤波
响应电平 (dB)
FORM No. ATGC-L0167-10-C
Machida • Tokyo • Japan
