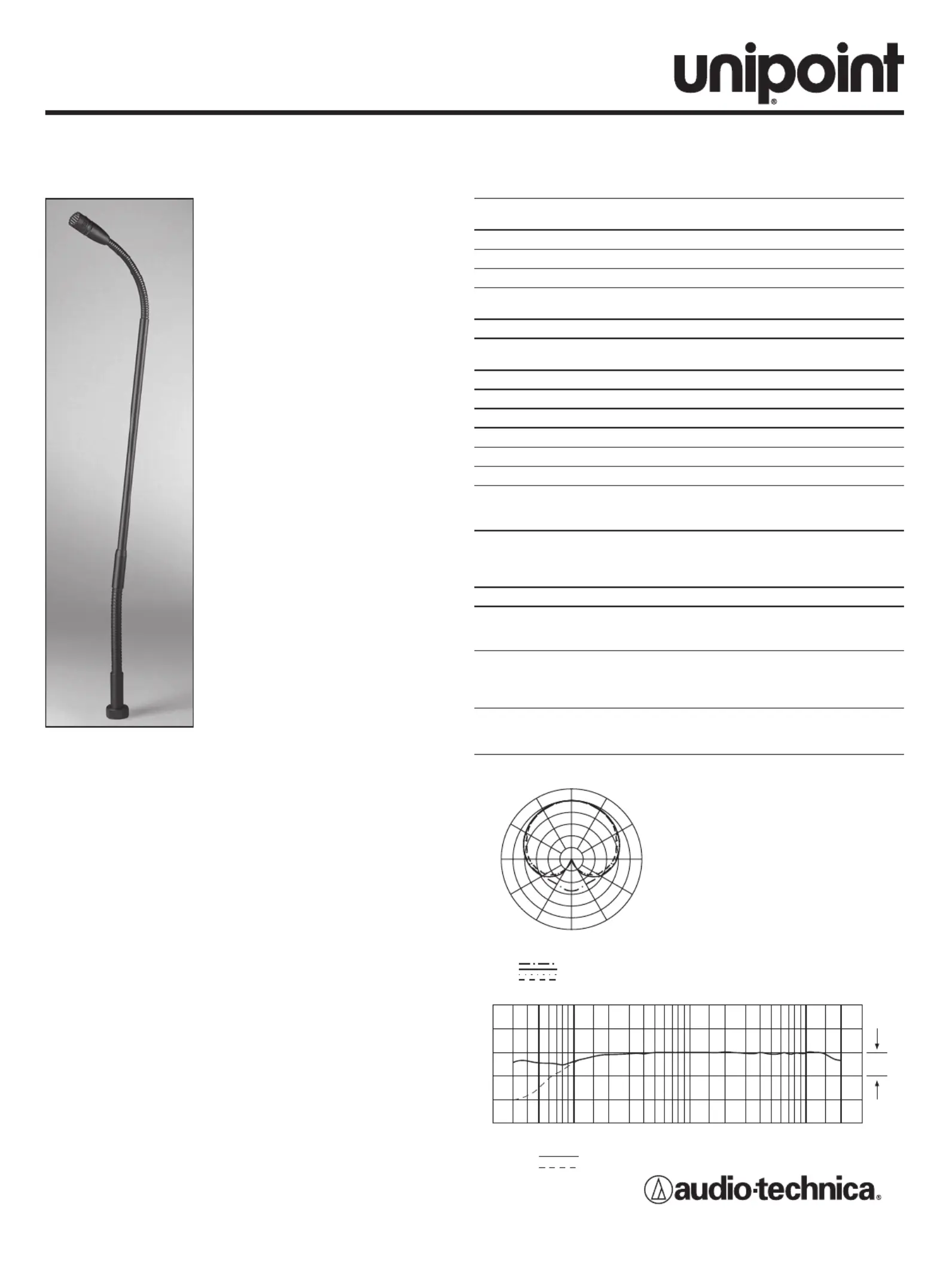

CARDIOID CONDENSER ADAPTER-MOUNT
GOOSENECK MICROPHONE
- Designed for high-quality sound
reinforcement, professional
recording and broadcasting.
- Superior off-axis rejection for
maximum gain before feedback.
- UniGuard™ RFI-shielding
technology offers outstanding
rejection of radio frequency
interference (RFI).
- Easy-to-adjust, rugged, small-
dimeter, alternating gooseneck with
virtually no “memory” permits quick
positioning into desired shape.
- UniSteep® lter provides a steep
low-frequency attenuation to
improve sound pickup without
affecting voice quality.
- Accepts interchangeable elements
to permit angle of acceptance from
90° to 360°.
- Two-stage foam windscreen yields
dramatically improved resistance to
P-pops and other breath blasts.
- Direct mounts to any "-27 stand, ⅝
or to included threaded mounting
ange.
The U857A stands 305mm from the table or podium, it is also
available in a 421mm version as U857AL. The two models are
identical in all other respects.
The microphone requires 11V to 52V DC phantom power or a
1.5V AA battery for operation. A battery need not be in place for
phantom power operation.
Alkaline batteries are recommended for longest life. Remove
the battery during long-term storage.
Output from the power module's XLRM-type connector is low
impedance (Lo-Z) balanced. The signal appears across Pins
2 and 3; Pin 1 is ground (shield). Output phase is "Pin 2 hot" -
positive acoustic pressure produces positive voltage at Pin 2.
At integral 80 Hz high-pass UniSteep® filter provides easy
switching from a at frequency response to a low-end roll-off.
The roll-off position reduces the microphone's sensitivity to
popping in close vocal use. It also reduces the pickup of low-
frequency ambient noise (such as trafc, air-handling systems,
etc.), room reverberation and mechanically coupled vibrations.
The microphone features a 3m permanently attached miniature
cable. It connects to provided AT8531 power module via
a special TA3F-type connector designed to optimize RFI
immunity.
Avoid leaving the microphone in the open sun or in areas where
temperatures exceed 43°C for extended periods. Extremely
high humidity should also be avoided.
SPECIFICATIONS
ELEMENT
POLAR PATTERN
FREQUENCY RESPONSE
LOW FREQUENCY ROLL-OFF
OPEN CIRCUIT SENSITIVITY
(Phantom / Battery)
IMPEDANCE (Phantom / Battery)
MAXIMUM INPUT SOUND LEVEL
(Phantom / Battery)
DYNAMIC RANGE (TYPICAL)
SIGNAL-TO-NOISE RATIO
PHANTOM POWER REQUIREMENTS
BATTERY TYPE
BATTERY CURRENT / LIFE
SWITCH
WEIGHT U857A
U857AL
POWER MODULE
DIMENSIONS U857A
U857AL
BOTH
POWER MODULE
OUTPUT CONNECTOR
CABLE
OPTIONAL INTERCHANGEABLE
ELEMENTS
ACCESSORIES FURNISHED
Fixed-charge back plate
permanently polarized condenser
Cardioid
30-20,000 Hz
80 Hz, 18 dB/octave
-42 dB (7.9 mV) re 1V at 1 Pa
-43 dB (7.0 mV) re 1V at 1 Pa
200 ohms / 270 ohms
133 dB / 123 dB SPL,
1 kHz at 1% T.H.D.
109 dB / 99 dB, 1 kHz at Max SPL
70 dB, 1 kHz at 1 Pa
11-52V DC, 2 mA typical
1.5V AA/UM3
0.4 mA / 1200 hrs typical (alkaline)
Off, on-at, on-roll-off
124 g
131 g
139 g
305 mm - long
421 mm - long,
12.2 mm - head diameter
84 mm(H) x 63 mm(W) x 22 mm (D)
Integral 3-pin XLRM-type
3m long, 3.2mm diameter,
2-conductor shielded cable with
TA3F-type connector
UE-C cardioid (120°)
UE-H hypercardioid (100°)
UE-O omnidirectional (360°)
UE-UL UniLine™ (90°)
AT8531 power module;
AT8153 two-stage foam windscreen
Cable; Battery
10 dB
20k10k5k2k1k50020010050
8 kHz
200 Hz
1 kHz
5 kHz
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
Optional Accessories:
AT8601 Desk stand.
AT8614 Desk stand with thru-hole.
AT8506 four-channel 48V phantom power
supply (AC powered).
AT8801/EU single-channel 48V phantom
power supply (AC powered).
Polar Pattern
Frequency Response
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
Frequency in Hertz
LEGEND 12” or more on axis
Roll-off
Response in dB
FORM No. ATGC-L0003-05-E
Machida • Tokyo • Japan
心形指向性 螺帽安装式
专业型鹅颈式会议话筒
- 设计于高质量收音、专业录音、
电视广播、会议等高要求的收音
应用。
- 良好的隔音设计，在最大增益时
仍能避免啸叫声的出现。
- UniGuard™ - 射频干扰(RFI)屏敝
技术，提供杰出的防止射频干扰
能力，避免收音时受到如手提电
话等的干扰。
- 易于调节、耐用、细小、可反覆
摆动而没有“记忆”效果的鹅颈
弯曲结构，可快速及随意地把话
筒收音头固定在合适的位置。
- UniSteep® - 高通滤波器，提供了
一个高效能的高通滤波，把低频
噪声作出衰减而无损话音的收音
质量。
- 更换式的收音头设计，可选配适
合的收音头配合实际的应用，收
音角度可由90°至360°。
- 附有双层式防风海棉罩，可减低
在讲话时收到不雅的喷气声及其
他风声的情况出现。
- 螺帽安装设计，可直接把话筒安
装在任何⅝"-27的话筒架或配合螺
环附件安装于桌面上。
U857A 全长为305mm，可安装在桌面或话筒架上使用。另外，
U857AL 全长为421mm，而两个型号的其他细节均相同。
话筒使用直流 11V 至52V 幻象供电或一枚1.5V AA 3号电池供电
操作，当使用幻象供电时，可不用安装电池。
建议使用硷性电池工作，当长期不使用电池时，请把电池取出。
低阻抗的平衡音频输出，音频信号以卡农公头的2号及3
号针脚输
出，而1号针脚则为地线(屏蔽)连接。输出相位将以正相位电平
设于2号针脚上。
内置高质量 UniSteep® 高通滤波电路，可轻易由平直的频率响
应，开启为于 80 Hz以下衰减的收音效果，应高通滤波器可减低
话筒在近距离讲话收音时的喷气声，并可减低收音环境中低频噪
声(如外间汔车引擎声，空调系统的风声等)，房间中的回声及机
械性的震动声。
话筒配置 3m长的固定式连接线，以防射频干扰的TA3F插头连
接于 AT8531
供电器上。
把话筒暴露于高温中可能导致输出电平逐渐及永久性减弱，应避
免将话筒留在日晒的地方或长时间置于温度超过 43°C的地方，而
极高湿度也应避免。
技术指标
收音头
指向特性
频率响应
高通滤波
开通灵敏度 (幻象供电)
(电池)
输出阻抗(幻象供电/电池)
最大承受声压(幻象供电/电池)
动态范围 (典型)
讯噪比
幻象供电
电池种类
电池耗电量 / 电池寿命
开关
重量 U857A
U857AL
供电模组
外形尺寸 U857A
U857AL
共同为
供电模组
输出连接器
连接线
可转换收音头
附属品
固定充电背板，
静电型电容式
心形单指向性
30-20,000 Hz
80 Hz, 18 dB/octave
-42 dB (7.9 mV) 以 1V 于 1 Pa
-43 dB (7.0 mV) 以 1V 于 1 Pa
200 欧姆 / 270 欧姆
133 dB / 123 dB
声压,
1 kHz 于 1% T.H.D.
109 dB / 99 dB, 1 kHz 于最高声压
70 dB, 1 kHz 于 1 Pa
直流 11-52V，耗电
2 mA 典型
1.5V AA 3号电池
0.4 mA / 1200 小时
( 典型硷性电池)
关闭，平直，高通滤波
124 克
131 克
139 克
305 mm - 长
421 mm - 长，
12.2 mm - 收音头直径
84 mm(高)x 63 mm(宽)x 22 mm(厚)
内置式3针卡农公头
3m 长，
3.2 mm 直径连接线，
2蕊线连屏蔽电线，
以TA3F插头连接
UE-C 心形指向
(120°)
UE-H 超心形指向 (100°)
UE-O 全方向性
(360°)
UE-UL UniLine™ 超指向性 (90°)
AT8531 双供电模组
AT8153 双层式防风海棉罩
连接线，电池
10 dB
20k10k5k2k1k50020010050
8 kHz
200 Hz
1 kHz
5 kHz
0°
330°
300°
270°
240°
210°
180°
150°
120°
90°
60°
30°
选择配件:
AT8601 座桌式话筒座。
AT8614 座桌式话筒座 (
带导孔)。
AT8506 四通通48V 幻象供电器
(交流供电)。
AT8801/EU 单通道48V幻象供电器
( 交流供电)。
指向特性
频率特性
声压曲线 1刻度5 dB
频率
频率 (赫兹)
电平 平直
高通滤波
响应电平 (dB)
FORM No. ATGC-L0003-05-C
Machida • Tokyo • Japan
