Pagina 1/8

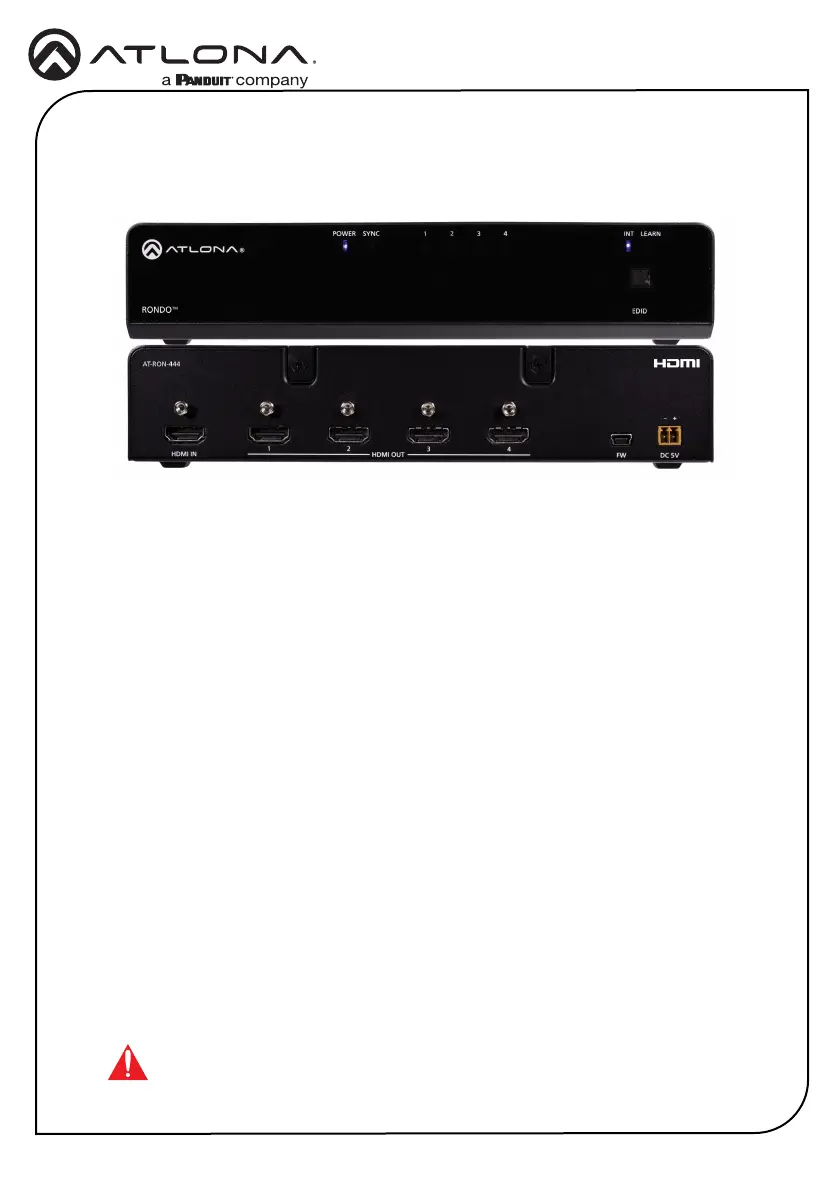

Installation Guide

AT-RON-442 / AT-RON-444

4K HDR Two / Four-Output HDMI Distribution Amplier

AT-RON-442 / AT-RON-444

The Atlona Rondo™ series are HDMI distribution ampliers for high dynamic range (HDR)

formats. They are HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma

sampling, as well as HDMI data rates up to 18 Gbps. The Rondo series are ideal for applications

requiring the latest as well as emerging 4K/UHD and HDR sources and displays. They are

compatible with all video resolutions, audio formats, and color space formats supported in the

HDMI 2.0a specication, plus the ability to pass metadata for HDR content. The Rondo Series

HDMI distribution ampliers include EDID management features, front panel LED indicators

for power and signal status, and the capability to cascade several units without compromising

performance.

Package Contents

AT-RON-442

1 x AT-RON-442

1 x 5V DC power supply

1 x Phoenix terminal block, 2-pin

2 x Rack ears

4 x Rubber feet

4 x Screws

1 x Installation guide

AT-RON-444

1 x AT-RON-444

1 x 5V DC power supply

1 x Phoenix terminal block, 2-pin

2 x Mounting plates

1 x Long rack ear

1 x Short rack ear

4 x Rubber feet

4 x Screws

1 x Installation guide

IMPORTANT: Visit http://www.atlona.com/product/AT-RON-442 and http://www.atlona.

com/product/AT-RON-444 for the latest rmware updates.

Installation Guide

AT-RON-442 / AT-RON-444

HDMI IN

1 2

HDMI OUT FW DC 5V

AT-RON-442

POWER

RONDO

SYNC

OUT 1

OUT 2

INT

EDID

LEARN

1 POWER

This LED indicator will glow solid blue

when the unit is powered.

2 SYNC

This LED indicator will glow solid blue

when an active source is detected on the

HDMI IN port.

3 OUT 1

This LED indicator will glow solid blue

when a display or other sink device is

connected to the port.HDMI OUT 1

4 OUT 2

This LED indicator will glow solid blue

when a display or other sink device is

connected to the port.HDMI OUT 2

5 LEARN

This LED indicator glows solid blue when

the unit is in LEARN mode.

6 INT

This LED indicator glows solid blue when

the unit is using the built-in EDID.

7 EDID button

Press this button to switch between INT

and LEARN modes.

8 HDMI IN

Connect an HDMI cable from this port to a

UHD/HD source.

9 HDMI OUT 1/2

Connect an HDMI cable from each of

these ports to a display or other sink

device.

10 FW

Connect a mini USB cable to this port to

update the rmware.

11 DC 5V

Connect the included 5V DC power

supply to this port.

Panel Descriptions

2 743 61 5

8910 11

AT-RON-442

Installation Guide

AT-RON-442 / AT-RON-444

RONDO

POWER SYNC

INT1 2 3 4

LEARN

EDID

T M

AT-RON-444

HDMI OUTHDMI IN

4321

DC 5V

1 POWER

This LED indicator will glow solid blue

when the unit is powered.

2 SYNC

This LED indicator will glow solid blue

when an active source is detected on the

HDMI IN port.

3 Output Indicators

These LED indicator will glow solid blue

when a display or other sink device is

connected to the ports.HDMI OUT

4 INT

This LED indicator glows solid blue when

the unit is using the built-in EDID.

5 LEARN

This LED indicator glows solid blue when

the unit is in “EDID learn” mode.

6 EDID button

Press this button to switch between

“internal” and “learn” modes.

7 HDMI IN

Connect an HDMI cable from this port to a

UHD/HD source.

8 HDMI OUT 1/2/3/4

Connect an HDMI cable from each of

these ports to a display or other sink

device.

9 FW

Connect a mini USB cable to this port to

update the rmware.

10 DC 5V

Connect the included 5V DC power

supply to this port.

25 63 41

78910

AT-RON-444

Product specificaties

Merk:	Atlona
Categorie:	Hifi systeem
Model:	AT-RON-444
Kleur van het product:	Zwart
Gewicht:	1390 g
Breedte:	219.5 mm
Diepte:	253.7 mm
Hoogte:	44 mm
Ondersteunde video-modi:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Certificering:	CE, FCC, Level VI, RoHS, cULus, RCM, CCC
HDCP:	Ja
Maximale videoresolutie:	4096 x 2160 Pixels
Ingangsspanning:	100 - 240 V
Kleurdiepte:	12 Bit
Aantal:	1
Temperatuur bij opslag:	-20 - 60 °C
Frequentie:	50 - 60 Hz
Hostinterface:	HDMI
Bandbreedte:	18 Gbit/s
Stroomverbruik (typisch):	6.75 W
Bedrijfstemperatuur (T-T):	0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V):	20 - 90 procent
Code geharmoniseerd systeem (HS):	85176990
Ondersteunende oplossingen:	4096×2160, 3840×2160, 2048×1080
Type converter:	Actieve video-omzetter
Output interface:	HDMI
Extended display identification data (EDID):	Ja
