Pagina 1/13

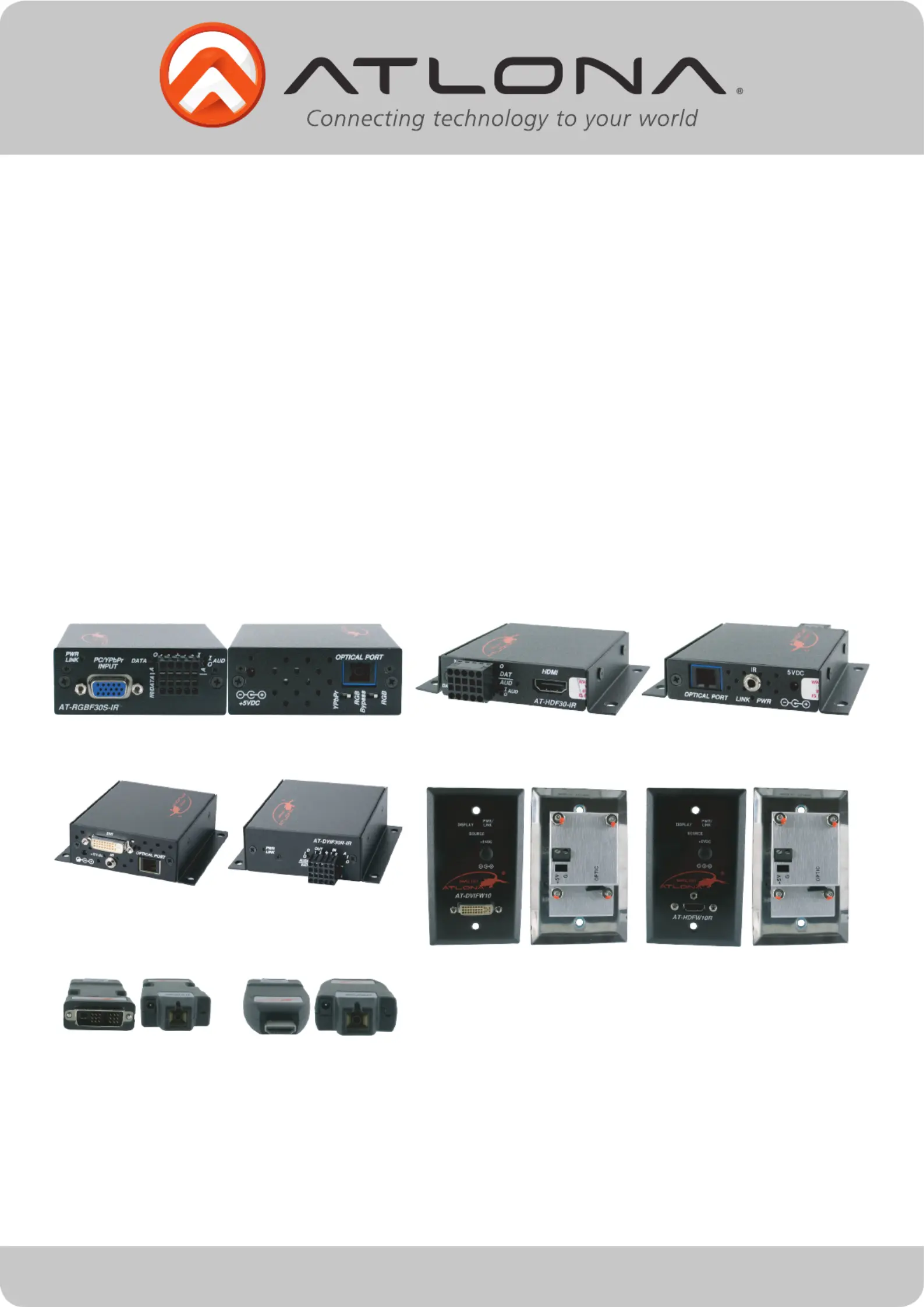

AT-RGBF30S-IR and AT-RGBF30R-IR AT-HDF30S-IR and AT-HDF30R-IR
AT-DVIF30S-IR and AT-DVIF30R-IR
AT-DVIF20S and
AT-DVIF20R
AT-HDF20S and
AT-HDF20R
AT-DVIFW10S and
AT-DVIFW10R
AT-HDFW10S and
AT-HDFW10R
1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Features .................................................. 4
4. Connection and Operation .................................................. 6
.................................................. 7
6. Troubleshooting .................................................. 8
7. Terminal Block Pin-Out .................................................. 9
8. Audio .................................................. 9
9. RGB-IR Pinouts .................................................. 10
10. Serial Data and IR Data Interface .................................................. 11
11. Atlona Product Registration .................................................. 11
12. Safety Information .................................................. 12
13. Warranty .................................................. 13
Table of Contents
INTRODUCTION
PACKAGE CONTENTS
are all very similar and many of them can work together. All the extenders featured in this manual can
which results an ability of extremely high resolutions, lossless video and audio transition, and error free
data.
All the extenders are capable of transmitting resolutions up to 1920x1200 or 1080p at the distance of
1300ft without any signal degradation. Some models below can also transmit bi-directional RS232, Bi-
directional Audio and IR Signal as well.
• AT-RGBF30S-IR – VGA or Component Video + bi-directional RS232 + Stereo Audio + IR Transmit-
ter Unit.
• AT-RGBF30R-IR - VGA or Component Video + bi-directional RS232 + Stereo Audio + IR Receiver
Unit.
• AT-DVIF30S-IR - DVI + bi-directional RS232 + Stereo Audio + IR Transmitter Unit.
• AT-DVIF30R-IR - DVI + bi-directional RS232 + Stereo Audio + IR Receiver Unit.
• AT-DVIF20S – DVI Transmitter Unit
• AT-DVIF20R – DVI Receiver Unit
• AT-DVIFW10S – DVI Wall Plate Style Transmitter Unit
• AT-DVIFW10R – DVI Wall Plate Style Receiver Unit
• AT-HDF20S – HDMI Transmitter Unit
• AT-HDF20R – HDMI Receiver Unit
• AT-HDFW10S – HDMI Wall Plate Style Transmitter Unit
• AT-HDFW10R - HDMI Wall Plate Style Receiver Unit
• AT-HDF30S-IR - HDMI + bi-directional RS232 + Separate Stereo Audio + IR Transmitter Unit.
• AT-HDF30R-IR - HDMI + bi-directional RS232 + Separate Stereo Audio + IR Receiver Unit
Some models can work together, the groups are listed below:
(Models which support RS232/IR and Bi-Directional Audio can work together as well as mini modules
and Wall plate models can work together)
• AT-RGBF30S-IR AT-DVIF30R-IR or AT-HDF30R-IR
• AT-DVIF30S-IR AT-DVIF30R-IR or AT-HDF30R-IR
• AT-HDF30S-IR AT-HDF30R-IR or AT-DVIF30R-IR
• AT-DVIF20S AT-DVIF20R or AT-DVIFW10R or AT-HDF20R or AT-HDFW10R
• AT-DVIFW10S AT-DVIF20R or AT-DVIFW10R or AT-HDF20R or AT-HDFW10R
• AT-HDF20S AT-HDF20R or AT-HDFW10R or AT-DVIF20R or AT-DVIFW10R
• AT-HDFW10S AT-HDF20R or AT-HDFW10R or AT-DVIF20R or AT-DVIFW10R
Depends on the model purchased
• 1 x transmitter or receiver (depending on the model purchased)
• 1 x 5v Power supplies (Universal 110/240V) -- Wall plates are 12V
• 1 x Set of Wall Mounting Ears
• 4 x screws
• 1 x Instructions manual
Note: IR Cable will be includes with models which have IR support
3
