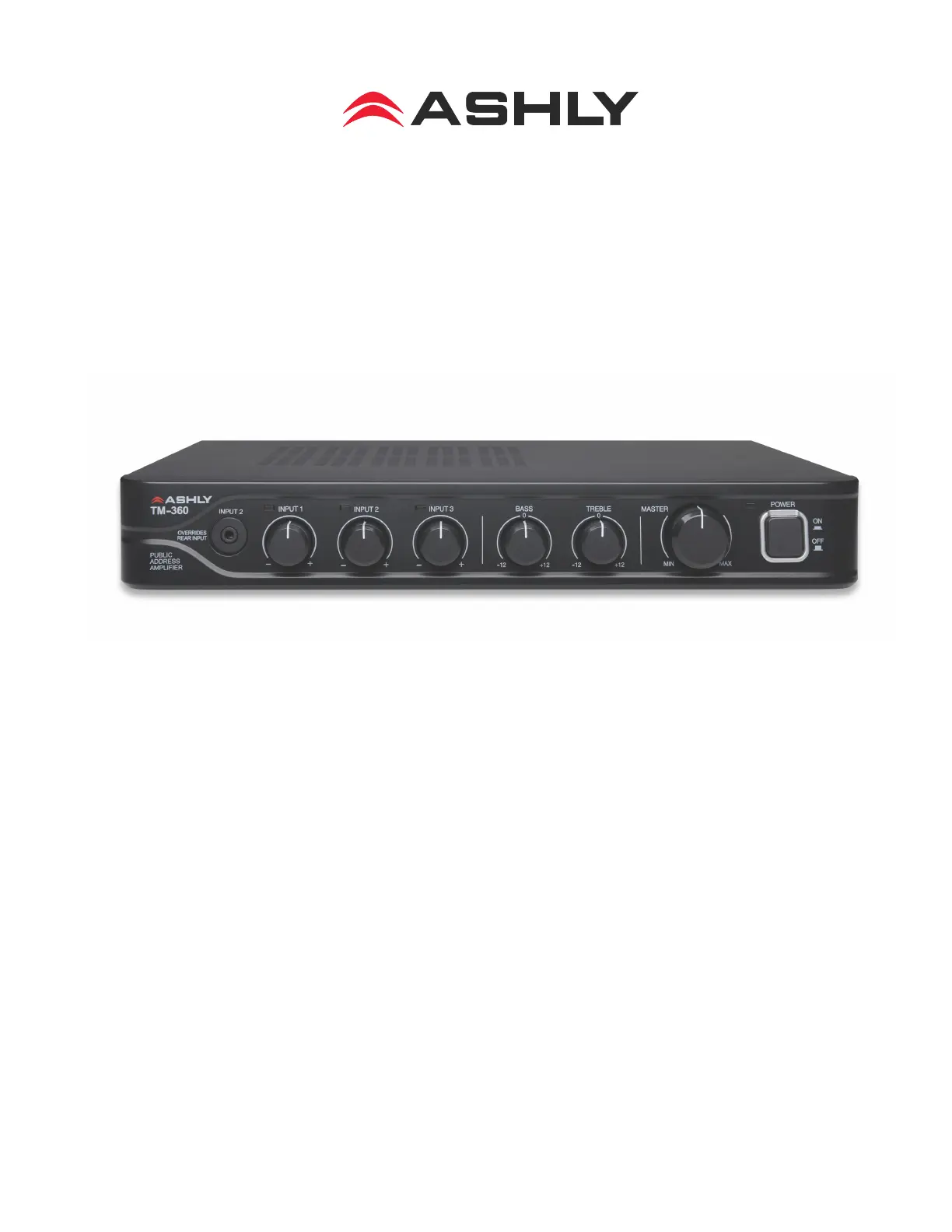

TM-360
Public Address Ampliîżer
Operating Manual
ASHLY AUDIO INC.
847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010
Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com
Operaîng Manual - TM-360 Public Address Ampliîźer
2
WARNING:
THIS APPARATUS MUST BE EARTHED
Important Safety Instructions
Consignes de sécurité à lire attentivement
The lightning îash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sufîżcient magnitude
to constitute a risk of electric shock to persons. The exclamation point
within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance instructions in the literature ac-
companying the device.
Le symbole de la îĂšche dans un triangle Ă©quilateral symbolisant la foudre
est prĂ©vu pour sensibiliser lâutilisateur Ă la prĂ©sence de tension de voltage
non isolĂ©e Ă lâintĂ©rieur de lâappareil. Elle pourrait constituer un danger de
risque de dĂ©charge Ă©lectrique pour les utilisateurs. Le point dâexclamation
dans le triangle Ă©quilatĂ©rale alerte lâutilisateur de la prĂ©sence de consignes
quâil doit dâabord consulter avant dâutiliser lâappareil.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. To reduce the risk of îre or electric shock, do not expose this apparatus to
rain or moisture.
6. Do not use this apparatus near water.
7. Clean only with dry cloth.
8. Do not block any ventilation openings. Install in accordance with the manu-
facturerâs instructions.
9. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus.
10. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not ît into your
outlet, consult an electrician for replacement of the obsolete outlet.
11. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
12. Only use attachments/accessories speciîed by the manufacturer.
13. Use only with the cart, stand, tripod, bracket, or table speciîed by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
14. Unplug this apparatus during lightning storms or when unused for long
periods of time.
15. Refer all servicing to qualiîed service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
1. Lisez ces instructions.
2. Conservez ces instructions.
3. Observez les avertissements.
4. Suivez ces instructions.
5. Pour réduire le risque de feu ou la décharge électrique, ne pas exposer cet
appareil pour pleuvoir ou l'humidité.
6. Ne pas utiliser lâappareil prĂšs de lâeau.
7. Le nettoyer Ă lâaide dâun tissus sec.
8. Ne pas bloquer les ouvertures de ventilation, installer selon les consignes du
fabricant.
9. Eloigner des sources de chaleur tel: radiateurs, fourneaux ou autres appareils
qui produisent de la chaleur.
10. Ne pas modiîer ou amputer le systĂšme de la mise Ă terre. Une prise avec
mise Ă terre comprend deux lames dont une plus large ainsi quâune mise Ă
terre: ne pas la couper ou la modiîer. Si la prise murale nâaccepte pas la îche,
consulter un Ă©lectricien pour quâil remplace la prise dĂ©suĂšte.
11. Protéger le cordon de secteur contre tous bris ou pincement qui pourraient
lâendommager, soit Ă la îche murale ou Ă lâappareil.
12. Nâemployer que les accessoires recommandĂ©s par le fabricant.
13. Nâutiliser quâavec les systĂšmes de îxation,chariots, trĂ©pied ou autres, ap-
prouvĂ©s par le fabricant ou vendus avec lâappareil.
14. DĂ©brancher lâappareil lors des orages Ă©lectriques ou si inutilisĂ© pendant une
longue période de temps.
15. Un entretient effectué par un centre de service accrédité est exigé si
lâappareil a Ă©tĂ© endommagĂ© de quelque façon: si il a Ă©tĂ© exposĂ© Ă la pluie,,
lâhumiditĂ© ou sâil ne fonctionne pas normalement ou quâil a Ă©tĂ© Ă©chappĂ©.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause undesired operation.
3
Operaîng Manual - TM-360 Public Address Ampliîźer
Table Of Contents
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Front Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Rear Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Typical Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Speaker Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Schematic Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Speciîżcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
îOverview
The Ashly TM-360 is a table-top mixer and 60W mono ampliîżer suitable for applications that require
background music with priority paging from a single microphone. Features include:
â Mic/line input with switchable phantom power, plus two additional line level inputs
â LED signal present indicators on input channels
â Mic/line input can have priority over line input 2, input 2 can have priority over line input 3
â 60 watt speaker output with 4 , 70V, and 25V tapsW
â 230V export version has 60 watt speaker output with 4 70V, and 100V tapsW,
â Second zone output with a 1W 8 output and a balanced 600 outputW W
â Independent 600 PRE outputW
â Euroblock connectors on all inputs and outputs
â Line inputs also use summed mono dual RCA jacks
â Rear panel DIP switch for zone 2 assignment, input priority, mute link status, low cut îżlter,
and phantom power
â
Automatic sleep mode after 25 minutes of inactivity
â
Master standby mode using contact closure.
â Limited îżve year warranty
â Safety/Compliance: cCSAus, CE, FCC, RoHS
