Arecont Vision MegaDome® 2 Installation Manual

0 | P a g e

Arecont Vision MegaDome® 2 Installation Manual

1 | P a g e

MegaDome® 2 Installation Manual

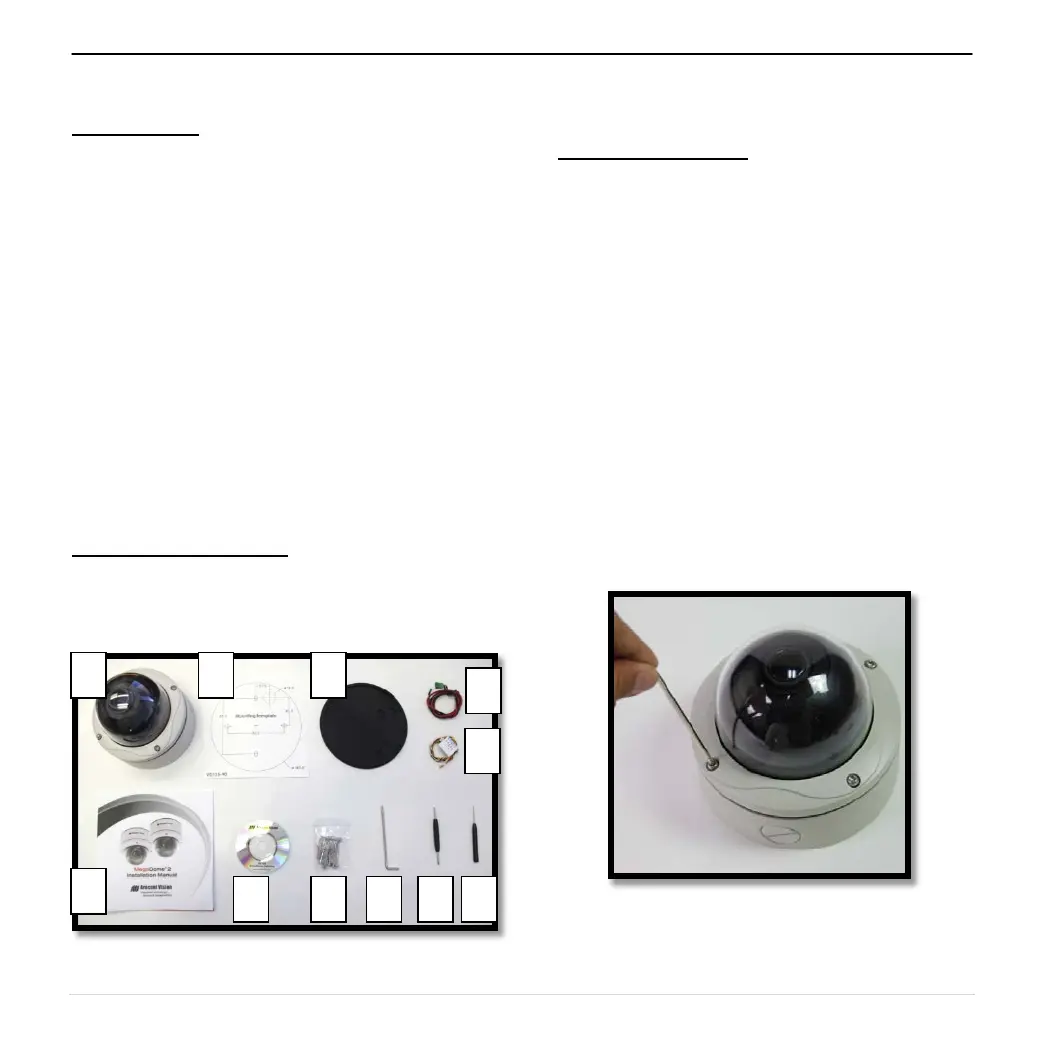

Inside the box:

A. Arecont Vision MegaDome® 2 camera

B. Mounting template

C. Rubber gasket (preinstall on bottom of

camera)

D. AC & DC p ower cable

E. I/O cable

F. m Installation anual

G. CD with AV100 oftware and s user

manuals (License Key Required for

Recording)

H. Pack of four (4) wood screws and four (4)

dry wall anchors

I. -K Security L ey

J. -One double sided hex key

K. -One single sided hex key

Not included but needed:

• #1 Phillips head screwdriver

• #2 Phillips head screwdriver

Image 1

Mounting the Camera:

1. Remove the camera and hardware from the

box.

2. Using the mounting template, prepare the

mounting surface for camera installation.

NOTE: the 19.5mm diameter hole on the

Mounting template is where the Ethernet

cable will be exiting the MegaDome®, align

accordingly. If using the side conduit hole,

please see step 4 . following

3. Using Security L key, loosen the four (4) -

screws securing the dome cover (Image 2).

Remove the vandal resistant dome cover.

NOTE: Do not remove the screws from the

dome cover.

2 Image

Arecont Vision MegaDome® 2 Installation Manual

2 | P a g e

4. If you are using the side conduit opening,

remove the conduit plug by first removing the

socket set screw using the provided double-

sided hex . key (Image 3)

Image 3

Note: Make sure that you install the rubber

gasket on the bottom of the camera to form a

weather tight seal with the mount surface.

5. Run the Ethernet cable through the gasket

and hole the on the bottom of the camera

( 4)Image or run cable through the side the

conduit and plug it into the RJ45 port. NOTE:

If the camera will be powered via PoE, please

skip to step 6.

6. If the camera will be powered by an AC or DC

power supply, run the supplied power cable

through the gasket and on the bottom the hole

of the camera or run the cable through the

side conduit and connect it to its respective

connector inside the camera (Image 3).

NOTE: Make sure that your installation of

wires complies with Electrical Code of the

local government where the camera is

installed and no bare wirethat s are exposed.

Image 4

7. Align the holes in the camera with the

prepared holes on the mounting surface.

Attach the camera to the mounting surface

with the wood screws or any optional

hardware suitable for the mounting surface.

8 . Apply silicon on the bottom of the camera to

form a weather tight seal with the mount

surface (if necessary).

HOLE

POWER

RJ- 45
