INSTALLATION
MANUAL
ALL-IN-ONE AIR SOURCE
WATER HEAT PUMP
WITH A 260L TANK
INSTALLATION
OPERATION
MAINTENANCE
WARRANTY
APHP-R290-260
Apricus | All-In-One Air Sourced Water Heat Pump

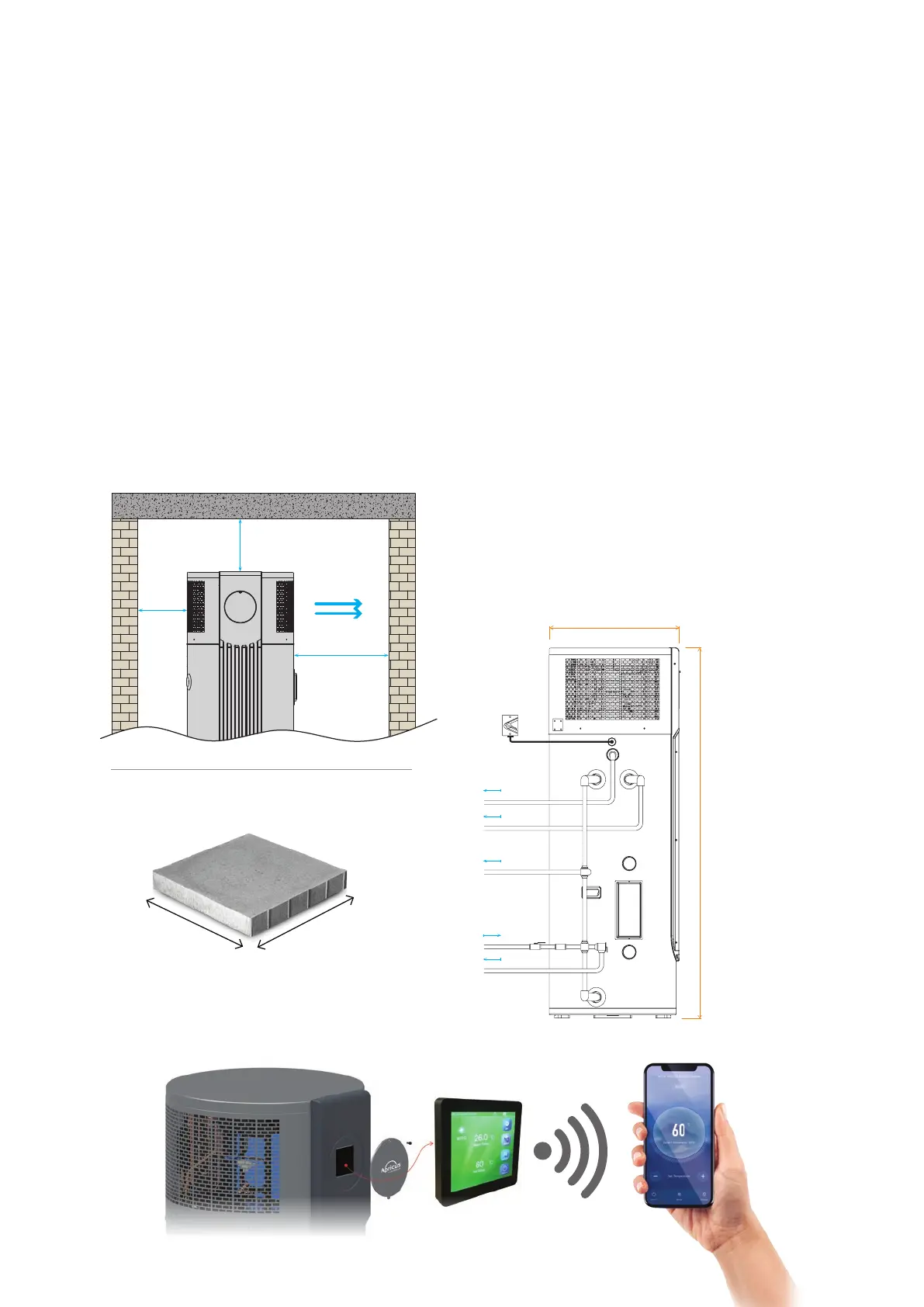

A Select installation location
a. This unit is designed for outdoor installation only.
b. Avoid installation in areas where falling debris, such as leaves, is
prevalent.
c. Avoid placing the system in locations with multiple walls or structures.
B Prepare the Base
a. The unit should be installed on a concrete plinth or stable structure
capable of sustaining weights in excess of 450kg.
b. A minimum dimension of 600mm x 600mm is required. Please ensure
that all four feet are supported by the base being used otherwise
warranties may be voided.
c. The system is to be installed level.
C Plumbing and wiring
This product MUST be wired on a dedicated circuit protected by a 20A
circuit breaker. The system supplied with a 3-pin plug but 20A isolator
switch hard wired to the system is highly recommended when electrician
is available on site.
D Air bleed
Ensure at least one hot water tap is open inside the property. While the
system begins filling with water, you will hear air being expelled from the
open hot water tap. This ensures that no air pockets remain. Once water
begins running out of the hot water tap, the system is completely bled and
you can then turn the tap off. Please bleed air out of PTRV as well.
E Turning the system on
a. Remove the controller cover by simply loosening hand screws.
b. Unlock the screen by pressing the POWER button once.
c. Press and hold the POWER button for 3 seconds until the SUN symbol
flashes.
d. Change the operational mode if required. The system has 4 operational
modes, and the default mode is “ECO”.
d. Connect the controller to wifi and mobile app on the end user app.
f. Return screen cover back onto unit after setting clock.
600mm
600mm
CONCRETE BASE
To Drain
1. Cold water supply outlet
(G3/4” f themale read)
2. Hot water outlet
(G3/4” f themale read)
3. Condensing drainage elbow*
4. P&T relief valve*
(G1/2” female)(850kPa)
5. mTe pering valve
(high performance
rec )ommended
6. Expansion Control Valve
(ECV) (if required by council
700kPa)
7. Pressure Valve (500kPa)
8. eNon-return/isolation valv
9. eEl ctrical Cabel
10. Electrical Access
11. Electrical Access
*supplied with the system
1
6
5
2
3
4
9
10 11
78
To Drain
To Drain
To House
Cold
Water
620mm
1810
Quick Installation & Commissioning Guide
FAN OUTLET
300mm
200mm
600mm
The back of the unit requires 50 mm spacing
Owners/Installation Manual | Apricus
APRICUS.COM.AU 1
Tabel of contents
1 Warnings & Certifications 2
2 Terminology 4
3 Product Specifications Overview 5
3.1 Key parts in the all-in-one heat pump 5 _____________________________________________
3.2 Air Source Heat Pump 6 __________________________________________________________
3.3 Storage tank 7 __________________________________________________________________
3.4 Smart Built-in Controller (Wi-Fi enabled) with power usage monitoring feature 8 ____________
4 How system works 9
5 Installation 11
5.1 Delivery ____________________________________________________________________ 11
5.2 Location, Spacing around the unit, and Air flow 12 _____________________________________
5.3 Base _______________________________________________________________________ 13
5.4 Plumbing ___________________________________________________________________ 14
5.5 Electric Wiring 18 _______________________________________________________________
5.5.1 Power Supply circuit 19 __________________________________________________________
5.5.2 Wiring diagram 20 ______________________________________________________________
6 Controller and operational modes 21
6.1 Operational modes and timer settings 21 ____________________________________________
6.2 Illustrations on how to use the controller 23 __________________________________________
6.3 Set Water Tank Temperature 24 ____________________________________________________
6.4 Menu interface 24 _______________________________________________________________
6.4.1 Timer/timing ________________________________________________________________ 24
6.4.2 Wi-fi _______________________________________________________________________ 25
6.4.3 Clock settings 26________________________________________________________________
6.4.4 Brightness settings 26 ___________________________________________________________
6.5 Query interface 26 _______________________________________________________________
6.6 Mobile App (Hot Water Hub) 28 ____________________________________________________
7 Commissioning 30
7.1 Plumbing and electrical 30 ________________________________________________________
7.2 Controller and operational mode set up 30 ___________________________________________
7.3 WI-fi and Mobile app Set up 31 _____________________________________________________
8 Error codes and troubleshooting 33
9 Maintenance 34
10 Warranty 34
10.1 Warranty periods 34 _____________________________________________________________
10.2 Heat pump warranty conditions 37 _________________________________________________
10.3 Warranty Registration – Lodge a claim 39 ____________________________________________
