Pagina 1/4
Turn left/right to change the level. To Mute, press and hold the
Rotary control knob. Press and hold the knob again to unmute.
To access the Trim Offset feature, press and hold the desired
‘Monitor’ (1, 2, 3 or 4) / ‘Input’ (Ch1,2,3,4,5,6,7 or 8) button. Then,
turn left/right the Rotary Control knob to trim (-6dB to +6dB in 1 dB
steps). Double-click to set to 0 dB.
6. Mono Dim, M/S & Sub
Pressing the Mono button sets the currently selected monitor
output to mono. This button corresponds to the last setting
selected in the Mono effects dropdown menu in the Satori software
control panel.
Press the Dim button to activate the -20dB attenuator. Press once
more to restore normal volume.
When Mono is activated you also have the option to select M/S.
Pressing the M/S button selects either the sum or the difference
between the left and the right channel. This supplies a stereo
effect, which allows you to monitor just the center or just the
periphery of the audio.
Pressing the Sub button activates the LFE output.
7. USB Connector
R4S uses USB connector, Type B.

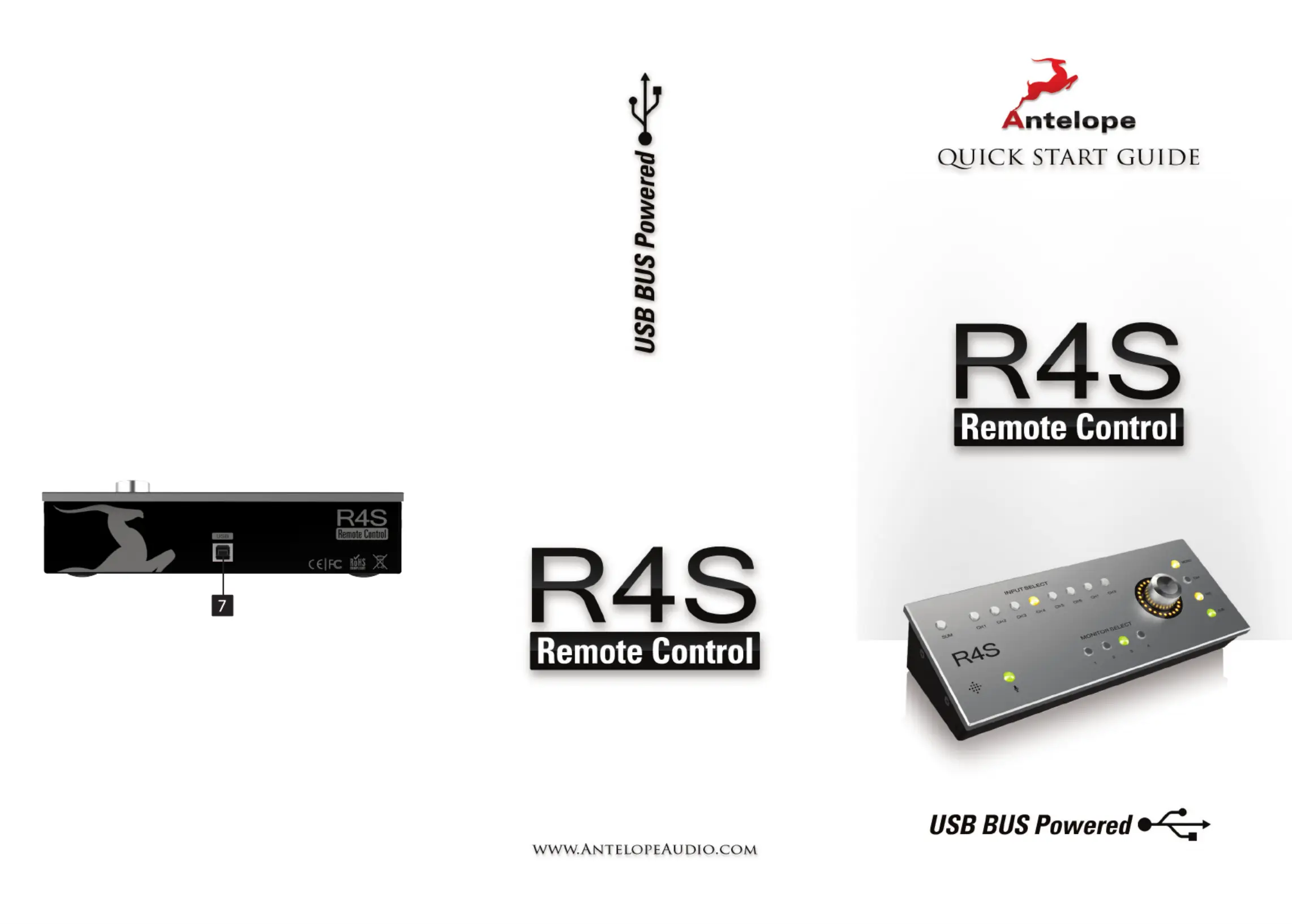

4. Rear Panel Explained
5. Technical Specications
USB: USB 2.0 Full-Speed interface
on USB Type B connector.
Operating Temperature: 0-50ºC, 32-122º F
Weight (unit): 0.71 kg, 1.57 lb
Dimensions (unit): 220 mm(W) x 55 mm(H) x 85 mm(D)
8.66’’(W) x 2.22 ‘’(H) x 3.31’’(D) v. July 2015
1. Safety Notes
To reduce the risk of electrical shocks, re, and related hazards:
●Do not remove screws, cover, or cabinet. There are no user
serviceable parts inside. Refer servicing to qualied service
personnel.
●Do not expose this device to rain, moisture or spillover of
liquid of any kind.
●Should any form of liquid or a foreign object enter the
device, do not use it. Unplug the USB Cable. Do not operate
the device again until the foreign object is removed or the
liquid has completely dried and its residues fully cleaned up.
If in doubt, please consult the manufacturer.
●Do not handle the device and USB cable with wet hands!
●Avoid placing things on the cabinet. Risk of falling or
actuating a button.
●If anything goes wrong, turn off the device by unplugging
the USB cable. Do not attempt to repair the device yourself:
consult authorized service personnel or your dealer.
●Do not install near any heat sources such as radiators,
stoves, or other apparatus (including ampliers) that
produce heat.
●Do not use harsh chemicals to clean your unit. Clean only
with specialized cleaners for electronics equipment.
●The device is designed to operate in a temperate
environment, with a correct Operating Temperature of:
0-50 °C, 32-122 °F
2. Installation Guide
It only takes a few moments to harness the benets of the Satori
Remote Control, R4S. Follow these simple steps to connect the R4S
to your system setup:
1. Ensure that you have downloaded and installed the
latest Satori software control panel from the Antelope
Audio website: http://antelopeaudio.com/en/support/
downloads
2. Install the latest rmware update for your Satori device
by clicking on the rmware update button on the ‘Options
Panel’ (of the software control panel).
3. Connect the USB cable between the rear panel of your
R4S device and the computer on which you are running the
Satori software control panel.
4. Turn on the Satori by pressing the power button on the front
panel of the unit or the power button on the software control
panel of the Satori.
Note: R4S is powered by the USB bus and does not require
a separate power supply when connected to a computer.

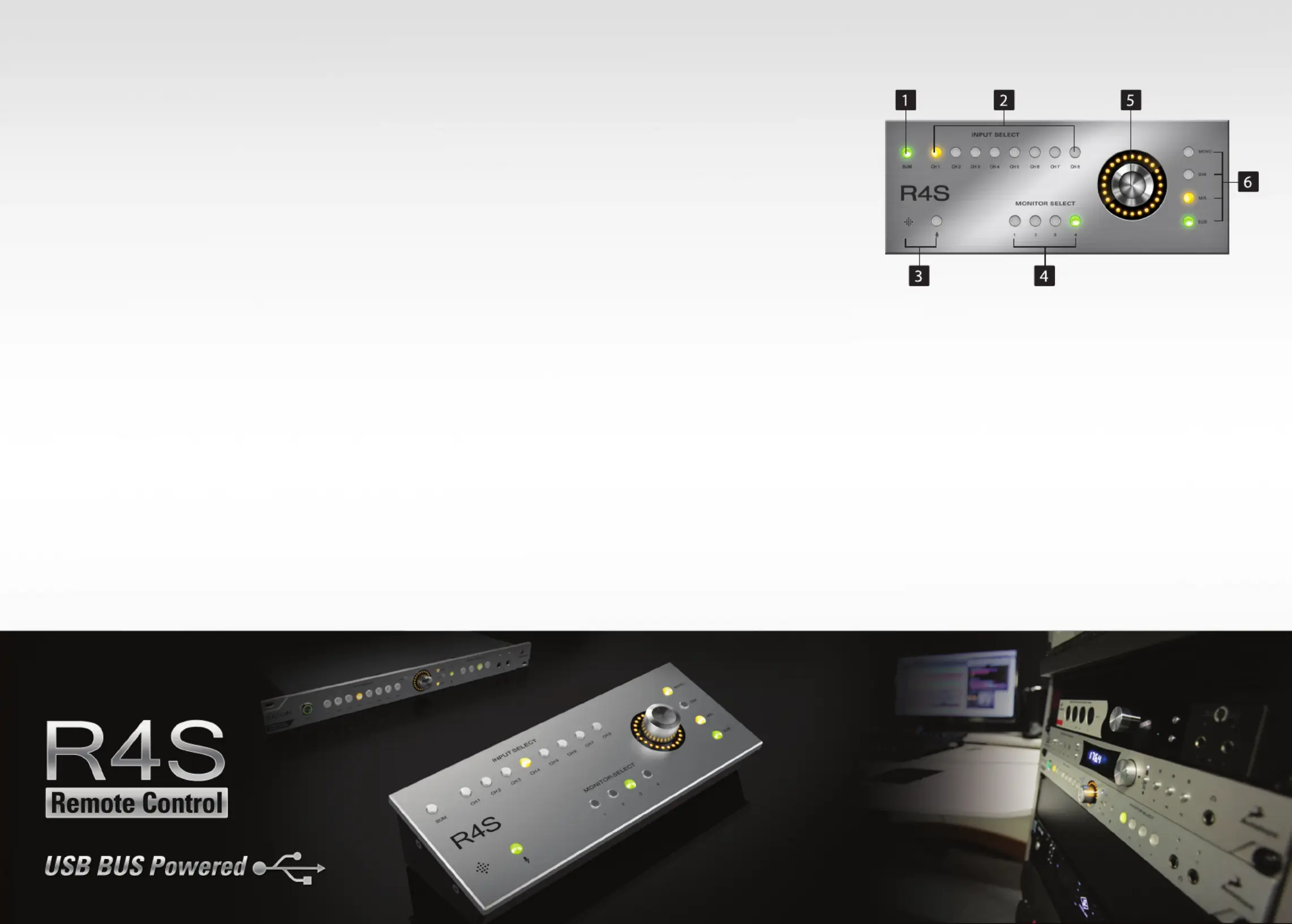

3. Front Panel Explained
1. SUM Select button
The Sum Select button allows you to send your stereo sum to your
selected monitor output.
2. Input Select buttons, channels 1-8
Input Select allows you to switch between your desired input
source, which will be fed to your selected monitor output.
3. Talkback button
Press the Talkback button to activate the talkback microphone.
This can be distributed to your selected headphones using the
software control panel.
4. Monitor Select buttons 1-4
These allow you to be able to select between the four monitor
outputs. Whatever source is selected will be fed to the selected
monitor out.
5. Rotary control
Large stepped relay attenuator for main monitor output.
