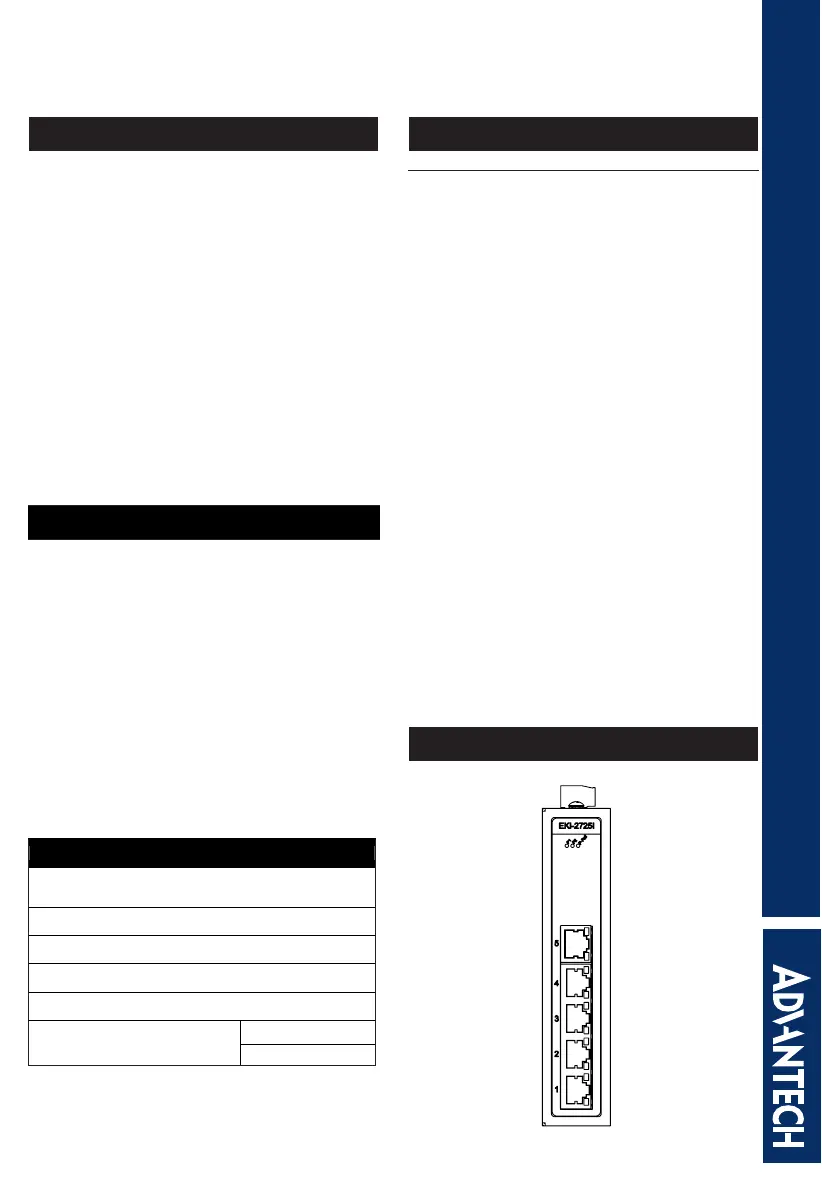

Pagina 1/2
Industrial Unmanaged Gigabit Ethernet Switch
Specifications
The EKI-2725 comes equipped with all the standard
unmanaged switch features of the EKI family.
Furthermore, it offers a +12~48 VDC redundant power
input design, and is secured with a double protection
mechanism; Power polarity Reverse Protect and an
Overload Current Fuse; The former is using for
protection against accidental reverse polarity and the
latter is using for protection against excessive currents
or current beyond the acceptable current rating of EKI-
2725. Each port of EKI-2725 has 2 LED’s to show the
link status transmission speed and collision status. It
also provides a relay output for an event alarm. In the
event of a power failure, the built-in LED will activate
the alarm to notify administrators. Engineers can
simply verify the hardware status by checking the
LED, which makes troubleshooting quick and easy.
Before installation, please make sure that you have
received the following:

1 x EKI-2725/I Industrial Ethernet Switch

2 x Wall Mounting Bracket and 8 x Screws M3x5L

1 x DIN- rail Bracket and 3 x Screws M3x5L

1 x EKI-2725/I Startup Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
1 Startup Manual
General

Compatibility: IEEE 802.3, 802.3u, 802.3x,
802.3ab
 -LAN: 4 x 10/100/1000Base T(X)

Transmission Distance:
-
Ethernet: Up to 100 m

Transmission Speed: Up to 1000 Mbps

Connectors:
5 - -x 10/100/1000Base T/TX RJ 45 ports

LED Indicators:
P1, P2, P-Fail
10/100/1000T (X): Link/Activity, Duplex/Collision

Switch Architecture: Store and Forward

Power Requirement: 12 ~ 48 VDC, redundant
dual power inputs with reverse polarity protection.

Power Consumption: 2 .5 Watts

Dimensions (W x H x D): 30 x 140 x 95 mm

Operating Temperature:
EKI-2725: 10 ~ 60°C (14 ~- 140°F)
EKI-2725I: -40 ~ 75°C ( -40 ~ 167°F)

Storage Temperature: - ~ (-40 85°C 40°F ~ 185°F)

Operating Humidity: 10 ~ 95% (non-condensing)

Storage Humidity: 10 ~ 95% (non-condensing)

Safety: UL62368

EMC: CE, FCC

Warranty: 5 years
Packing List
Overview
STARTUP
MANUAL
Overview
EKI-2725/I-CE
Notes
http://www.advantech.com/products
For technical support and ser
vice:
http://www.advantech.com/support/
This startup manual is for EKI-272 /I5
Part No: 200 272 25212nd Edition
Aug 2020
For more information on this and other Advantech
products, please visit our websites at:
Startup Manual 2

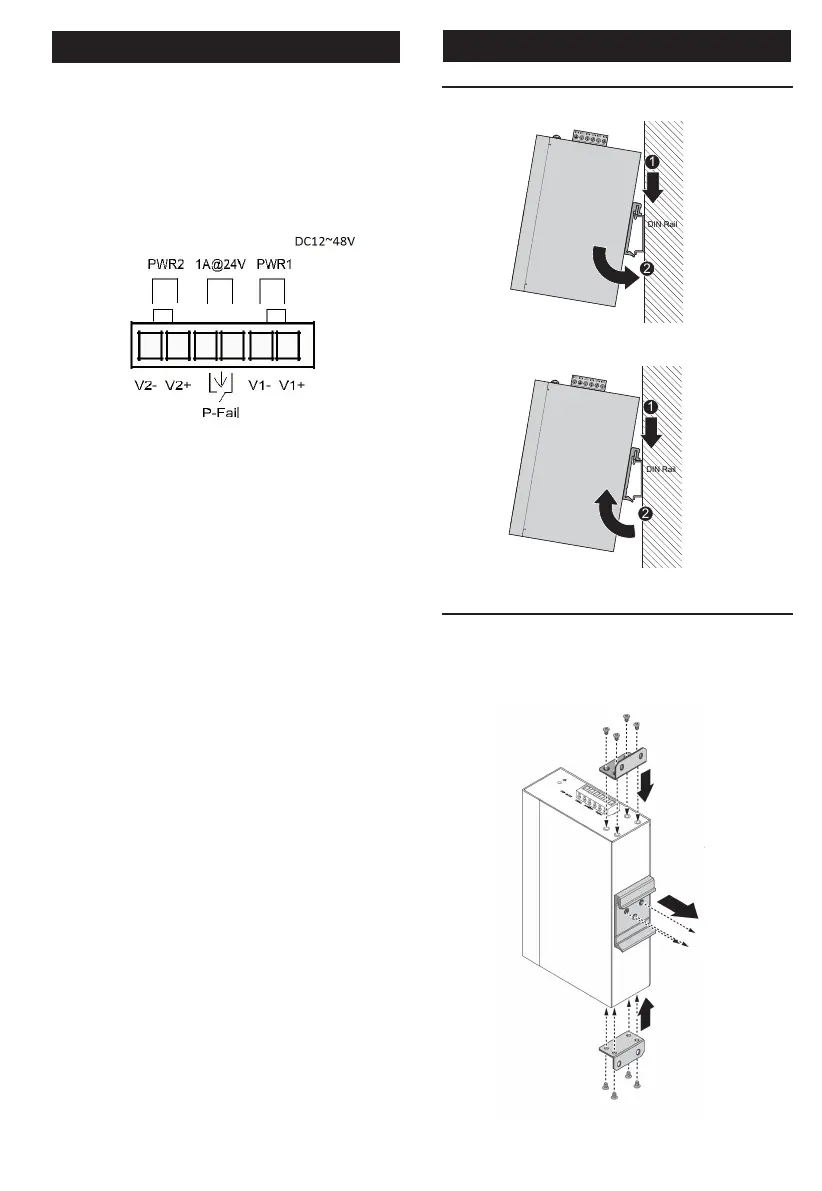

Mounting
DIN-rail Mounting
1. Installing the DIN-Rail Mounting Kit.
2. Removing the DIN-Rail.
Wall Mounting
1. Attach the brackets included to the switch with
screws.
2. With the brackets attached, hang the switch to nails
on the wall.
Power Connection
The EKI-2 series switch supports dual 725+12 ~ 48VDC
power inputs and changes relay status when power failure
power failure occurs.
1. Insert the positive and negative wires into the V+ and
V- contacts on the terminal block connector.
2. Tighten the wire-clamps screws to prevent the DC
wires coming loose.
Warning: This product is intended to be supplied by an
UL certified power supply or dc source suitable for use
at minimum Tma °C whose output meets SELV or 75
ES1 and is rated 12 48 Vdc, 1.5A min., if need further -
assistance, please contact Advantech for further
information.
Warning: Ensure that the voltage of the power source is
correct before connecting he equipment to a power outlet.t
The power outlet socket should have grounded connection.
Avertissement: Ce produit est destiné à être alimenté par
une alimentation certifiée UL ou une source de courant
continu adaptée à une utilisation à au moins Tma °C 75
dont la sortie satisfait les conditions SELV ou ES1 et est
évaluée à 12-48Vdc, 1.5A min-imum. Si vous avez besoin
d'une aide supplémentaire, veuillez contacter Advantech
pour plus d'informations.
Avertissement: Assurez-vous que la tension de la source
d'alimentation est correcte avant de connecter l'équipement
à une prise de courant. La prise de courant doit avoir une
prise de terre.
Warning: Never open the equipment. For safety reasons,
the equipment should be opened only by qualified skilled
person.
Avertissement: N'ouvrez jamais l'équipement. Pour des
Raisons de sécurité, l'équipement ne doit être ouvert que
par une personne qualifiée.
