Pagina 1/6
14+ This product is only for 14 years
old or above
WARNING:

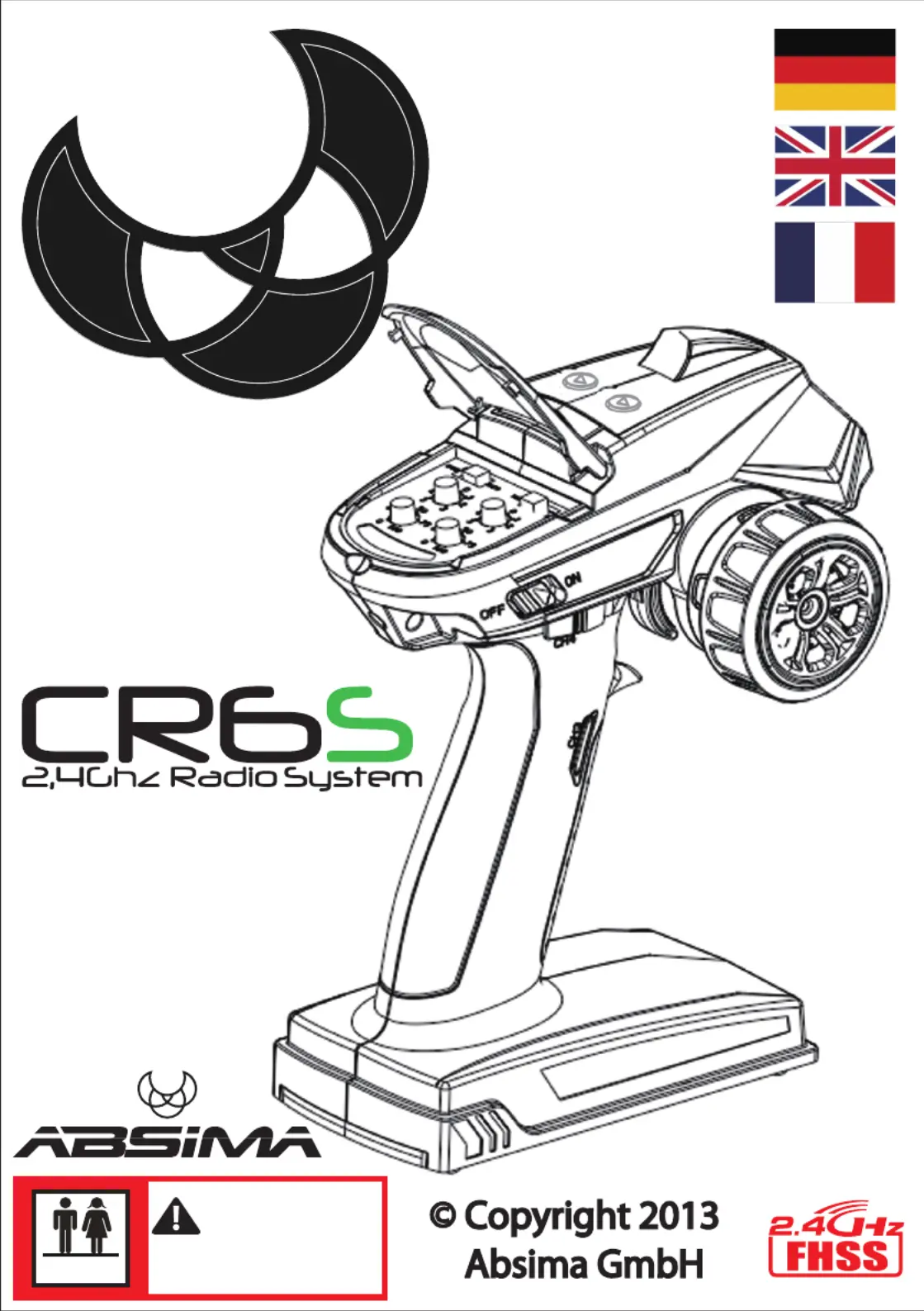

Introduction to your Absima CR6S 2.4 GHz remote control
Thank you for choosing a remote control from Absima.
You get an absolute high performance product with state-of-the-art functionality.
Please read the instruction manual carefully before using it for the ļ¬rst time. The basic safety and warning instructions
are an integral part of these instructions and form the basis for handling the product. In this way, you avoid damage
that may result from improper use. Keep the operating instructions (printed and/or in PDF format) handy and pass
them on to the buyer when the product is sold.
Safety instructions and warnings
Operation of remote-controlled models can result in damage to property and personal injury. Liability insurance is
compulsory in many EU countries. If you are not sure whether your liability insurance covers the operation of
remote-controlled models, please contact your insurance company. Unauthorized modiļ¬cations to your Absima
product are prohibited, as they are dangerous and may cause damage to the device or persons. Only use original
accessories and spare parts. Again the appeal! Please do not put the device into operation until you have carefully
read these operating instructions and the following safety instructions.
Remote-controlled models have a considerable hazard potential. The construction and installation of the RC system
as well as its operation require technical understanding, care and safety-conscious, responsible behaviour. Errors or
improper use can result in considerable damage and serious injuries. A model that is out of control for any reason
can cause serious damage to property or personal injury.Moving parts must be smooth-running.
Cables and connections must not be damaged.
This product is not suitable for children under the age of 14.
If you operate the device in conjunction with products from other manufacturers, check their quality and functionality.
Each new or changed constellation must be subjected to a careful function and range test before commissioning.
Do not operate the device or model if its functionality appears to be impaired. Absima assumes no responsibility
and/or liability for third party products.
Conļ¬gure a new model with the necessary care and peace of mind. Make sure that the drive of the model cannot start
unintentionally. Check all functions. Familiarize yourself fully with the operation of the transmitter before putting the
model into full operation.
Note that rapid temperature changes may cause condensation to form in the transmitter. In general, humidity can
affect the operation of the transmitter and other components of the remote control system. In the event of moisture
in electrical appliances, stop operation immediately, disconnect the power supply and allow the appliance to dry out
(up to a few days) when open. Then carry out a careful function test.
You must always have visual contact with your model. In fog, heavy rain, snowfall and at night you should refrain
from operating your model.
Never operate your model when you are tired or under the inļ¬‚uence of alcohol or medication.
Never leave the remote control in the blazing sun.
Intended use: the CR6S remote control system is intended exclusively for the remote control of models.
We reserve the right to change design, speciļ¬cations and usage requirements without notice.
Always observe the switch-on and switch-off sequence in order to avoid uncontrolled and dangerous starting of
the drive!
Switching on / Commissioning: 1. Switch on transmitter / 2. Connect drive battery / 3. Switch on model
Switch off / shut down: 1. Switch off model / 2. Disconnect drive battery / 3. Switch transmitter off
Please observe these points when operating your model:
ā€¢ Operate model only on suitable surfaces
ā€¢ It is essential to keep sufļ¬cient distance from other persons. Do not endanger other persons,
animals or objects. Operate your model only in private places or in places specially approved for this purpose.
ā€¢ Do not carry out any risky driving manoeuvres near persons.
ā€¢ Include your own skills and abilities - please do not overestimate yourself.
ā€¢ If there are signs of malfunctions or problems, please stop immediately and stop driving.
2.4GHz FHSS technology, 6 channels frequency-hopping spread spectrum, highly resistant to anti-jamming.
Receiver response time is 3ms, ensuring a fast response and better control.
Smooth and highly sensitive to control inputs and stable at distances 400-500m
Compatible with a variety of vehicles; suitalbe for RC cars, RC boats and RC tanks...etc.
With brake and fail safe out of control protection function.
Each 3 channels can be set respectively, supporting mixed control for 1 and 2 channels.
Voltage range of transmitter: 4.8V - 12V (support 1s-3s battery), automatic identiļ¬cation of voltage,
low voltage warning on 7.4V/4.8V
Voltage range of receiver: 3.3V-10V, working current 30mA, supports high voltage servo.
Unique throttle speed limit adjustment function, allows beginners to practive at a safe speed.
Channel 5 and 6 press for lock and press for release, function specially for Crawler accessories.
FEATURES:
CHANNEL FUNCTION:
CH1: Reverse for steering
CH1: Sub-trim for steering
CH1: EPA for steering
CH2: Reverse for throttle
CH2: Sub-trim for throttle
CH2: EPA for throttle
Channel 5 Channel 6
Antenna
Channel 1 (Steering)
Channel 2 (Throttle)
Channel 3
Battery case
Channel 4
Power
On / Off
Simulator/
PPM interface USB Connection
(only for up to 5V MAX.)
BASIC OPERATION:
Battery installation:
1. Open the battery compartment cover.
2. Insert 4 x ā€AAā€ batteries or 2S Li-Po batteries
with correct polarity. (No response if batterypolarity reversed)
3. Put back battery compartment cover
The battery socket is equipped with
anti-reverse insertion function,
wrong polarity connecton will not
damage the transmitter.
2S Li-Po rechargable battery pack
Binding process:
1. Power on Transmitter
2. Power on Receiver and press button on side of receiver,
LED indicator fast ī˜ashing means entering into
binding mode, the receiver will automatically
searching for the nearest transmitter signal for
Binding.
3 . The indicator will always ON after
successful bound.
Binding button
Rope
