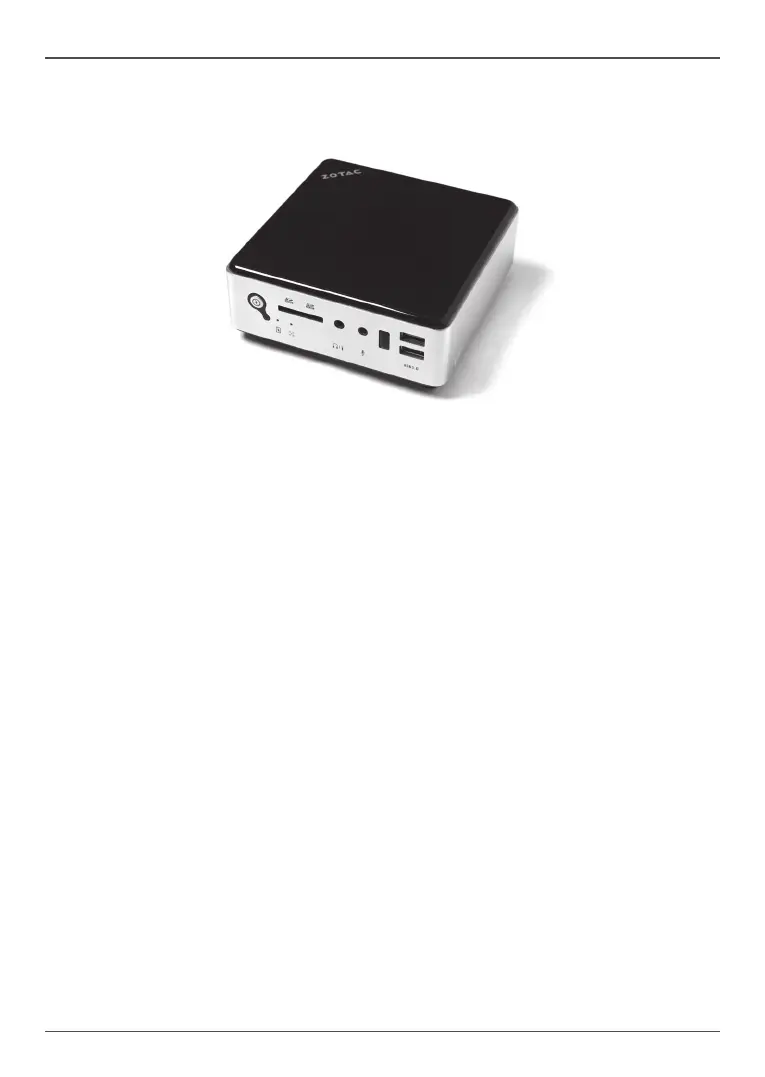

ZOTAC ZBOX nano

User’s Manual

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ZOTAC.

Products and corporate names mentioned in this manual may not be reg-

istered trademarks or copyrights of their respective companies, and are

used for identication purposes only. All trademarks are the property of their

respective owners.

Every effort has been made to ensure that the contents of this manual are cor-

rect and up to date. However, the manufacturer makes no guarantee regard-

ing the accuracy of its contents, and reserves the right to make changes

without prior notice.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries

should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

ZOTAC ZBOX nano

Table of Contents

Product specications -------------------------------------------------------------------------- 3

Safety information -------------------------------------------------------------------------------- 4

Setting up your system 4 -----------------------------------------------------------------------

Care during use 4 --------------------------------------------------------------------------------

Welcome --------------------------------------------------------------------------------------------- 5

Package contents 5 ------------------------------------------------------------------------------

Getting to know your ZOTAC ZBOX nano ------------------------------------------------ 6

Front view 6 ----------------------------------------------------------------------------------------

Rear view----------------------------------------------------------------------------------------- 7

How to disable the ring LED indicator ----------------------------------------------------- 8

Customizing the ZOTAC ZBOX nano ------------------------------------------------------- 9

Installing a memory module 10 -----------------------------------------------------------------

Installing a hard disk -------------------------------------------------------------------------- 11

Connecting a SPDIF cable 13 ------------------------------------------------------------------

Setting up the ZOTAC ZBOX nano ---------------------------------------------------------- 14

Positioning the ZOTAC ZBOX nano --------------------------------------------------------- 16

Mounting the ZOTAC ZBOX nano to an LCD monitor 16 --------------------------------

Installing drivers and software --------------------------------------------------------------- 18

Installing an operating system 18 --------------------------------------------------------------

Installing system drivers 18 ----------------------------------------------------------------------

Using your ZOTAC ZBOX nano --------------------------------------------------------------- 19

Conguring wireless connection ----------------------------------------------------------- 19

Conguring wired connection --------------------------------------------------------------- 19

Using a static IP 19 ----------------------------------------------------------------------------

Using a dynamic IP (PPPoE connection) 20 --------------------------------------------

Conguring audio output via an HDMI device ------------------------------------------ 20

ZOTAC ZBOX nano

Product specications

Processor

• Intel Core i3-5010U Processor (dual core, 2.1 GHz) for ZBOX-MI522NANO

series

• Intel Core i5-5200U Processor (dual core, 2.2 GHz, up to 2.7 GHz) for ZBOX-

MI542NANO series

Onboard graphics

• Intel HD Graphics 5500

• HDMI 1.4a (max resolution: 4096×2160 @24Hz)

• DP 1.2 (max resolution: 3840x2160 @60Hz)

Memory support

• 2 204-pin DDR3L-1600/1333 SO-DIMM slots

• Up to 16 GB of memory

USB ports

• 4 USB 3.0 ports & 1 USB 2.0 port

Storage support

• SATA 6.0 Gb/s transfer rates

• Supports one 2.5-inch SATA HDD/SSD (9.5mm max height)

Network support

• Dual Gigabit (10/100/1000Mbps) LAN

• IEEE 802.3 compatible

WiFi/BT support

• 802.11ac Wi-Fi (dual-band)

• Bluetooth 4.0

Audio

• Digital 8 Channel Audio (LPCM/bitstream via HDMI)

• SPDIF output

Operating System support

• Windows 7 32bit/64bit, Windows 8 32bit/64bit and Windows 8.1 32bit/64bit

Product Dimensions

• 127mm x 127mm x 45mm

Product specificaties

Merk:	ZOTAC
Categorie:	Desktop
Model:	ZBOX MI522 nano Plus
Kleur van het product:	Black, Blue
Breedte:	127 mm
Diepte:	127 mm
Hoogte:	45 mm
Breedte verpakking:	260 mm
Diepte verpakking:	210 mm
Hoogte verpakking:	100 mm
Bluetooth:	Ja
Frequentie van processor:	2.1 GHz
Processorfamilie:	Intel® Core™ i3
Processormodel:	i3-5010U
Aantal processorkernen:	2
Wi-Fi-standaarden:	Wi-Fi 5 (802.11ac)
Bluetooth-versie:	4.0
Inclusief besturingssysteem:	Nee
Ondersteuning voor plaatsing:	Horizontaal/Verticaal
Ethernet LAN:	Ja
Meegeleverde kabels:	AC
Geïntegreerde geheugenkaartlezer:	Ja
Compatibele geheugenkaarten:	SD, SDHC, SDXC
Processor lithografie:	14 nm
Inclusief AC-adapter:	Ja
Aantal USB 2.0-poorten:	1
Aantal HDMI-poorten:	1
Microfoon, line-in ingang:	Ja
DVI-poort:	Nee
Aantal Ethernet LAN (RJ-45)-poorten:	2
Hoofdtelefoonuitgangen:	1
Aansluiting voor netstroomadapter:	Ja
Intern geheugen:	4 GB
Opslagmedia:	HDD
Intern geheugentype:	DDR3L-SDRAM
HDMI versie:	1.4a
Aantal DisplayPorts:	1
Wifi-standaard:	Wi-Fi 5 (802.11ac)
Ethernet LAN, data-overdrachtsnelheden:	10,100,1000 Mbit/s
Bekabelingstechnologie:	10/100/1000Base-T(X)
Intel® Wireless Display (Intel® WiDi):	Ja
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A:	4
Processor socket:	BGA 1168
Stepping:	F0
Systeembus:	5 GT/s
Processor aantal threads:	4
PCI Express slots versie:	2.0
Processor operating modes:	32-bit, 64-bit
Processor cache:	3 MB
Tjunction:	105 °C
Bus type:	DMI2
PCI Express configuraties:	2x4, 4x1
Thermal Design Power (TDP):	15 W
Codenaam processor:	Broadwell
Maximaal aantal PCI Express-lijnen:	12
Processor cache type:	L3
ECC ondersteund door processor:	Nee
Processorfabrikant:	Intel
Configureerbare TDP-down:	10 W
Configureerbare TDP-downfrequentie:	0.6 GHz
Maximum intern geheugen:	16 GB
Totale opslagcapaciteit:	500 GB
Soort optische drive:	Nee
Ingebouwde grafische adapter:	Ja
Familie ingebouwde grafische adapter:	Intel® HD Graphics
On-board graphics adapter model:	Intel® HD Graphics 5500
Basisfrequentie ingebouwde grafische adapter:	300 MHz
Graphics on-board -adapter dynamische frequentie (max):	900 MHz
On-board grafische adapter ID:	0x1616
Maximaal geheugen ingebouwde grafische adapter:	16 GB
On-board grafische adapter DirectX-versie:	11.2
Ondersteunde instructie sets:	AVX 2.0, SSE4.1, SSE4.2
Intel® My WiFi Technology (Intel® MWT):	Nee
Intel® Smart Response Technology:	Ja
Intel® Hyper Threading Technology (Intel® HT Technology):	Ja
Intel® Turbo Boost Technology:	Nee
Intel® Quick Sync Video Technology:	Ja
Intel® InTru™ 3D Technology:	Ja
Intel® Clear Video HD Technology (Intel® CVT HD):	Ja
Intel® Insider™:	Ja
Intel® Flex Memory Access:	Ja
Intel® AES New Instructions (Intel® AES-NI):	Ja
Enhanced Intel SpeedStep Technology:	Ja
Execute Disable Bit:	Ja
Idle States:	Ja
Thermal Monitoring Technologies:	Ja
CPU configuratie (max):	1
Intel® Enhanced Halt State:	Ja
Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID):	Ja
Intel® VT-x with Extended Page Tables (EPT):	Ja
Ingebouwde opties beschikbaar:	Ja
Graphics & IMC lithografie:	14 nm
Intel® Small Business Advantage (Intel® SBA):	Ja
Intel® Secure Key:	Ja
Intel® 64:	Ja
Intel® OS Guard:	Ja
Intel® Virtualization Technology for Directed I/O (VT-d):	Ja
Intel® Clear Video-technologie:	Ja
Intel® Virtualization Technology (VT-x):	Ja
Verpakkingsgrootte processor:	40 x 24x 1.3 mm
Conflictvrije processor:	Ja
Intel® Identity Protection Technology (Intel® IPT):	Ja
Versie Intel® Identity Protection Technology:	1.00
Versie Intel® Secure Key Technology:	1.00
Versie Intel® Smart Response Technology:	1.00
ARK ID processor:	84697
Intel® Trusted Execution Technology:	Nee
Intel® TSX-NI:	Nee
Intel® Stable Image Platform Program (SIPP):	Nee
Versie Intel® Stable Image Platform Program (SIPP):	0.00
Versie Intel® TSX-NI:	0.00
Intel® Anti-Theft Technology (Intel® AT):	Nee
Toetsenbord inbegrepen:	Nee
Processorcode:	SR23Z
Inclusief muis:	Nee
Type behuizing:	mini PC
Maximaal intern geheugen ondersteund door processor:	16 GB
Geheugentypen ondersteund door processor:	DDR3L-SDRAM, LPDDR3-SDRAM
Klokgeheugen-snelheden ondersteund door processor:	1333,1600 MHz
Kloksnelheid geheugen:	1600 MHz
Geheugenlayout:	- GB
Geheugenslots:	2x SO-DIMM
Aantal displays ondersteund (door on-board grafische adapter):	3
Aantal geïnstalleerde processoren:	1
Geheugenbandbreedte ondersteund door de processor ( max):	25.6 GB/s
Aantal storage drives geïnstalleerd:	1
Inclusief monitor:	Nee
HDD interface:	SATA
FSB Parity:	Nee
Front-side bus processor:	- MHz
Intel® Demand Based Switching:	Nee
Aantal 2.5" bays:	1
Meegeleverde drivers:	Ja
Processorserie:	Intel Core i3-5000 Mobile series
S/PDIF-uitgang:	Ja
Intel® Dual Display Capable Technology:	Nee
Intel® FDI Technology:	Ja
Intel® Rapid Storage Technology:	Nee
Intel® Fast Memory Access:	Ja
Intel® Small Business Advantage (SBA)-versie:	1.00
Geheugen kanaal:	Dubbelkanaals
HDD omvang:	2.5 "
Videokaart, ondersteuning Open GL:	Ja
Intel® Virtualization Technology (Intel® VT):	VT-x
Volume:	1 l
Wifi:	Ja
Type product:	Mini PC
Waterkoelingsysteem:	Nee
Processorgeneratie:	Vijfde generatie Intel® Core™ i3
