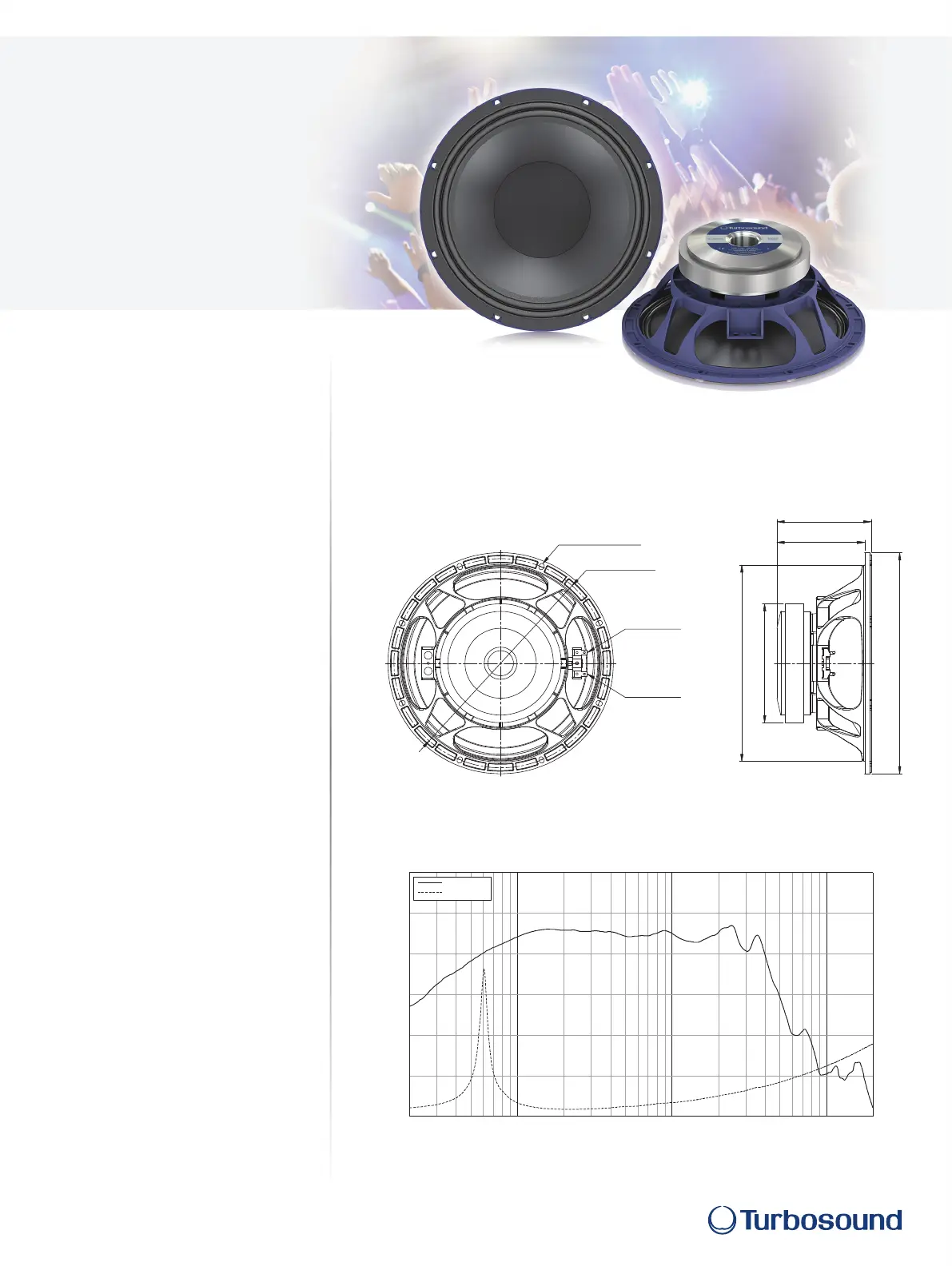

Specication Sheet

350 Watt 12" Low Frequency Loudspeaker

for PA Applications

TS-12W350/8A

Features

 12" high-power woofer for

PA applications

 Continuous power: 350 Watts RMS

 Maximum power: 1,400 Watts

 Impedance: 8 Ohms

 Frequency Range: 61 Hz - 3 kHz

 SPL: 95 dB (1 W / 1 m)

 Rigid aluminum die-cast frame

 Inverted dust cap

 Mounting hole diameter:

299 mm (11.77")

 Shipment Weight: 7.6 kg (16.7 lbs)

and Net Weight: 6.1 kg (13.4 lbs)

 Overall Diameter: 316 mm (12.44")

 3-Year Warranty Program*

 Designed and engineered

in England

*Warranty details can be found at musictribe.com.

Dimensional Diagrams

8 - 6.8 x 9.0±0.2 123.0±1.5

132.3±1.5

6.3 x 0.8 (+)

6.3 x 0.8 (-)

ø299.0±0.3

ø281.0±1.0

ø316.0±1.0

ø170.0

Frequency Charts

20 100 1k 10k 20k

100

110

100

120

Frequency (Hz)

Sound Pressure Level (dB)

Impedance (ohm)

SPL

Impedance

General Specication

Loudspeaker diameter 316 mm / 12"

Impedance 8 Ω

Continuous power rating1 350 W

Peak power rating2 1400 W

Sensitivity 95 dB (±2.5 dB, 1 W / 1 m)

Frequency range Fo ~3 kHz (-10 dB)

Magnet size 170 mm

Voice coil diameter 75.5 mm / 3"

Bobbin material Glass ber SV

Wire type PISV wire

Winding height 17.4 mm

Layers 2

Cone body Paper

Cone surround Cloth

Item part number H77-00002-31672

Notes to Specication

1 Pink noise with 6 dB crest f actor for 2 hours

2 Peak power is dened as continuous power +6 dB

Thiele & Small Parameters

Resonance frequency (Fs) 61 Hz

DC resistance (Re) 5.5 Ω

Mechanical Q factor (Qms) 7.54

Electrical Q factor (Qes) 0.40

Total Q factor (Qts) 0.38

Mechanical moving mass (Mms) 61.09 g

Mechanical compliance (Cms) 0.11 mm/N

Force factor (Bl) 18.01

Equivalent acoustic volume (Vas) 20.68

Maximum linear displacement (Xmax) 3.8 mm

Diaphragm area (Sd) 551.55 sq cm

Voice coil inductance @ 1 kHz (Le) 1.6 mH

Shipping Information

Net weight 6.1 kg / 13.4 lbs

Shipping weight 7.6 kg / 16.7 lbs

Specication Sheet

350 Watt 12" Low Frequency Loudspeaker

for PA Applications

TS-12W350/8A

Music Tribe accepts no liability for any loss which may be suered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specications, appearances and other information are subject to

change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Auratone and Coolaudio are trademarks or registered trademarks of

Application

This loudspeaker is exclusively meant for the reproduction of audio

signals according to instructions and specications given in this

manual. We‘re not liable for any damage caused by unintended use.
