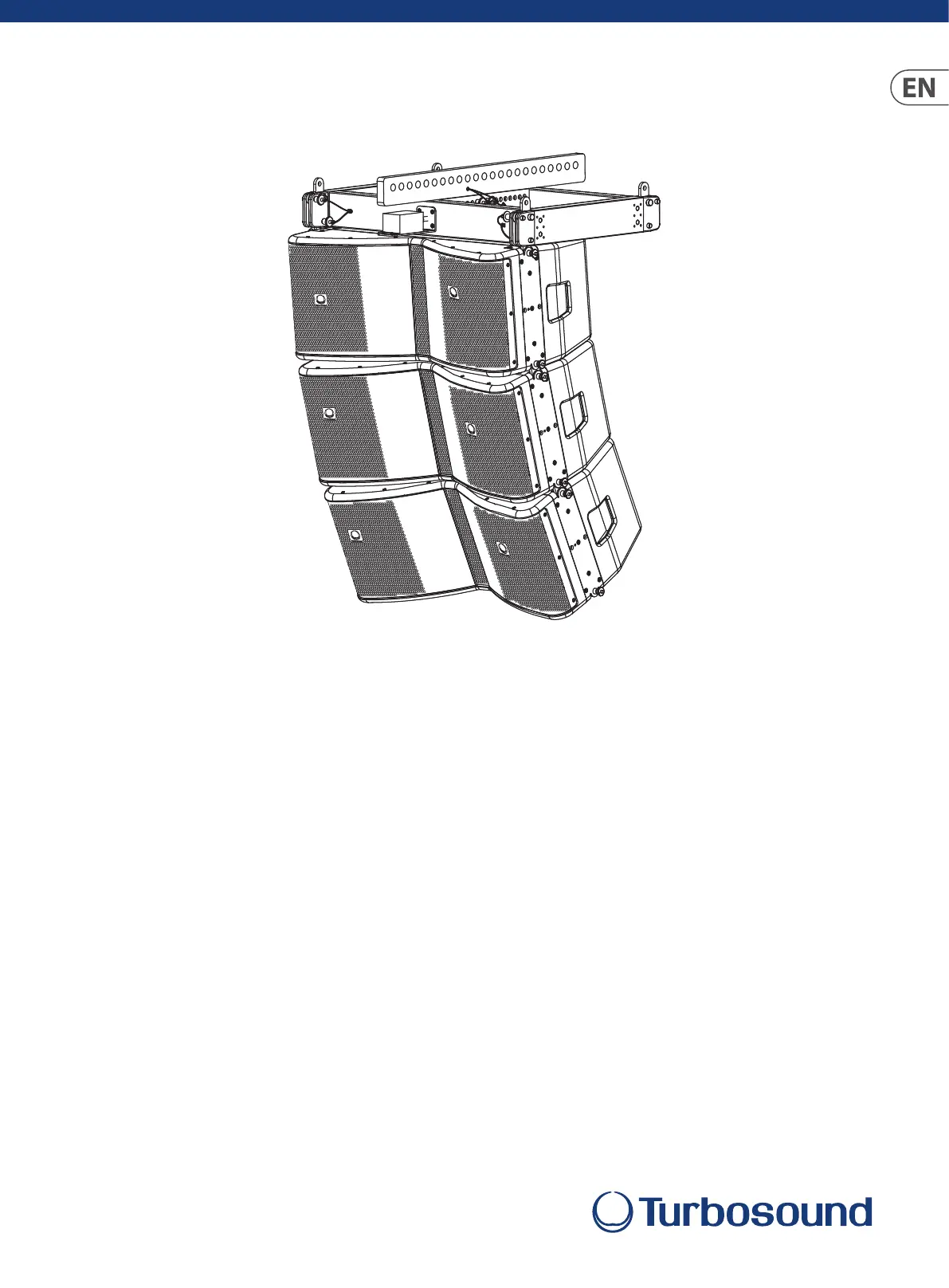

Pagina 1/54
V 2.0
Rigging Manual
 ! WARNING!
This rigging manual contains important safety information, and it must be kept in a safe place for future reference. It must be supplied with the equipment
during the original sale, rental, or re-sale, and all operators and users of the equipment must be made aware that this manual is available. Please visit our website
turbosound.com regularly and check for any updates to this manual.
MANCHESTER SERIES
MV212-XV and MV212
Dual 12" Full Size Line Array Element and Variable Curvature Line Array Element for
Touring and Install Applications
MV212-VT
Vertical Transporter for 4 MANCHESTER MV212 Line Array Elements
MS215
Dual 15" Vented Bandpass Subwoofer for Touring and Installation Applications
MS215-VT
Vertical Transporter for MANCHESTER MS215 Subwoofers
MAN-FG
Universal Fly Grid for MANCHESTER MV Line Array Elements and MS215 Subwoofers
2MANCHESTER SERIES Rigging Manual
Table of Contents
Important Safety Instructions ...................................... 3
Chapter 1: Safety Information ...................................... 4
Chapter 2: Introduction ................................................. 6
Chapter 3: Assembling an MV212
Array on a MAN-FG Fly Grid 28 ......................
Chapter 4: Assembling MS215
Subwoofers on a MAN-FG Fly Grid ........... 32
Chapter 5: Assembling an MV212
Array with a MS215 Subwoofer ................ 35
Chapter 6: Groundstack of two
MS215 Subwoofers .................................... 39
Chapter 7: Groundstack MS215
Subwoofer and MV212 Array .................... 42
Chapter 8: MV212-VT and MS215-VT
Vertical Transporters ................................. 46
Chapter 9: Safety Inspection .......................................49
Chapter 10: Enclosure quantities and
combinations for MAN-FG
y grid suspension at 10:1, 7:1, and
5:1 design factors .....................................50
3MANCHESTER SERIES Rigging Manual
Terminals marked with this symbol carry
electrical current of sucient magnitude
to constitute risk of electric shock.
Use only high-quality professional speaker cables with
¼" TS or twist-locking plugs pre-installed. Allother
installation or modication should be performed only
by qualiedpersonnel.
This symbol, wherever it appears,
alertsyou to the presence of uninsulated
dangerous voltage inside the
enclosure-voltage that may be sucient to constitute a
risk ofshock.
This symbol, wherever it appears,
alertsyou to important operating and
maintenance instructions in the
accompanying literature. Please read the manual.
Caution
To reduce the risk of electric shock, donot
remove the top cover (or the rear section).
No user serviceable parts inside. Refer servicing to
qualied personnel.
Caution
To reduce the risk of re or electric shock,
do not expose this appliance to rain and
moisture. The apparatus shall not be exposed to dripping
or splashing liquids and no objects lled with liquids,
suchas vases, shall be placed on the apparatus.
Caution
These service instructions are for use
by qualied service personnel only.
Toreduce the risk of electric shock do not perform any
servicing other than that contained in the operation
instructions. Repairs have to be performed by qualied
servicepersonnel.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. Ifthe
provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Use only attachments/accessories specied by
themanufacturer.
12. Use only with the
cart, stand, tripod, bracket,
or table specied by the
manufacturer, orsold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has
beendropped.
15. The apparatus shall be connected to a MAINS socket
outlet with a protective earthing connection.
16. Where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device shall
remain readily operable.
17. Correct disposal of this
product: This symbol indicates
that this product must not be
disposed of with household
waste, according to the WEEE
Directive (2012/19/EU) and
your national law. This product
should be taken to a collection center licensed for the
recycling of waste electrical and electronic equipment
(EEE). The mishandling of this type of waste could have
a possible negative impact on the environment and
human health due to potentially hazardous substances
that are generally associated with EEE. At the same time,
your cooperation in the correct disposal of this product
will contribute to the ecient use of natural resources.
For more information about where you can take your
waste equipment for recycling, please contact your local
city oce, or your household waste collection service.
18. Do not install in a conned space, such as a book
case or similar unit.
19. Do not place naked ame sources, such as lighted
candles, on the apparatus.
20. Please keep the environmental aspects of battery
disposal in mind. Batteries must be disposed-of at a
battery collection point.
21.
This apparatus may be used in tropical and moderate
climates up to 45°C.
Music Tribe accepts no liability for any loss which may
be suered by any person who relies either wholly or in
part upon any description, photograph, or statement
contained herein. Technical specications, appearances
and other information are subject to change without
notice. All trademarks are the property of their
respective owners. Midas, Klark Teknik, Lab Gruppen,
Lake, Tannoy, Turbosound, TC Electronic, TC Helicon,
Behringer, Bugera, Aston Microphones and Coolaudio
are trademarks or registered trademarks of Music
Tribe Global Brands Ltd. © Music Tribe Global Brands
Ltd. 2021 All rights reserved.
For the applicable warranty terms and conditions
and additional information regarding Music Tribe’s
Limited Warranty, please see complete details online at
musictribe.com/warranty.
Important Safety
Instructions
LEGAL DISCLAIMER
LIMITED WARRANTY

Product specificaties

Merk: Turbosound
Categorie: Speaker
