Pagina 1/18

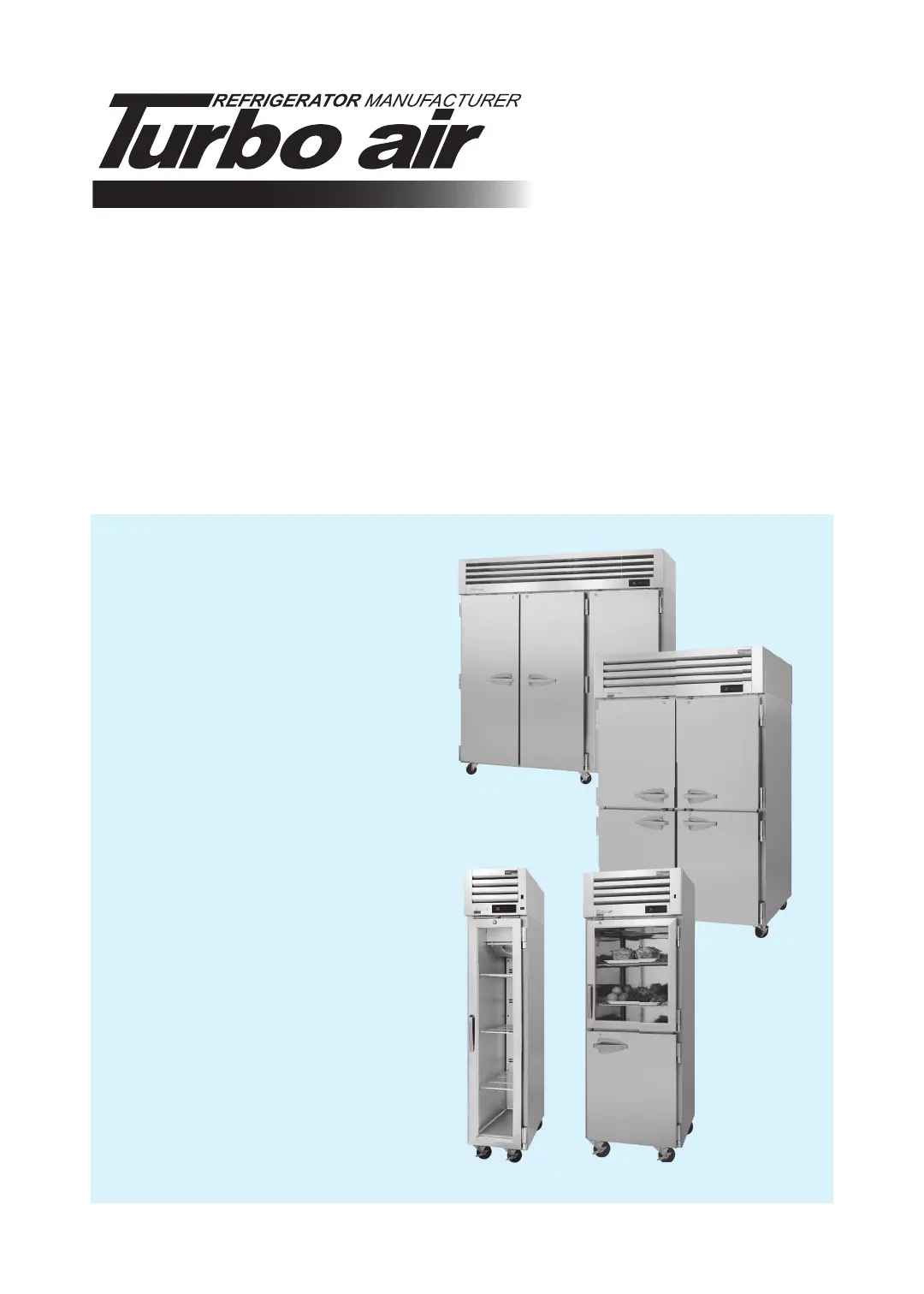

Turbo Air Speeds up the Pace of Innovation
Premiere Pro Series
Refrigerators & Freezers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
SOLID DOOR
REFRIGERATORS
PRO-26R PRO-26-2R
PRO-50R PRO-50-4R
PRO-77R PRO-77-6R
www.turboairinc.com
Full Stainless Steel Interior and Exterior
SOLID DOOR FREEZERS
PRO-26F PRO-26-2F
PRO-50F PRO-50-4F
PRO-77F PRO-77-6F
PASS THRU REFRIGERATORS
PRO-26R-PT PRO-26-2R-PT
PRO-50R-PT PRO-50-4R-PT
PRO-26R-GSH-PT
PRO-50R-GSH-PT
GLASS & SOLID HALF DOOR
REFRIGERATORS
PRO-26R-GSH
PRO-50R-GSH
PRO-77R-GSH
2
CONTENTS
SPECIFICATIONS
1. SPECIFICATIONS
..........................................................................................
2
2. SERIAL NUMBER ........................................................................................3
3. INSTALLATION............................................................................................ 3
4. CLEANING & CAUTION
...................................................................................................
4
5. BASIC OPERATION
5-1. REFRIGERATORS........................................................................... 5~8
5-2. FREEZERS..................................................................................... 9~12
6. TROUBLESHOOTING
7. STAINLESS STEEL EQUIPMENT CARE AND CLEANING .................14~15
...........................................................
13
8. WARRANTY.........................................................................................
16~18
PAGE
Refrigerators
MODEL COM H.P. V/Hz REFRIGERANT AMPS WEIGHT
PRO-50R 1/2 115V/60Hz R-134A 9.1A 485lbs
PRO-26R 1/3 115V/60Hz R-134A 5.2A 315lbs
PRO-77R
PRO-50-4R
PRO-26-2R
PRO-26R-GSH
PRO-50F
PRO-26F
PRO-77F
PRO-50-4F
PRO-26-2F
PRO-77-6F
1 115V/60Hz R-134A 11.3A 697lbs
1/3 115V/60Hz R-134A 5.2A 315lbs
1/3 115V/60Hz R-134A 5.2A 355lbs
1/2 115V/60Hz R-134A 9.1A 485lbs
1/2 115V/60Hz R-134A 9.1A 565lbs
1/3 115V/60Hz R-134A 5.2A 355lbs
1/2 115V/60Hz R-134A 9.1A 565lbs
1/3 115V/60Hz R-134A 5.2A 360lbs
1/2 115V/60Hz R-134A 9.1A 560lbs
PRO-77-6R 1 115V/60Hz R-134A 11.3A 697lbs
1/3 115V/60Hz R-134A 5.2A 320lbs
PRO-50R-GSH
1/2 115V/60Hz R-134A 9.1A 495lbs
PRO-77R-GSH
1 115V/60Hz R-134A 11.3A 708lbs
PRO-26R-PT
PRO-50R-PT
PRO-26R-2R-PT
PRO-50R-4R-PT
PRO-26R-GSH-PT
PRO-50R-GSH-PT
MODEL
COMP H.P. V/Hz REFRIGERANT AMPS WEIGHT
11/4 115V/60Hz R-404A 10.5A 485lbs
3/4 115V/60Hz R-404A 7.8A 315lbs
1 1/2
115V/208~230V/60Hz
R-404A 10.4A 697lbs
3/4 115V/60Hz R-404A 7.8A 331lbs
11/4 115V/60Hz R-404A 10.5A 496lbs
11/2
115V/208~230V/60Hz
R-404A 10.4A 728lbs
Freezers
3
INSTALLATION
1. GOOD AIR CIRCULATION
- Be sure to avoid any partition and object which may stop the air flow
- Be sure that air space is allowed to flow the rear of the unit. Turbo air recommends
that the rear of the unit would be no less than 5 inches from the wall
2. PLACE ON STRONG GROUND
- Be sure that the location be chosen has a strong enough floor to support the total
weight of the cabinet and any other contents
3. DO NOT PLACE NEAR HEAT
- Be sure to avoid hot corners and locations near stoves
- High ambient temperature will make much lower cooling efficiency
4. INDOOR USAGE ONLY
- Be sure to install this unit indoor
- So, It should prohibit getting wet from the rain
5. STABILIZING
- Make sure the unit is installed in a stable condition with the front wheels locked
while in use
6. LEVELING
- Be sure that the unit levels from the front to the back and side to side
7. UNIT SHOULD BE ON DEDICATED OUTLET
SERIAL NUMBER
The serial number is located on the data label inside.
Please retain the unitʼs serial number for service purpose.
