Pagina 1/16
Rev. 1.0
®
SUPER
The SC812/SC812L Chassis Series
Installation Guide
SC812/SC812L Chassis User's Guide
1-2
Table of Contents
Chapter I: Introduction ............................................................... 1-3
A. Front Panel Connectors ............................................................................ 1-3
B. Front Panel LED Indicators ....................................................................... 1-3
C. Front Panel LED Descriptions .................................................................. 1-3
D. Back Panel Connectors ............................................................................. 1-4
E. An Important Note to the User ................................................................. 1-4
Chapter 2: Installation Procedures........................................... 2-1
Section 1: Installing components into the Chassis .................... 2-1
A. Removing the Top Cover from the SC812/SC812L Chassis .............. 2-1
B-1. Removing and Installing the Disk Drive ............................................... 2-2
B-2. Removing and Installing the Hard Drive Disks ................................... 2-3
C-1. Rail Installation ....................................................................................... 2-4
C-2. Installing Chassis Rails ......................................................................... 2-5
D-1. Rack Installation for the Traditional 1U Design ................................. 2-7
D-2. Rack Installation for the Open-Rack Design ...................................... 2-9
Section 2: SCSI (Super) GEM Driver Installation Instructions for the
Windows OS ...................................................................................... 2-12
User's Guide Revision: Revision 1.0
Release Date: July 28, 2006
1-3

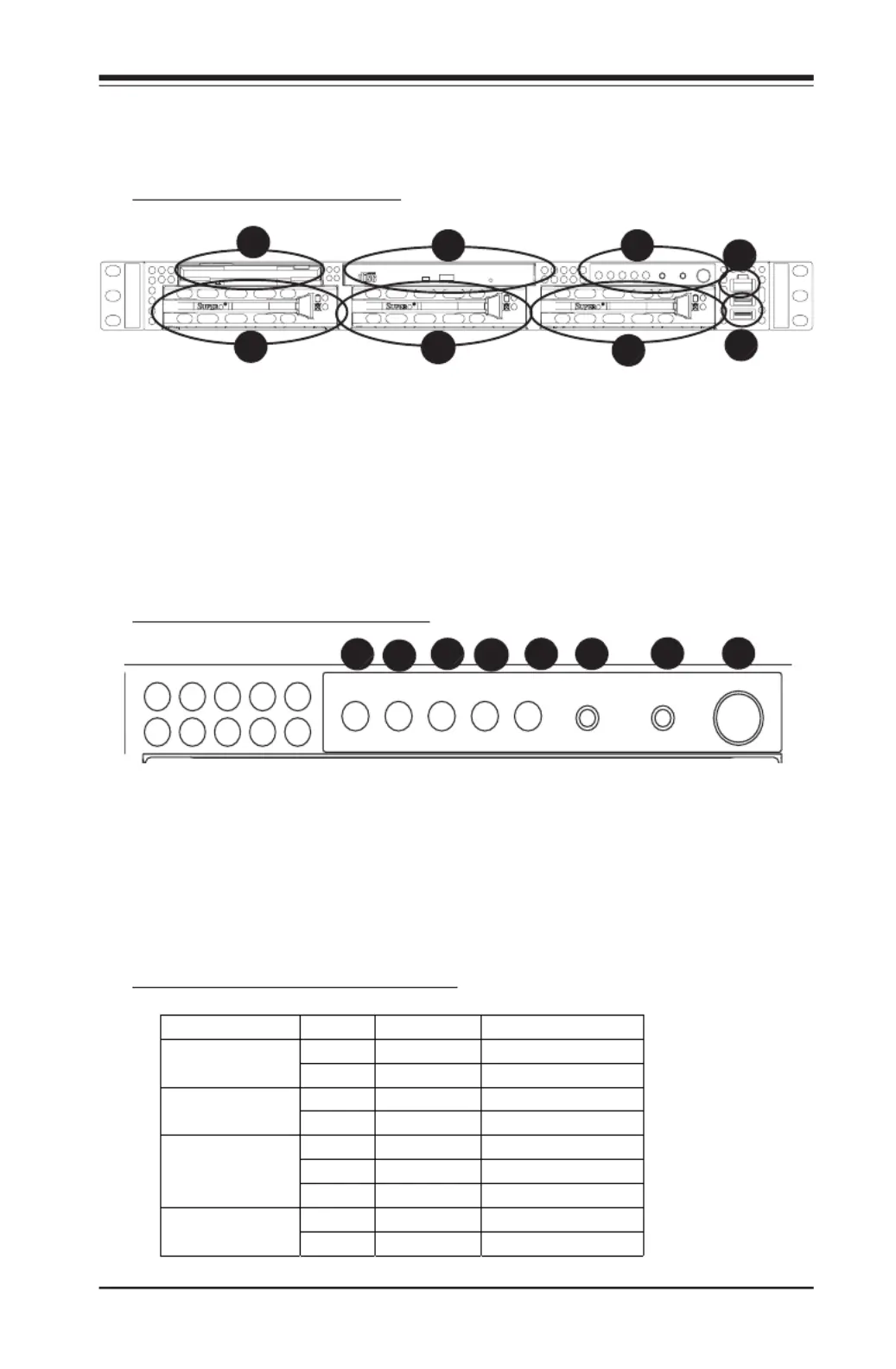

Chapter 1: Introduction
A. Front Panel Connectors
1
2
3
4
56
7
8
1. Front Panel LED Indicators (See Section B Below.)
2. CD-ROM
3. Floppy
4. HDD Tray
5. HDD Tray
6. HDD Tray
7. RJ45 (COM) Port
8. USB 2.0 Ports (x2)
B. Front Panel LED Indicators
1
2
3
4
5
6
7
8
1. Power Button
2. NMI
3. Reset Button
4. PWR LED
5. HDD LED
6./7. LAN LEDs
8. Overheat LED
Chapter 1: Introduction
LED Button Color Condition Description
Green On System On Power
Off System Off
Amber Blink HDD Activity HDD
Off No Activity
Green On Linked
Blink LAN Activity
LAN1 & LAN2
Off Disconnected
Red On System Overheat Overheat
Off System Normal
C. Front Panel LED Descriptions
