User Manual
The color and the appearance may differ depending on the product, and the specifications are subject to change without
prior notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality.
© Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.
Trademarks other than that of Samsung Electronics are owned by their respective owners.
U*R59*
An administration fee may be charged in the following situations:
(a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user
manual has not been read).
(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e., where the user manual
has not been read).
You will be informed of the administration fee amount before a technician visits.
2
Table of contents
Before Using the Product
Securing the Installation Space 4
Precautions for storage 4
Safety Precautions 4
Cleaning 5
Electricity and Safety 5
Installation 6
Operation 7
Preparations
Parts 10
Control Panel 10
Direct Key guide 11
Function Key Guide 12
Configuring Eye aver S M B Code, rightness and ontrast
from the Initial Screen 14
Changing the Volume setting 14
Types of Ports 15
Adjusting the Product Tilt 16
Anti-theft Lock 16
Precautions for moving the monitor 17
Installation 18
Attaching the Stand 18
Removing the Stand 19
Connecting and Using a Source Device
Read below before installing the monitor. 20
Connecting and Using a PC 20
Connection Using the HDMI Cable 20
Connection Using the HDMI-DVI Cable 21
Connection Using the DP Cable 21
Connecting to Headphones 21
Connecting the Power 22
Tidying Up the Connected Cables 22
Correct posture to use the product 23
Driver Installation 23
Setting Optimum Resolution 23
SAMSUNG MAGIC Bright 24
Brightness 25
Contrast 25
Sharpness 25
Color 25
SAMSUNG MAGIC Upscale 26
HDMI Black Level 26
E Sye aver Mode 26
Game Mode 26
Response Time 26
Picture Size 27
Screen Adjustment 27
3
Table of contents
PBP
PBP Mode 28
Sound Source 29
Picture Size 29
Contrast 29
OnScreen Display
Transparency 30
Language 30
Display Time 30
System
S Diagnosiself 31
Smart Saving+ECO 33
Off Timer Plus 33
PC/AV Mode 34
DisplayPort Ver. 34
HDMI Mode 34
Source Detection 34
Key Repeat Time 34
Power LED On 35
Reset All 35
Information 35
Installing the Software
Easy Setting Box 36
Restrictions and Problems with the Installation 36
System Requirements 36
Troubleshooting Guide
Requirements Before Contacting Samsung Customer
Service Center 37
Testing the Product 37
Checking the Resolution and Frequency 37
Check the following. 37
Q & A 39
Specifications
General 40
Standard Signal Mode Table 41
Appendix
Responsibility for the Pay Service (Cost to
Customers) 44
Not a product defect 44
A Product damage caused by customer's fault 44
Others 44
4
Securing the Installation Space
Ensure some space around the product for ventilation. An internal temperature rise may cause fire and
damage the product. Be sure to allow the amount of space as shown below or greater when installing
the product.
―The exterior may differ depending on the product.
10 cm (3.93 Inches)
10 cm (3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
Precautions for storage
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used
nearby.
―Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product
(Service fee will be charged.)
Do not press the monitor screen with hands or other objects. There is a risk of damaging the screen.
Safety Precautions
Warning A serious or fatal injury may result if instructions are not followed.
Caution Personal injury or damage to properties may result if instructions are
not followed.
Before Using the Product
Chapter 01
5
Cleaning
―Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
―Take the following steps when cleaning.
1
Power off the product and computer.
2
Disconnect the power cord from the product.
―Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric
shock may result.
3
Wipe the monitor with a clean, soft and dry cloth.
‒Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor.
‒Do not spray water or detergent directly on the product.
4
Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the product.
5
Connect the power cord to the product when cleaning is finished.
6
Power on the product and computer.
Electricity and Safety
Warning
•Do not use a damaged power cord or plug, or a loose power socket.
•Do not use multiple products with a single power socket.
•Do not touch the power plug with wet hands.
•Insert the power plug all the way in so it is not loose.
•Connect the power plug to a grounded power socket (type 1 insulated devices only).
•Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy
object.
•Do not place the power cord or product near heat sources.
•Clean any dust around the pins of the power plug or the power socket with a dry cloth.
Caution
•Do not disconnect the power cord while the product is being used.
•Only use the power cord provided with your product by Samsung. Do not use the power cord with
other products.
•Keep the power socket where the power cord is connected unobstructed.
‒The power cord must be disconnected to cut off power to the product when an issue occurs.
•Hold the plug when disconnecting the power cord from the power socket.
6
Warning
•DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT
INSTALL THE PRODUCT NEAR HEAT SOURCES.
•Do not install the product in poorly ventilated spaces such as a bookcase or closet.
•Install the product at least 10 cm away from the wall to allow ventilation.
•Keep the plastic packaging out of the reach of children.
‒Children may suffocate.
•Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)
‒The product may fall and become damaged and/or cause an injury.
‒Using the product in an area with excess vibration may damage the product or cause a fire.
•Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or
smoke.
•Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
‒The product lifespan may be reduced or a fire may result.
•Do not install the product within the reach of young children.
‒The product may fall and injure children.
•Edible oil (such as soybean oil) may damage or distort the product. Keep the product away from oil
pollution. And do not install or use the product in the kitchen or near the kitchen stove.
Caution
•Do not drop the product while moving.
•Do not set down the product on its front.
•When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of
the product is not protruding.
‒The product may fall and become damaged and/or cause an injury.
‒Install the product only on cabinets or shelves of the right size.
•Set down the product gently.
‒Product failure or personal injury may result.
•Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical
substances, extreme temperatures or a significant presence of moisture, or a place where
the product will operate continuously for an extended period of time) may seriously affect its
performance.
‒Be sure to consult Samsung Customer Service Center if you want to install the product at such a
place.
Installation
7
Warning
•There is a high voltage inside the product. Never disassemble, repair or modify the product
yourself.
‒Contact Samsung Customer Service Center for repairs.
•To move the product, first disconnect all the cables from it, including the power cable.
•If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord
immediately and contact Samsung Customer Service Center.
•Do not let children hang from the product or climb on top of it.
‒Children may become injured or seriously harmed.
•If the product is dropped or the outer case is damaged, turn off the power and disconnect the
power cord. Then contact Samsung Customer Service Center.
‒Continued use can result in a fire or electric shock.
•Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.
‒The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a
serious injury.
•During a lightning or thunderstorm, power off the product and remove the power cable.
•Do not drop objects on the product or apply impact.
•Do not move the product by pulling the power cord or any cable.
•If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area
immediately.
•Do not lift or move the product by pulling the power cord or any cable.
•Do not use or keep combustible spray or an inflammable substance near the product.
•Ensure the vents are not blocked by tablecloths or curtains.
‒An increased internal temperature may cause a fire.
•Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper,
matches, etc) into the product (via the vent or input/output ports, etc).
‒Be sure to power off the product and disconnect the power cord when water or other foreign
substances have entered the product. Then contact Samsung Customer Service Center.
•Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the
product.
‒Be sure to power off the product and disconnect the power cord when water or other foreign
substances have entered the product. Then contact Samsung Customer Service Center.
Operation
8
Caution
•Leaving the screen fixed on a stationary image for an extended period of time may cause
afterimage burn-in or defective pixels.
‒Activate power-saving mode or a moving-picture screen saver if you will not be using the
product for an extended period of time.
•Disconnect the power cord from the power socket if you do not plan on using the product for an
extended period of time (vacation, etc).
‒Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.
•Use the product at the recommended resolution and frequency.
‒Your eyesight may deteriorate.
•Do not put AC/DC adapters together.
•Remove the plastic bag from the AC/DC adapter before you use it.
•Do not let water enter the AC/DC adapter device or get the device wet.
‒An electric shock or fire may result.
‒Avoid using the product outdoors where it can be exposed to rain or snow.
‒Be careful not to get the AC/DC adapter wet when you wash the floor.
•Do not put the AC/DC adapter near to any heating apparatus.
‒Otherwise, a fire may result.
•Keep the AC/DC adapter in a well-ventilated area.
•If you place the AC/DC power adapter so that it is hanging with the cord input facing upwards,
water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.
Make sure to rest the AC/DC power adapter flat on a table or the floor.
•Insert the power plug into the AC/DC adapter until a click sound is heard.
•Do not insert only the power plug into the power outlet.
•Do not use an AC/DC adapter other than the provided one.
‒It may cause electric shock or fire.
•Do not insert the AC/DC adapter into the power outlet on the ceiling.
‒It may cause electric shock or fire.
•Rotate the power plug not to exceed the range (0 to 90°) on the AC/DC adapter.
‒It may cause electric shock or fire.
•Never diassemble the power plug after being assembled. (It cannot be separated after assembly.)
•Never use the provided power plug for other devices.
•When removing the AC/DC adapter from the power outlet, hold the body of AC/DC adapter and pull
it up.
‒It may cause electric shock or fire.
•Do not drop any objects or apply shock on the AC/DC adapter.
‒It may cause electric shock or fire.
•Use the AC/DC adapter after removing its plastic cover.
‒Otherwise, this may result fire.
9
•Do not hold the product upside-down or move it by holding the stand.
‒The product may fall and become damaged or cause an injury.
•Looking at the screen too close for an extended period of time can deteriorate your eyesight.
•Do not use humidifiers or stoves around the product.
•Rest your eyes for more than 5 minutes or look at distance objects for every 1 hour of product use.
•Do not touch the screen when the product has been turned on for an extended period of time as it
will become hot.
•Store small accessories out of the reach of children.
•Exercise caution when adjusting the product angle.
‒Your hand or finger may get stuck and injured.
‒Tilting the product at an excessive angle may cause the product to fall and an injury may result.
•Do not place heavy objects on the product.
‒Product failure or personal injury may result.
•When using headphones or earphones, do not turn the volume too high.
‒Having the sound too loud may damage your hearing.
10
Preparations
Chapter 02
Parts
Control Panel
―The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
Function Key Guide
JOG Button
DOWN
PRESS(ENTER)
LEFT
Return
Power LED
UP
RIGHT
Icons Description
JOG Button
Multi directional button that helps navigate.
―The JOG button is located on the rear left side of the product. The
button can be used to move up, down, left or right, or as Enter.
Power LED
This LED is power status indicator and works as
•Power On (Power button): Off
•Power saving mode: Blinking
•Power Off (Power button): On
―The power Indicator operation can be swapped by changing in the
menu. (System → Power LED On) Actual models because of functional
variation maybe haven’t this function.
Function Key Guide
Press the JOG button when the screen is turned on. The Function Key
Guide will appear. To access the onscreen menu when the guide is
displayed, press the corresponding direction button again.
―Function Key Guide may vary depending on the function or product
model. Please refer to the actual product.
11
Eye Saver Mode
Volume
Eye Saver Mode Off
Features
•UP/DOWN: Adjust Brightness, , Contrast Eye Saver Mode.
•LEFT/RIGHT: Adjust Volume.
•PRESS(ENTER): Display Function Key Guide.
Direct Key guide
―The shortcut button screen (OSD menu) shown below is displayed only when the monitor screen is turned on, the computer resolution changes, or the input source changes.
12

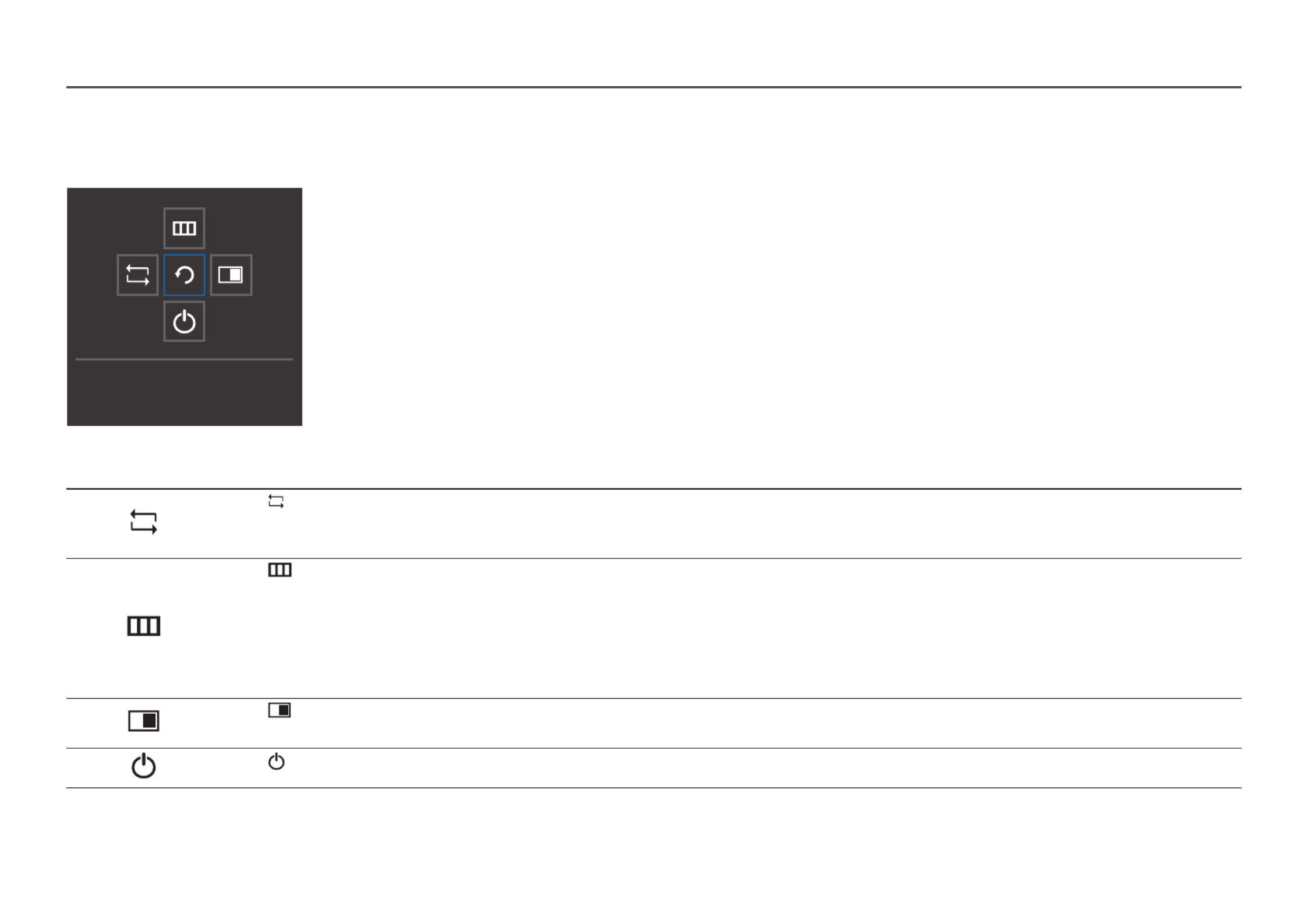

Function Key Guide
―To enter the main menu or to use other items, press the JOG button to display the Function Key Guide. You can exit by pressing the JOG button again.
Return
UP/DOWN/LEFT/RIGHT: Move to the item you want. The description for each item will appear when the focus changes.
PRESS(ENTER): The selected item will be applied.
Icons Description
Selects to change the input signal by moving the JOG button in the Function Key Guide screen. A message will appear on the top left corner of the screen if the input signal has
been changed.
―When Mode is available, the position of left and right sides of screen can be changed by using this key.PBP
Selects by moving the JOG button in the function key guide screen.
The OSD (On Screen Display) of your Monitor’s feature appears.
OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings.
Enable/Disable: To lock/unlock the OSD control, press the LEFT button for 10 seconds when the main menu displayed.
―If the OSD control is locked, and Brightness Contrast PBP can be adjusted. is available.
Eye Saver Mode Information is available. can be viewed.
Selects by moving the JOG button in the function key guide screen.
Press the button when configuring settings for the PBP function is required.
Selects to turn the Monitor off by moving the JOG button in the function key guide screen.
―Actual models because of functional variation, Function key guide options will be different.
14
Configuring Eye aver S Mode, Brightness and Contrast
from the Initial Screen
Adjust the Brightness, Contrast Eye Saver Mode and by moving the JOG button.
Eye Saver Mode
Brightness
Contrast
Off
―The displayed image may differ depending on the model.
Eye Saver Mode
Brightness
―This menu is not available when
SAM SUNG
M A G I C
Bright Dynamic Contrast is set to mode.
―This menu is not available when Eye Saver Mode is enabled.
Contrast
―This menu is not available when
SAM SUNG
M A G I C
Bright Cinema Dynamic Contrast is in or mode.
―This menu is not available when is enabled.Game Mode
―This menu is not available when PBP Mode is set to .On
Changing the Volume setting
You can adjust Volume by moving the JOG button left or right, if no OSD menu is displayed.
Volume 50
Mute
―The displayed image may differ depending on the model.
―If the audio quality of a connected input device is poor, the Auto Mute function on the product may mute
the sound or cause choppy audio when applying the headphones or speakers. Set the input volume for the
input device to at least 20% and control the volume using the volume control (JOG button LEFT/RIGHT) on
the product.
―What is Auto Mute?
The function mutes the audio to improve sound effect when there is sound noise or when the input
signal is weak, usually due to a problem with the volume of an input device.
―To activate the function, access the Mute Volume control screen, then use the JOG button to move the
focus down. To deactivate the Mute function, access the Volume control screen, then increase or decrease
the Volume.
16
Adjusting the Product Tilt
―The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
-1.0° (-2.0° ~ +1.0°) ~ 17.0° (±2.0°)
•The monitor tilt can be adjusted.
•Hold the lower part of the product and adjust the tilt carefully.
Anti-theft Lock
―An anti-theft lock allows you to use the product securely even in public places.
―The locking device shape and locking method depend on the manufacturer. Refer to the user guide
provided with your anti-theft locking device for details.
To lock an anti-theft locking device:
1
Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2
Put one end of the cable through the loop on the other end.
3
Insert the locking device into the anti-theft lock slot at the back of the product.
4
Lock the locking device.
‒An anti-theft locking device can be purchased separately.
‒Refer to the user guide provided with your anti-theft locking device for details.
‒Anti-theft locking devices can be purchased at electronics retailers or online.
17
Precautions for moving the monitor
•Do not directly apply pressure on the screen.
•Do not hold the screen when moving the
monitor.
•Do not hold the product upside down only by
the stand.
•Hold the lower corners or edges of the
monitor when moving it.
18
Installation
Attaching the Stand
―Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.
―The exterior may differ depending on the product.
1
234
Insert the stand neck into the stand base in the
direction shown in the figure.
Check that the stand neck is firmly connected.
Tightly fasten the connecting screw at the bottom
of the stand base.
Place the protective Styrofoam (cushion) included
in the package on the floor and place the product
facing down on the Styrofoam, as shown in the
image.
If Styrofoam is unavailable, use a thick sitting mat.
Place the assembled stand into the main body in
the direction of the arrow as shown in the figure.
Fasten the screws at the bottom of the stand neck.
5
Tide up the connected power supply and the data
cable then cover the COVER-REAR SUB as shown
in the figure.
- Caution
Do not press down on the monitor. There is a risk
of damaging the monitor.
19
Removing the Stand
―Before removing the stand from the monitor, place the monitor on a flat and stable surface with the screen facing down.
―The exterior may differ depending on the product.
1234
Place the protective Styrofoam (cushion) included
in the package on the floor and place the product
facing down on the Styrofoam, as shown in the
image.
If Styrofoam is unavailable, use a thick sitting mat.
Unfasten the 2 screws at the bottom of the stand
neck.
Lift and remove the stand in the direction of the
arrow as shown in the figure.
Remove the stand neck from the stand base by
pulling it in the direction of the arrow as shown in
the figure.
- Caution
Do not press down on the monitor. There is a risk
of damaging the monitor.
20
Connecting and Using a Source Device
Chapter 03
Read below before installing the monitor.
1
Check the shapes of both ends of the cables that came with the monitor, and check the shapes and
positions of the matching ports on the monitor and external devices.
2
Before connecting signal cables, disconnect the power cables for the monitor and external devices
from the power outlet to prevent device damage from a short circuit or overcurrent.
3
After connecting all signal cables, connect the power cables for the monitor and external devices
to the power outlet.
4
Read the user manual to familiarize yourself with the monitor functions, precautions, and proper
use, before using the installed monitor.
Connecting and Using a PC
Select a connection method suitable for your PC.
―Connecting parts may differ in different products.
―Provided ports may vary depending on the product.
Connection Using the HDMI Cable
Check to make sure that the power cables for the monitor and external devices, such as
computers and set-top boxes, are not connected to the power outlet.
HDMI IN
―To display 3840 x 2160 @ 60 Hz, use an HDMI cable that supports 3840 x 2160 @ 60 Hz to connect HDMI.
Make sure that the graphics card of the HDMI source supports 3840 x 2160 @ 60 Hz.
―When connecting an HDMI cable, use the cable that came with the components of the monitor. If you use
an HDMI cable other than provided by Samsung, the image quality may be degraded.
21
Connection Using the HDMI-DVI Cable
Check to make sure that the power cables for the monitor and external devices, such as
computers and set-top boxes, are not connected to the power outlet.
HDMI IN
―The audio function is not supported if the source device is connected using the HDMI-DVI cable.
―The optimum resolution may not be available with an HDMI-DVI cable.
Connection Using the DP Cable
Check to make sure that the power cables for the monitor and external devices, such as
computers and set-top boxes, are not connected to the power outlet.
DP IN
―To display 3840 x 2160 @ 60 Hz, use a DP cable that supports 3840 x 2160 @ 60 Hz. Make sure that the
graphics card of the DP source supports 3840 x 2160 @ 60 Hz.
Connecting to Headphones
―Use headphones when activating sound with an HDMI-HDMI or DP cable.
―The earphone jack supports only the 3 conductor tip-ring-sleeve (TRS) type.
23
Correct posture to use the product
Use the product in the correct posture as follows:
•Straighten your back.
•Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at
the screen.
•Keep your eyes directly in front of the screen.
•Adjust the angle so light does not reflect on the screen.
•Keep your forearms perpendicular to your upper arms and level with the back of your hands.
•Keep your elbows at about a right angle.
•Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels
attached to the floor, and your arms lower than your heart.
•Do the Eye excercises or blink frequently, then eye fatigue will be relieved.
Driver Installation
―You can set the optimum resolution and frequency for this product by installing the corresponding drivers.
―To install the latest version of the product driver, download it from the Samsung Electronics website at
http://www.samsung.com.
Setting Optimum Resolution
An information message about setting optimum resolution will appear if you power on the product for
the first time after purchase.
Select a language on the product and change the resolution on your PC to the optimum setting.
―If the optimum resolution is not selected, the message will appear up to three times for a specified time
even when the product is turned off and on again.
―The optimum resolution can also be selected in Control Panel on your PC.
24
Configure the screen settings such as brightness.
A detailed description of each function is provided. Refer to your product for details.
Chapter 04
―The functions available may vary depending on the product model. The color and shape of parts may differ
from what is shown. Specifications are subject to change without notice to improve quality.
SAMSUNG MAGIC Bright
This menu provides an optimum picture quality suitable for the environment where the product will be
used.
―This menu is not available when is enabled.Game Mode
―This menu is not available when Eye Saver Mode is enabled.
―Not available when PBP Mode is set to .On
You can customize the brightness to suit your preferences.
In modePC
•Custom: Customize the contrast and brightness as required.
•Standard: Obtain a picture quality suitable for editing documents or using Internet.
•Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content.
•Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
In AV mode
When the external input is connected through HDMI/DP and PC/AV Mode is set to AV,
SAM SUNG
M A G I C
Bright
has four automatic picture settings ( , , and ) that are preset at the Dynamic Standard Movie Custom
factory. You can activate either , Dynamic Standard Movie Custom, or . You can select Custom which
automatically recalls your personalized picture settings.
•Dynamic: Select this mode to view a sharper image than in Standard mode.
•Standard: Select this mode when the surroundings are bright. This also provides a sharp image.
•Movie: Select this mode when the surroundings are dark. This will save power and reduce eye
fatigue.
•Custom: Select this mode when you want to adjust the image according to your preferences.
25
Brightness
You can adjust the general brightness of the picture. (Range: 0~100)
A higher value will make the picture appear brighter.
―This menu is not available when
SAM SUNG
M A G I C
Bright Dynamic Contrast is set to mode.
―This menu is not available when Eye Saver Mode is enabled.
Contrast
Adjust the contrast between the objects and background. (Range: 0~100)
A higher value will increase the contrast to make the object appear clearer.
―This option is not available when
SAM SUNG
M A G I C
Bright Cinema Dynamic Contrast is in or mode.
―This menu is not available when is enabled.Game Mode
―This menu is not available when PBP Mode Onis set to .
Sharpness
Make the outline of objects more clear or blurry. (Range: 0~100)
A higher value will make the outline of objects clearer.
―This option is not available when
SAM SUNG
M A G I C
Bright Cinema Dynamic Contrast is in or mode.
―This menu is not available when is enabled.Game Mode
―Not available when PBP Mode is set to .On
Color
Adjust the tint of the screen.
―This menu is not available when
SAM SUNG
M A G I C
Bright Cinema Dynamic Contrast is set to or mode.
―This menu is not available when is enabled.Game Mode
―This menu is not available when Eye Saver Mode is enabled.
―Not available when PBP Mode is set to .On
•Red: Adjust the red saturation level. Values closer to 100 mean greater intensity for the color.
•Green: Adjust the green saturation level. Values closer to 100 mean greater intensity for the color.
•Blue: Adjust the blue saturation level. Values closer to 100 mean greater intensity for the color.
•Color Tone: Select a color tone that best suits your viewing needs.
‒Cool 2: Set the color temperature to be cooler than Cool 1.
‒Cool 1: Set the color temperature to be cooler than Normal mode.
‒Normal: Display the standard color tone.
‒Warm 1: Set the color temperature to be warmer than Normal mode.
‒Warm 2: Set the color temperature to be warmer than Warm 1.
‒Custom: Customize the color tone.
―When the external input is connected through HDMI/DP and PC/AV Mode Color Tone is set to AV, has
four color temperature settings ( , , Cool Normal Warm Custom and ).
•Gamma: Adjust the middle level of luminance.
‒Mode1 / / Mode2 Mode3
26
SAMSUNG MAGIC Upscale
SAM SUNG
M A G I C
Upscale function can enhance the layers of the picture details and the vividness of the picture.
The function has more obvious effects on low-resolution pictures.
―This menu is not available when
SAM SUNG
M A G I C
Bright Cinema Dynamic Contrast is set to or mode.
―This menu is not available when is enabled. Game Mode
―Not available when PBP Mode On is set to .
•Off / / Mode1 Mode2
―Comparing with Mode1, has a stronger effect.Mode2
HDMI Black Level
If a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/
color degradation, black level, etc.) may occur, depending on the connected source device. In such case,
HDMI Black Level can be used to adjust the image quality.
If this is the case, correct the degraded picture quality using HDMI Black Level.
―This function is only available in mode.HDMI
―Not available when PBP Mode On is set to .
•Normal: Select this mode when there is no contrast ratio degradation.
•Low: Select this mode to reduce the black level and increase the white level when there is a
contrast ratio degradation.
―HDMI Black Level may not be compatible with some source devices.
―The HDMI Black Level feature is only activated at a certain resolution, such as 720P @ 60 Hz and 1080P AV
@ 60 Hz.
Eye aver S Mode
Set to an optimum picture quality suitable for eye relaxation.
TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for
lower blue light levels. When Eye Saver Mode On is ' ', the blue light that wavelength is around 400nm
will decrease, and it will provide an optimum picture quality suitable for eye relaxation. At the same
time, the blue light level is lower than in the default settings, and it was tested by TÜV Rheinland and
certified as it met the requirements of TÜV Rheinland “Low Blue Light Content” standards.
Game Mode
Configure the product screen settings for game mode.
Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™
is connected.
―This menu is not available when Eye Saver Mode is enabled.
―When the monitor turns off, enters power-saving mode or changes input sources, Game Mode turns Off
even if it is set to .On
―If you want to keep Game Mode enabled all the time, select .Always On
―Not available when PBP Mode On is set to .
Response Time
Accelerate the panel response rate to make video appear more vivid and natural.
―Use mode when not playing a video or game.Standard
27
Picture Size
Change the picture size.
―This menu is not available when PBP Mode On is set to .
In modePC
•Auto: Display the picture according to the aspect ratio of the input source.
•Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
In AV mode
•4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
•16:9: Display the picture with an aspect ratio of 16:9.
•Screen Fit: Display the picture with the original aspect ratio without cutting off.
―The function may not be supported depending on the ports provided with the product.
―Changing the screen size is available when the following conditions are satisfied.
―A digital output device is connected using the HDMI/DP cable.
―The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can
support all of these signals.).
―This can only be set when the external input is connected through HDMI/DP and PC/AV Mode is set to
AV.
Screen Adjustment
―This menu is only available when Picture Size Screen Fit is set to in AV Mode.
When a 480P or 576P or 720P or 1080P signal is input in mode and the monitor can display normally, AV
select Screen Fit to adjust horizontal position in 0-6 levels.
Configuring H-Position & V-Position
H-Position: Move the screen to the left or right.
V-Position: Move the screen up or down.
29
Sound Source
Set which screen you want to hear the sound for.
• /
Picture Size
Set the Picture Size for each of the divided screens.
In modePC
•Auto: Display the picture according to the aspect ratio of the each screen input source.
•Wide: Display the picture in full screen regardless of the aspect ratio of the each screen input
source.
In AV mode
•4:3: Display the picture of the sub-screen with an aspect ratio of 4:3. Suitable for videos and
standard broadcasts.
•16:9: Display the picture of the sub-screen with an aspect ratio of 16:9.
•Screen Fit: Display the picture of the sub-screen with the original aspect ratio without cutting
anything off.
―The function may not be supported depending on the ports provided with the product.
―Changing the screen size is available when the following conditions are satisfied.
―A digital output device is connected using the HDMI/DP cable.
―The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can
support all of these signals.).
―This can only be set when the external input is connected through HDMI/DP and PC/AV Mode is set to
AV.
Contrast
Adjust the contrast level for each screen.
32
3
Base on the test result, select / .Yes No
Yes No
Do you still see the same problem on the test screen?
•You will see the following screen when you select Yes.
Self Diagnosis Complete
Contact the Samsung Call Center for assistance.
Please have the following information ready:
‐Model Code: **************
‐S/N: **************
OK
•You will see the following screen when you select No.
Self Diagnosis Complete
If the test screen is okay during Self Diagnosis, your monitor may not have a problem. If the
problem persists, follow the steps below:
‐Turn off your monitor and any other connected device, such as a PC. Turn on your monitor first
and then the other connected device.
‐Update the operating system and graphics card driver to the latest version and restart your PC.
‐Connect the other device, such as a PC, to a different input port on your monitor.
‐Reset your monitor by pressing the jog button on the monitor and selecting System > Reset All.
Replace the cable with the one enclosed with your monitor.
OK
33
Smart Saving+ECO
The Smart ECO Saving+ function reduces power consumption by controlling the electric current used
by the monitor panel.
―This menu is not available when Eye Saver Mode is enabled.
―This menu is not available when is enabled.Game Mode
―This menu is not available when PBP Mode is enabled.
―This menu is not available when
SAMSUNG
M A G I C
Bright Dynamic Contrast is set to mode .
•Off: Deactivate the Smart ECO Saving+ function.
•On: The power consumption will be adjusted to save energy automatically. (The reduction of power
consumption depends on the customer screen brightness condition.)
Off Timer Plus
Configuring Off Timer
Off Timer: Turn on mode.Off Timer
Turn Off After: The off timer can be set within a range of 1 to 23 hours. The product will automatically
power off after the specified number of hours.
―This option is only available when is set to .Off Timer On
―For products for the market in some regions, the is set to automatically activate 4 hours after the Off Timer
product powers on. This is done in accordance with power supply regulations. If you do not want the timer
to activate, go to → → System Off Timer Plus Off Timer Off and set to .
Configuring Eco Timer
Eco Timer: Turn on mode.Eco Timer
Eco Off After: The Eco Timer can be set between 10 and 180 minutes. The product will automatically
power off after the specified time has elapsed.
―This option is only available when is set to .Eco Timer On
34
PC/AV Mode
Set PC/AV Mode to AV. The picture size will be enlarged.
This option is useful when you view a movie.
•Set to PC when connected to a PC.
•Set to AV when connected to an AV device.
―Supplied for the wide models only such as 16:9 or 16:10.
―If the monitor (when set to , HDMI DisplayPort) is in power saving mode or is displaying the message Check
Signal Cable, press the icon to display the On Screen Display (OSD). You can select .PC or AV
DisplayPort Ver.
Select your Displayport.
―Incorrect settings may cause the screen to go blank. If this occurs, check the device specifications.
―If the monitor (when set to , HDMI DisplayPort) is in power saving mode or is displaying the message Check
Signal Cable, press the icon to display the On Screen Display (OSD). You can select .1.1 or 1.2↑
―If you select 1.1, the maximum resolution of your screen drops to 2560 x 1440 due to the limitations in HBR1
transmission speeds.
HDMI Mode
Select the HDMI mode to use.
―The supportable device and resolution may differ depending on its version.
―When the version is changed, the screen may blink.
―If you set the HDMI Mode to 1.4, some high resolutions may not be supported because of bandwidth
limitation of the HDMI 1.4 protocol.
―When the setting is not appropriate, a blank screen may appear. In this case, check the specifications of the
device.
―Set the HDMI Mode to 1.4 when there is no sound output from the DVD connected to our product.
―Not available when PBP Mode is set to .On
―If the monitor(when set to HDMI) is in power saving mode or is displaying the message , Check Signal Cable
press the icon to display the On Screen Display(OSD). You can select .1.4 or 2.0
Source Detection
Select either as the method to recognize input signal.Auto or Manual
―Not available when PBP Mode is set to .On
Key Repeat Time
Control the response rate of a button when the button is pressed.
Acceleration 1 sec, , or can be selected. If is selected, a command responds only once 2 sec No Repeat
when a button is pressed.
35
Power LED On
Configure the settings to enable or disable the power LED located at the lower part of the product.
•Working: The power LED is on when the product is turned on.
•Stand-by: The power LED is on when the product is turned off.
Reset All
Return all the settings for the product to the default factory settings.
Information
View the current input source, frequency and resolution.
Information
Exit
LU********/**
S/N:**************
PBP
OnScreen Display
System
Information
HDMI
**** x ****
** **kHz Hz
PBP
Exit
Information
LU********/**
S/N:**************
PBP
OnScreen Display
System
Information
HDMI
**** x ****
** **kHz Hz
DisplayPort
**** x ****
** **kHz Hz
―The displayed image may differ depending on the model.
36
Installing the Software
Chapter 08
Easy Setting Box
Easy Setting Box enables users to use the monitor by partitioning multiple sections.
To install the latest version of Easy Setting Box, download it from the Samsung Electronics website at
http://www.samsung.com.
―The software may not work properly if you do not restart the computer after the installation.
―The Easy Setting Box icon may not appear depending on the computer system and the product
specifications.
―If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation
The Easy Setting Box installation may be affected by the Graphics Card, Motherboard and the
Networking Environment.
System Requirements
OS Hardware
• Windows 7 32Bit/64Bit
• Windows 8 32Bit/64Bit
• Windows 8.1 32Bit/64Bit
• Windows 10 32Bit/64Bit
• At least 32MB of memory
• At least 60MB of free space on the hard disk drive
37
Troubleshooting Guide
Chapter 09
Requirements Before Contacting Samsung
Customer Service Center
―Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,
contact Samsung Customer Service Center.
Testing the Product
Check if your product is operating normally by using the product test function.
If the screen is turned off and the power indicator blinks even though the product is properly connected
to a PC, perform a self-diagnosis test.
1
Power off both the PC and product.
2
Disconnect the cables from the product.
3
Power on the product.
4
If the message Check Signal Cable appears, the product is working normally.
―If the screen remains blank, check the PC system, video controller and cable.
Checking the Resolution and Frequency
For a mode that exceeds the supported resolution(refer to Standard Signal Mode Table), the message
Not Optimum Mode will appear for a short time.
―The displayed resolution may vary, depending on the computer system settings and cables.
Check the following.
Installation issue (PC mode)
The screen keeps switching on and off.
Check the cable connection between the product and PC, and ensure the connectors are locked.
Blank spaces are found on all four sides of the screen when an HDMI or HDMI-DVI cable is connected
to the product and PC.
The blank spaces found on the screen have nothing to do with the product.
Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the
screen size in the HDMI or DVI settings for the graphics card.
If the graphics card settings menu does not have an option to adjust the screen size, update the
graphics card driver to the latest version.
(Please contact the graphics card or computer manufacturer for further details about how to adjust
the screen settings.)
Screen issue
The power LED is off. The screen will not switch on.
Check that the power cable is connected properly.
The message appears.Check Signal Cable
Check that the cable is properly connected to the product.
Check that the device connected to the product is powered on.

Product specificaties

Merk: Samsung
Categorie: Monitor
Model: U32R590CWE

Heb je hulp nodig?

Als je hulp nodig hebt met Samsung U32R590CWE stel dan hieronder een vraag en andere gebruikers zullen je antwoorden


Handleiding Monitor Samsung

Samsung

Samsung S32CM703UU Handleiding

20 Februari 2025
Samsung

Samsung S32BM700UP Handleiding

20 Februari 2025
Samsung

Samsung C24FG73FQA Handleiding

5 Februari 2025
Samsung

Samsung T23B350 Handleiding

5 Februari 2025
Samsung

Samsung S32CG552EC Handleiding

25 November 2024
Samsung

Samsung S24D400GAU Handleiding

25 November 2024
Samsung

Samsung S24D302GAU Handleiding

25 November 2024
Samsung

Samsung S34C650VAC Handleiding

24 November 2024
Samsung

Samsung S32D700EAN Handleiding

24 November 2024
Samsung

Samsung S32R750QEM Handleiding

24 November 2024

Handleiding Monitor

Nieuwste handleidingen voor Monitor

Acer

Acer EV227Q Handleiding

8 April 2025
Asus

Asus VA279QGS Handleiding

8 April 2025
BenQ

BenQ DesignVue PD2730S Handleiding

7 April 2025
BenQ

BenQ PD3226G Handleiding

7 April 2025
Gigabyte

Gigabyte MO27U2 Handleiding

4 April 2025
Philips

Philips 221V8LB Handleiding

4 April 2025
Extron

Extron TLS 1025M Handleiding

2 April 2025
PureTools

PureTools PT-SCREEN-100 Handleiding

1 April 2025
Satco

Satco S18412 Handleiding

30 Maart 2025
Satco

Satco S23164 Handleiding

30 Maart 2025
