English-1

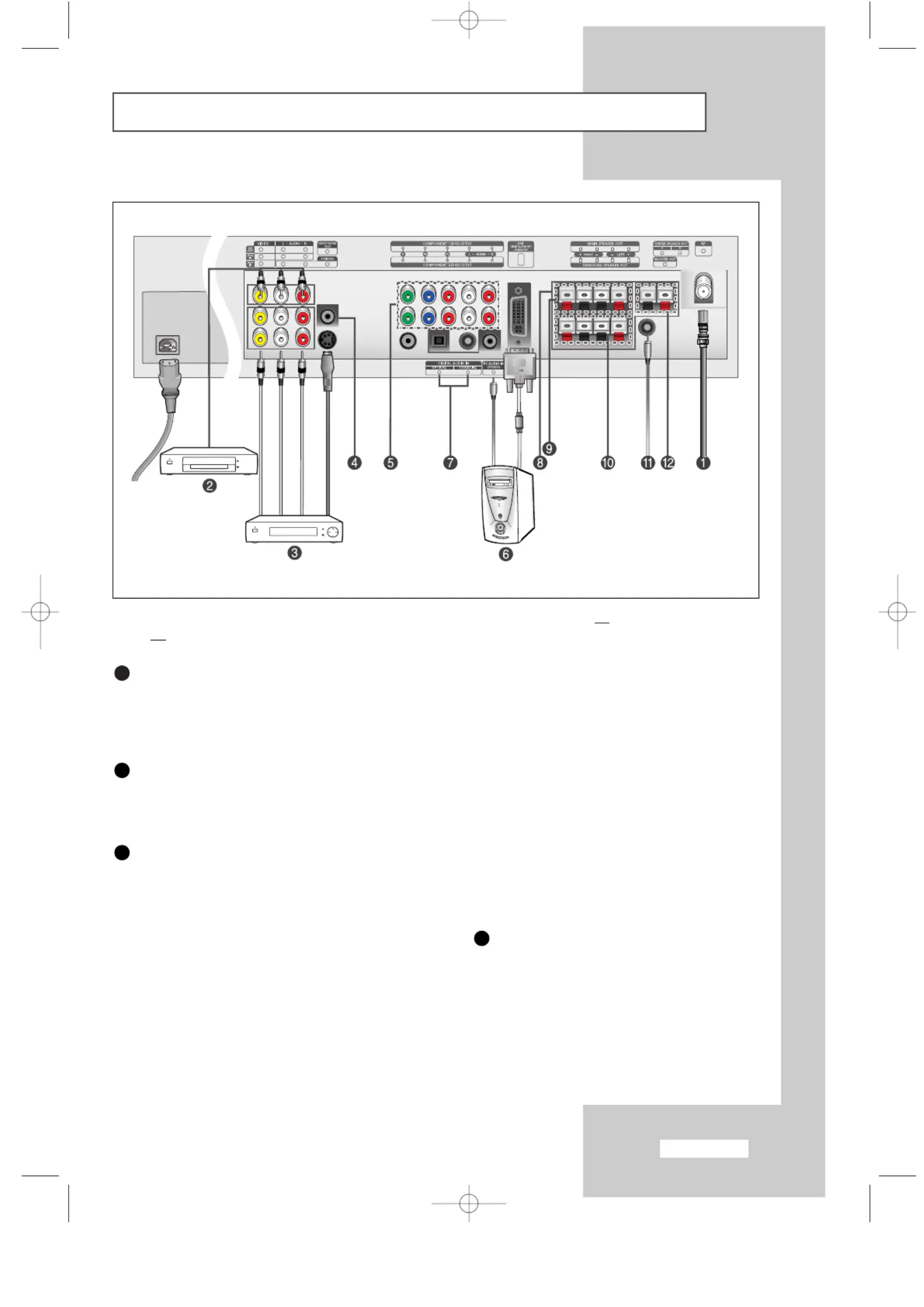

Viewing the Connection Panel
βWhenever you connect an audio or video system to your set, ensure that all elements are switched
off.
Connecting an Aerial or Cable Television Network
To view television channels correctly, a signal must be received by the set from one of the following sources:
- An outdoor aerial
- A cable television network
- A satellite network
Connecting DVD, VCR or DTV Set-Top Box
- Connect the RCA Cable to βAUDIO(L)β and βAUDIO(R)β on the rear of your set and the other end to
βAudio Outβ connector of the DVD, VCR, or DTV Set-Top Box.
- Connect the RCA Cable to βYβ, βPbβ, and βPrβ on the rear of your set and the other end to βComponent Outβ
connector of the DVD, VCR, or DTV Set-Top Box.
Connecting External A/V Devices
- Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
- Connect RCA audio cables to βAUDIO(L) AUDIO(R)β and β β on the rear of your set and the other ends to
corresponding audio out connectors on the A/V device.
- Headphone may be connected to the headphone output ( ) on the rear of your set.
While the headphone
is connected, the sound from the built-in speakers will be disabled.
Power Input
1
2
3
4
BN68-00448G-00Eng.q 9/24/03 4:10 PM Page 7
English-2
Viewing the Connection Panel
Connecting Component Devices (DTV/DVD)
- Connect component video cables to component connector ( Y , , )β β βPbβ βPrβon the rear of your set and the
other ends to corresponding component video out connectors on the DTV or DVD.
- If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the
DTV (or DVD) and connect the DTV (or DVD) to component connector ( Y , , )β β βPbβ βPrβon your set.
- The Y, Pb and Pr connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and
R-Y or Y, Cb and Cr.
- Connect RCA audio cables to βAUDIO(L) AUDIO(R)β and β β on the rear of your set and the other ends to
corresponding audio out connectors on the DTV or DVD.
Connecting Computer
- Connect the DVI connector to the PC video connector.
- Connect the stereo audio cable to βPC AUDIO IN (STEREO)β on the rear of your set and the other end to
β βAudio Out of the sound card on your computer.
Connecting Digital Audio Inputs
Connect optical digital audio cable or coaxial cable (RCA audio cable) to βDIGITAL AUDIO INβ on the rear of
your set and the other end to βDIGITAL OUTβ of the equipment with a digital output to enjoy digital sound
(Multi-Channel Surround Sound, Stereo or Dolby Pro-Logic II).
Source Video Horizontal Frequency Vertical Frequency Resolution
(kHz) (Hz) (Lines)
TV/VIDEO PAL 15.625 50 575
SECAM 15.625 50 575
NTSC4.43 15.734 60 483
NTSC3.58 15.704 60 483
Component 1/2 480/60i 15.734 60 483
480/60p 31.469 60 483
576/50i 15.625 50 576
576/50p 31.250 50 576
720/60p 45.000 60 720
1080/50i 28.125 50 1080
1080/60i 33.750 60 1080
5
6
7
BN68-00448G-00Eng.q 9/24/03 4:10 PM Page 8
English-3
Viewing the Connection Panel

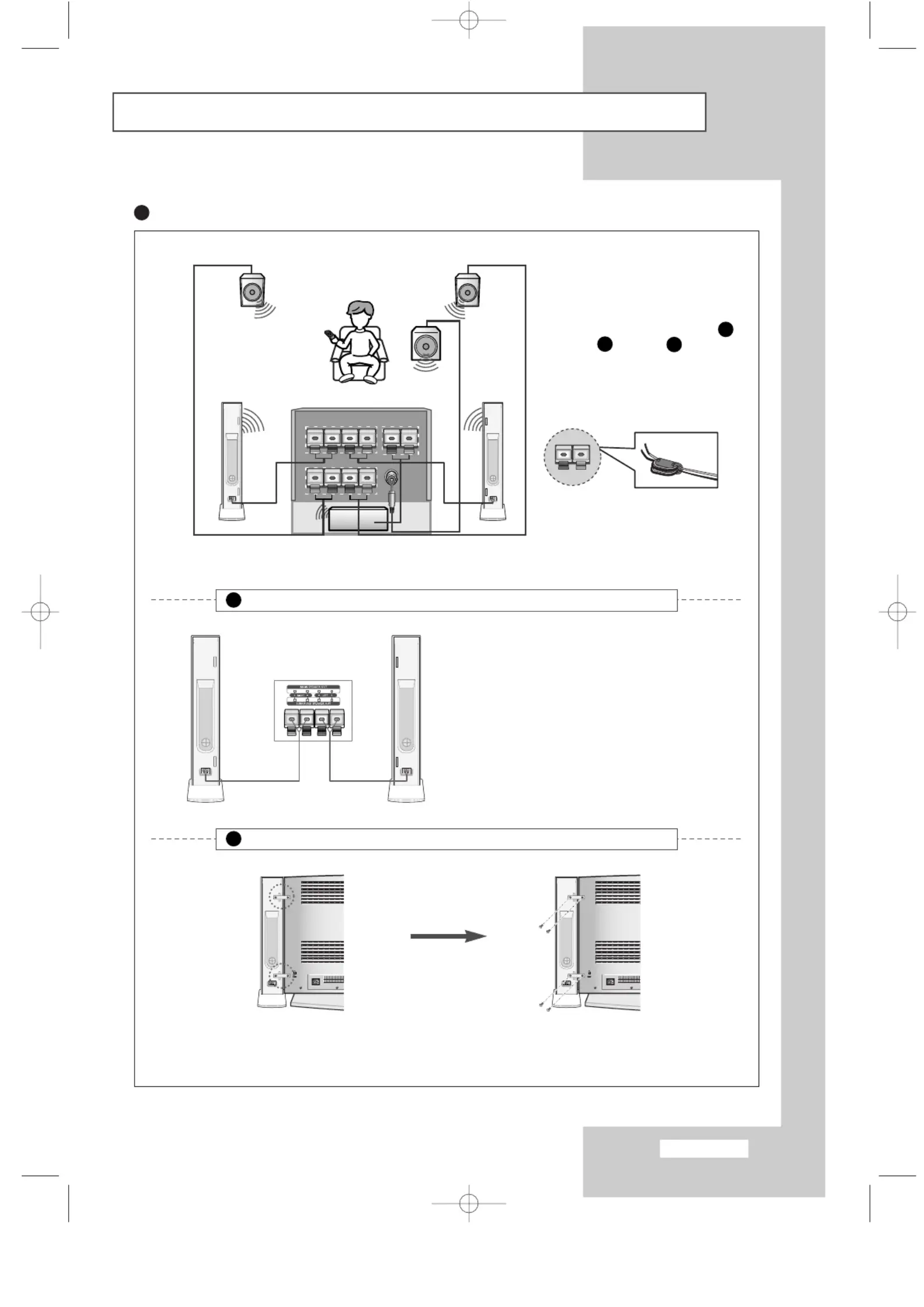

Connecting 5.1 Channel Speakers For Home Theater
The other speakers
(Surround/Center/Sub
woofer):Connect the each
speaker audio cable to the
speaker output jack(surround
/Center / Woofer )on the
rear of your set making sure
that the + -, polarities are
correctly aligned.
β’
Wind the speaker cable on
the core twice or more.
8
10
12 11
Main Speaker : When the speakers are attached with LCD TV
Main Speaker : When the speakers are separated from LCD TV
Connect the speaker audio cables to the main
speaker output jacks on the rear of your set
making sure that the polarities are correctly+ -,
aligned.
β’The speakers MUST have more than
10watts rating (Impedance 8β¦).
Mount the brackets on the speaker
and your set.
Connect the speaker and your set
using screws.
Surround
Speaker
Surround
Speaker
Woofer
Center Speaker
LCD TV Rear
Main Speaker Main Speaker
9
9
