The SLK-1 keypad is an in-wall, Decora® style single-gang

keypad designed for individual zone control of MCA-C3/MCA-C5

Multiroom Controller Ampli er (wall plate not included).

Safety Instructions

1. Read Instructions - All the safety and operating instructions

should be read before the equipment is operated.

2. Retain Instructions - The safety and operating instructions

should be retained for future reference.

3. Heed Warnings - All warnings on the equipment in the

operating instructions should be adhered to.

4. Follow Instructions - Follow all operating and user instructions.

5. Water and Moisture - The equipment should not be used

near water; for example, near a bathtub, washbowl, kitchen sink,

laundry tub, in a wet basement, or near a swimming pool.

6. Mounting - The equipment should be mounted or secured as

recommended by the manufacturer.

7. Heat - The equipment should be situated away from heat

sources such as radiators, heat registers, stoves, or other equipment

(including ampli ers) that produce heat.

8. Power Sources - The product should be connected to a power

supply only of the type described in the operating instructions or

as marked on the equipment.

9. Grounding or Polarization - Precaution should be taken so

that the grounding or polarization means of the product is not

defeated.

10. Avoid spills and foreign objects. Ensure liquids and objects

don’t get into the product enclosure through any openings.

11. Damage Requiring Service - The equipment should be

serviced by quali ed service personnel when: the power supply

cord or the plug has been damaged; objects have fallen, liquid has

been spilled into the equipment; the equipment has been exposed

to rain; the equipment does not appear to operate normally; or the

equipment has been dropped or the enclosure is damaged.

12. Servicing - The user should not attempt to service the

equipment beyond that described in the operating instructions. All

other servicing should be referred to quali ed service personnel.

13. Care – From time to time you should wipe any dust

accumulation from the equipment with a soft dry cloth.

Note: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to part 15 of

the FCC rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the

user is encouraged to try to correct the interference by one of or

more of the following measures: reorient or relocate the receiving

antenna; increase the separation between the equipment and

receiver; connect the equipment into an outlet on a circuit

di erent from that to which the receiver is connected, or consult

the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme

NMB-003 du Canada.

or other manner not authorized by Russound shall void the

warranty on the applicable product.

Damage to or destruction of components due to application of

excessive power voids the warranty on those parts. In these cases,

repairs will be made on the basis or the retail value of the parts and

labor. To return for repairs, the unit must be shipped to Russound

at the owner's expense, along with a note explaining the nature of

service required. Be sure to pack the unit in a corrugated container

with at least three (3)inches of resilient material to protect the

unit from damage in transit. Before returning a unit for repair, call

Russound at 866.888.7466 for a Return Authorization number.

Write this number on the shipping label and ship to: Russound,

ATTN: Service, 5 Forbes Road, Newmarket, NH03857.

are the property of their respective owners. Russound is not

responsible for typographical errors or omissions. Speci cations

are subject to change without notice.

Warranty and Repair

The Russound SLK-1 is fully guaranteed against all defects in

materialsand workmanship for two (2) years from the date of

purchase. During this period, Russound will replace any defective

parts and correct any defect in workmanship without charge for

either parts or labor. For this warranty to apply, the unit must be

installed and used according to its written instructions. If service

is necessary, it must be performed by Russound. The unit must

be returned to Russound at the owner's expense and with prior

written permission. Accidental damage and shipping damage are

not considered defects, nor is damage resulting from abuse or

from servicing by an agency or person not speci cally authorized

in writing by Russound. This Warranty does not cover: Damage

caused by abuse, accident, mis-use, negligence, or improper

installation or operation; Power surges and lightning strikes;

Normal wear and maintenance; Products that have been altered

or modi ed; Any product whose identifying number, decal, serial

number, etc. has been altered, defaced or removed. Russound

sells products only through authorized Dealers and Distributors

to ensure that customers obtain proper support and service.

Any Russound product purchased from an unauthorized dealer

or other source, including retailers, mail order sellers and online

sellers will not be honored or serviced under existing Russound

warranty policy. Any sale of products by an unauthorized source

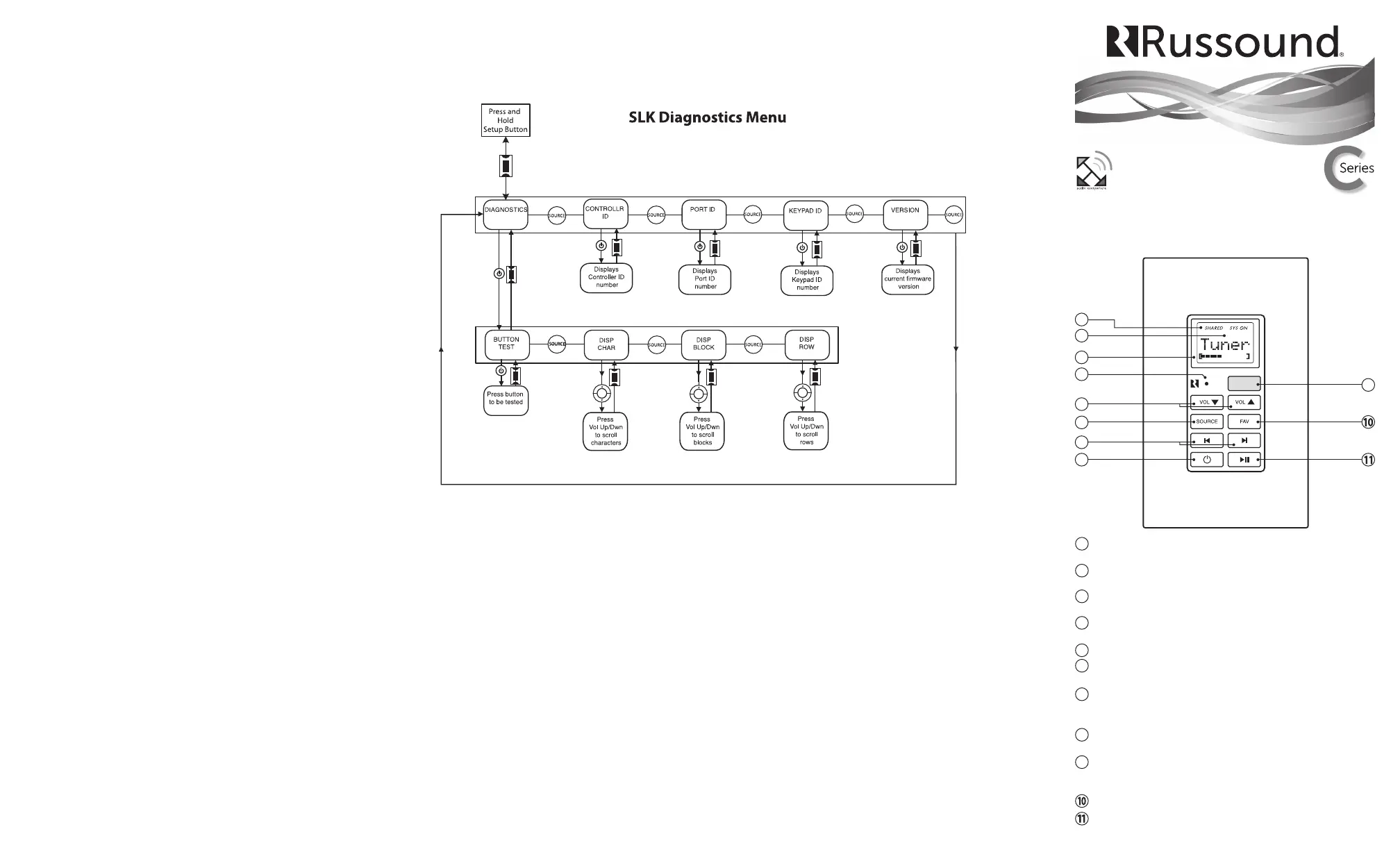

SLK-1 Diagnostics Menu

The Diagnostics Menu allows the installer to run a diagnostic

check on the SLK-1 and to verify the  rmware version. To access

the Diagnostics Menu, press and hold the Setup button on the

right side of the keypad until “Diags” appears on the display. The

menus are outlined in the diagram below. When  nished, press

and release the Setup button again.

System Info - SYS ON indicates other active zones and SHARED

indicates the selected source is in use in another zone.

LCD Panel - 5-character white backlit display shows source

name, volume and room status.

Volume Level - 21-segment volume level bars increase from

left to right to indicate volume level.

IR Con rmation/Loudness LED - Red LED blinks to con rm IR

signal reception.

Volume UP/Down - Raises/ lowers the volume for the room.

Source Select - Press and release scrolls through the available

sources.

Previous - Navigates backwards through menus or play

previous selectionk. Press to forward through Forward -

menu or play next selection

Power - Turns room ON or OFF when pressed once, button

remains lit when OFF if any other zone in the system is ON.

IR RECEIVER - Receives IR signals and passes them to the

controller and source equipment. Also used when the keypad

is operated using the SRC-C5 C-Series System remote controls.

Favorites - Selects preset user selected favorite settings per room

Play/Pause - Toggle between play and pause

Single Line Keypad SLK-1

Installation Manual

Russound, Inc. 5 Forbes Rd., Newmarket, NH 03857, USA

tel 603.659.5170 • fax 603.659.5388 www.russound.com

technical support: 866.888.7466 e-mail: tech@russound.com

28-1375 08/28/12

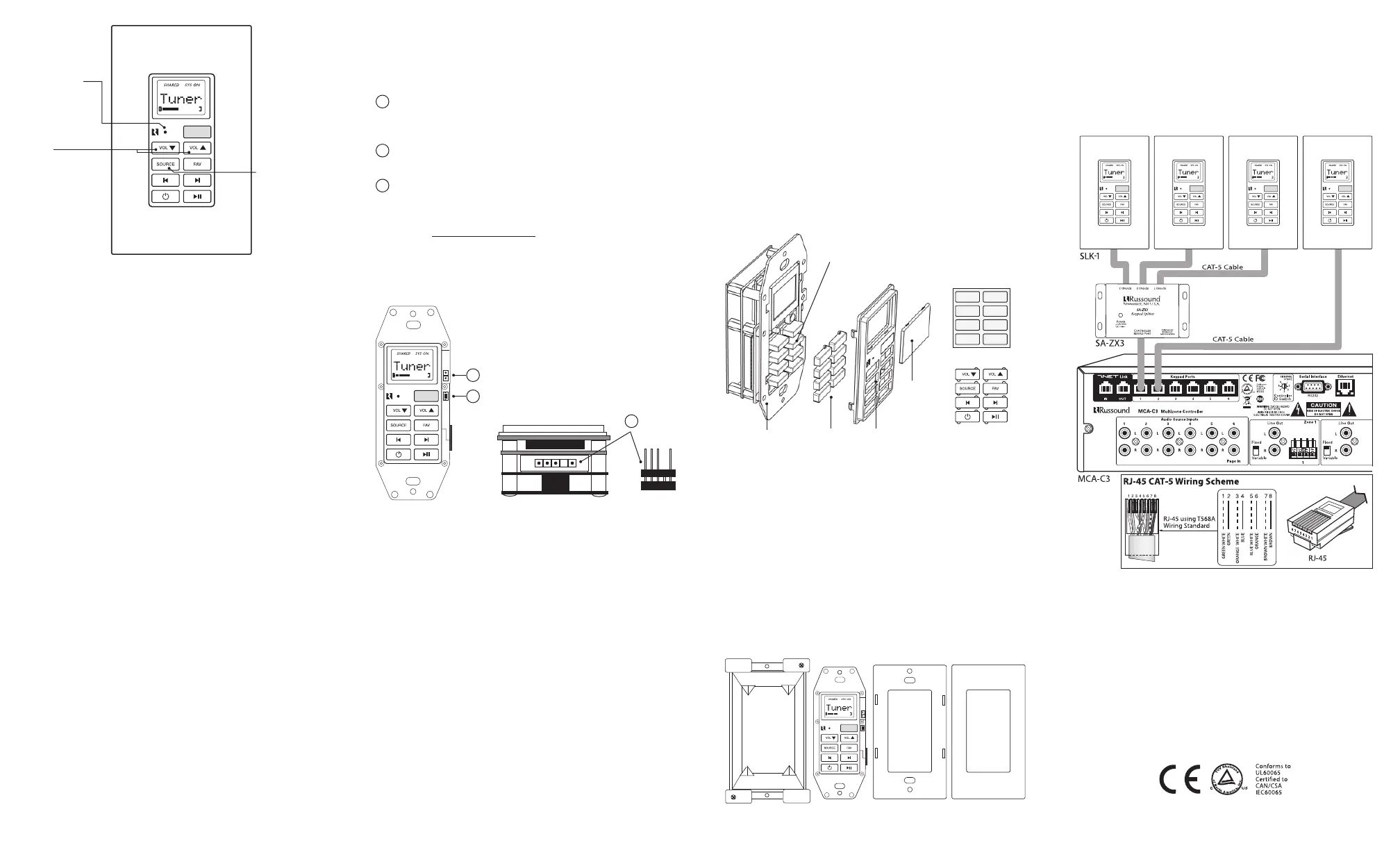

Keypad Installation

1. Check whether or not you can route the wire to the

location you have chosen.

2. To install a single-gang keypad, you will need to use an

UL/CSA approved plastic single-gang (18 ci) electrical box.

3. Route CAT-5 cable to the junction box from the

MCA-C3/C5 system controller.

4. Terminate the CAT-5 cable with an RJ-45 connector,

using the T568A wiring standard.

5. Mount the keypad in the electrical box and attach the

trim plate.

SLK-1-1 User Mode

The User Mode allows the user to select an audio source,

adjust the volume level in the zone, turn the zone on / o ,

and issue system-wide All On / All O commands.

To turn the zone on or o , press and release the power

button. A press and hold while in the On state will issue an

All On command and a press and hold in the O state will

issue an All O command.

To select a source, press and release the source button

to increment to the next available source. The con gured

source name will be displayed on the keypad's LCD panel.

Incremental volume adjustments can be made by either

pressing and releasing the volume up or down button,

while pressing and holding will ramp the level until

released or the maximum / minimum level is reached. The

volume level is displayed by a bar graph at the bottom of

the LCD panel and a numeric value is displayed during

adjustment.

The SLK-1 is designed for basic zone control. As such,

it does not provide control of connected sources or

adjustment of zone audio properties such as Bass, Treble,

Loudness or Balance. These can be con gured through

SCS-C5 Con guration Software. The SLK-1 is an ideal

companion for systems using the My Russound application

on supported hand-held devices.

The FAV button is a user favorite preset. The preset can be

selected at any time to recall source selection and volume.

To store a preset, adjust the room setting and select a

source to be stored. Press and hold the Fav button until

"F1 SAVED" is displayed on the LCD panel. Now a press

and release will recall the favorite preset. When used with

the DMS-3.1, the current medial will always be saved (e.g.

SiriusXM station or internet radio station)

The FAV button corresponds to the F1 button on SRC-C5

remote.

SLK-1 Color Conversion

You will need both small straight and Phillips head screwdrivers

to change the color plates on the keypad. The Bezel Molding and

Buttons will be switched for the new color plates.

1. If installed, remove the SLK-1 keypad from the wall. Gently

pull the Trim Plate o the mounting plate. Unscrew the unit

from the electrical box, and disconnect the cable.

2. Unscrew the plastic Frame Plate. Keep the Frame Plate and

screws for reattachment later.

3. Remove the Bezel Molding by gently pressing in each of the

4 locking tabs (2 per side) while pushing it away from the metal

frame. CAUTION: To avoid damage to the LCD panel, do not use

hard edged tools.

4. Remove the Display Lens from the Bezel Molding by gently

pushing from the rear to overcome the clips.

5. Once the Display Lens is removed, put aside for reattachment

later. Be careful to not damage the display.

6. Remove individual button caps by pulling them o the key mat.

SLK-1 Side Panel

The SLK-1 setup button is located on the right side of the

keypad (when facing front). This is covered when a trim

plate is installed.

OS UPDATE/RUN JUMPER-The pins are jumpered

only when performing an OS update on the keypad,

and removed during normal operation.

SETUP BUTTON- Activates information and update

menus for the keypad.

OS UPDATE PORT- Used to directly update the

SLK-1 keypad operating system  rmware. If an update is

released, it will be available online through the Support

Center on www.russound.com. Look in the

“C-Series System - Firmware & Software Updates” section

under C-Series System. The Advanced Programming

Cable is available from Russound, Part #2500-521065.

SLK-1 Keypad to MCA Controller RJ-45 Connection

Each keypad connects to a Keypad Port on the back of the

controller (MCA-C3 controller shown below). Connections

are made using CAT-5 cable with an RJ45 connector (wiring

scheme shown below). An SA-ZX3 Keypad Splitter can be

used to add additional keypads to each zone.

Press

Volume Up

or Down

buttons to

adjust volume

level

Press and

release source

button to

scroll through

the available

sources

Red LED will

blink to indicate

IR remote

reception

Speci cations

Power requirements: 12 VDC 180mA CAT-5

CAT-5e connection: RJ-45 (T568A standard)

Dimensions: 1.875"W x 2.7"D x 1.47"H

(4.7 x 6.9 x 3.7 cm)

Weight: 4.5 oz. (127.6 g)

Max cable length: 300’ (CAT-5)

Fits 1 Gang UL/CSA Approved 18 ci Junction Box

SLK-1 Front View SLK-1 Top View

Electrical Box SLK-1 Keypad Frame Plate Trim Plate

7. Reverse the order for installation, taking the following

precautions:

a. Place button caps correctly on the key mat. Make sure the key

mat is positioned properly on the circuit board and without dust

or debris on the button contact points prior to attaching the

Bezel Molding.

b. Make sure that there isn’t any debris or  ngerprints on either

the display or back of the Display Lens prior to reattachment.

Use a clean, dry, lint-free soft cloth to gently wipe the display or back

of the Display Lens to clean if necessary. Never use cleaning agents as

this can cause streaking or permanent damage to either part.

Buttons Bezel MoldingMetal Frame

Key Mat

Display

Lens

Note:

Place individual

buttons on key mat

matching the

diagram below.

Key Mat

Individual Buttons

audio everywhere

The SLK-1 Single Line Keypad is an in-wall Decora®

style single-gang keypad designed for individual zone

control of an MCA-C3 or MCA-C5 Multizone Controller

Ampliﬁ er.

The SLK-1 uses a ﬁ ve character LCD to display the cur-

rent source, volume level and system status. Designed

for basic zone control, its white backlit, soft-touch

buttons allow for easy access to volume, power and

source selection as well as a zone speciﬁ c favorite and

simple source transport option – play/pause, previous

and next.

For added convenience, you can turn the whole system

on or off and the SLK-1 features an IR receiver for control

and IR repeating.

5 Character LCD shows source name, volume level and system status

Single-gang Decora®-style keypad design exclusively for the MCA-C3 and MCA-C5 controllers

Conversion kits available in 5 color options

Responsive easy to use buttons & visual feedback for simple control

Standard Features

Product specificaties

Merk:	Russound
Categorie:	Hifi systeem
Model:	SLK-1

Heb je hulp nodig?

Als je hulp nodig hebt met Russound SLK-1 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden

Uw naam*

Jouw email*

Schrijf hier uw vraag

Handleiding Hifi systeem Russound

Russound CAA66 Handleiding

6 April 2024

Russound USRC Handleiding

6 April 2024

Russound MCA-66 Handleiding

6 April 2024

Russound XTS5.5 Handleiding

6 April 2024

Russound BTA-2 Handleiding

6 April 2024

Russound KPSC Handleiding

6 April 2024

Russound MCA-88 Handleiding

6 April 2024

Russound XTSPlus Handleiding

6 April 2024

Russound ISK2 Handleiding

6 April 2024

Russound TBL-75 Handleiding

6 April 2024

Handleiding Hifi systeem

Nieuwste handleidingen voor Hifi systeem

Lenoxx CD813 Handleiding

16 November 2024

Denon CEOL N-8 Handleiding

16 November 2024

Fiio M7K Handleiding

16 November 2024

Fiio X1II Handleiding

16 November 2024

Fiio M3 Handleiding

16 November 2024

Fiio X3 Mark III Handleiding

16 November 2024

Pro-Ject BT Box E HD Handleiding

15 November 2024

Blaupunkt RCD 204 Handleiding

15 November 2024

Samsung MM-X7 Handleiding

15 November 2024

Auna VCP-191 Handleiding

14 November 2024
