M10 Kit-C
User Manual
Contents
• M10, Steel Eyebolt – 3 each
• Conical Spring Washer – 3 each
• User Manual TD-000289-00
• Warranty Statement TD-000453-01.
IMPORTANT SAFETY INSTRUCTIONS
NOT: The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of
important safety, and operating and maintenance instructions in this manual.
Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, enclosures,
transducers, brackets and associated equipment for damage. Any missing, corroded, deformed, or non-load rated
component could significantly reduce the strength of the installation or placement. Any such condition severely reduces
the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading
conditions of the installation and any possible short-term, unexpected overloading. Never exceed the rating of the
hardware or equipment.
Consult a licensed, Professional Engineer regarding physical equipment installation. All local, state and national regulations regarding the
safety and operation of equipment are understood and adhered to.
• Use only load rated hardware to attach to the eyebolts when suspending these products.
• Do not suspend these products from any structural element on the enclosure other than the load rated M10 suspension points.
• Install in accordance with instructions by QSC, LLC instructions and under
the supervision of a licensed Professional Engineer.
Vertical Suspension of Composite Loudspeaker
Enclosures
Install Two Surface Eyebolts
Refer to — Figure 1
1. On the enclosure, locate the two adhesive plastic covers, protecting the
enclosure’s M10 threads, and remove them.
2. Place one conical spring washer onto the threaded portion of an eyebolt
and carefully thread the eyebolt assembly into the enclosure’s threads.
Repeat for the other M10 fitting.
3. Tighten each eyebolt until shoulder is snug against the spring washer and
the spring washer is snug against the enclosure. Tighten the eyebolts down
and then continue to rotate until they are positioned asdesired.

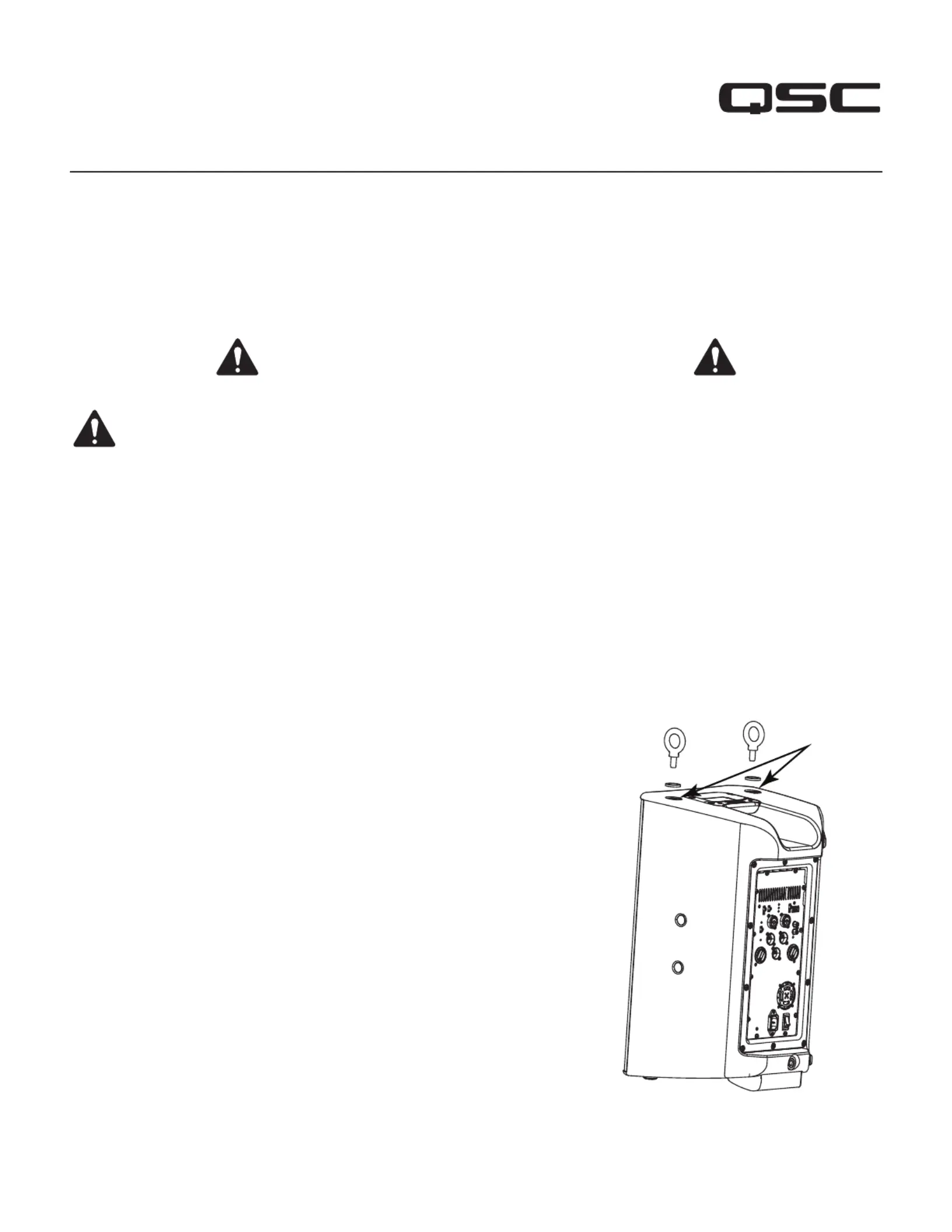

— Figure 1 —
Top eyebolt
installation
locations
for vertical
suspension.
®
TD-000289-01-D
*TD-000289-01*
2
TD-000289-01-D
Install One Pull-back Eyebolt (K Series and KLA12)
Refer to — Figure 2.
1. At the rear of the enclosure, just below the amplifier module, locate
the adhesive plastic cover, which protects the enclosure’s M10 thread,
and remove it.
2. Place one conical spring washer onto the threaded portion of
an eyebolt and carefully thread the eyebolt assembly into the
enclosure’sthreads.
3. Tighten each eyebolt until shoulder is snug against the spring washer
and the spring washer is snug against the enclosure. Tighten the
eyebolts down and then continue to rotate until they are positioned
asdesired.
K.2 Series Suspension
Refer to — Figure 3.
The K.2 Series loudspeakers each have two M10 suspension points, and one pull-back ring.
1. M10 suspension points
a. On the enclosure, locate the two adhesive plastic covers (1), protecting the enclosure’s
M10 threads, and remove them.
b. Place one conical spring washer onto the threaded portion of an eyebolt and carefully
thread the eyebolt assembly into the enclosure’s threads. Repeat for the other M10 fitting.
c. Tighten each eyebolt until shoulder is snug against the spring washer and the spring
washer is snug against the enclosure. Tighten the eyebolts down and then continue to
rotate until they are positioned as desired.
2. Pull-back ring – attach the suspension cabling to the pull-back ring (2).

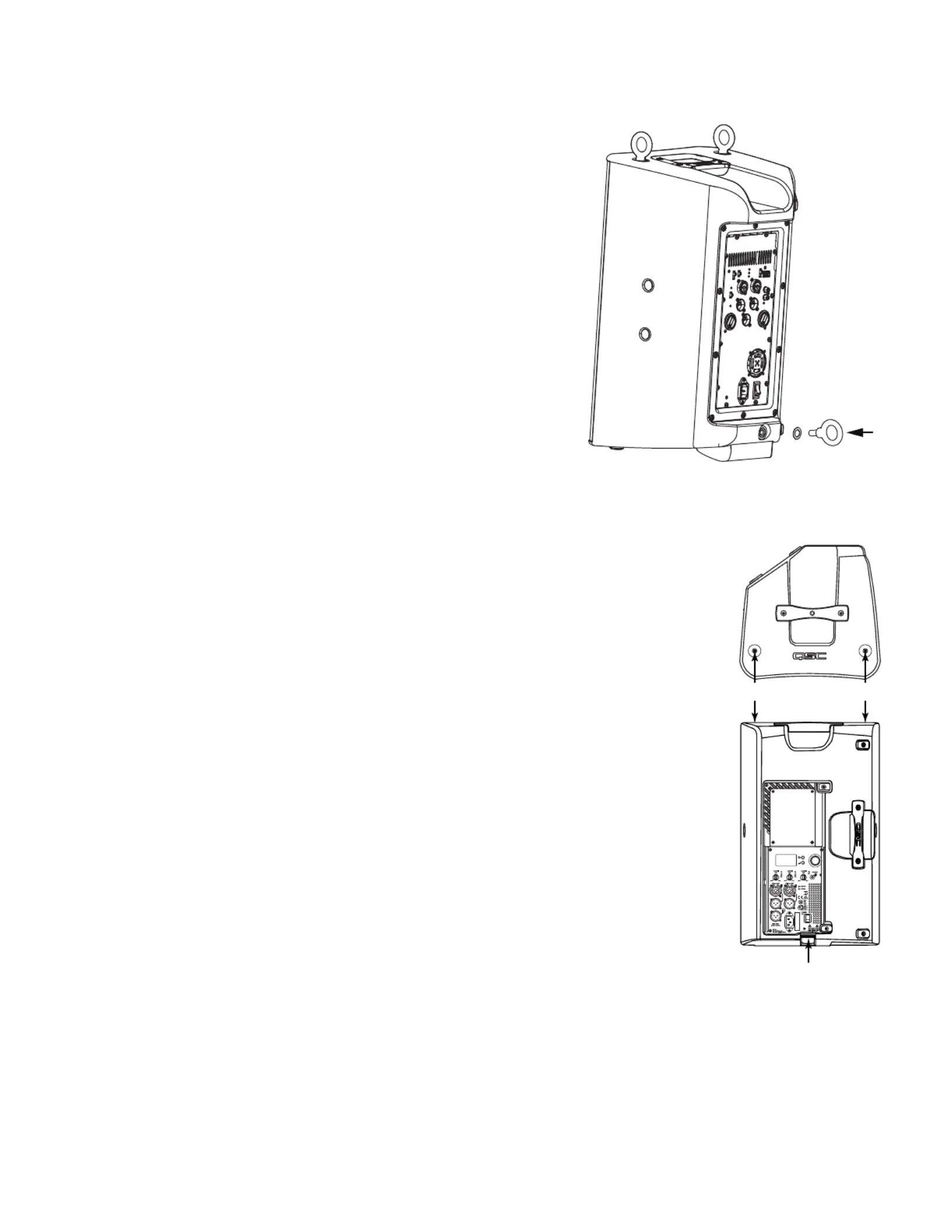

— Figure 2 —
Install
Pull-back
Eyebolt
— Figure 3 —
1 1
2
© 2013 – 2017 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries.
All other trademarks are the property of their respective owners.
http://patents.qsc.com.
