QSC AD-C4T-LPZB Handleiding
Lees hieronder de 📖 handleiding in het Nederlandse voor QSC AD-C4T-LPZB (6 pagina's) in de categorie Speaker. Deze handleiding was nuttig voor 2 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld
Pagina 1/6

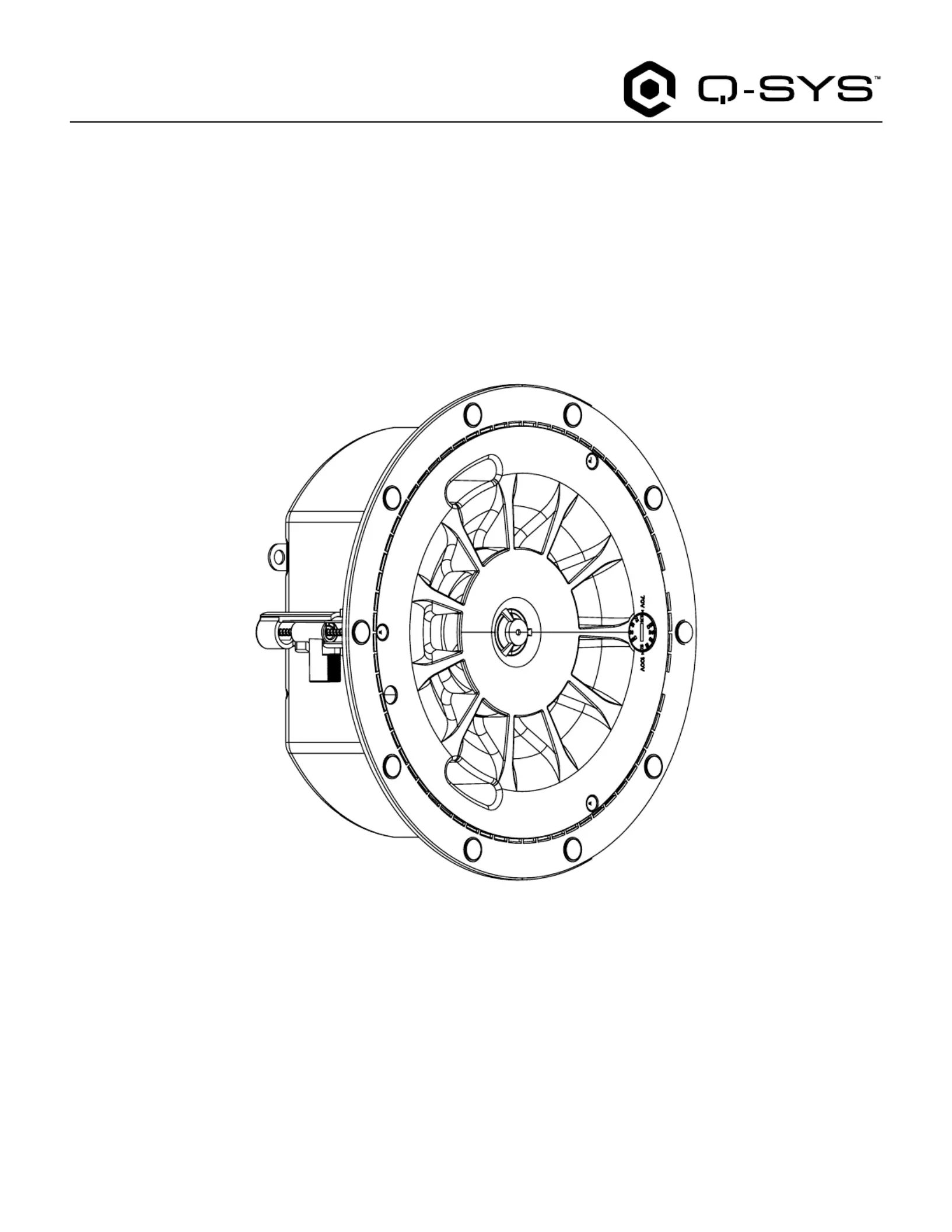

Hardware User Manual
AcousticDesign™ Series
AD-C4T-LPZB Ceiling Mount Loudspeaker – Low Profile, Zero Bezel
TD-001690-01-A
*TD-001690-01*
2
EXPLANATION OF TERMS AND SYMBOLS
The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily
injury or death.
The term “ ” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it CAUTION!
may result in damage to the equipment that may not be covered under the warranty.
The term “IMPORTANT!” indicates instructions or information that are vital to the successful completion of theprocedure.
The term " " is used to indicate additional useful information.NOTE
The lightning flash with arrowhead symbol in a triangle alerts the user to the presence of uninsulated dangerous voltage within
the product’s enclosure that may constitute a risk of electric shock to humans.
The exclamation point within a triangle alerts the user to important safety, operating, and maintenance instructions in this
manual.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE.
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Do not use this apparatus in or near water or liquids.
4. Clean only with a dry cloth.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce
heat.
6. Only use attachments/accessories specified by the manufacturer.
7. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
8. Do not use any aerosol spray, cleaner, disinfectant or fumigant on, near or into the apparatus.
9. Do not block any ventilation opening. Keep ventilation opening free of dust or other matter.
10. Install in accordance with the manufacturer’s instructions.
11. Adhere to all applicable, local codes.
12. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.
Maintenance and Repair
WARNING: Advanced technology, e.g., the use of modern materials and powerful electronics, requires specially adapted
maintenance and repair methods. To avoid a danger of subsequent damage to the apparatus, injuries to persons and/or the creation
of additional safety hazards, all maintenance or repair work on the apparatus should be performed only by a QSC authorized service
station or an authorized QSC international distributor. QSC is not responsible for any injury, harm or related damages arising from any
failure of the customer, owner or user of the apparatus to facilitate those repairs.
3
Specifications and Dimensions
Product specifications and dimension drawings for the AD-C4T-LPZB can be found online at .qsys.com
RoHS Statements
The QSC Q-SYS AD-C4T-LPZB is in compliance with European RoHS Directive.
The QSC Q-SYS AD-C4T-LPZB is in compliance with “China RoHS” directives. The following table is provided for product use in China
and its territories.
QSC Q-SYS AD-C4T-LPZB
部件名称
(Part Name)
有害物质
(Hazardous Substances)
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(vi))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
电路板组件
(PCB Assemblies)
X O O O O O
机壳装配件
(Chassis Assemblies)
X O O O O O
本表格依据 SJ/T 11364 的规定编制。
O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
（目前由于技术或经济的原因暂时无法实现替代或减量化。）
This table is prepared following the requirement of SJ/T 11364.
O: Indicates that the concentration of the substance in all homogeneous materials of the part is below the relevant threshold specified in
GB/T 26572.
X: Indicates that the concentration of the substance in at least one of all homogeneous materials of the part is above the relevant threshold
specified in GB/T 26572.
(Replacement and reduction of content cannot be achieved currently because of the technical or economic reason.)
Product specificaties
| Merk: | QSC |
| Categorie: | Speaker |
| Model: | AD-C4T-LPZB |
