Features

• Injection Molded Aluminum Plated

Polypropylene Cone - Injection molded to be

very light and rigid for excellent signal tracking

• Butyl Rubber Surround - Advanced butyl

rubber surround is more rugged than foam,

resists moisture and UV, and is extremely well

damped

• Silk Dome Tweeter - Provides smooth, detailed

and warm high frequency response

• Interwoven Tinsel Leads - Tinsel leads woven

directly into the spider provide added strength

and reliability

• Rigid Powder Coated Steel Frame - Designed

for precise motor alignment

• Optimized Magnet-Motor Structure - For high

efciency and clarity of sound reproduction

Models: SX5CS, SX6CS, SX65CS

Component Speaker

Set Manual

Manuel de Composantes

Caractéristiques

• Cône en polypropylène plaqué avec

aluminium moulé par injection - pour être très

léger et rigide an d’assurer un excellent suivi

des signaux

• Caisson de basses en caoutchouc butyle - Le

caisson de basse avancé en butyle est plus

robuste que la mousse, résiste à l’humidité et

aux UV, et ore un amorti extrême

• Tweeter à dôme en soie - fournit une réponse

douce, détaillée et chaude à haute fréquence

• Fils clinquant entrelacés - ls clinquant

entrelacés directement dans l’araignée

fournissant un ajustement de la puissance et

une meilleure abilité

• Armature en acier revêtue de poudre rigide -

conçue pour un alignement précis du moteur

• Structure d’aimant-moteur optimisée - pour un

rendement élevé et une clarté de reproduction

sonore

Características

• Cono de polipropileno recubierto con aluminio

moldeado por inyección - El moldeado por

inyección es muy ligero y rígido para un excelente

seguimiento de la señal.

• Cubierta de caucho butílico - El caucho butílico

avanzado es más resistente que la espuma,

resiste la humedad y los rayos UV, y está

extremadamente bien amortiguado

• Tweeter de cúpula de seda - Proporciona una

respuesta de alta frecuencia, suave, detallada y

cálida.

• Cable Oropel entrelazado - Los hilos de oropel

entrelazados directamente dentro de la araña

proporcionan mayor resistencia y conabilidad.

• Bastidor de acero rígido con recubrimiento de

polvo - Diseñado para la alineación precisa del

motor.

• Estructura motor- imán optimizada - Para una

alta eciencia y claridad en la reproducción del

sonido.

SX Component Speaker Set Manual

BASIC INSTALLATION

Selecting the placement of your new SX Component speakers

could be as easy as using the existing factory locations or may

require you to create a new location. Speaker placement in

the door, dash, or rear deck is the most common. See your

local Phoenix Gold Dealer for additional location and

mounting assistance.

DOORS/REAR DECK

1. Many vehicles already have factory locations (Figure 1)

to house the “DROP IN” feature of the SX Component

speakers. If no existing locations are available or are not

used, check the desired location for adequate cutout

area and any depth obstructions. Make sure to allow

sufcient clearance for window tracks, structural braces,

trunk lid springs, etc.

2. Assuming enough area and depth is available, use the

provided template and trace the speaker cutout and

mounting holes onto the surface of the mounting location.

3. If the mounting surface is not structurally strong enough

TWEETER ADJUSTMENT

The tweeters pivot in their housings. When mounted low in

the door, angle the tweeter up for better high frequency

performance. In rear deck or dashboard installations, angle the

tweeter away from the rear glass to reduce destructive

reections.

CROSSOVER ADJUSTMENT

The crossover provided with the SX component set is optimized

to give the most accurate in-car response. Use only the cross-

over provided; the use of any other crossover may result in

damage to one or more of the SX series components.

to accommodate screws, (i.e. plastic, cardboard) use

the pro vided speed clips which will act as a nut for the

supplied screws.

4. Always provided water protection, if not supplied in the

vehicle. We suggest using a rain shield or equivalent. If in

doubt, please contact your Phoenix Gold Dealer.

SPEAKER INSTALLATION WITHOUT GRILL

Phoenix Gold has provided a foam mounting gasket. When

installing your new component speakers in a factory location

make sure to use the foam mounting gasket as shown in gure

1. For reverse mounted speakers place the foam gasket in

front of the speaker. This will ensure an air tight seal for your SX

speakers.

For more custom applications, or cases where the factory grill

will not be used, a high excursion protective grill has been

provided. When installing your new component speakers with

the provided SX grill use gure 2. Make sure to use

the rubber gasket to get an air tight seal.

Connect the left amplier output to the crossover for the

left component set, and the right amplier output to the

crossover for the right component set. From there connect

your component woofer and tweeters to the corresponding

crossover observing polarity (+ to +, - to -). (gure 3)

CROSSOVER INSTALLATION

We suggest you select a mounting location for the crossovers

within the cab of the vehicle, such as the kick panels or near

the amplier. If crossovers must be mounted in the door, mount

them between the moisture barrier and the innermost door

panel. MOISTURE DAMAGE WILL VOID YOUR WARRANTY.

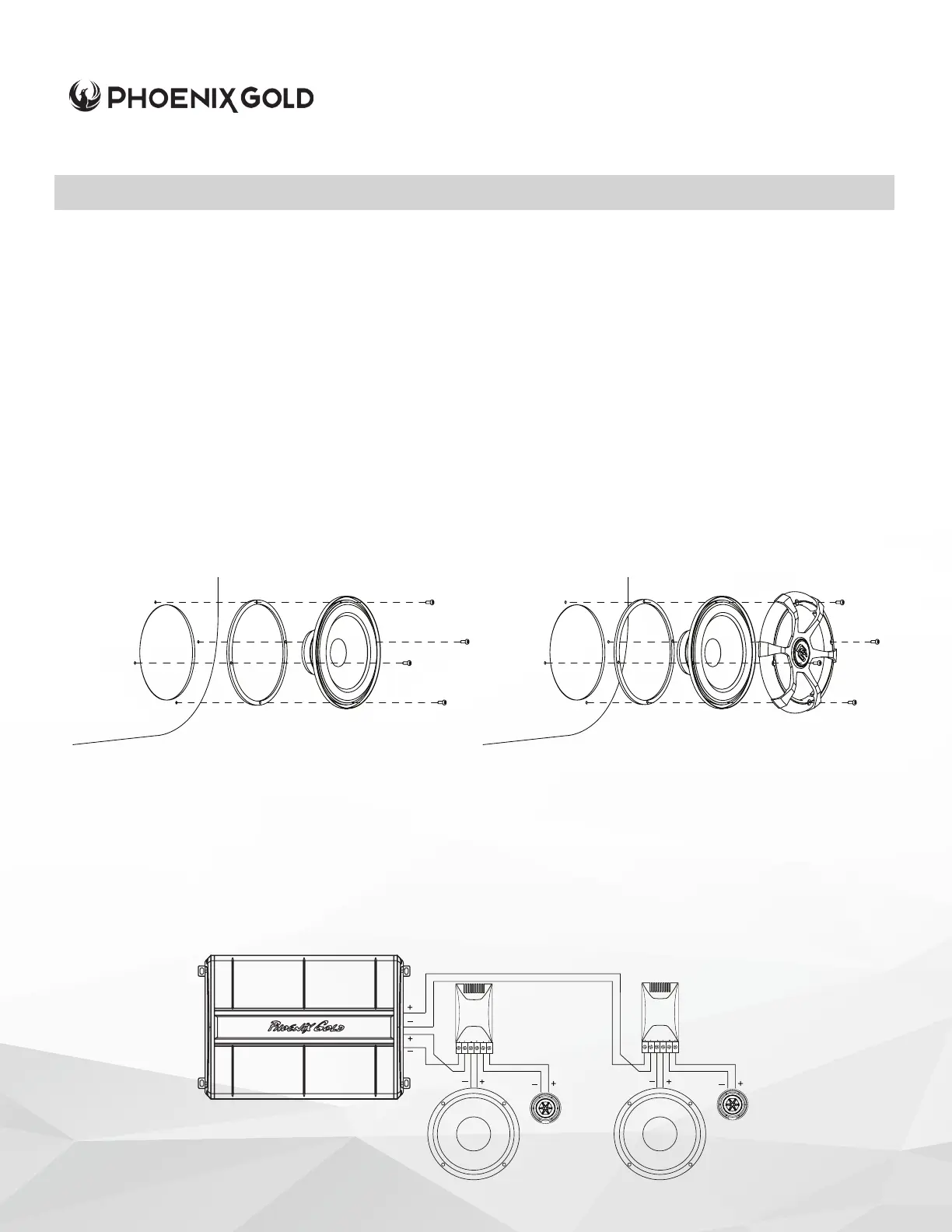

Figure 1

Mounting the speaker in a factory location.

Figure 2

Mounting the speaker in a custom application.

INPUT MID TWT

Figure 3 TWEETER TWEETER

AMPLIFIER (NOT INCLUDED)

MID RANGE WOOFER MID RANGE WOOFER

CROSSOVER

SX Component Speaker Set Manual

TWEETER ADJUSTMENT SWITCH

When installing your SX Component system you may want

to adjust your tweeter setting to t your specic application.

Phoenix Gold has provided a tweeter adjustment switch in

the SX Component System crossover.To access this switch

you must rst remove the crossover cover by squeezing the

tabs on the side of the unit (Figure 4) and gently twisting the

lid counter clockwise. Once the lid is removed you will see a

switch located in the center of the circuit board. To increase

the tweeter output move the switch to the +2dB position. If this

switch is in the +2dB location and you want to decrease the

tweeter output move the switch to the 0dB position. Once you

have your crossover congured place the lid back into place

by centering the lid over the circuit board and press straight

down until it snaps into place.

You will have to do this for each of the two crossovers included

with this SX Component System. The process is the same for

each.

TWEETER INSTALLATION

With a variety of supplied mounting options, the SX series

tweeter is easy to install in any vehicle. Each SX component set

comes with a ush mount and surface mount installation kit. For

other custom mounting congurations, please contact your

authorized Phoenix Gold Dealer.

Flush Mount: For optimal tweeter installation, use the FLUSH

MOUNT option. The FLUSH MOUNT requires 3⁄4” depth and a

2-1/16” hole in the mounting surface (gure 5)

Surface Mount: Screws are provided for use when cutting a hole

in the door panel or other mounting surface is not an option.

Make sure that the surface mount location is free of passenger

movement that might damage the tweeter. (gure 6)

The SX tweeters pivot in their housings. This allows the user to

align the tweeter during the installation process for optimum

listening results.

For best results, always try to maintain equal path lengths

between the right and the left tweeter and the listening

position. This is usually accomplished by mounting as low

and deep as possible in a kick panel installation, or high and

deep in a dashboard installation. Be cautious in dashboard

installations not to reect the tweeter off of the windshield:

this increases reections and can greatly diminish the overall

system listening quality.

For door panel installations, try to angle the tweeters toward

the listener to optimize high frequency performance.

Figure 4: Tweeter

Switch Adjustment CROSSOVER BASE

CROSSOVER LID

Figure 5

Figure 6

TWEETER ASSEMBLY - FLUSH MOUNT TWEETER ASSEMBLY - SURFACE MOUNT

FLUSH MOUNT RETAINING RING

Slide the retainer ring over the

tweeter housing onto the inner

cup. Rotate the vretainer ring to

lock all three pieces into place.

SURFACE MOUNT RETAINING RING

Slide the retainer ring over the

tweeter housing onto the outer

cup. Rotate the retainer ring to

lock all three pieces into place.

INNER CUP

Once you have the inner portion

assembled slide it into the outer

cup and twist to lock into place.

TWEETER HOUSING

SPRING RETAINER

The spring retainer is what holds

the tweeter in place. Its  ngers

clamp against the inside of the

wall you are mounting the

tweeter to.

TWEETER HOUSING

OUTER HOUSING

OUTER CUP

TWEETER

ADJUST

SWITCH
