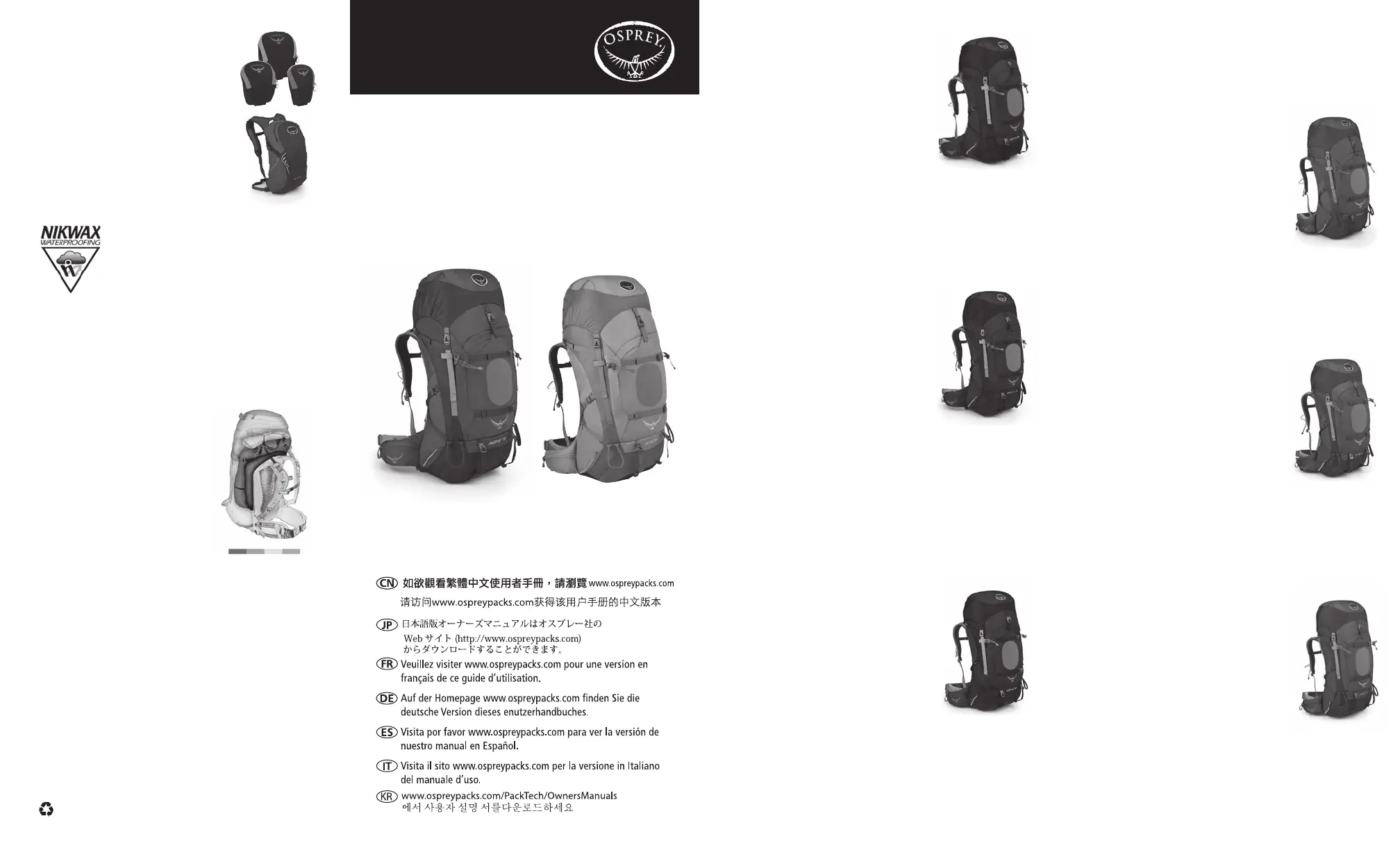

Aether / Ariel

Owner’s Manual

Congratulations on your purchase of an Osprey Aether/

Ariel Series Lightweight Custom Fit Technical Backpack.

Our obsession with detail rewards you with a truly

full-featured pack and we want to be sure that you

understand and utilize your new Osprey completely.

Here’s a full tour of your pack from the ground up.

updated 02/14/13

Printed on recycled content paper

PACK CARE

Osprey recommends Nikwax

products for pack care.

For complete instructions on cleaning your pack, visit :

www.ospreypacks.com/PackTech/PackCare

Your pack is an extremely durable product built for years of

use and abuse. However, some basic procedures will ensure

that your pack holds up optimally.

• Aftereachtripbesuretocleanoutyourpackthoroughly.

• Ifit’swet,hangittodry.

• Loosenallthestraps.

• Washyourpackeverynowandthen.(Donotimmerse

travel packs with our High Road™WheeledChassis.)

OSPREY ADDONS™

Customize and protect your pack with Osprey’s

full line of AddOns.™ For the full lineup, please visit

your local Osprey retailer or visit our web site

www.ospreypacks.com.

GUARANTEE

At Osprey, sustainability is

designed into our packs, which

are built to last

a lifetime and backed by a superb guarantee, no matter how hard you are on your

gear. Visit www.ospreypacks.com for details.

QUESTIONS?

Contact Osprey Customer Service. Real help from

real people. Scroll over the customer service tab at

www.ospreypacks.com.

OSPREY PACKS, INC.

115 PROGRESS CIRCLE

CORTEZ, CO 81321 USA

866-284-7830

WWW.OSPREYEUROPE.COM

AETHER 85

The Aether 85 is a top loading, men’s lightweight custom

ﬁt backpack designed speciﬁcally for longer backpacking

trips and mountaineering expeditions.

(Availableinselectmarketsonly)

Unique Features

• Men’sIsoForm4 CM™ lightweight, custom ﬁt hipbelt is

heat moldable providing optimal lightweight ﬁt,

comfort and performance

• Men’sIsoForm4™ spacer mesh harness provides

comfortable ﬁt and carry

Specs S M L XL

CubicInches 5004 5187 5370 5553

Liters 82 85 88 91

Lbs / Ounces 4/9 4/13 5 5/4

Kilograms 2.08 2.18 2.28 2.38

AETHER 70

TheAether70isatoploading,men’slightweightcustom

ﬁt backpack designed speciﬁcally for backpacking trips and

mountaineering expeditions.

Unique Features

• Men’sIsoForm4 CM™ lightweight, custom ﬁt hipbelt

is heat moldable providing optimal lightweight ﬁt,

comfort and performance

• Men’sIsoForm4™ spacer mesh harness provides

comfortable ﬁt and carry

Specs S M L XL

CubicInches 4089 4272 4455 4638

Liters 67 70 73 76

Lbs / Ounces 4/8 4/12 4/15 5/3

Kilograms 2.04 2.14 2.24 2.34

AETHER 60

TheAether60isatoploading,men’slightweightcustomtbackpackdesigned

speciﬁcally for longer backpacking trips and mountaineering expeditions.

Unique Features

• Men’sIsoForm4 CM™ lightweight, custom ﬁt hipbelt

is heat moldable providing optimal lightweight ﬁt,

comfort and performance

• Men’sIsoForm4™ spacer mesh harness provides

comfortable ﬁt and carry

Specs S M L

CubicInches 3478 3661 3844

Liters 57 60 63

Lbs/Ounces 4/7 4/11 4/14

Kilograms 2.02 2.12 2.22

AETHER / ARIEL KEY FABRICS

Key Fabrics

• 210Dnylondobby

• 210Dnylonblockshadow

• 75Dnylonstretchwovenripstop

• 500Dplainweavenylonoxford

WOMEN’S SPECIFIC FIT

TheAriel75,65and55arethewomen’sspeciccounterpartstotheAetherSeries.

The Ariel’s harness, hipbelt and torso sizing are designed to ﬁt a woman’s body,

providing superb comfort and performance.

ARIEL 75

TheAriel75isatoploading,women’slightweightcustomt

backpack designed speciﬁcally for longer backpacking trips

and mountaineering expeditions.

Unique Features

• Women’sIsoForm4 CM™ lightweight,

custom ﬁt hipbelt is heat moldable providing optimal

lightweight ﬁt, comfort and performance

• Women’sIsoForm4™ spacer mesh

harness provides comfortable ﬁt and carry

Specs WXS WS WM

CubicInches 4211 4394 4577

Liters 69 72 75

Lbs/Ounces 4/5 4/8 4/12

Kilograms 1.95 2.05 2.15

ARIEL 65

TheAriel65isatoploading,women’slightweightcustom

ﬁt backpack designed speciﬁcally for longer backpacking

trips and mountaineering expeditions.

Unique Features

• Women’sIsoForm4 CM™ lightweight, custom ﬁt hipbelt

is heat moldable providing optimal lightweight ﬁt,

comfort and performance

• Women’sIsoForm4™ spacer mesh harness provides

comfortable ﬁt and carry

Specs WXS WS WM WL

CubicInches 3600 3783 3967 4150

Liters 59 62 65 68

Lbs/Ounces 4/4 4/8 4/11 4/15

Kilograms 1.93 2.03 2.13 2.23

ARIEL 55

The Ariel 55 is a top loading, women’s lightweight custom ﬁt

backpack designed speciﬁcally for backpacking trips and

mountaineering expeditions.

Unique Features

• Women’sIsoForm4 CM™ lightweight, custom ﬁt hipbelt

is heat moldable providing optimal lightweight ﬁt,

comfort and performance

• Women’sIsoForm4™ spacer mesh harness provides

comfortable ﬁt and carry

Specs WXS WS WM

CubicInches 2990 3173 3356

Liters 49 52 55

Lbs/Ounces 4/2 4/6 4/10

Kilograms 1.88 1.98 2.08

Aether Ariel

PACK YOUR PACK

Loading your pack correctly

optimizes comfort while you

are carrying it. For complete

information visit:

www.ospreypacks.com/

PackTech/HowToPackYourPack

Heavy Light

SHARED FEATURES

AirScape™ Suspension

The AirScape™ Suspension featured on all Aether/

ArielSeriespacksconsistsofaLightWire™

peripheralframe,anHDPEframesheetwitha

single6061-T6centerstayandanAirScape™

ridge molded foam backpanel with smooth spacer

mesh lumbar fabric for optimal load transfer and

load bearing comfort.

AirScape™ Suspension Fit Adjustment

Think of wearing your pack in this way: you’ll adjust

the suspension onto your body and then you’ll

adjust the pack onto the suspension.

Loosen

all straps and then put the pack on and snug

down the hipbelt.

Pull the lower shoulder strap

adjusters into a comfortable position and then

pull the load lifter straps in making sure that the

harness doesn’t rise oﬀ your shoulder.

Adjust

the sternum strap up or down to a comfortable

position and then clip in.

Your pack’s weight distribution and feel will

change throughout your trip, therefore no

adjustment is perfect. Adjust your pack as

much as you need, redistributing your load is

key to comfort.

IsoForm

4™ Harness

TheIsoForm4™ Harness is a gender speciﬁc

harness with spacer mesh fabric providing optimal

comfort and carry.

Adjusting the Harness

Loosen two upper load lifter and two lower A B

harness straps completely. CWithonehand

holding the top of the harness slip the other hand

between the backpanel and harness to break the

hook and loop closure. Slide harness up equally D

using the arrows on the backpanel and harness as

a guide and push down on the backpanel to re-

engage hook and loop closure.

IsoForm

4 CM™ Hipbelt

TheIsoForm4 CM™ Hipbelt is a heat

moldable, gender speciﬁc custom ﬁt

hipbelt balancing ﬁrmness and cushioning

for optimal carry. Visit our website at

www.ospreypacks.com/PackTech/CustomMolding

to learn more.

Removing the hipbelt

To remove the hipbelt, unclip the buckle for A

each hipbelt pocket to release the pockets from

the hipbelt. Unclip each of the two buckles B

connecting the hipbelt to the main pack body. Slide

one hand between the lumbar pad and the hipbelt

to break the hook and loop closure while using

the other hand to pull the hipbelt through the side

opening and remove. Reverse to reengage hipbelt.

ErgoPull™ Hipbelt Closure

To operate, loosen the webbing enough so that

you can connect the center buckle. Grasp the

loose ends of the webbing on either side and

pull in and across evenly with both hands at the

same time.

Top Pocket/Lumbar Pack Conversion

The top pocket is removable and converts easily to

a lumbar pack. To remove undo the two front top A

pocket compression strap buckles and the two B

quick release buckles connecting the top pocket

to the backpanel and thread the center strap C

of the top pocket through the sewn in loop on the

pack’s top skirt to remove. Reverse to reengage.

A fabric lumbar patch conceals a sewn in webbing

hipbelt with buckle. Remove the webbing from

its sheath, connect the male/female buckles

used to connect the top pocket to the main pack

body and adjust to your waist using the modiﬁed

straightErgoPull™hipbeltclosure.Thelumbar

pack hipbelt buckle is also compatible with the

main pack’s hipbelt should the need for ﬁeld

replacement arise.

Pack Access

EveryAether/ArielSeriespackfeaturesthree

access points allowing additional loading/

unloading ease and convenience.

• Toploadyourpackbyippingbackthetop

pocket, pulling the cord lock and opening

the skirt and detaching the red internal

compression strap. Once loaded make sure to

reattach the red internal compression strap and

cinch over the contents to stabilize the load.

• J-Zipdualzipperedfrontpanelentryallows

easy access to contents.

• Thereisbottomaccessviaaconvenient,

dual-zippered wide mouth sleeping bag

compartment with a drop down divider.

Hydration Compatible

An external hydration sleeve located between the

harness and backpanel of your pack simpliﬁes

ﬁlling, insertion and removal of the reservoir and

protects the contents of your pack from spills.

To use, locate the H2O icon between the A

harness and backpanel and unclip the quick

release buckle. Slide your hydration reservoir B

into the compartment using the sewn in hanger

to suspend if needed and then re-clip the quick C

release buckle. Reverse to remove.

External Zippered Pockets

EachAether/ArielSeriesPackfeaturestwowater

resistant zippered hipbelt pockets helping to keep

often needed items organized and handy.

Stretch Mesh External Pockets

A stretch woven front pocket and two stretch

wovensidepocketsfeaturingInsideOut™

Compression help you to tension and

secureloadseasily.ToroutetheInsideOut™

compression straps as desired, locate the A

duckbill at the top and side of the side pocket

and unthread the webbing through this buckle

and the corresponding slider buckle on the front

panel of the pack Now route the webbing for B

inner or outer compression by positioning the

slider buckle inside or outside of the side pocket

and reversing the process above.

External Compression

Dualuppersidecompressionstrapsallowyouto

compress and stabilize loads as well as providing

side carry options for longer items.

Your pack also utilizes a three strap

StraightJacket™stylecompressionsystem.

Adjust the straps as required by the load. Two

extra female buckles on the right side of your

packallowyoutoStraightJacket™yourpack

when carrying a minimal load. Connect the straps

to the two female buckles at the edge of the

backpanel and adjust to desired tension.

Stow-on-the-Go™ Attachment System

To operate: shorten trekking poles to a

manageable size, locate the elasticized loop A

below the side pocket on the left side of pack then

pull loop away from the side pocket and insert the

basket end of your poles. On the left harness B

strap locate the trekking pole icon, engage C

the cord lock beneath the fabric patch with your

thumb and foreﬁnger and pull up on the cord to

open, place pole handles in the loop and tighten

with the cord lock to secure. Reverse to remove.

Tool Attachment

EachAether/ArielSeriespackfeaturesdualice

tool loops and bungee tool tie-oﬀs. These clove

hitch style bungees feature Osprey’s exclusive

Y-Clip allowing you to loop tool handles quickly,

with a cord lock to secure. Loosen the cord lock

and route handles through the bungee. Tighten

the cord lock, nesting closure into the Y-Clip to

secure. Reverse to remove.

Sleeping Pad Straps

Aether/Ariel Series packs feature removable

sleeping pad straps allowing you to easily

attach a pad, tent or other items to the outside

of your pack.

AddOns™ Pack Attachment

All Aether/Ariel packs are Osprey AddOns™

compatible. The sliders along the sides of the

DaylitepackandCramponPocketAddOns™

button through the four cord loops found on your

pack’sfrontpanel,beneaththeStraightJacket™

wings. Push the slider through the cord loop from

underneath and tug on the straps to tighten.

Adjusting the tension on the straps will allow you

to stash additional gear behind the AddOns™.

Integrated Raincover

(Availableinselectmarketsonly)

DeployingfromthetoppocketofyourAether/Ariel

Series pack is an integrated, removable raincover

ideal to keep the contents in adverse conditions.

To deploy the raincover, locate the raincover A

icon in the top zippered compartment of your top

pocket and , drape the raincover over your pack B

from top to bottom and cinch in place to secure.

Note: To prevent mildew, remove raincover and

allow to dry entirely after use in the rain.

Hydraulics™ Reservoir

Add an Osprey Hydraulics™ 2 or 3 liter hydration

reservoir to your pack for stable, eﬃcient, on-

the-go water management. For more information,

please visit your local Osprey retailer or visit www.

ospreypacks.com.

Product specificaties

Merk:	Osprey
Categorie:	Tas
Model:	Aether 70

Heb je hulp nodig?

Als je hulp nodig hebt met Osprey Aether 70 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden

Uw naam*

Jouw email*

Schrijf hier uw vraag

Handleiding Tas Osprey

Osprey Tempest 6 Handleiding

17 November 2024

Osprey Tempest 44 Handleiding

17 November 2024

Osprey Transporter 40 Handleiding

17 November 2024

Osprey Transporter 130 Handleiding

17 November 2024

Osprey Transporter 65 Handleiding

17 November 2024

Osprey Variant 37 Handleiding

17 November 2024

Osprey Variant 52 Handleiding

17 November 2024

Osprey Verve 9 Handleiding

17 November 2024

Osprey Viper 13 Handleiding

17 November 2024

Osprey Viper 3 Handleiding

17 November 2024

Handleiding Tas

Nieuwste handleidingen voor Tas

Blackburn Outpost Corner Handleiding

18 December 2024

Sony LCS-A750 Handleiding

22 November 2024

Middle Atlantic LACE-WB6-24 Handleiding

20 November 2024

Topeak FIXER 8e Handleiding

29 Augustus 2024

Topeak SMARTPHONE DRYBAG Handleiding

30 Juli 2024

Blackburn Outpost Carryall Handleiding

11 Juni 2024

Topeak Backloader Wishbone Handleiding

11 Juni 2024

Salewa MTN Trainer 28 WS Handleiding

27 April 2024

Salewa Alptrek 65+10 o Handleiding

27 April 2024

Salewa Ultra Train 22 Handleiding

27 April 2024
