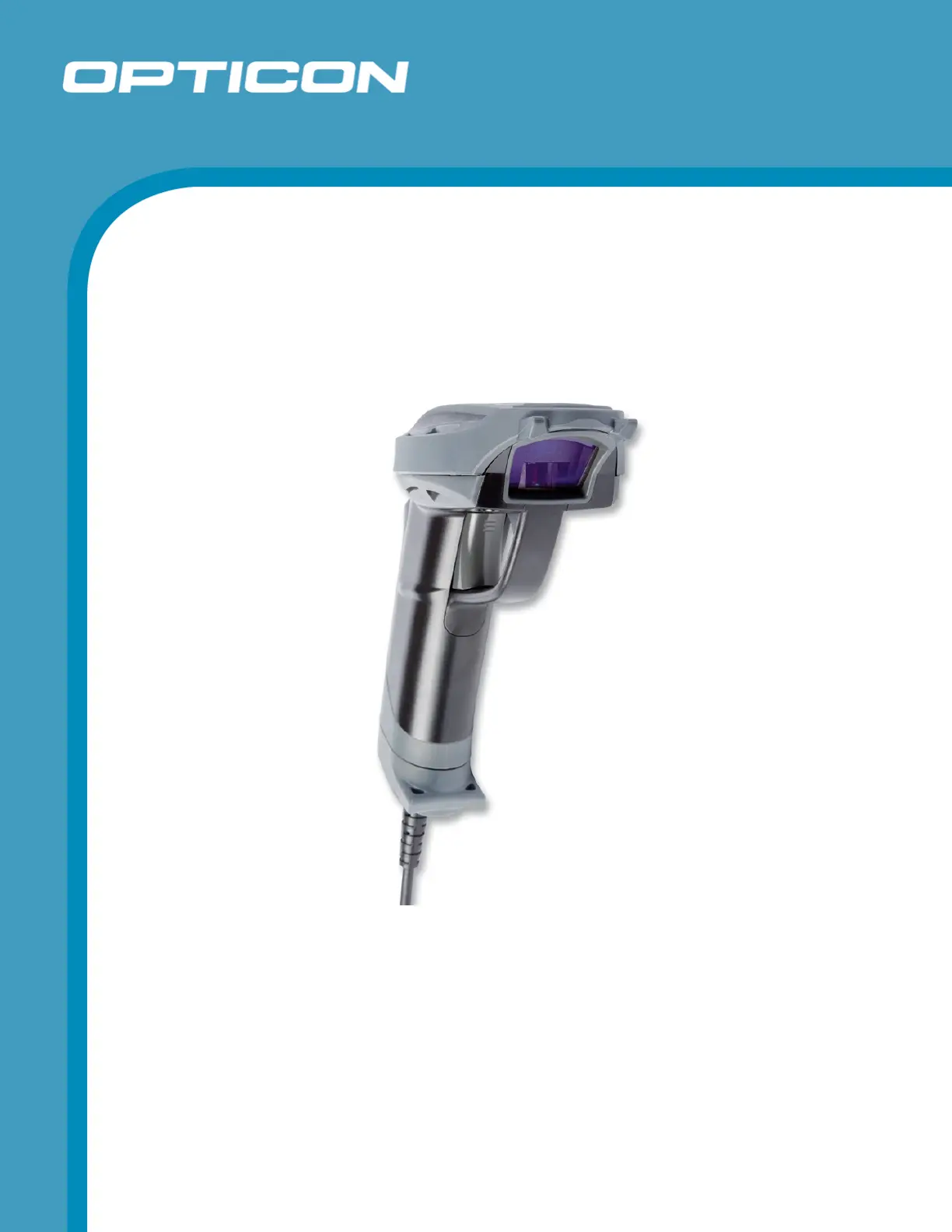

Rugged Handheld Laser Scanner

OPR 3001

The OPR 3001 is a rugged handheld laser

barcode scanner with protection against

dust and splashing water to ensure reliable

operation in harsh environments Specifications Manual

Opticon

OPR 3001

Specifications Manual

All information subject to change without notice.

Document History

Model Number: OPR 3001 Specification Number: SS06106

Edition: 2A Original Spec Number: SS06080

Date: 2006-12-27

This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic or

machine readable form without prior written consent of Opticon.

Limited Warranty and Disclaimers

PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE

PRODUCT.

Serial Number

A serial number appears on all Opticon products. This official registration number is directly related to the device

purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty.

Warranty

Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and

workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in

materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by

modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned under

warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect,

consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon

has been informed about the possibility of such damages.

Packaging

The packing materials are recyclable. We recommend that you save all packing material to use should you need to

transport your scanner or send it for service. Damage caused by improper packaging during shipment is not covered by

the warranty.

Trademarks

Trademarks used are the property of their respective owners.

Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd., 12-17,

Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002. TEL +81-(0) 48-446-1183; FAX +81-(0) 48-446-1184

SUPPORT

USA Europe

Phone: 800-636-0090

Email: support@opticonusa.com Email: support@opticon.com

Web: www.opticonusa.com Web: www.opticon.com

Opticon

OPR 3001

Specifications Manual

Contents

1. Abstract ....................................................................................................................................... 7

2. Overview...................................................................................................................................... 7

3. Physical Features ....................................................................................................................... 8

3.1. Dimensions ......................................................................................................................... 8

3.2. Weight ................................................................................................................................. 8

4. Environmental Specifications ................................................................................................... 8

4.1. Operating Temperature and Humidity................................................................................. 8

4.2. Storage Temperature and Humidity .................................................................................... 8

4.3. Ambient Light Immunity....................................................................................................... 8

5. Electrical Specifications ............................................................................................................ 9

5.1. Electrical Characteristics..................................................................................................... 9

6. Optical Specifications .............................................................................................................. 10

6.1. Laser Scan Specifications................................................................................................. 10

6.1.1. Tilt of Laser Scan Line .............................................................................................................10

6.1.2. Curvature of Scan ....................................................................................................................11

7. Technical Specifications.......................................................................................................... 11

7.1. Print Contrast Signal (PCS) .............................................................................................. 12

7.2. Minimum Resolution.......................................................................................................... 12

7.3. Scan Area and Resolution ................................................................................................ 12

7.3.1. Depth of Field...........................................................................................................................12

7.4. Pitch, Skew, and Tilt.......................................................................................................... 14

7.4.1. Pitch Angle...............................................................................................................................14

7.4.2. Skew Angle and Dead Zone ....................................................................................................15

7.4.3. Tilt Angle ..................................................................................................................................16

7.5. Curvature .......................................................................................................................... 17

8. Interface Specifications ........................................................................................................... 17

8.1. RS-232C Interface Specification ....................................................................................... 17

8.1.1. Settings and Communication...................................................................................................17

8.1.2. Signal Level..............................................................................................................................18

8.1.3. Interface Circuit........................................................................................................................18

8.1.4. Character Format.....................................................................................................................19

8.1.5. Communication Format............................................................................................................19

Product specificaties

Merk:	Opticon
Categorie:	Barcode lezer
Model:	OPR3001
Kleur van het product:	Grey, White
Gewicht:	230 g
Capaciteit van de accu/batterij:	130 mAh
Certificering:	CE, FCC, VCCI, RoHS, JIS-C-6802, IEC 60825-1, FDA CDRH
Ingangsspanning:	6 V
Temperatuur bij opslag:	-30 - 70 °C
Golflengte:	650 nm
Standaard interfaces:	RS-232
Afmetingen (B x D x H):	68 x 150 x 155 mm
Bedrijfstemperatuur (T-T):	-10 - 60 °C
Relatieve vochtigheid in bedrijf (V-V):	5 - 90 procent
Bereik kantelhoek:	0 - 20 °
Pitch lees-hoek:	0 - 35 °
Scansnelheid:	100 sec/pagina
Tilt lees-hoek:	0 - 20 °
Decoding standaarden:	JAN/UPC/EAN, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
