Expandable Soundbar
Sub woofer
(MSB5305 only)

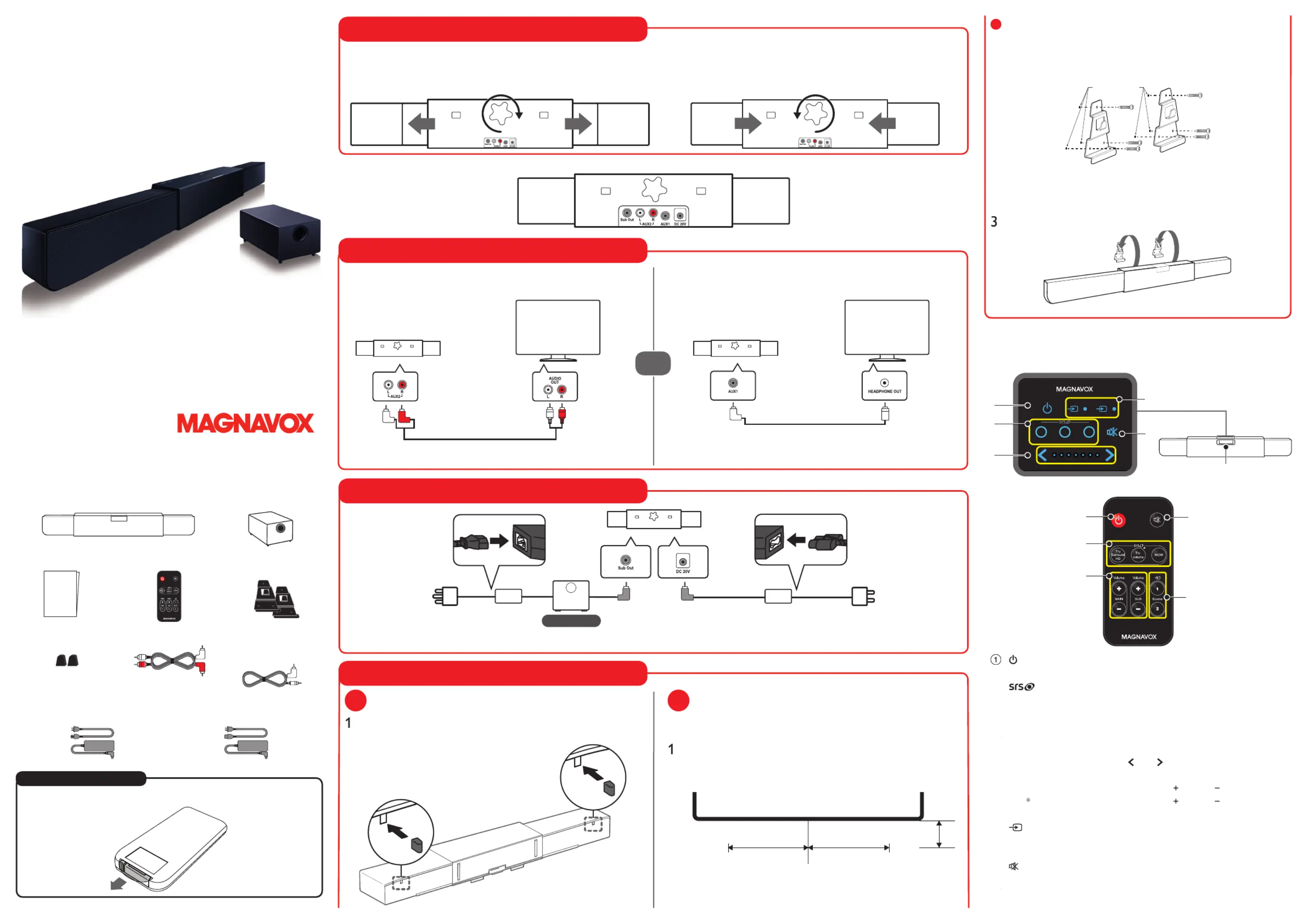

Quick Start Guide
Quick Start Guide
Remote Control
and
Battery
Mounting Bracket
( x 2)
Speaker feet
for table top
Analog Audio L / R cable
3.5mm MP3 / Headphone
connection cable
(3.5mm - 3.5mm)
AC - DC Adapter
and
AC power cord
for Soundbar
AC - DC Adapter
and
AC power cord
for Subwoofer
(MSB5305 only)
Before you move to Step 1
You must take an insulation sheet out before you use the remote control.
Quick Start Guide
MSB5305
MSB5300
Step1 Adjusting the length of this Soundbar
You can adjust the length of the unit to fi t your TV screen size (from 32 to 46 inch) using rotary knob at rear of this unit.
(The factory default is minimum length of the unit.)
To extend the Soundbar
•
Turn rotary knob clockwise.
To shorten the Soundbar
•
Turn rotary knob counter clockwise
Check Soundbar rear jack panel and its layout before you proceed with Step 2.
Step2 Connect to your TV
If your TV has an Audio Out L / R
If your TV has no Audio Out L / R, but has a
Headphone jack
•
If you connect to your TV through supplied 3.5mm MP3 / Headphone
connection cable, make sure that any surround mode, auto volume function
and TV speakers on your TV are Off. (See reverse page for volume setup.)
Step3 Connect to the Power and Subwoofer
Subwoofer
MSB5305 only
AC-DC
Adapter
DC 24V
AC-DC
Adapter
DC 20V
•
Make sure that
the Soundbar is not muted after you Turn the unit On.
Step4 Place the Soundbar
1
Table top placement
1
For secure table top placement, affi x 2 self-adhesive rubber feet to the
bottom of the expanded part of this unit using the below guide.
2
Wall mounting using brackets
You can use the Wall Mounting Template on the back of this page to mark the
Top screw positions. (Mounting Bracket Screws are not included)
1
Measure your TV width to fi nd the center, then 3 15/16 from the center
line mark the 2 top screw positions which are 2”(min.) to 2-½”(max.)
from the bottom edge of the TV. Then mark the other 4 bottom screw
positions using the brackets.
2”
YourTV
3-15/16”3-15/16
”
Center line
- 2-½”
Continued in 2 above.
2
Continued
2
It is recommended to use drywall Molly anchors that have a minimum
of 5 lbs. holding strength to use with these brackets. Mount the 2
Mounting Brackets where you marked the six screw holes for the Molly
anchor locations.
Six screw positions
you marked
•
Make sure that both brackets are securely mounted to the drywall.
•
Make sure that the width of this Soundbar fi ts your TV screen size
and the power cord / audio cables are securely connected before wall
mounting the Expandable Soundbar.
3
Hook the Soundbar onto Mounting Brackets.
.
Complete.
Controls and functions
Control panel
1 2
TruVolume WOW MuteTruSurround
f
b
c
a
e
d
Remote control
d
e
b
a
c
(POWER-ON / STANDBY-ON)
Press to Turn the unit On or go into Standby mode.
b
TruSurround HD
To Turn On the SRS Trusurround HD.
TruVolume
To Turn On SRS TruVolume.
WOW
To Turn On SRS WOW.
c
Volume
[Control panel]
Touch to adjust volume down (
) / up (
) for Soundbar.
[Remote control]
MAIN
Press to adjust volume up (
+
) / down (
−
)
for Soundbar.
SUB
*
Press to adjust volume up (
+
) / down (
−
) for Subwoofer.
* This function only works for MSB5305.
d
Source
Press to select source 1 (AUX1) or source 2 (AUX2) of connected
devices to this Soundbar
e
Mute
P
ress to mute the sound and recover the sound.
f
Infrared sensor
Receives IR signals from remote control.
(M only)SB5305
Expandable Soundbar Speakers
OR
MAGNAVOX is a registered trademark of Philips Electronics North America Corporation and is used by
Funai Electric Co., Ltd. and Funai Corporation, Inc. under license from Philips Electronics North America
Complete.
Troubleshooting
Symptom Remedy
No power
•
Make sure the AC power cord is plugged in.
•
Make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the
AC outlet to ensure that the AC outlet operates normally.
•
If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself
No sound or distorted sound
•
Check if the Power is On
•
Check whether all the cables are connected to the correct Output jack of your device
•
Make sure that the selected
Source
is connected to the working Input jack.
•
Make sure that the sound is not muted
•
Make sure that SRS functions and Auto volume settings of your TV are Turned Off when you
connect to your TV or MP3 player through supplied 3.5mm MP3 / Headphone cable
No reaction to the remote
control
•
Make sure the AC power cord is plugged in.
•
Check the batteries in the remote control to ensure they are good.
•
Reduce the distance to the unit.
•
Re-insert the batteries with their polarities (+/–) as indicated.
Control buttons do not work.
•
Press only one button at a time. Do NOT press more than one button at the same time.
•
Unplug the AC power cord and wait for about 1 minute, then plug the AC power cord and Turn On
the unit again.
No bass.
•
Make sure the AC power cord is plugged into the Subwoofer.
•
Make sure Subwoofer’s main power Switch is Turned On
Specifi cations
Model #
MSB5305
MSB5300
Power requirements
Soundbar
DC 20V
Subwoofer
DC 24V
-
Dimensions (W x D x H)
Soundbar
30.3~44.3 x 3.4 x 4.3 inches
(769~1123 x 86 x 109 mm)
Subwoofer
8.8 x 13.4 x 7.3 inches
(223 x 339 x 185 mm)
-
Weight
Soundbar
7.48 lbs. (3.4 kg)
Subwoofer
7.7 lbs. (3.5kg)
-
•
Specifi cations are subject to change without prior notice.
•
For detail specifi cation, please see our online Owner’s Manual
LIMITED WARRANTY
FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows
DURATION:
PARTS:
FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Certain parts are
excluded from this warranty.
LABOR:
FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.
Note: Any product sold and identifi ed as refurbished or renewed carries a ninety (90) days labor and parts limited warranty
LIMITS AND EXCLUSIONS:
THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT OR OTHER PROOF OF ORIGINAL RETAIL
PURCHASE WILL BE REQUIRED TOGETHER WITH THE PRODUCT TO OBTAIN SERVICE UNDER THIS WARRANTY
This warranty shall not be extended to any other person or transferee
This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized
service center. This limited warranty does not apply to any product not purchased and used in the United States
This warranty only covers failures due to defects in material or workmanship which occur during normal use. It does not cover damage which occurs in shipment
or failures which are caused by repairs, alterations or products not supplied by FUNAI CORP., or damage, which results from accident, misuse, abuse, mishandling
misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or offi ce use of this product, or damage which results from
fi re, fl ood, lightning or other acts of God
THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE
ASSEMBLY PARTS, DEMO OR FLOOR MODELS. FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL
NDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS
WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER
WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNA
AND ITS REPRESENTATIVES INTHE UNITED STATES. ALLWARRANTY INSPECTIONSAND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVIC
CENTER
THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO AN AUTHORIZED SERVICE CENTER
THE PRODUCT MUST BE ACCOMPANIED BY A COPY OFTHE ORIGINAL RETAIL PURCHASE RECEIPT.
F NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIR COSTS WILL BE CHARGED
IMPORTANT
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME
DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNA
CORP.
ATTENTION:
FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE
WARRANTY STATEMENT REGARDING NON AUTHORIZED REPAIRS:
To obtain warranty service, you must take the product, or deliver the product freight prepaid, in either its original packaging or packaging affording an equal degree
of protection, to any AUTHORIZED SERVICE CENTER. FUNAI CORP. will not reimburse you for any service done by unauthorized service providers withou
prior written approval.
To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at
Funai Corporation Inc.
Tel: 1-800-605-8610
www.magnavox.com/support
2200 Spiegel Drive, Groveport, OH 43125
3-15/16” 3-15/16”
Center line
Wall Mounting Template
*Using Mounting Bracket illustration here is a sample.
The actual brackets are bigger than this illustration.
Printed in China
★★★★

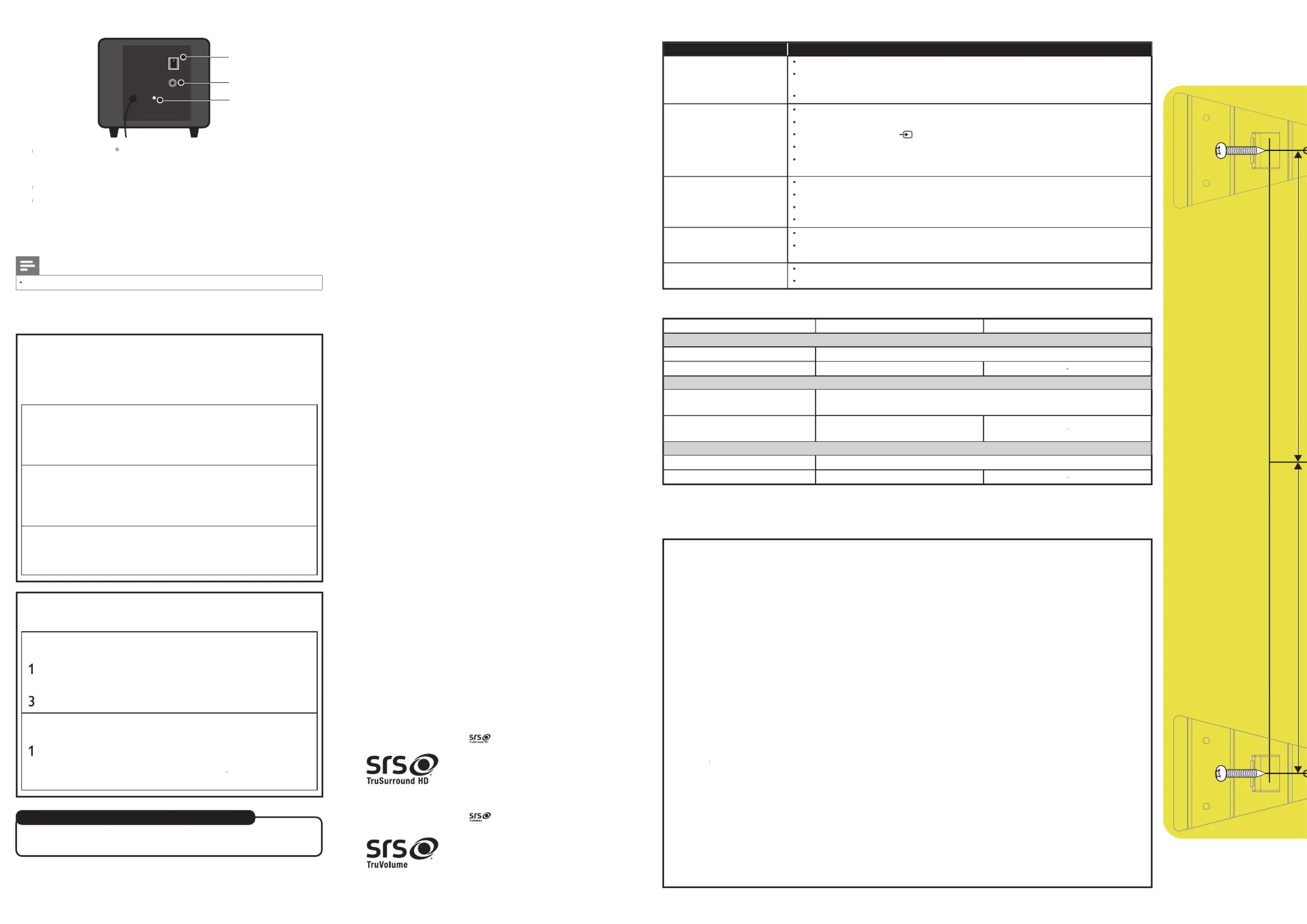

Subwoofer (MSB5305 only)
POWER
ON
OFF
DC IN
24V
g
h
i
g
Main power switch
g
*
To turn the Subwoofer’s main power On or Off.
* This function only works for MSB5305.
h
DC 24V IN
h
i
Power On indicator
i
Lights up green when Subwoofer is Turned On.
Lights up red when Subwoofer goes into Standby mode.
Subwoofer will go into Standby mode automatically if there is no signal
nput from the Soundbar for 10 seconds.
Note
•
To completely Turn Off the unit, you must unplug the AC power cord
Hint for better acoustic setting
What is SRS acoustic advantage?
Many movies and much music has been recorded at studios by applying SRS
technology to enhance better sound reproduction and clarity for maximum
entertainment.
You can fi nd one that works best for you.
SRS TruSurround HD :
Creates an immersive, feature-rich surround sound
experience from two Speakers, complete with rich
bass, high frequency and clear speech.
(Note: It includes SRS WOW effect already, so no
need to Turn On SRS WOW at the same time.)
SRS TruVolume :
Maintain the steady volume between different
signal sources such as TV, Music, and MP3 and so
on without volume fl uctuation. It works on TV
commercials where some TV commercial increase
volume level.
SRS WOW :
Signifi cantly improves the playback quality of Audio,
with dynamic deep, rich bass. It works when you
have decreased volume level but need good bass
sound.
How to adjust Soundbar volume level for optimum
acoustic performance
When you connect to your TV through supplied 3.5mm
MP3 / Headphone connection cable
1
Adjust TV Volume to 0.
2
Adjust Soundbar volume to turn on level indicator three or four.
3
Adjust TV volume to your desired level.
When you connect to your MP3 player through supplied 3.5mm
MP3 / Headphone connection cable
1
Adjust MP3 player volume about ¾ level of full volume.
2
A
djust
S
oundbar volume at your desired volume
You can adjust Soundbar volume from MP3 player.
If your TV is connected to Soundbar by Audio Out L/R
f your TV connection to Soundbar is made by RCA Audio L/R, then you can
connect your MP3 Player by using 3.5mm wire connector supplied.
SAFETY INSTRUCTIONS
Read and understand all instructions before you use your SoundBar. If damage is
caused by failure to follow instructions, the warranty does not apply.
Risk of electric shock or fire
•
Never expose the product and accessories to rain or water. Never place
iquid containers, such as vases, near the product. If liquids are spilt on or
nto the product, disconnect it from the power outlet immediately. Contact
Funai Corporation Inc. to have the product checked before use.
•
Never place the product and accessories near naked fl ames or other heat
sources, including direct sunlight.
•
Never insert objects into the ventilation slots or other openings on the
product.
•
Where the AC plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable.
•
Disconnect the product from the power outlet before lightning storms.
•
When you disconnect the power cord, always grasp the plug, never the cable.
Risk of short circuit or fi re
•
Before you connect the product to the power outlet, ensure that the power
voltage matches the value printed on the back or bottom of the product.
Never connect the product to the power outlet if the voltage is different.
Risk of injury or damage to the SoundBar
•
For wall-mountable products, use only the supplied wall mount bracket.
Secure the wall mount to a wall that can support the combined weight
of the product and the wall mount. Funai Corporation Inc. bears no
responsibility for improper wall mounting that results in accident, injury or
damage.
•
Never place the product or any objects on power cords or on other
electrical equipment.
•
f the product is transported in temperatures below 43°F (5°C), unpack the
product and wait until its temperature matches room temperature before
connecting it to the power outlet.
•
Handle with care to avoid injury and damage.
•
Do not place the unit on the furniture that is capable of being tilted by a
child and an adult leaning, pulling, standing or climbing on it. A falling unit
can cause serious injury or even death.
Risk of overheating
•
Never install this product in a confi ned space.
•
Always leave a space of at least 2 inches around the product for ventilation.
Ensure curtains or other objects never cover the ventilation slots on the
product.
Risk of contamination
•
Danger of explosion if batteries are incorrectly replaced. Replace only with
the same or equivalent type.
•
Remove batteries if they are exhausted or if the remote control is not to be
used for a long time.
•
Batteries contain chemical substances, they should be disposed of properly.
Risk of swallowing batteries
•
The product / remote control may or may not contain a coin / button type
battery, which can be swallowed. Keep the battery out of reach of children
at all times! If swallowed, the battery can cause serious injury or death.
IMPORTANT NOTES:
1.
Severe internal burns can occur within two hours of ingestion.
2.
f the battery has been swallowed, seek immediate medical attention.
•
When you change the batteries, always keep all new and used batteries out
of reach of children. Ensure that the battery compartment is completely
secure after you
replace the battery.
•
f the battery compartment cannot be completely secured, discontinue use
of the product. Keep out of reach of children and contact the manufacturer.
Trademark Information
is a trademark of SRS Labs, Inc.
TruSurround HD technology is incorporated
under license from SRS Labs, Inc.
SRS TruSurround HD™ creates an immersive,
feature-rich surround sound experience from
two speakers, complete with rich bass, high
frequency detail and clear dialog.
is a trademark of SRS Labs, Inc.
TruVolume technology is incorporated under
icense from SRS Labs, Inc.
TruVolume™ maintains a steady volume,
allowing listeners to set their desired volume
evel once to enjoy television, music and all
other content without annoying volume
fl uctuations.

Product specificaties

Merk: Magnavox
Categorie: Speaker
Model: MSB5300

Heb je hulp nodig?

Als je hulp nodig hebt met Magnavox MSB5300 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden


Handleiding Speaker Magnavox

Magnavox

Magnavox MD6924 Handleiding

7 Januari 2025
Magnavox

Magnavox MD6920 Handleiding

7 Januari 2025
Magnavox

Magnavox MSH315V Handleiding

7 Januari 2025
Magnavox

Magnavox MSH317 Handleiding

7 Januari 2025
Magnavox

Magnavox MMA3626 Handleiding

7 Januari 2025
Magnavox

Magnavox MD6972 Handleiding

7 Januari 2025
Magnavox

Magnavox MD6923 Handleiding

7 Januari 2025
Magnavox

Magnavox MMA3628 Handleiding

7 Januari 2025
Magnavox

Magnavox MHT833 Handleiding

7 Januari 2025
Magnavox

Magnavox MHT913R Handleiding

7 Januari 2025

Handleiding Speaker

Nieuwste handleidingen voor Speaker

Electro-Voice

Electro-Voice Sx600 Handleiding

8 Januari 2025
Electro-Voice

Electro-Voice XLE191-FG Handleiding

8 Januari 2025
Sonance

Sonance MAG6R Handleiding

8 Januari 2025
Sonance

Sonance MAG5.1R Handleiding

8 Januari 2025
Duronic

Duronic BX48 Handleiding

8 Januari 2025
Sonance

Sonance Visual Performance VP38R Handleiding

8 Januari 2025
Sonance

Sonance Visual Performance Extreme VPXT8R Handleiding

8 Januari 2025
Definitive Technology

Definitive Technology Dymension LS-80 Handleiding

7 Januari 2025
Definitive Technology

Definitive Technology Dymension Outdoor LS- Handleiding

7 Januari 2025
Definitive Technology

Definitive Technology Dymension LS-400 Handleiding

7 Januari 2025
